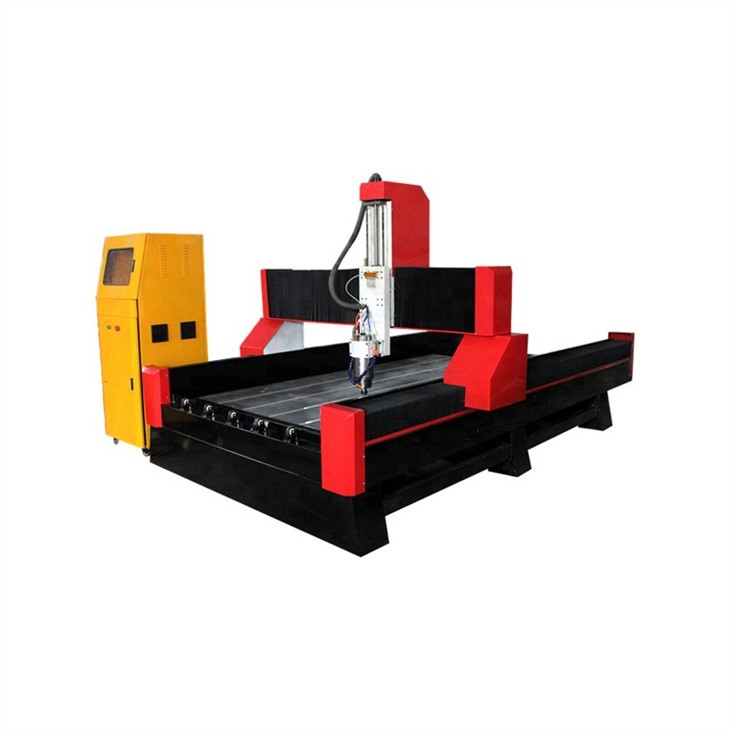

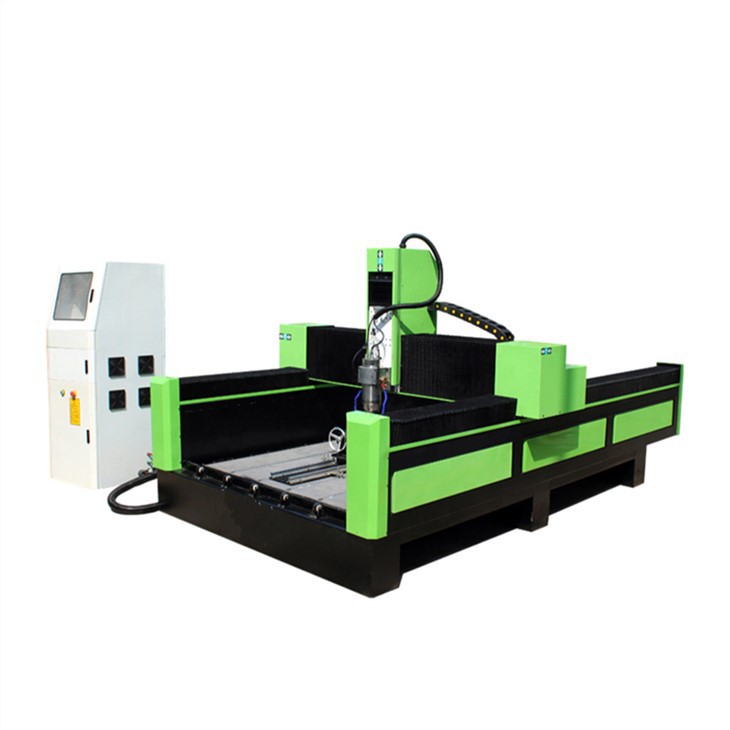

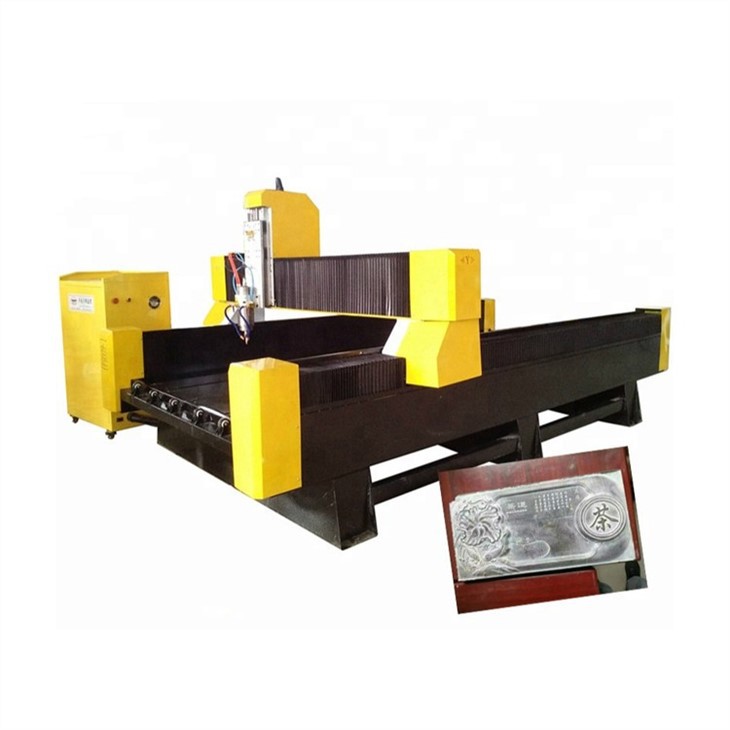

CNC 3D Stone Engraving Machine
This machine is a versatile machine that can do traditional work such as lettering, engraving, cutting, drilling and so on. It is worth noting that in order to meet the customer's demand for processing stone countertops, Alpha has improved the machine, such as: lengthening the gantry beam to facilitate workers to load and unload the workpiece. The vacuum pump and vacuum cups are added to raise the workpiece and vacuum suck the workpiece. This allows the machine to process the sides of the slab, such as cutting, shaping, and polishing the sides of the workpiece.
Main Features:
★Type heavy duty Machine structure, good weight bearing capacity, not easy to deformation, the special machine bed design, can bearing more than 2000kgs materials.
★ The special designed Zaxis, can increase the stone relief accuracy, can solve the Zaxis belt or ball screw breaking problem thoroughly.
★ The water proof and dust proof system for X Y Zaxis, can protect all the parts, reduce the machine fault, enlarge the life time.
★ High-performance driven motor to ensure that the machines high speed and accuracy.
★ Using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.
★ Automatic tool calibration easy and accurate "Z" zero position for single and multiple tool changes
★ Easy to use Mach 3 controller works with all industry standard CAD/CAM software
★ High grade Hiwin square rail
★ XY axis German helical rack and pinion
★ Z axis high precision TBI ball screw
★ 900*1500mm, 1300*1800mm, 1300*2500mm, 1500*3000mm,1800*2500mm standard sizes (Special sizes available upon request.)
★ 1 spindle, 2 spindles or 3 spindles available upon request.
Specification

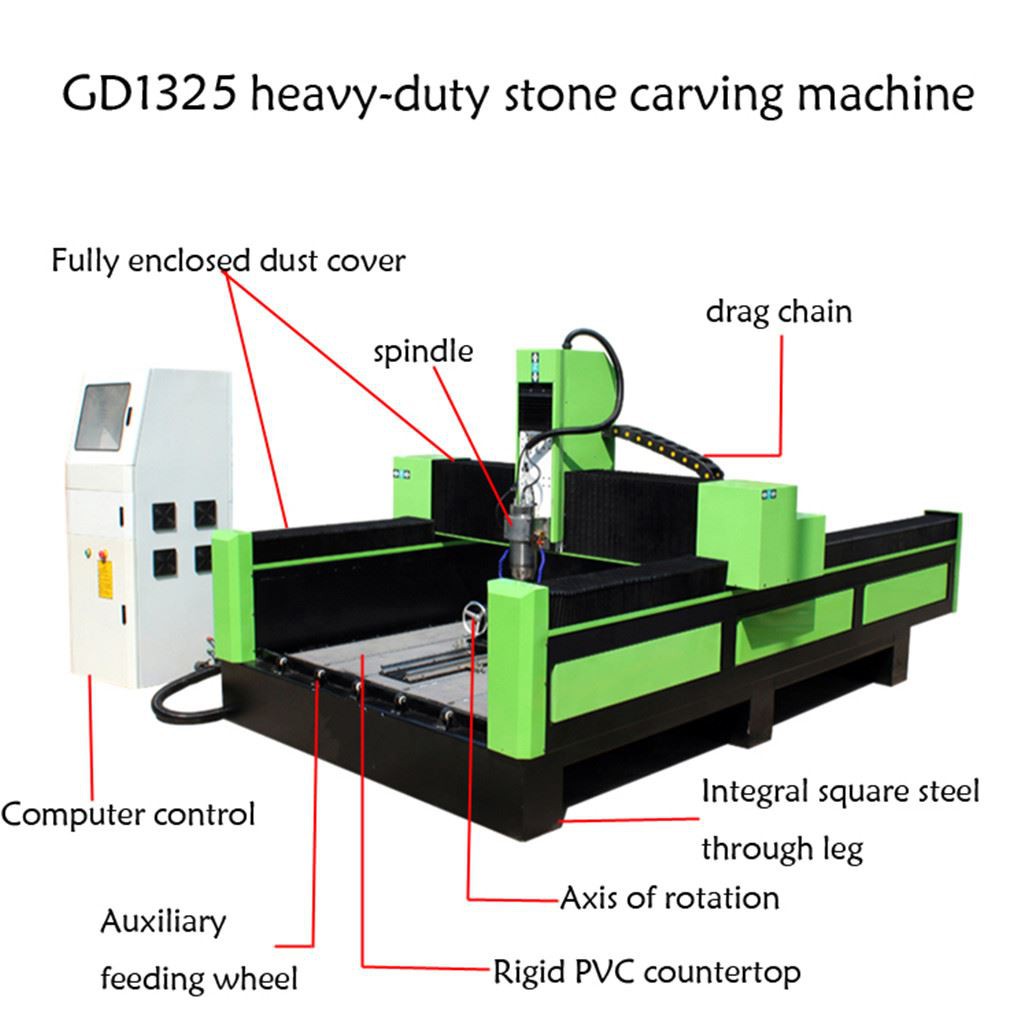

Mode | 2050 four head independent heavy-duty stone carving machine | 1325 heavy-duty stone carving machine | 1325 economical stone carving machine | |
Working size | 2000*2500*300mm | 1300*2500*300mm | 1300*2500*300mm | |
Frame | Welded structure | |||
Table surface | T-slot Table | |||
X Y Structure | Rack and Pinion Drive,Hiwin Rail Linear Bearings | |||
Z Structure | Ball Screw | |||
Spindle power | 3.5/4.5/5.5kw | |||
Drive motor | Stepper/Servo | |||
Inverter | Fuling or Sunfar | |||
Control system | Mach3 System (Optional:DSP) | |||
Working Voltage | 380V/3PH/50HZ | |||
Command Code | G code | |||
Software Compatibly | Artcam/Artengraver/Type3/V9/JD paint | |||
Packing Size | Wooden case | |||

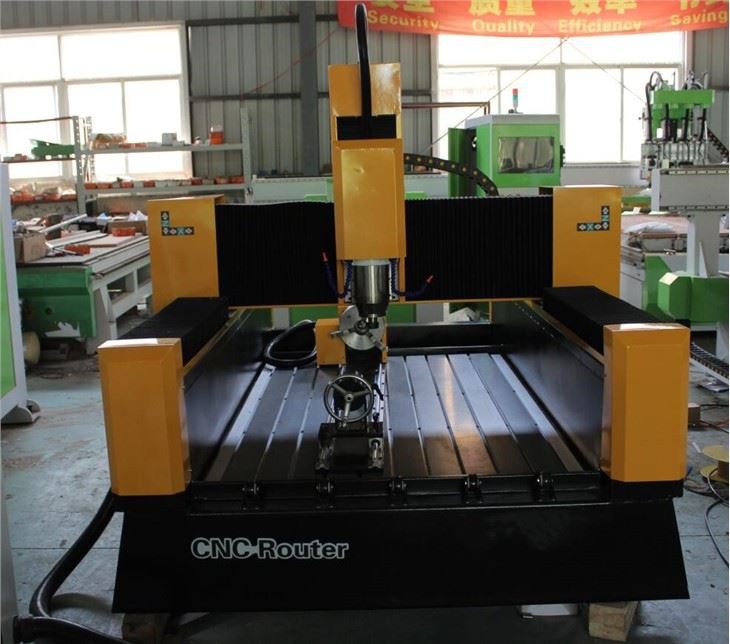

Machine Details

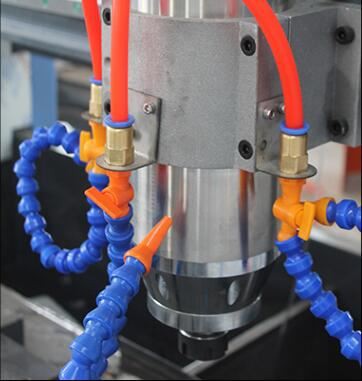

Water-cooled spindle special for stone Used a high-power 5.5 kw main shaft for stone, with a maximum speed of 24,000 rpm.The four bearing rotors work at the same time,with large torque, strong power, dust proof and waterproof, and long service life.Hard and soft stone and other materials can be handled in one machine. |

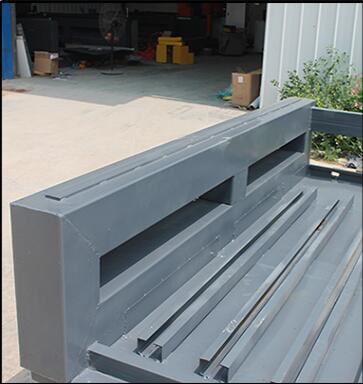

Thickened heavy bed The welding of thick-walled square steel is strengthened, the bottom beam is laid flat and reinforced, and the lathe bed is designed in U-shaped mechanics.The whole lathe bed gantry has strong stability. good rigidity and high strength,the chassis is stable, and the bearing capacity can reach 2 tons. |

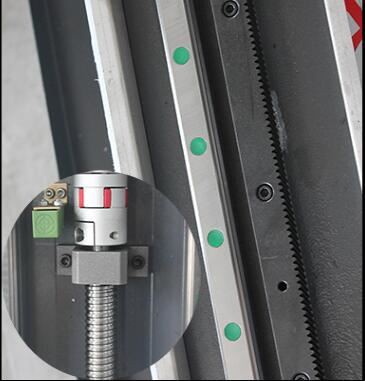

Square rail rack The imported high-precision grinding helical gear is matched with the imported linear square rail to improve the accuracy and ensure that the long-time work is not affected. |

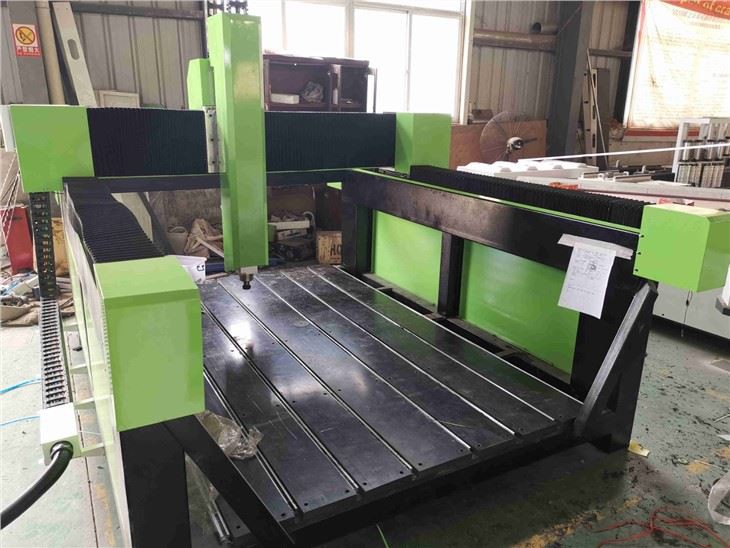

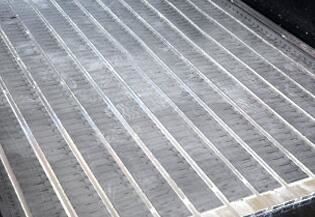

Aluminum profile + PVC table Large aluminum table, strong load-bearing, stable and durable, PVC table anti-skid protection aluminum table. |
Application
Advertising industry : used to engrave all kinds of board signs, plexiglass, three-dimensional billboards, two-color figure
statues, relief medals, organic board reliefs, three-dimensional door heads and so on.
Model industry: making sand table models, house models, mold making operation: printing bronzing mold, injection mold, stamp in mold,etc.
Wood industry: used for embossed pattern design and production.
Seal industry:seal engraving of various types of materials.
Automotive industry:tire molds, lamp molds and decorative mold processing.
Packing&Shipping

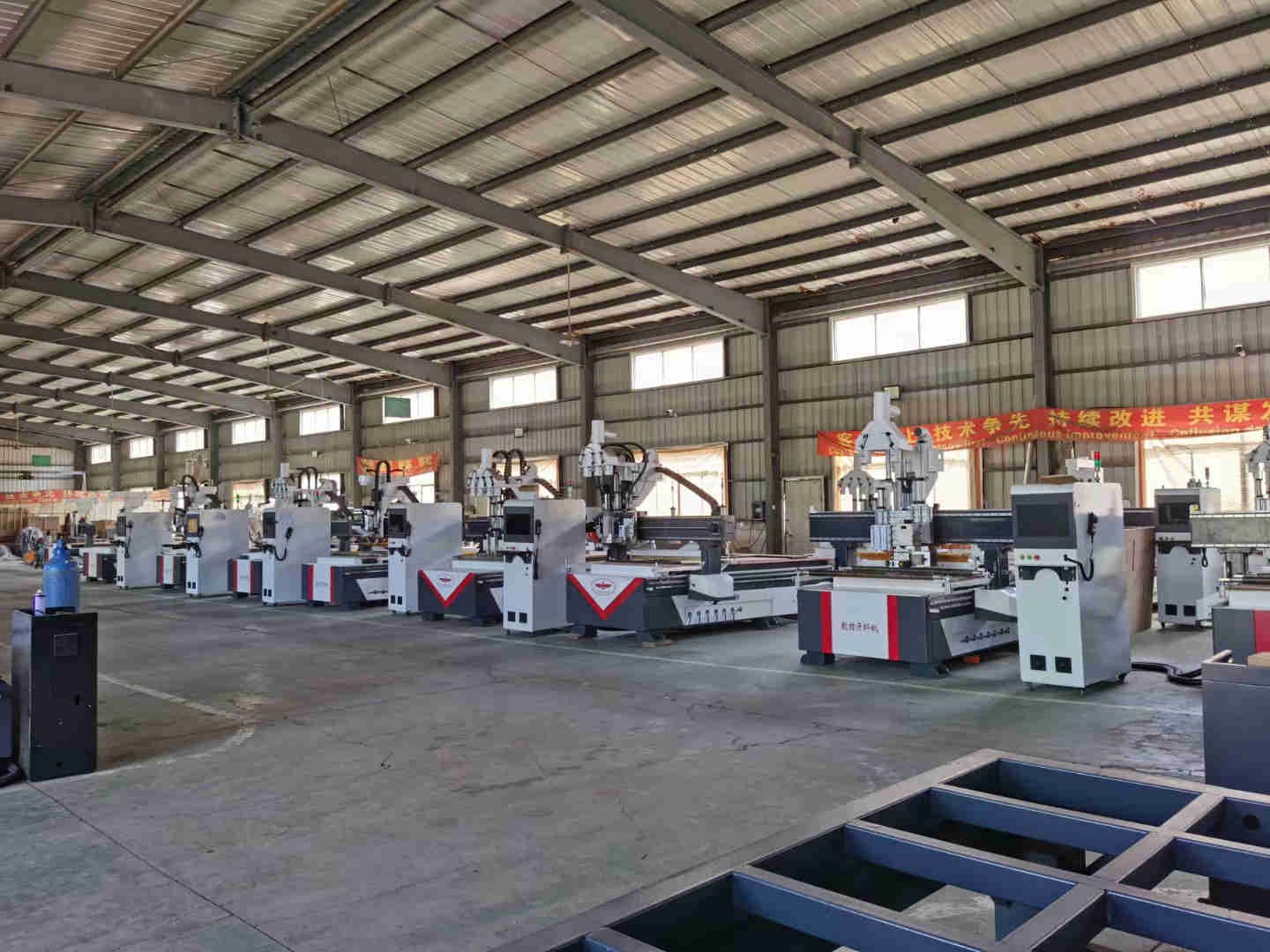

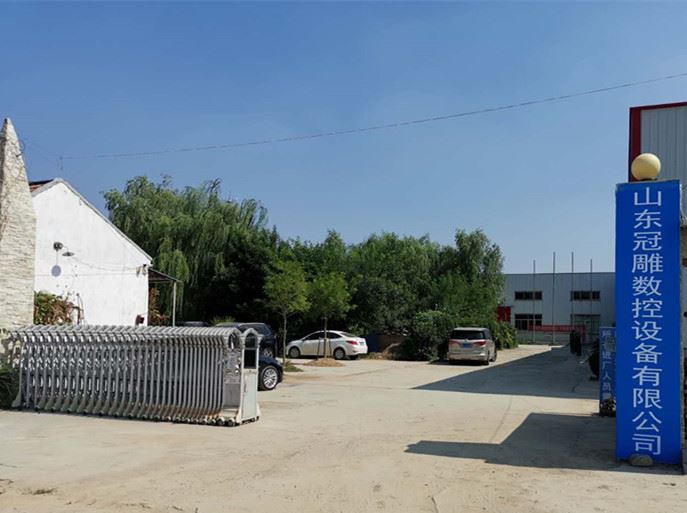

Company Profile
GUANDIAO CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
FAQ
Q1: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.
Q2: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q3 :How can I trust your company and your products?
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.
Q4.If machine have any problem after I ordered it, what could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24hours service from phone and skype.
