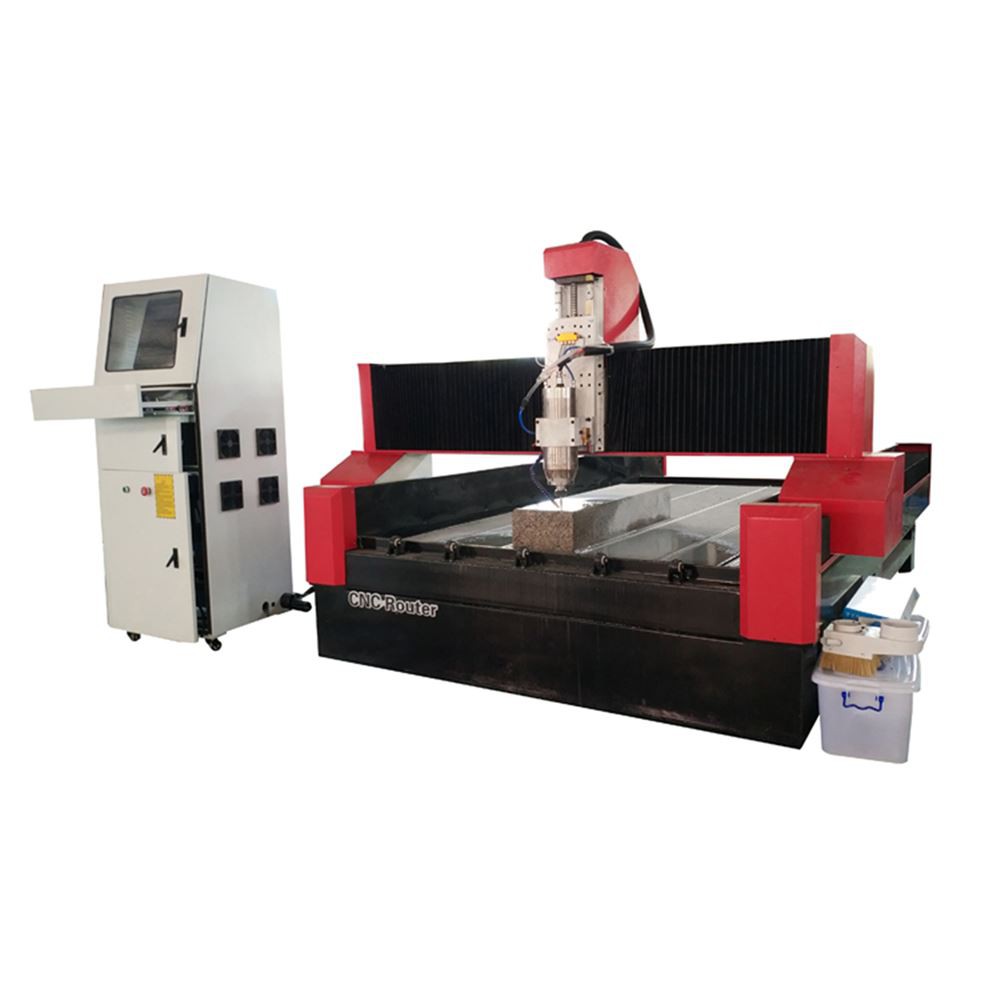

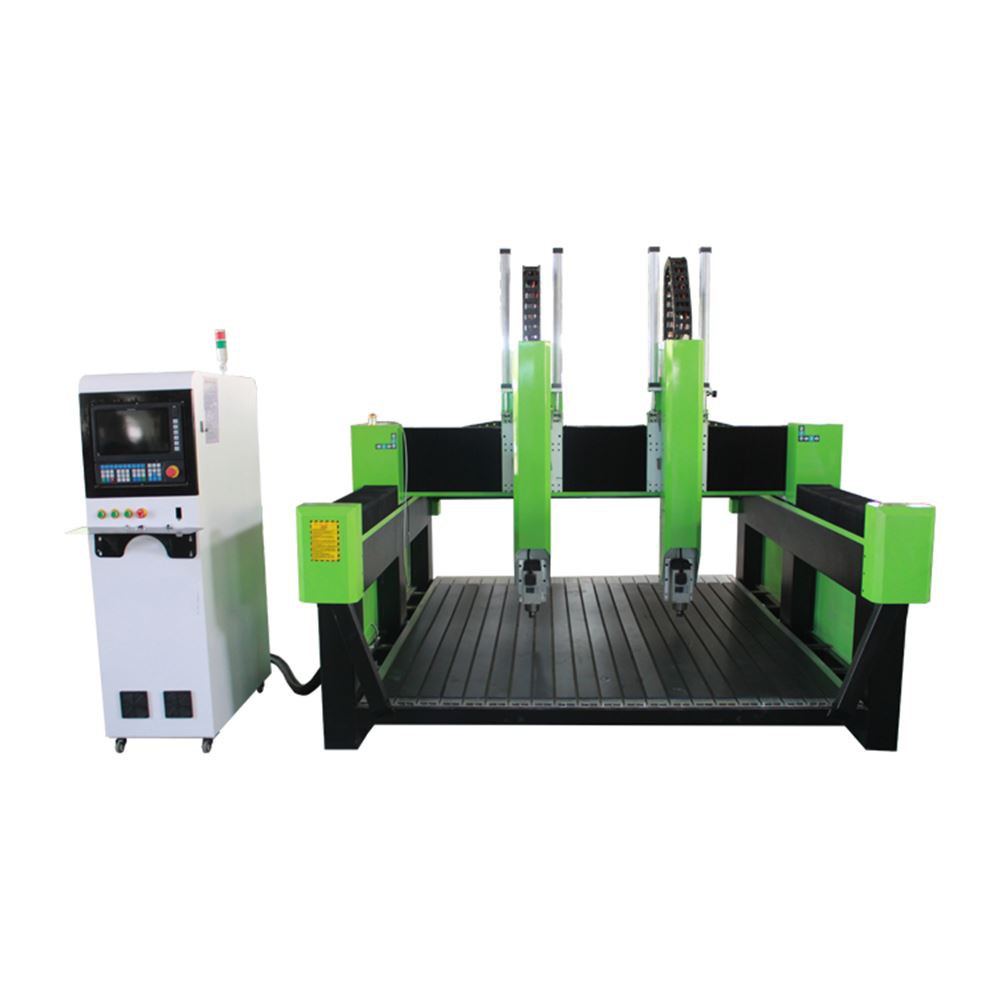

Production Introduction
Production features
1. Steel tube lathe bed,low center of gravity,strong bearing capacity,not easy to deformation,stable and reliable operation.
2. Adopt Ncstudio control system ,through computer operation,easy and simple to operate.DSP handle offline control is optional.
3. Adopt Taiwan linear guide rail. the bearing of the lead guide rail is face to face, the long time use precision is high.
4.Strong compatibility: compatible various CAD/CAM software like Type3/artcam/castmate/proe/Corelerow/Wentai.

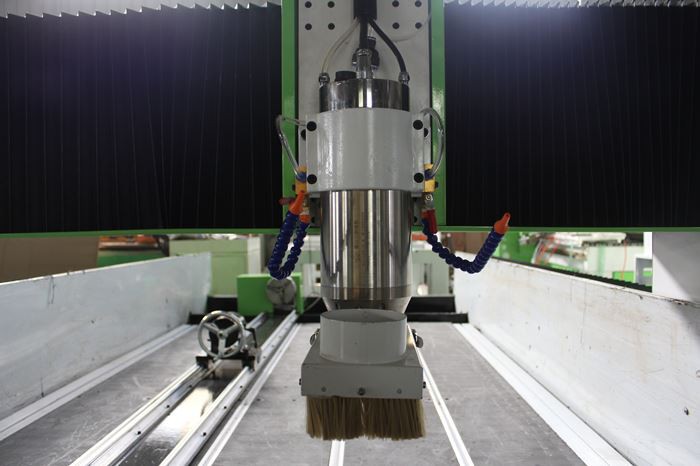

5.Adopt High power frequency changing water cooled spindle,providing excellent cooling effect when carving flinty materials,effectively protect spindle when continuous working for a long time.
technicial parameter
| Parameters | Standard Specifications GD1530 |
X,Y,Z Working Area for Panel | 2500*1300*300mm/3000*1500*300mm |
Spindle Power | 5.5KW Powerful Water Cooling Spindle |
X,Y,Z Traveling Positioning Accuracy | ±0.025mm |
Table Surface | Steel |
X,Y,Z Rail and Transmission | X/Y Helical German rack and pinion Z High precision TBI ball screw |
Max. Rapid Travel Rate | 30,000mm/min |
Max. Working Speed | 20,000mm/min |
Drive Motors | Yako or Leadshine |
Command Language | G code |
Operating System | Mach 3 |
guide rail | Taiwan 20mm guide rail |
control system | Nc studio/DSP/Mach 3/syntec/Lnc |

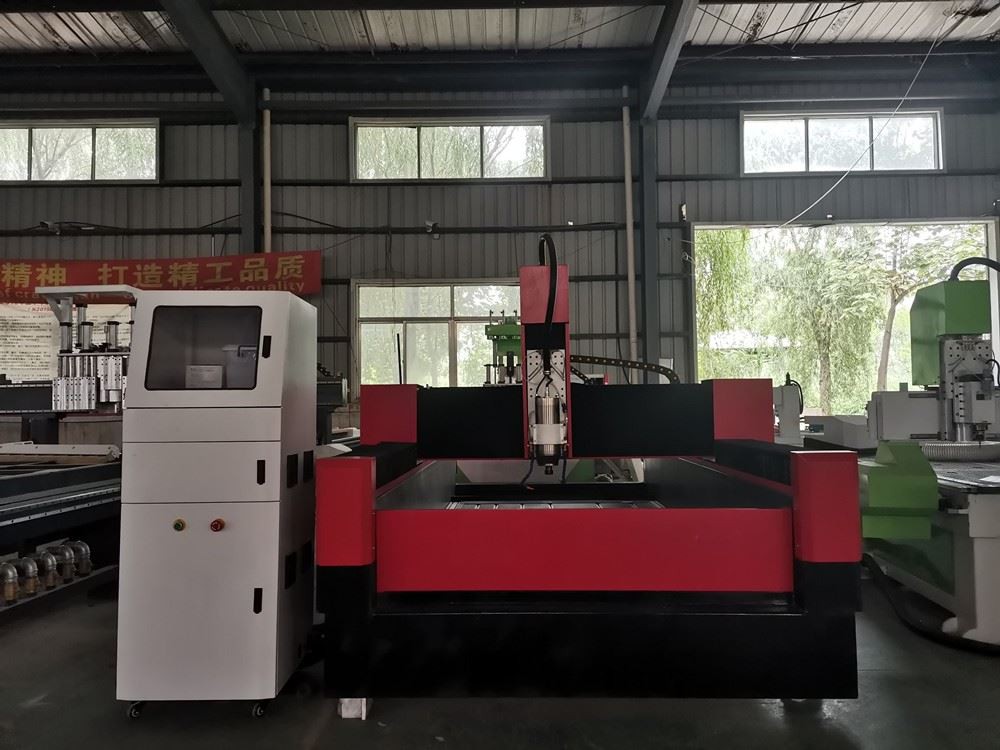

<machine details>
samples
about company
FAQ of our stone engraving machine
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
