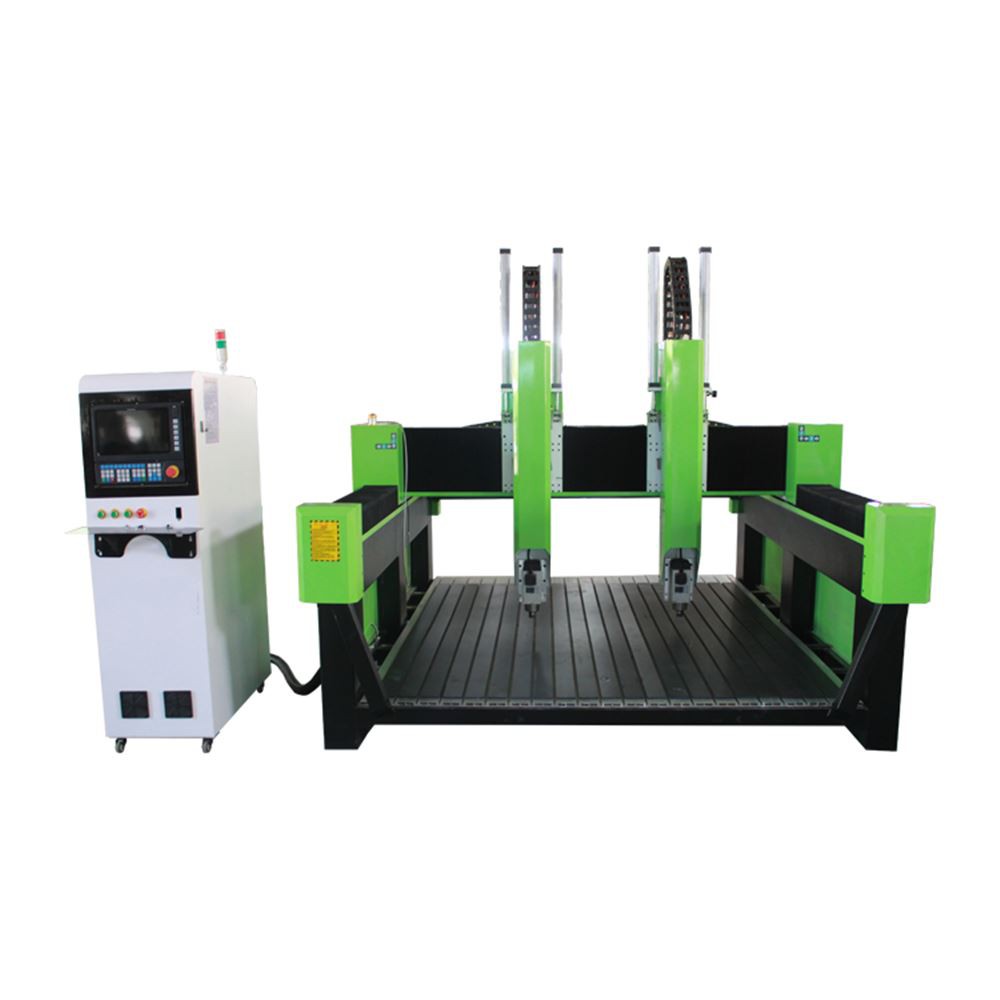

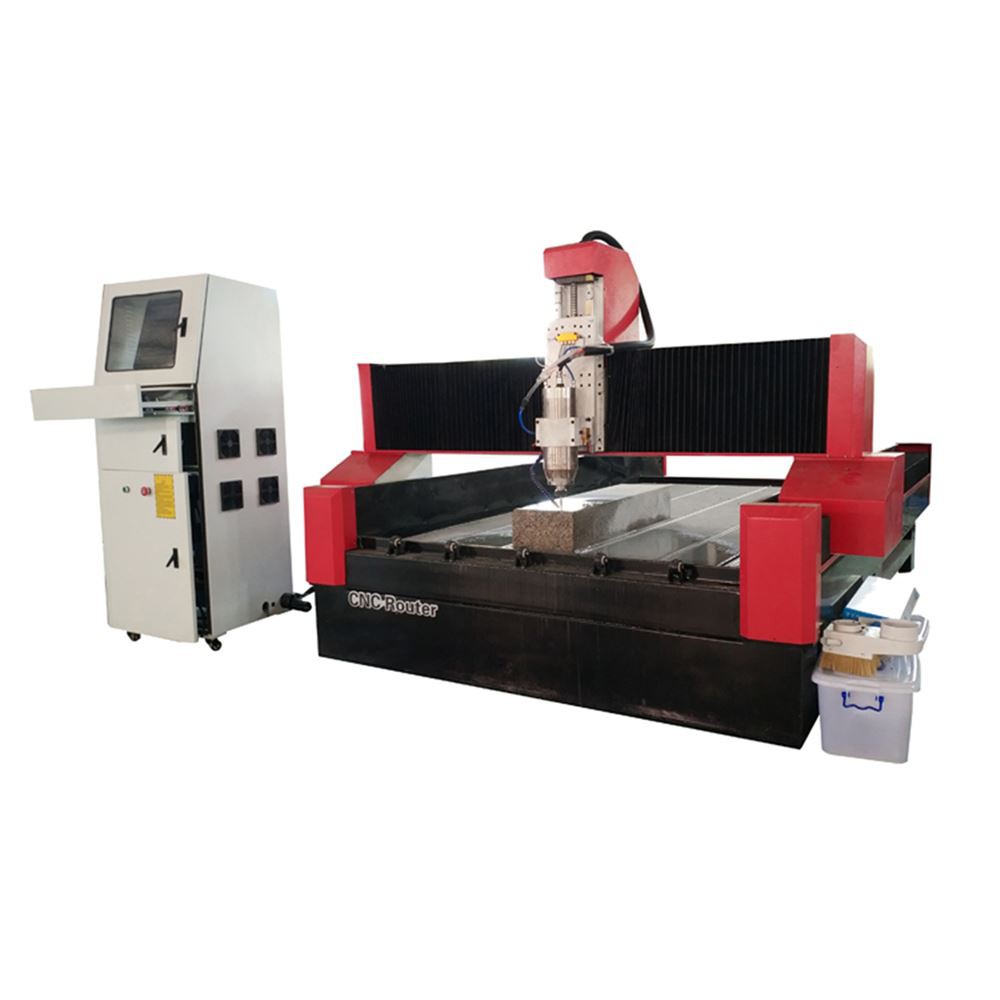

Production Introduction
Production features
★ heavy duty Machine structure, good weight bearing capacity, not easy to deformation, the special machine bed design, can bearing more than 2000kgs materials.
★ The special designed Zaxis, can increase the stone relief accuracy, can solve the Zaxis belt or ball screw breaking problem thoroughly.

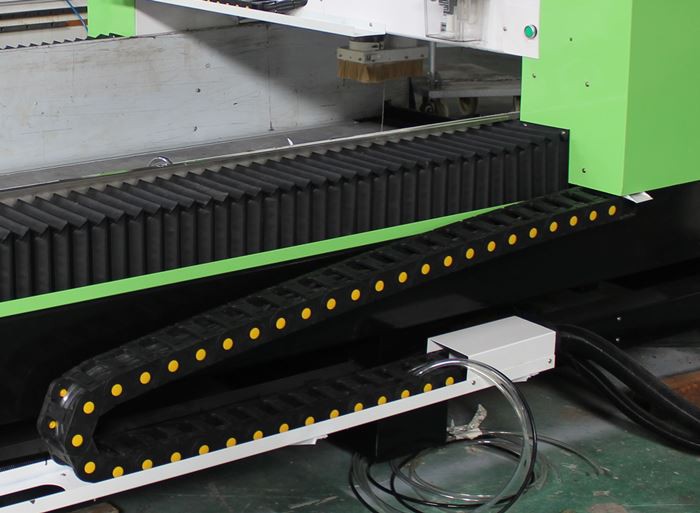

★ The water proof and dust proof system for X Y Zaxis, can protect all the parts, reduce the machine fault, enlarge the life time.
★ High-performance driven motor to ensure that the machines high speed and accuracy.

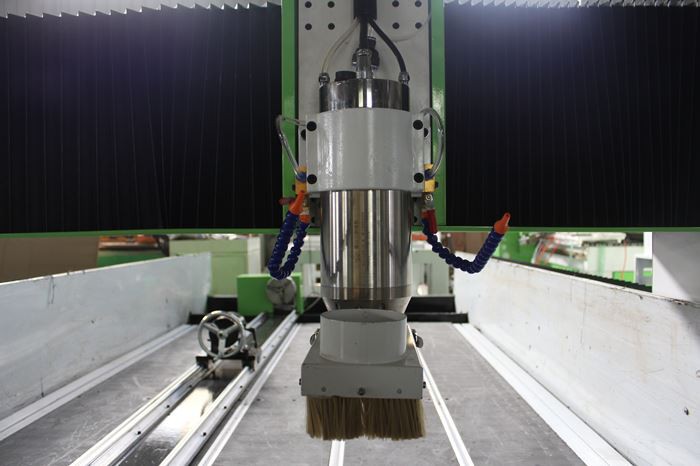

★ Using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.
★ Automatic tool calibration easy and accurate "Z" zero position for single and multiple tool changes
★ Easy to use Mach 3 controller works with all industry standard CAD/CAM software
★ High grade Hiwin square rail
★ XY axis German helical rack and pinion
★ Z axis high precision TBI ball screw
★ 900*1500mm, 1300*1800mm, 1300*2500mm, 1500*3000mm,1800*2500mm standard sizes (Special sizes available upon request.)
★ 1 spindle, 2 spindles or 3 spindles available upon request.
technicial parameter
| Parameters | Standard Specifications GD1530 |
X,Y,Z Working Area for Panel | 2500*1300*300mm/3000*1500*300mm |
Spindle Power | 5.5KW Powerful Water Cooling Spindle |
X,Y,Z Traveling Positioning Accuracy | ±0.025mm |
Table Surface | Steel |
X,Y,Z Rail and Transmission | X/Y Helical German rack and pinion Z High precision TBI ball screw |
Max. Rapid Travel Rate | 30,000mm/min |
Max. Working Speed | 20,000mm/min |
Drive Motors | Yako or Leadshine |
Command Language | G code |
Operating System | Mach 3 |
guide rail | Taiwan 20mm guide rail |
control system | Nc studio/DSP/Mach 3/syntec/Lnc |

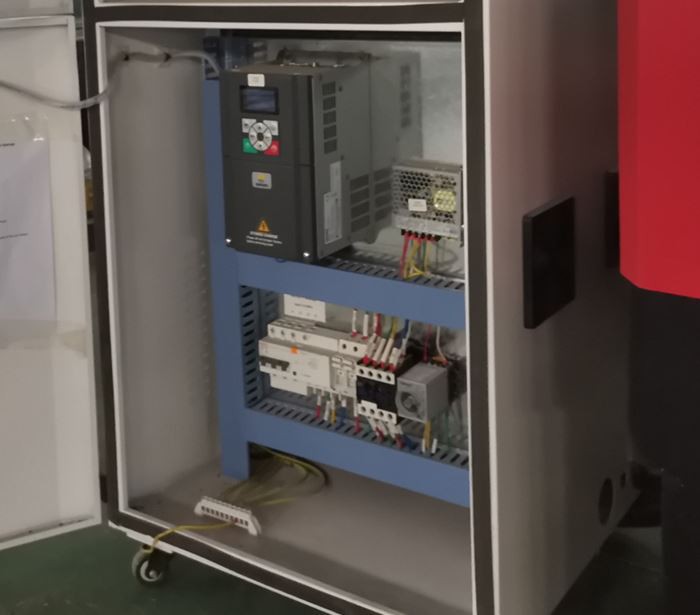

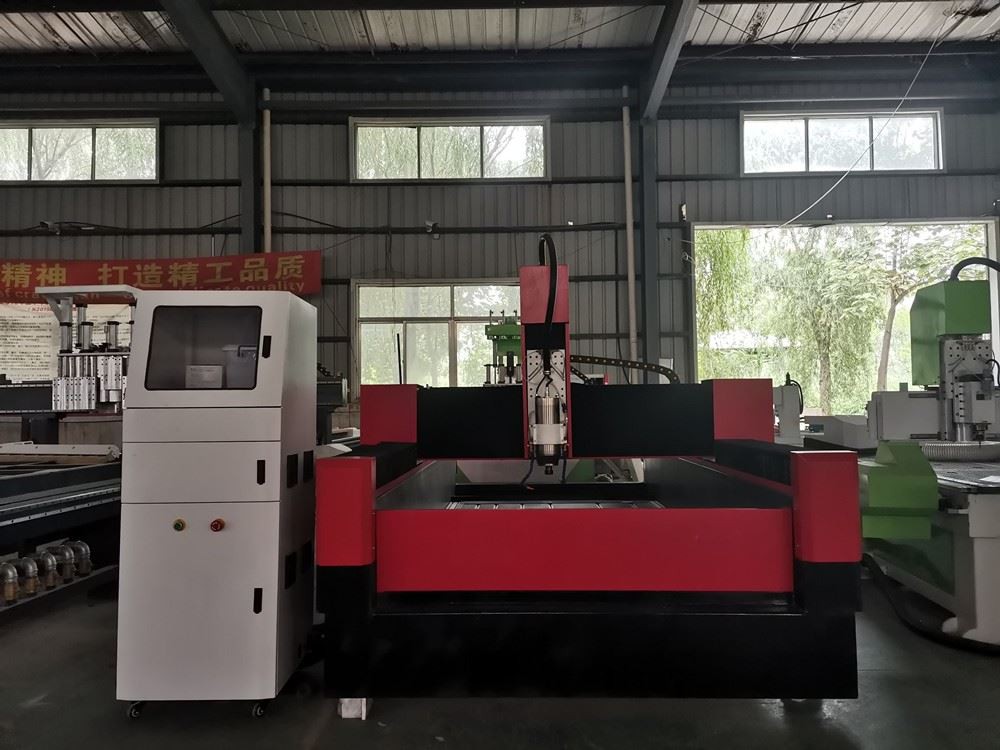

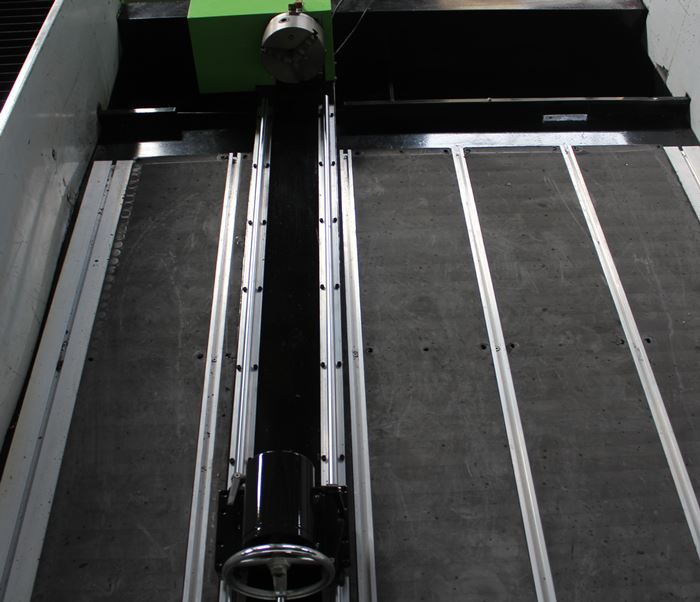

<machine details>

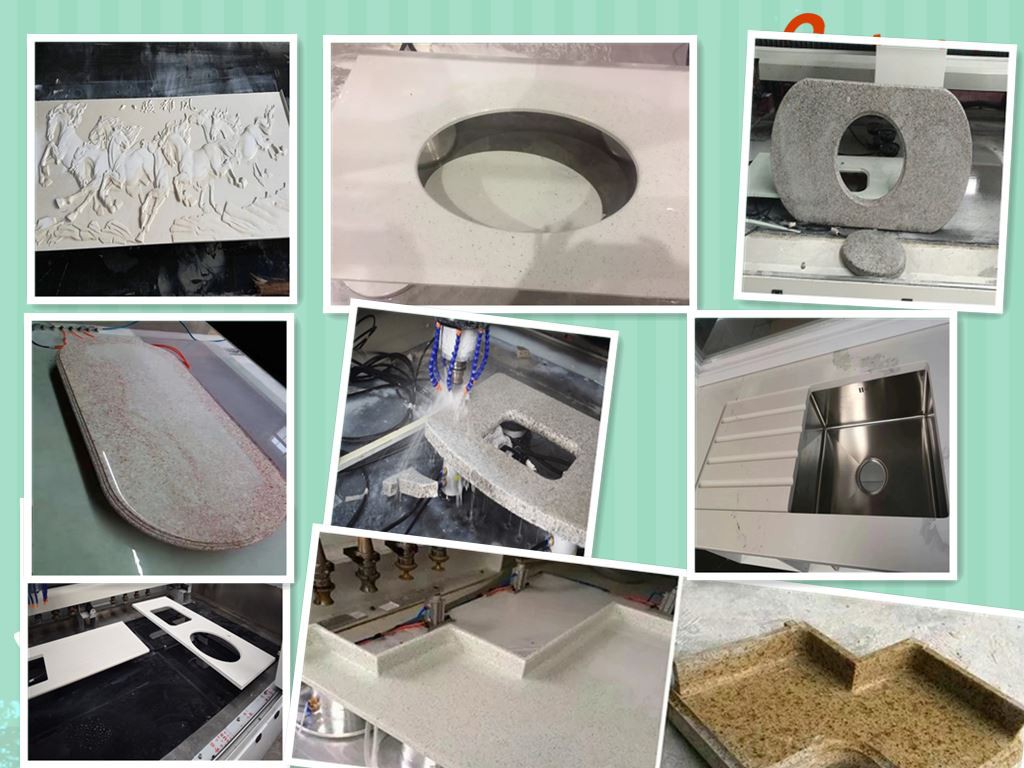

samples
about company
<FAQ>
Payment:
T/T,30% deposit and the balance 70% should be paid before shipment
Our main product:
CNC routers, CNC Engravers, laser engravers, plasma cutting machines, and knife cutting machines in China
Advantage of our company:
1.Experience and professional
2.Talented and passionate work team
3.high tech products
4.perfect after-sale service
To provide you detailed quotation, we need to confirm the following detailes :
1.what is raw material
2.the size of material
Your other requirement
Detailed information will be sent to you the moment we get your confirmation
