Product Description

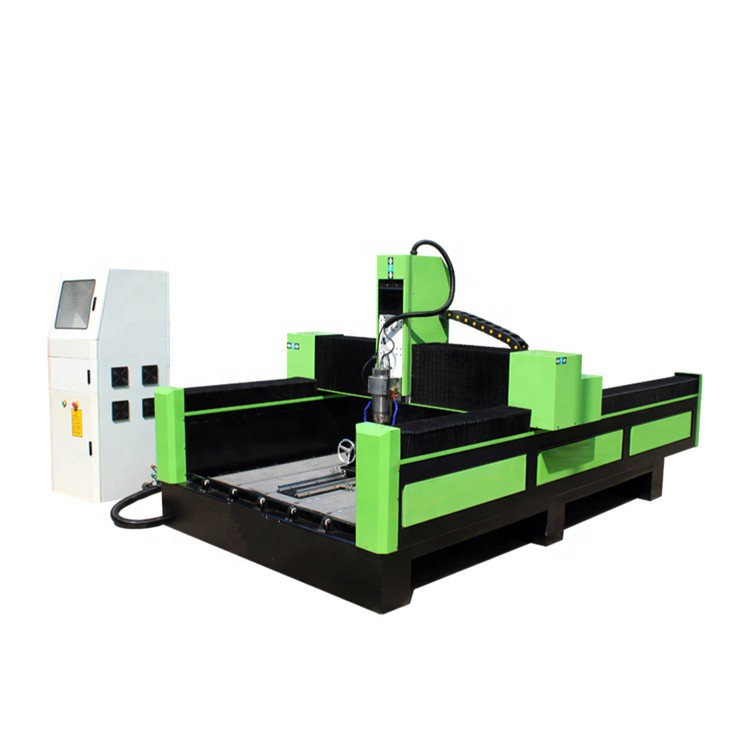

Stone Engraving Machine is our heavy duty type CNC Router for stone marble granite engraving with high power spindle, the standard size is 1300*2500mm. The machine size and color can be customized.
Features of machine
1. Steel tube lathe bed, low center of gravity, strong bearing capacity, not easy to deformation, stable and reliable operation.
2. Adopt Ncstudio control system, through computer operation, easy and simple to operate. DSP handle offline control is optional.
3. Adopt Taiwan linear guide rail. The bearing of the lead guide rail is face to face, the long time use precision is high.
4. German double nut automatically disappear gap ball screw.
5.Break point and break knife continue engraving function, can engrave at any place as you like.
6.Strong compatibility: compatible various CAD/CAM software like Type3/artcam/castmate/proe/Corelerow/Wentai.
7.Adopt High power frequency changing water cooled spindle, providing excellent cooling effect when carving flinty materials, effectively protect spindle when continuous working for a long time.
8.Axis Y with two spindles, guarantee the cutting strength and engraving precision.
Technical Parameters
|
1 |
Working Size |
1300*2500 |
mm |
|
2 |
Working Size |
<300 |
mm |
|
3 |
Max. No-load Speed |
25000 |
mm |
|
4 |
Max. Working Speed |
15000 |
mm |
|
5 |
Spindle Power |
5.5 water-cooled(24000rpm/min) |
kw |
|
6 |
rotational speed |
0-24000 |
rpm/min |
|
7 |
Diameter Range of Carving Knife |
3.175-12.7 |
mm |
|
8 |
Reposition Accurancy |
±0.05 |
mm |

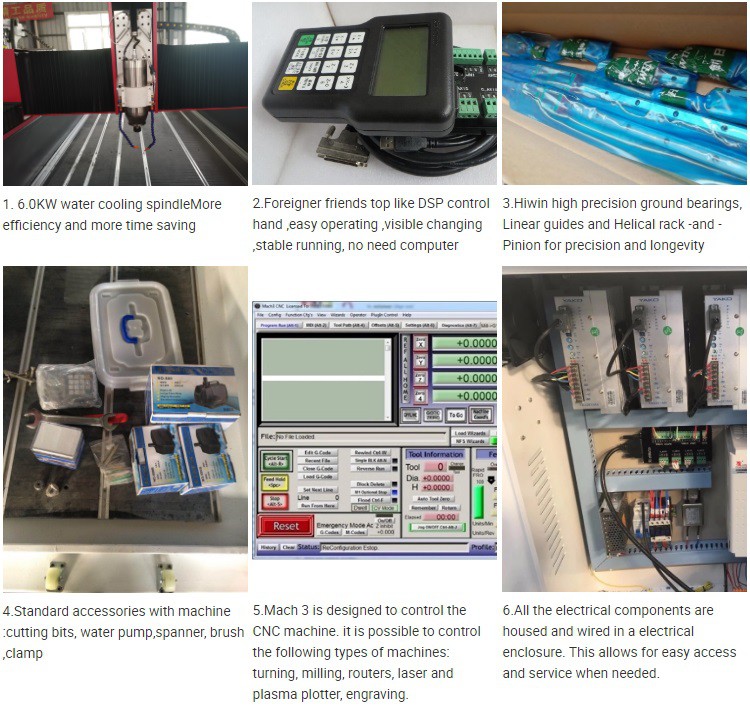

Machine Details

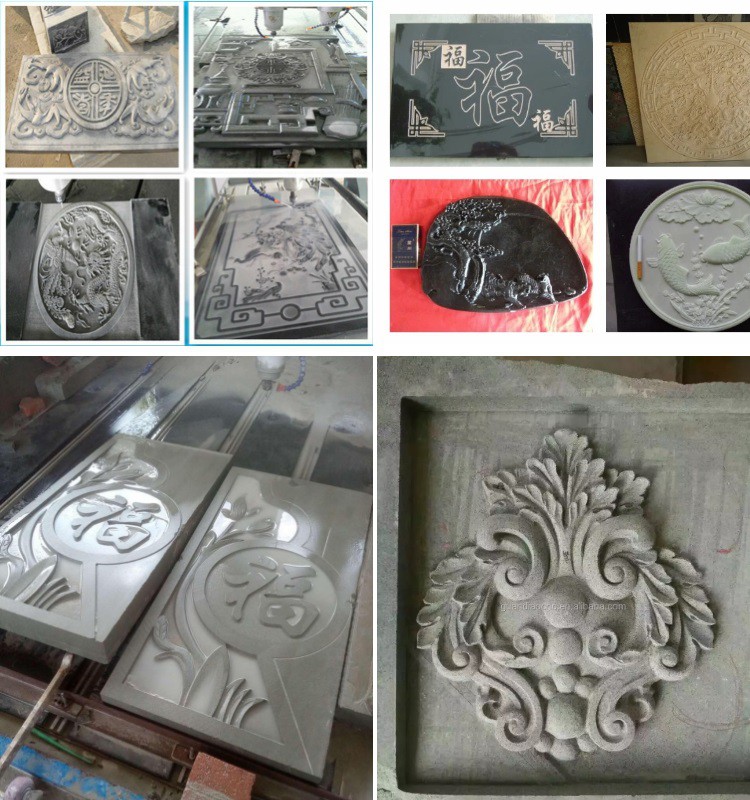

Applications
Suitable for cabinets artificial stone, quartz stone countertops and sink, tea tray caving, European style edging, and other heterosexual stone, ceramics, glass and ceramic stone drilling sanding, edge down, carving. 3D and 3D application including kitchen tops, shower plates, tombstones, bas-reliefs, grooving and lettering.
Packing & Shipping
1. No need for fumigation, plywood wooden case packing.
2. All the spare parts of the machine were covered by some soft materials, mainly avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly, make sure intact of the covered soft materials, also Waterproof and rustproof.
3. The bottom of the wooden case has firm iron jack, convenient for handling and transport.
e packing wooden case is after fumigation treatment. Needn’t timber inspection, saving shipping time.

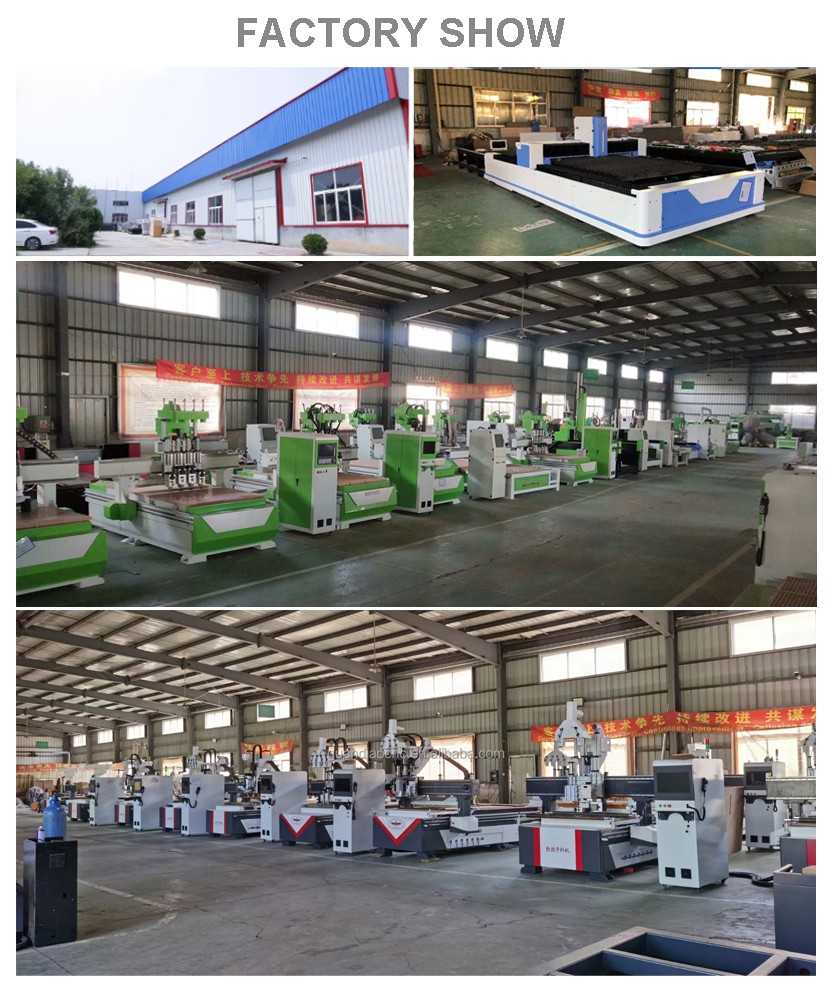

Our Company
Shandong Guandiao CNC Equipment Co., Ltd is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Guandiao.
