1325 Stone CNC Router-Guandiaocnc

Product Information

Product Description

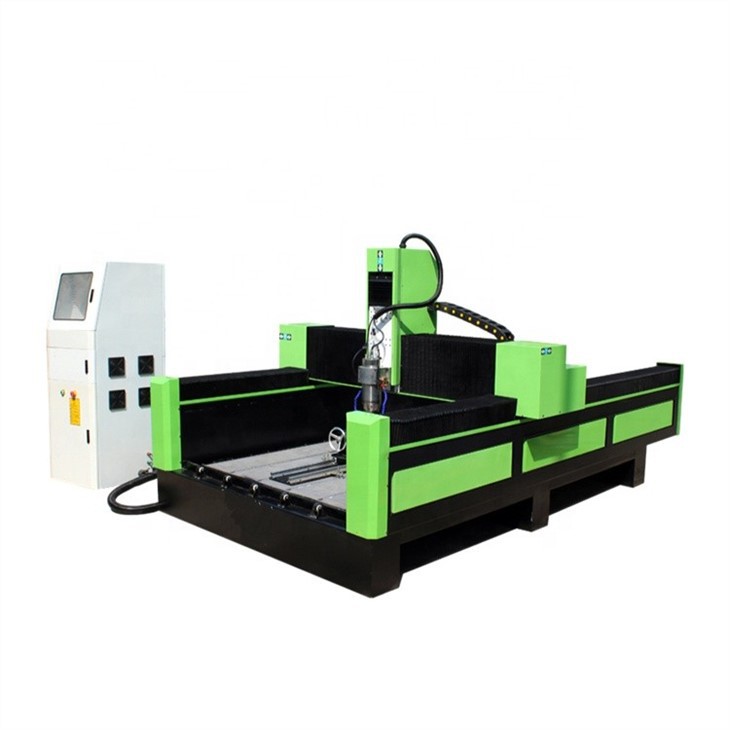

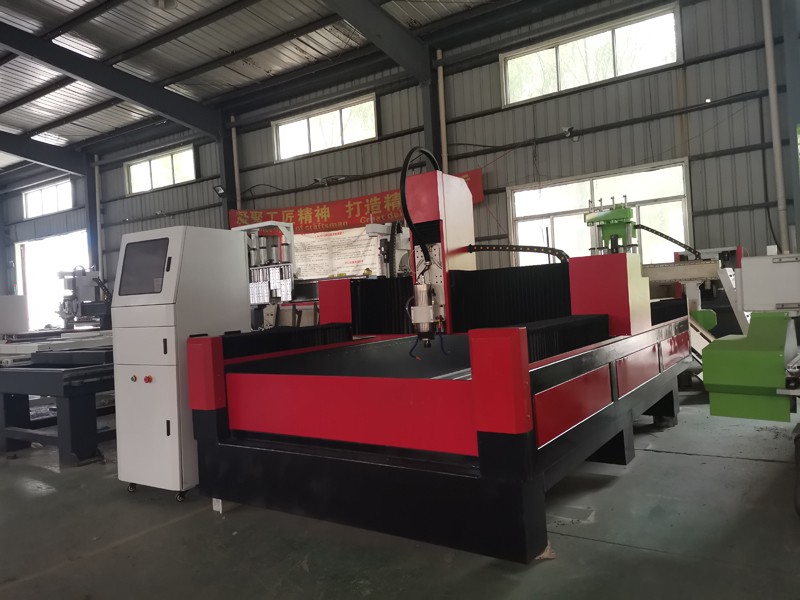

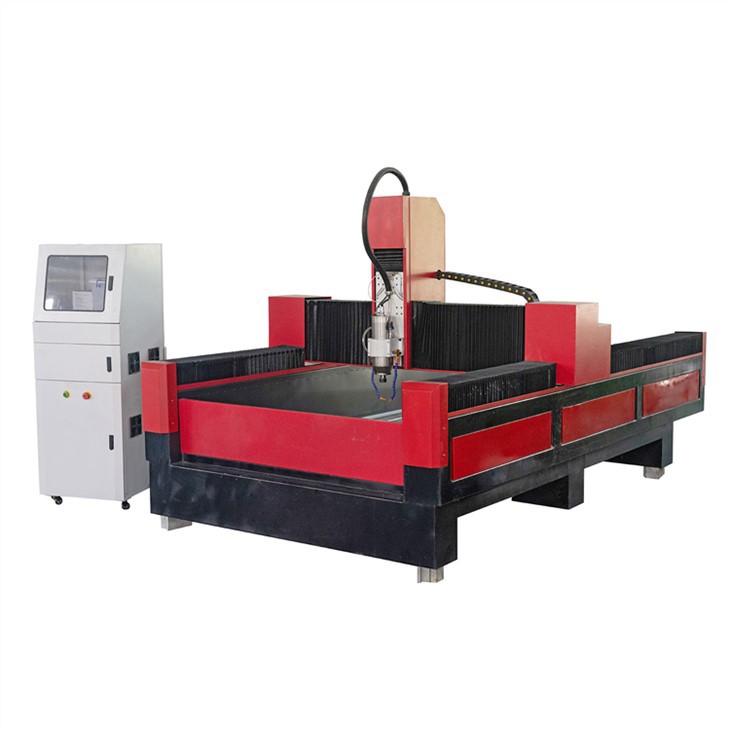

Stone engraving machine is CNC Router for stone marble granite engraving and carving, the standard size is 1300*2500mm. It is equipped with heavy duty body structure, high 5.5kw power water cooling spindle, very stable and high performance.

Features of machine

1. Steel tube lathe bed, low center of gravity, strong bearing capacity, not easy to deformation, stable and reliable operation.

2. Adopt Ncstudio control system, through computer operation, easy and simple to operate. DSP handle offline control is optional.

3. Adopt Taiwan linear guide rail. The bearing of the lead guide rail is face to face, the long time use precision is high.

4. German double nut automatically disappear gap ball screw.

5.Break point and break knife continue engraving function, can engrave at any place as you like.

6.Strong compatibility: compatible various CAD/CAM software like Type3/artcam/castmate/proe/Corelerow/Wentai.

7.Adopt High power frequency changing water cooled spindle, providing excellent cooling effect when carving flinty materials, effectively protect spindle when continuous working for a long time.

8.Axis Y with two spindles, guarantee the cutting strength and engraving precision.

Technical Parameters

NO.	Model	1325
1	Working area	1300x2500x500mm
2	Working table	Aluminum T-slot table with PVC plate
3	spindle	customized
4	Cooling system	Water-cooling
5	Control system	Nc-studio control system
6	inverter	Fuling inverter
7	transmission	X,Y-rack pinion,Z-ball screw
8	Guide rail	Hiwin guide rail from Taiwan
9	Ball screw	TBI ball screw from Taiwan
10	Drive system	Stepper motors and drivers
11	Rotary axis	Optional
12	Lubrication	Automatic lubrication
13	X,Y,Z repositioning Positioning	±0.02mm
14	Spindle speed	0-24000rpm/min
15	Traveling speed	0-40000mm/min
16	Working speed	0-30000mm/min
17	Command code	G Code, uoo, mmg, *plt
18	software	Artcam/Type3,other CAD/CAM
19	Diameter of toolholder	3.175-12.7mm

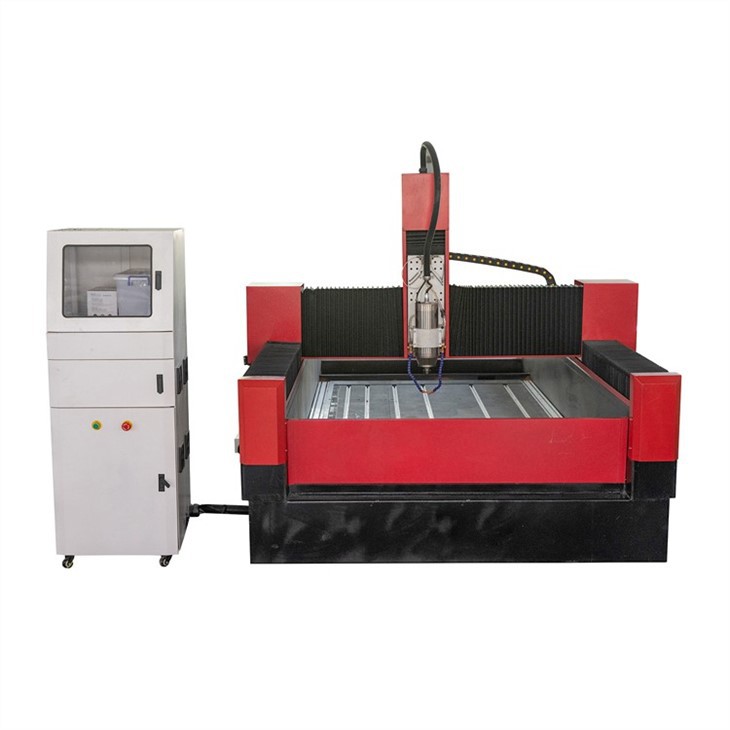

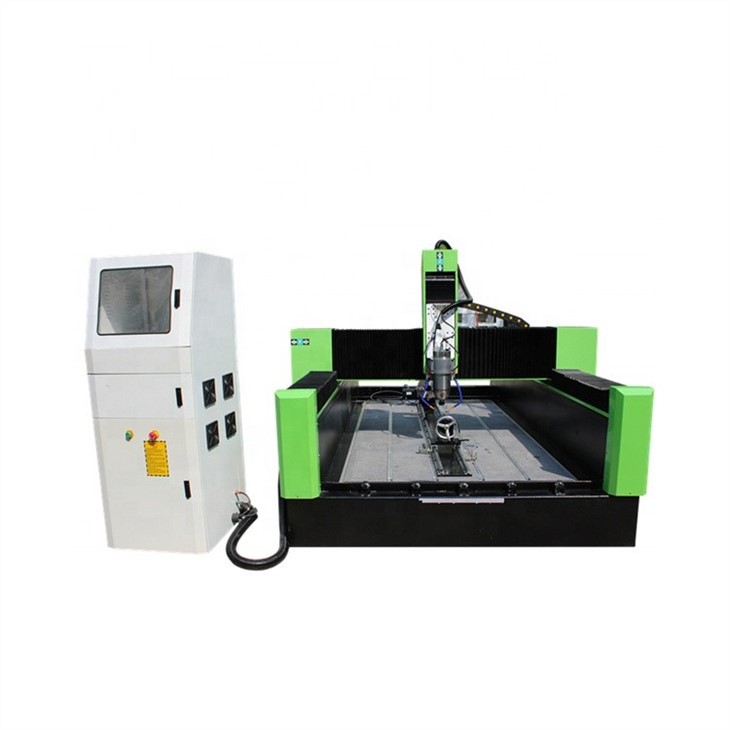

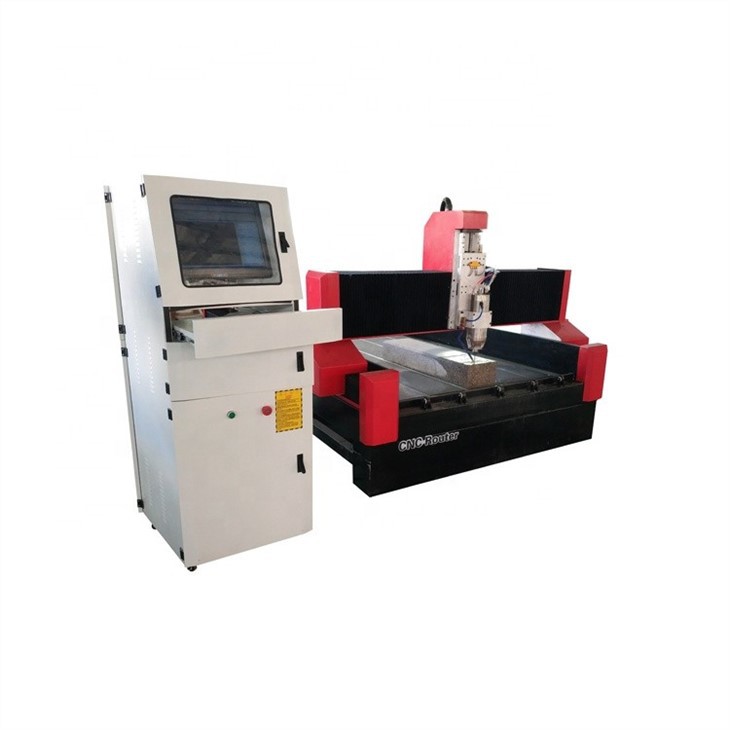

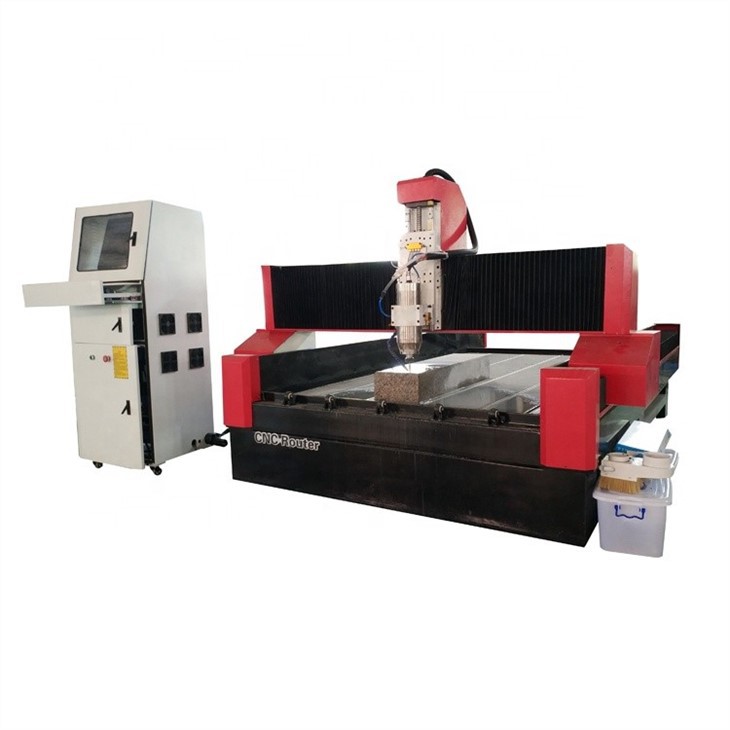

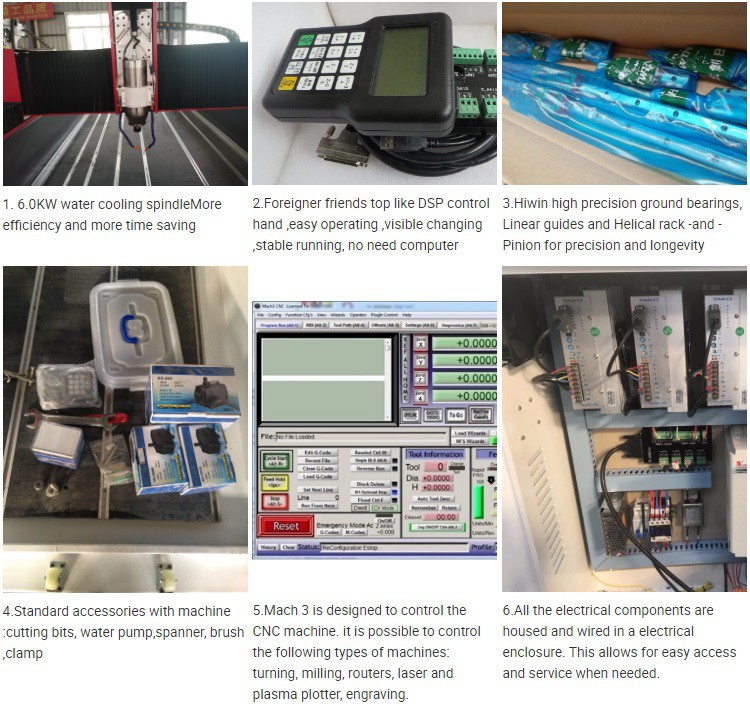

Machine Details

Applications

Stone Industry: Stone, ink-stone cutting, tomb stone, jade and marble products.

Kitchen Ware Industry: Man-made marble cabinet table surface.

Artwork Decoration Industry: Wood crafts, gift box, jewelry box and other exquisite art crafts.

Woodworking industry: Chair, door, window, bed, cabinet, kitchen ware and other furniture; Redwood classical and antique furniture, Exquisite European furniture, decorative products sculpture.

Mold Industry: Engraving copper, aluminum, and other metal molds;Building models, shoes, badge, embossed mould, biscuit, candy, chocolate mould; Artificial marble, plastic sheeting, PVC, wood, foam and other non-metallic mold.

Advertising Industry: Billboard, signage, badges, logo, company plate, signs, emblem, badge, display panels, fair signs, building numbers, signs of decoration, literal hole cutting etc.; 3D character cutting, acrylic cutting, LED/neon channel, lightbox.

Packing & Shipping

Packing: Strong wooden package

Shipping: 25-30 working days after get deposit

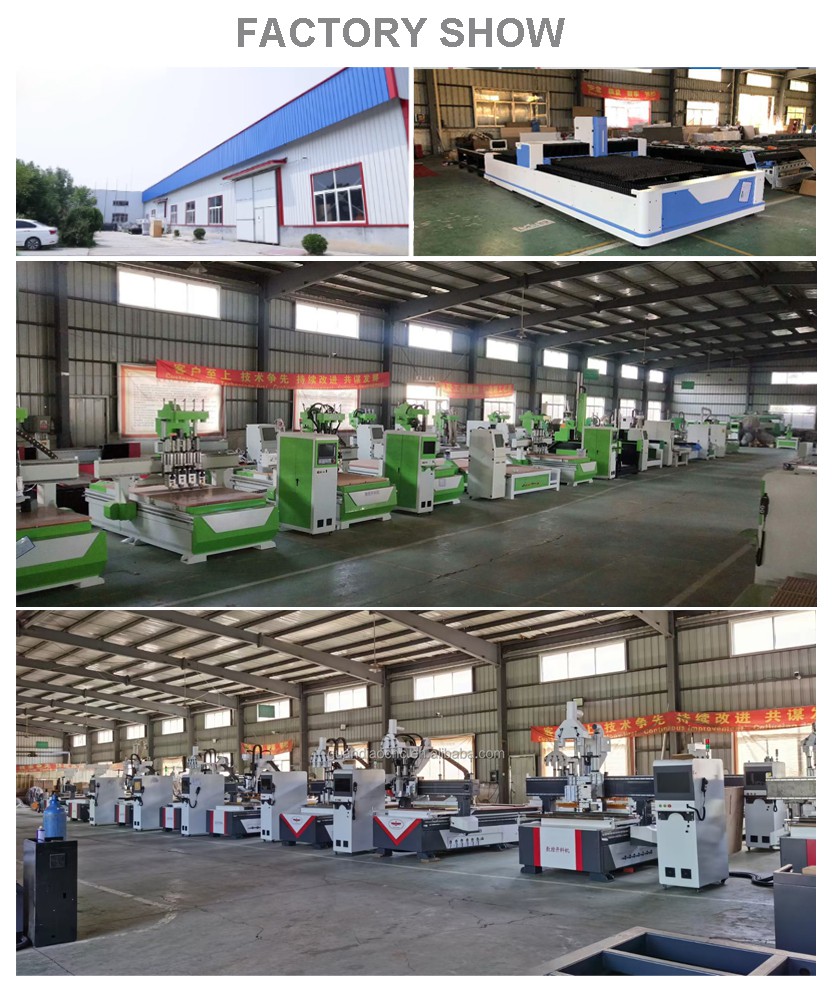

Our Company

Shandong Guandiao CNC Equipment Co., Ltd isa R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc.
