Features
1. Machine bed is welded with thicker square tube 8mm heavy duty body and is processed by high temperature tempering treatment integrally cast lathe bed, solid and stable, high rigidity and high accuracy.
2. X, Y axis adopted oblique rack gear transmission, making sure the machine working with high precision.
3. Z axis adopts Taiwan TBI ball-screw, ensures more stable movement and high accuracy.
4. Taiwan Hiwin linear square guide rail, high accuracy, best dust protection and longer life time.
5. Adopting high cost-effective stepper motor and Leadshine M860 drivers, high-torque servo system is also optional.
6. Domestic famous brands 3kw water cooling brushless spindle, low noise, vigorous cutting strength and long time mass processing.
Product Specification
Name | Stone CNC cutting machine |
Working size | 1300*2500mm |
Max feeding height | <300mm, (Customized) |
Max travelling speed | 6000-10000mm/min |
Tool diameter | ￠3, ￠4, ￠6, ￠8, ￠12.7, etc |
Transmission mode | Xy precision helical gear transmission, Z imported brand screw drive |
Software working environment | Windows XP/7 |
Spindle power | 3.5kw4.5kw5.5kw (Optional) |
Driver motor | servo motor |
Working voltage | 220v380v (Optional) |
Engraving command | (G code) (nc), mmg, plt, eng, dxf |
Spindle rotating speed | 6000-24000rpm/min |
Control system | NC studio/DSP |

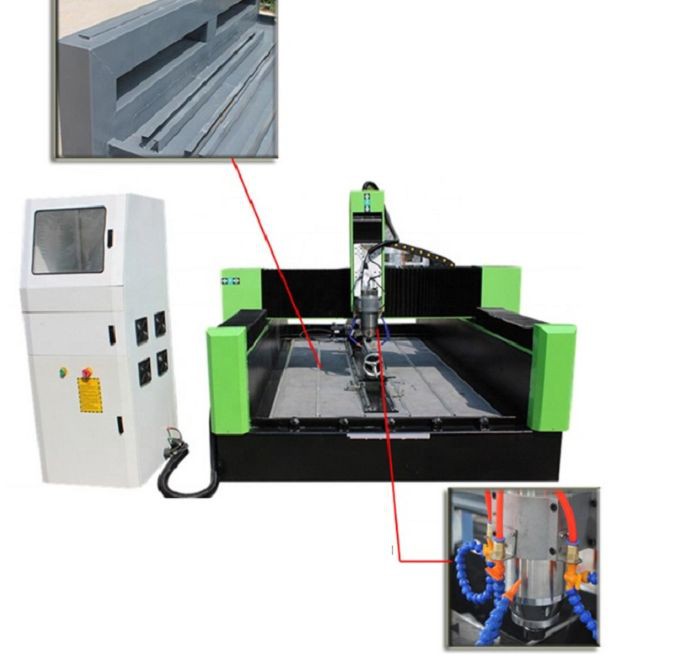

Product Detail
|
|

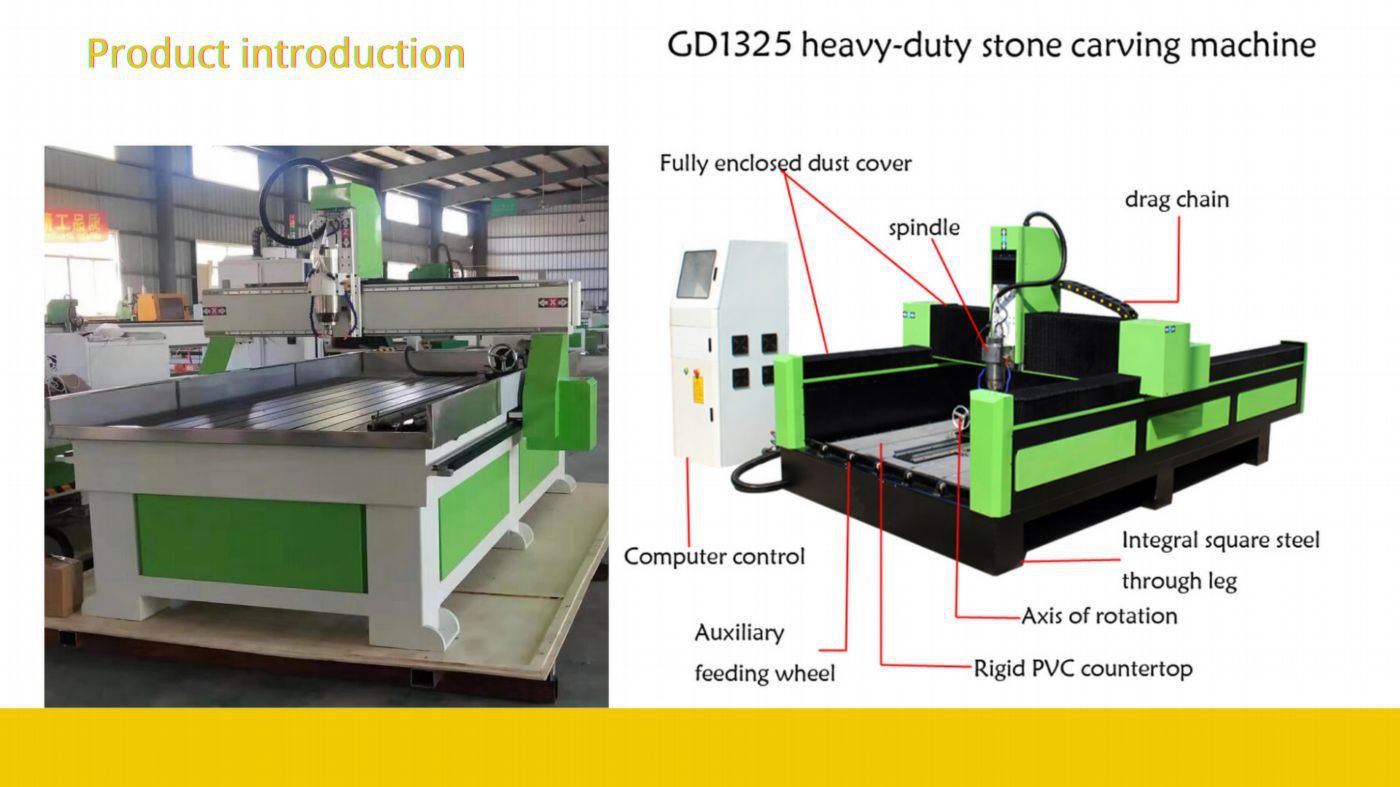

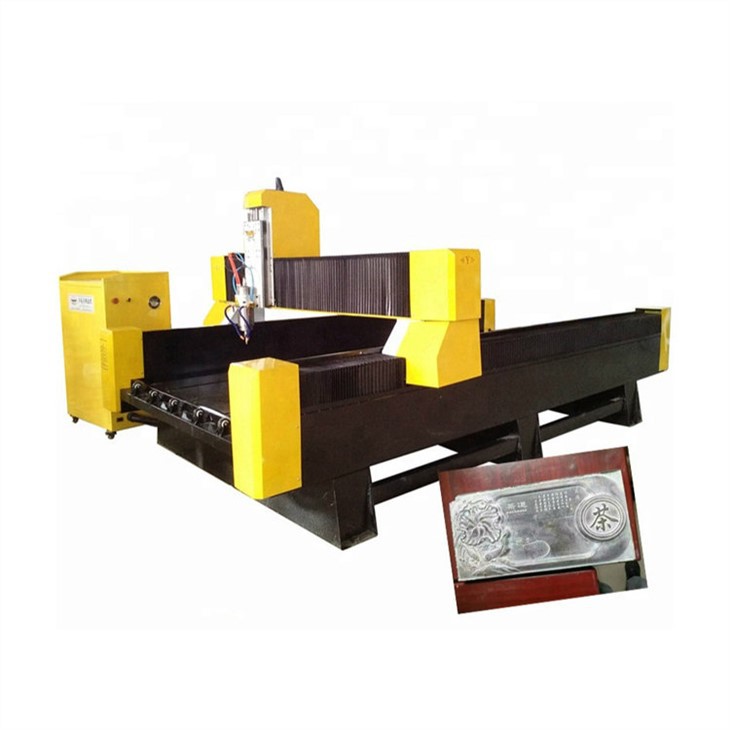

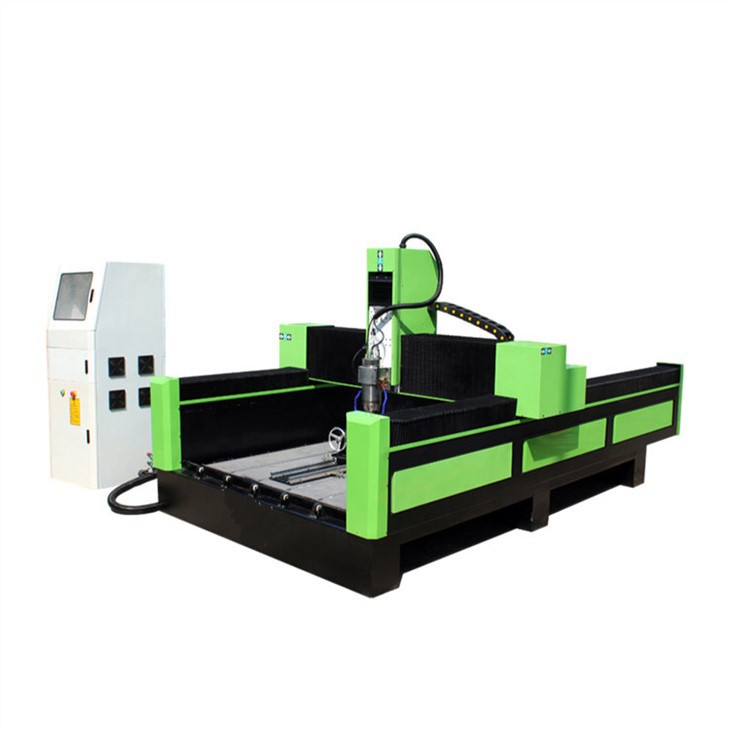

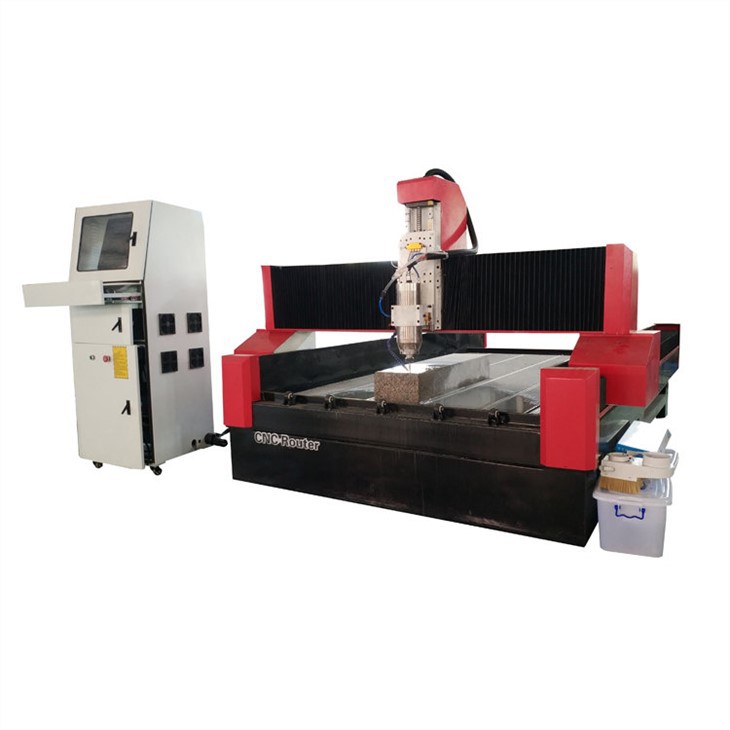

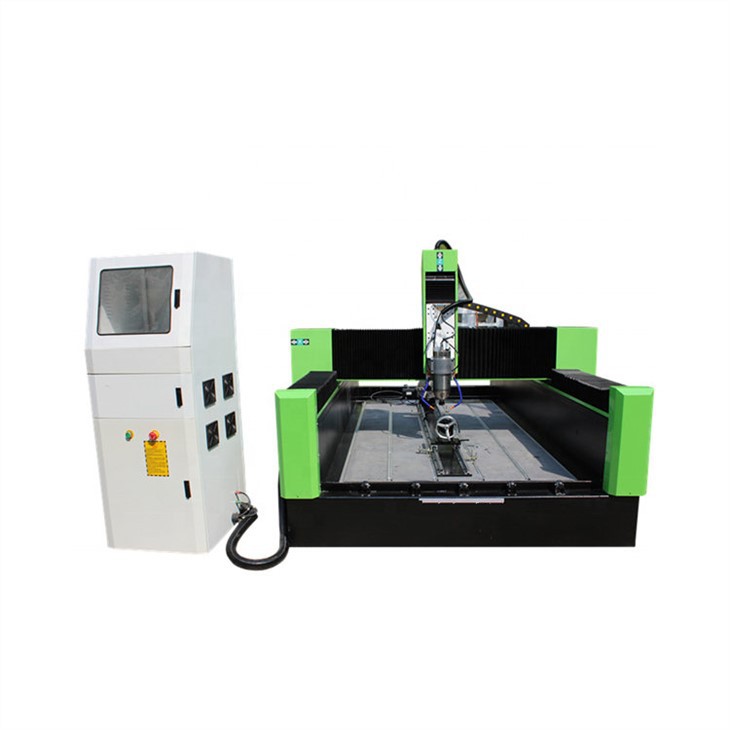

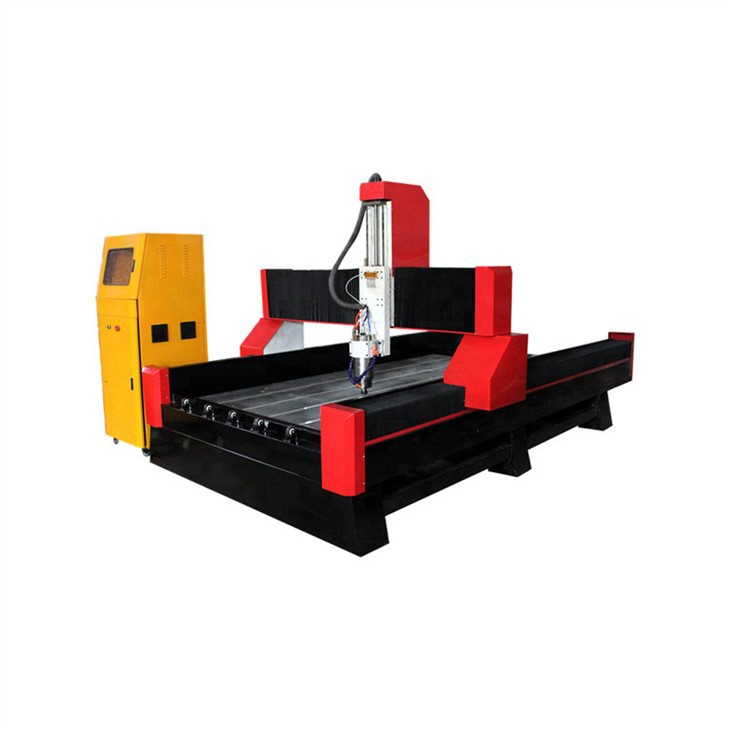

Economical Stone CNC cutting machine mainly Working on light stone, suggest weight of stone is less than 500kg | Heavy Stone CNC cutting machine mainly Working on Heavy stone, weight of stone can be more than 500kg |

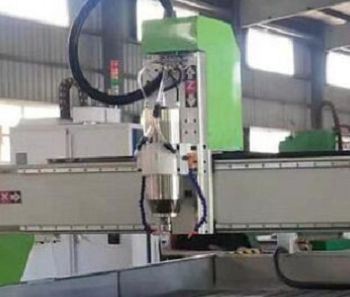

| Domestic famous brands 3kw water cooling spindle, low noise, vigorous cutting strength and long time mass processing. |

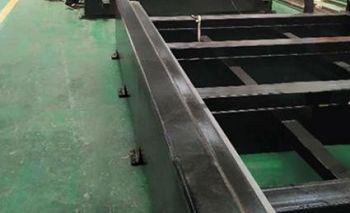

| Machine bed is welded with thicker square tube 8mm heavy duty body and is processed by high temperature tempering treatment.integrally cast lathe bed, solid and stable, high rigidity and high accuracy. |

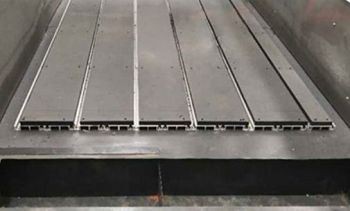

| Water tank, Save water |

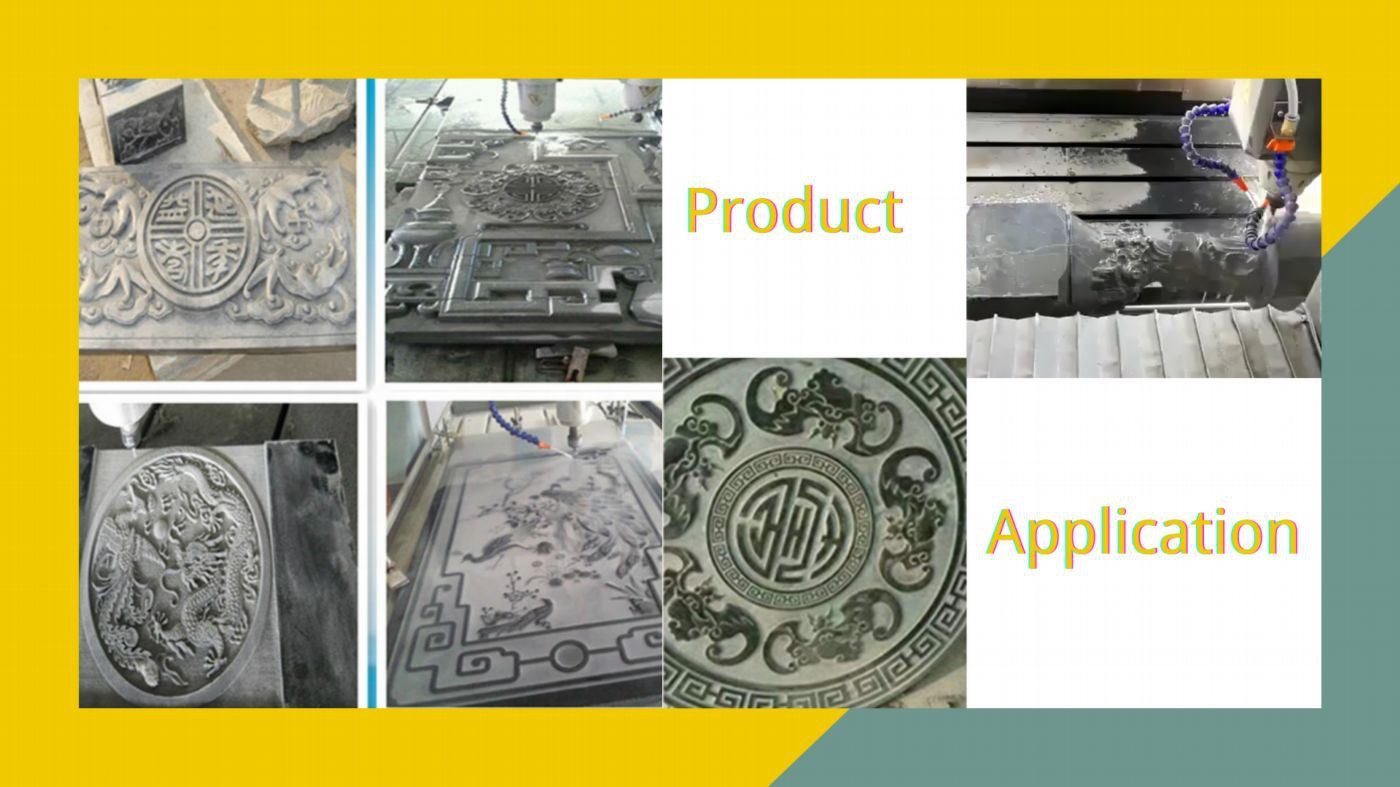

Applicable Materials
1. Marble, granite, jade, bluestone, black stone, etc., as well as ceramics, glass, plexiglass, PVC board, aluminum-plastic board, bamboo and wood.
2. Hard stone such as granite can be carved in layers to 5mm.
3. Marble, bluestone, etc. can be carved up to 5mm at a time
Company
SHANDONG GUANDIAO CNC EQUIPMENT Co., Ltd, Was established in 2005. We are well known for our superior quality and service in the field of engineering and manufacturing of CNC and Laser Equipment that includes: CNC Router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser Engraving and Cutting Machine, Laser Cutting Machine, Laser Engraving Machine, Cutting Plotter, Plasma Metal Cutting Machine, Woodworking CNC Router, Marble CNC Router and so on.
SHANDONG GUANDIAO CNC EQUIPMENT Co., Ltd Imports the high quality manufacture technology to improve our products for our customers.
Our company is famous for high quality and better after-sale service as the competitive price.
Our products are widely used in the following industry, such as Woodworking, Advertising, Artmaking, Model, Electric, CAD/CAM Industry Model, Clothing, Package Printing, Marking, Laser Sealing and so on.
Our company managing idea is improving the high quality products for customers.
We are searching the distributors around the world. Hope we can cooperate for the world market.
Shipping
 008615628780587(Kaise Ellen) |  008615628780587(Kaise Ellen) |
Our Service
1: Provide 1 year warranty for the whole machine.
2. Professional technical support, operating video and manuals sent with the machine.
4: Provide 24 hours Engineer online guidance.
If you have any problems, please feel free to call us.
5: We can support engineer to service machinery overseas.
