Features
1. The bed is made of thick-walled steel pipe welded to ensure small deformation, good rigidity and high strength.
2. Y axis is driven by double motors to ensure smooth movement.
Adopt high precision rack and pinion drive, high precision, fast speed and great strength.
3. Adopt imported square linear guide rail with high precision, large load-bearing redundancy and long life.
4. Mechanical and electrical design, carefully selected a variety of electrical accessories, to reduce the failure rate to a low.
5. The machine is equipped with water tank and automatic water supply and cooling system.
6. All dust proof and waterproof design, protect the transmission parts of the machine.
Product Specification

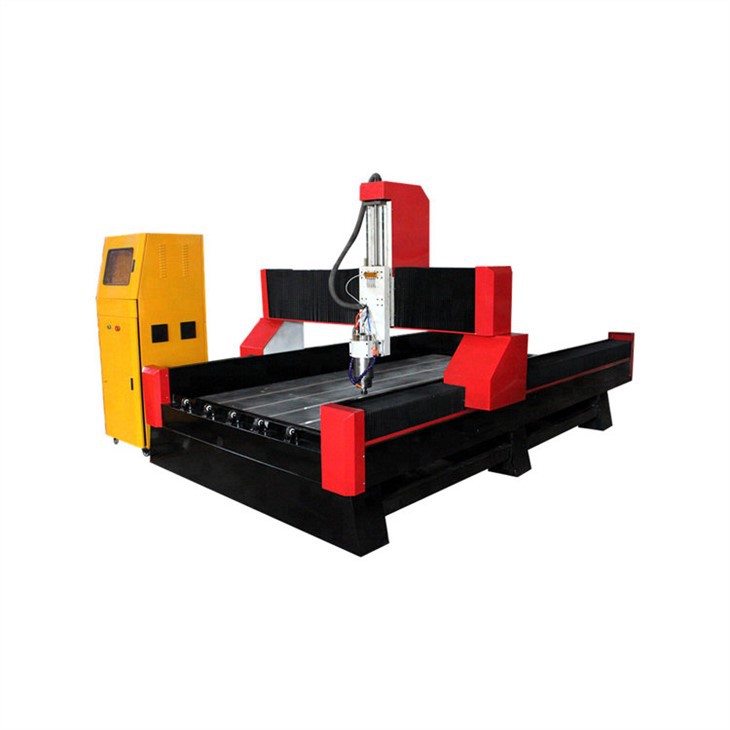

Name | Stone engraving machine |
Working size | 1300*2500mm |
Max feeding height | <300mm, (Customized) |
Max travelling speed | 6000-10000mm/min |
Tool diameter | ￠3, ￠4, ￠6, ￠8, ￠12.7, etc |
Transmission mode | Xy precision helical gear transmission, Z imported brand screw drive |
Software working environment | Windows XP/7 |
Spindle power | 3.5kw4.5kw5.5kw (Optional) |
Driver motor | servo motor |
Working voltage | 220v380v (Optional) |
Engraving command | (G code) (nc), mmg, plt, eng, dxf |
Spindle rotating speed | 6000-24000rpm/min |
Control system | NC studio/DSP |
Product Detail
|
|

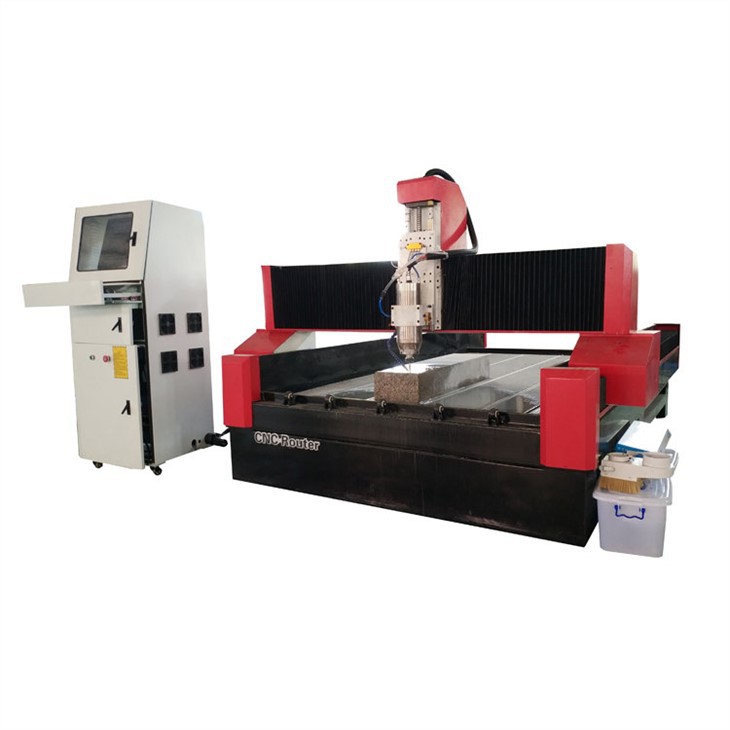

Ordinary Stone engraving machine for light stone, the raw material is lower than the recommended weight 500kg | Professional Stone engraving machine is suitable for heavy stone, the weight of raw material can be higher than 500kg |

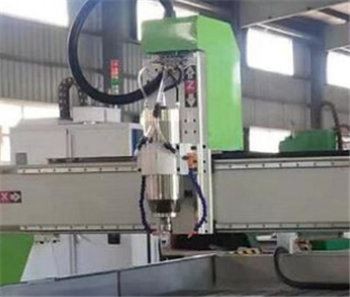

| Stone dedicated air-cooled spindle Water cooling, stable work |

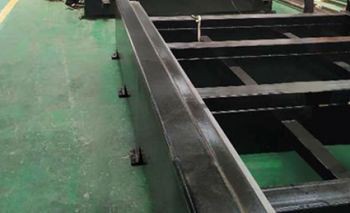

| Thickened machine body Solid, stable, no deformation |

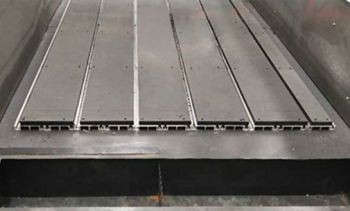

| Circulating water tank Save water |

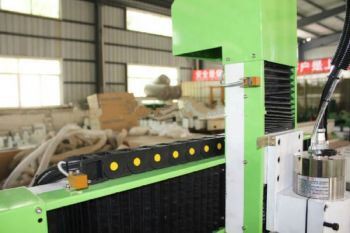

| Drag chain Neat and beautiful |

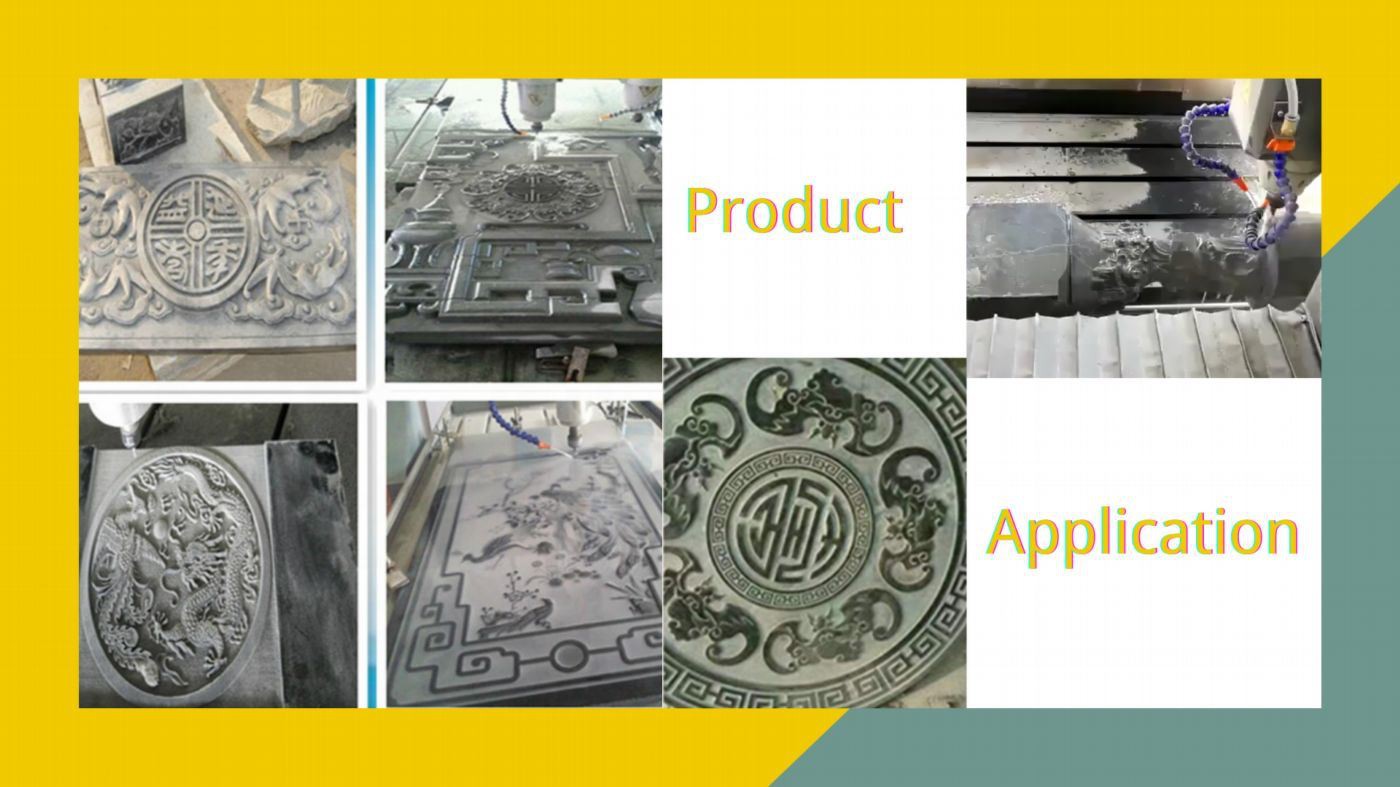

Applications
Heavy Stone Engraving Machine Applicable Industry
The stone industry, stone processing industry, art industry, advertising industry, decoration industry, ceramics reliefs industry and so on.
Technical Parameters
Company Information
Shandong Guandiao CNC Equipment Co., Ltd., is a specialized CNC router manufacturing company which focuses not only on machine production but also on R&D activities as well. Our company is devoted in the research and development of carving CAD/CAM technology and CNC technology. GUAN DIAO CNC routers have obtained remarkable achievements in the precise carving machine design as well as artistic carving technology, and also have realized industrialization of computerized numerical control technology.
Packing & Shipping
FAQ
1. How to choose a suitable model ? processing materials? max cutting thickness?
2. Do you have operation manual and working video?
3. Does your company can processing my samples?
4. If I bought machine, but don't know how to operation, what I can do?
5. How am I going to work on service parts on the machine? Example what if parts need to be replaced?
6. Does your engineer do aftersale service at abroad? how much cost?
Our Service
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.
