Features
1. Machine bed with thick steel tube welding, assuring small deformation high rigidity, big power.
2. Y axis adopts double motor drive, high standard selection and matching, to ensure smooth working.
3. Adopting high precision gear rack transmission, high precision,high speed, big power.
4. Adopt imported square linear guide, high precision, high bearing redundancy, long life.
5. Can save 10 breakpoints, with a function that continue working even if power off. It can still working later, reduce the waste rate.
Product Specification

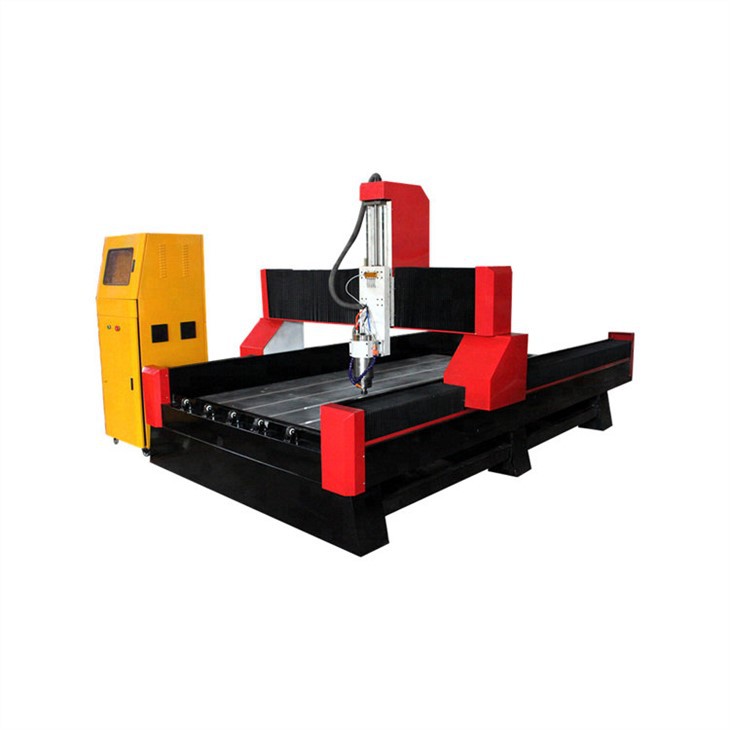

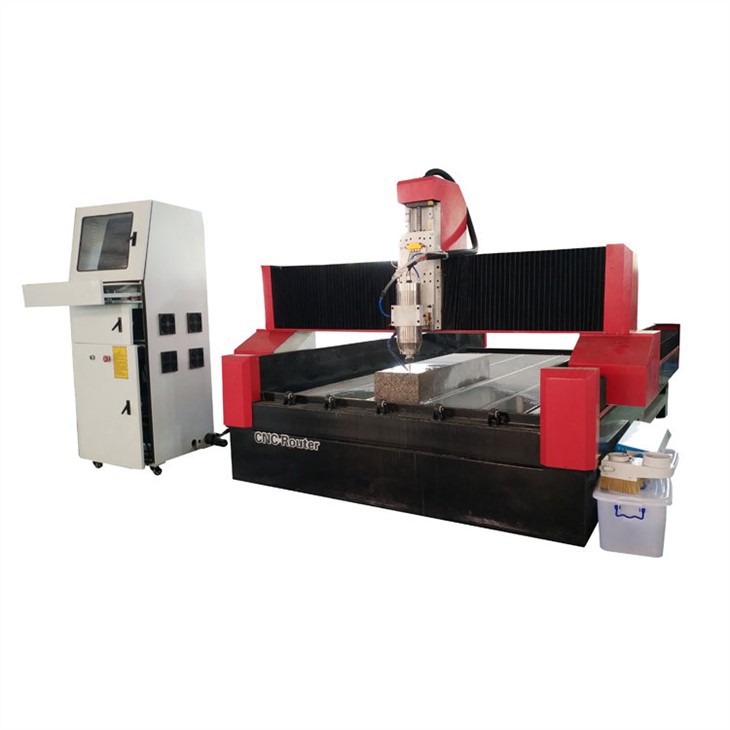

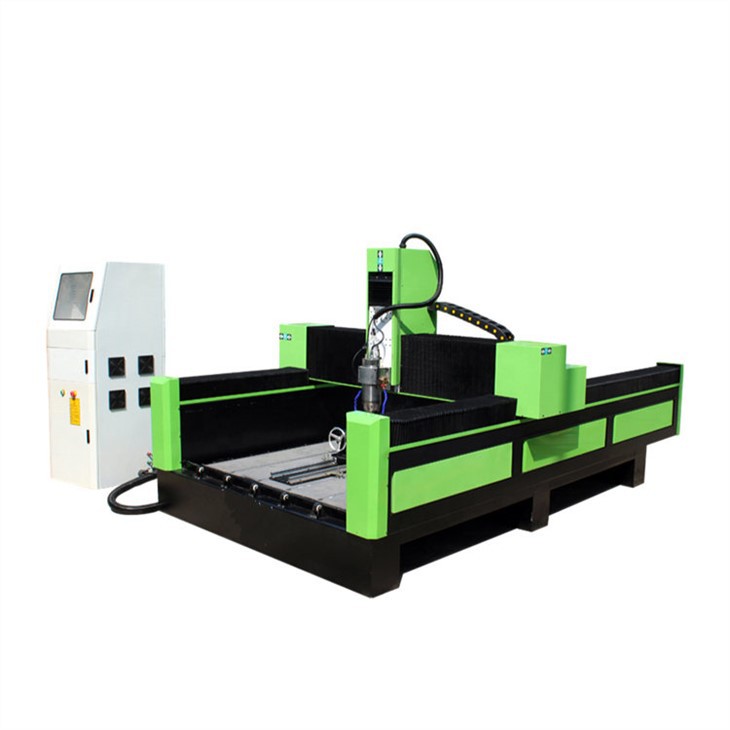

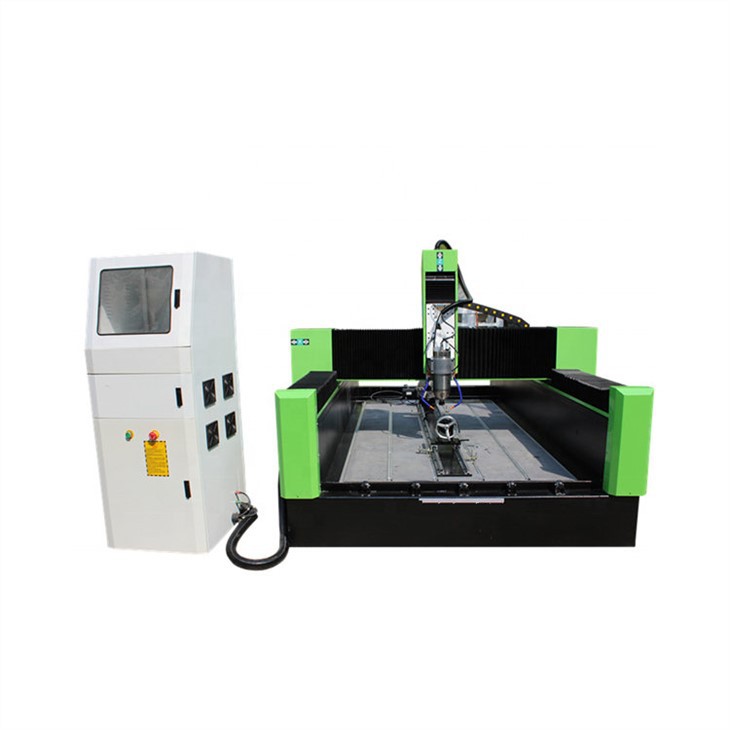

Name | CNC stone engraving machine |
Working size | 1300*2500mm |
Max feeding height | <300mm, (Customized) |
Max travelling speed | 6000-10000mm/min |
Tool diameter | ￠3, ￠4, ￠6, ￠8, ￠12.7, etc |
Transmission mode | Xy precision helical gear transmission, Z imported brand screw drive |
Software working environment | Windows XP/7 |
Spindle power | 3.5kw4.5kw5.5kw (Optional) |
Driver motor | servo motor |
Working voltage | 220v380v (Optional) |
Engraving command | (G code) (nc), mmg, plt, eng, dxf |
Spindle rotating speed | 6000-24000rpm/min |
Control system | NC studio/DSP |
Product Detail
|  |

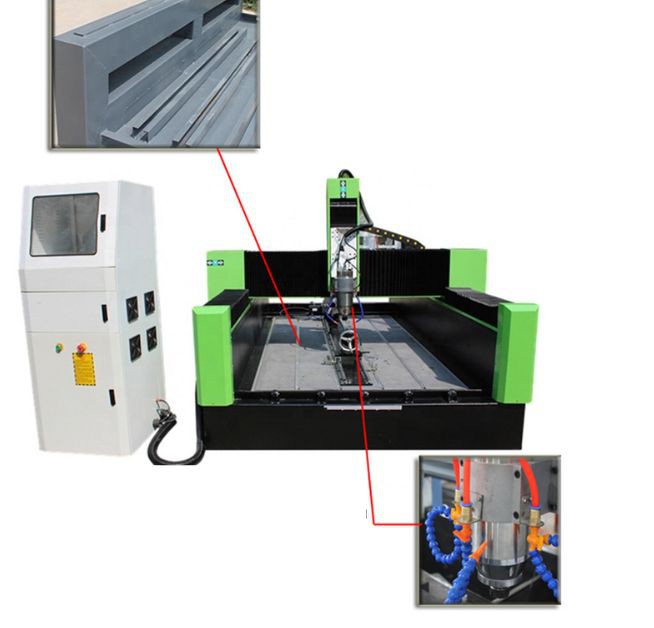

1. Thickened heavy bed. The thick wall square steel is welded and strengthened, the bottom beam is tiled and strengthened, and the bed is designed with U-shape mechanics. Integrated bed. The gantry crane has strong stability, good rigidity, high strength, stable chassis and bearing capacity up to 2 tons.
2. Water cooled ingot for stone
Use high power 5.
The main shaft is 5kW, and the maximum speed is 24000 rpm.
Four bearing rotors work at the same time, high torque, strong power, dust and water proof, long service life.
Hard and soft stone materials can be processed on one machine

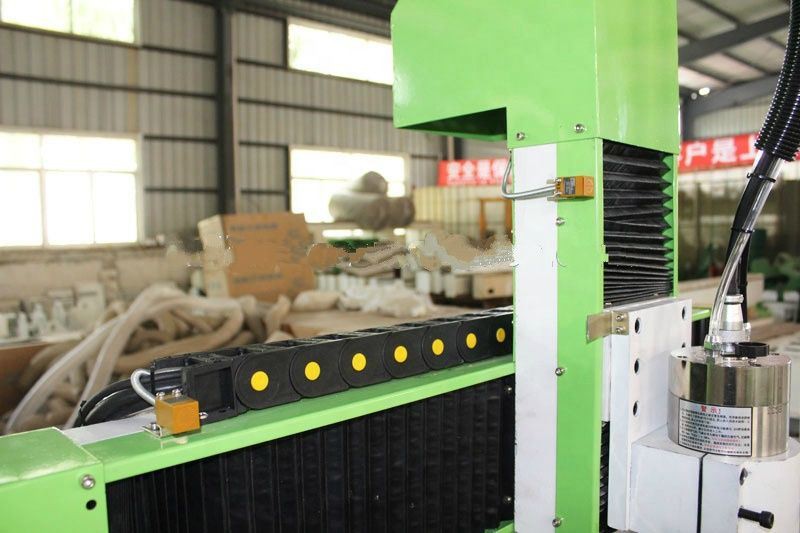

3. High quality drag chain, high flexible nylon guide chain, flexible and durable

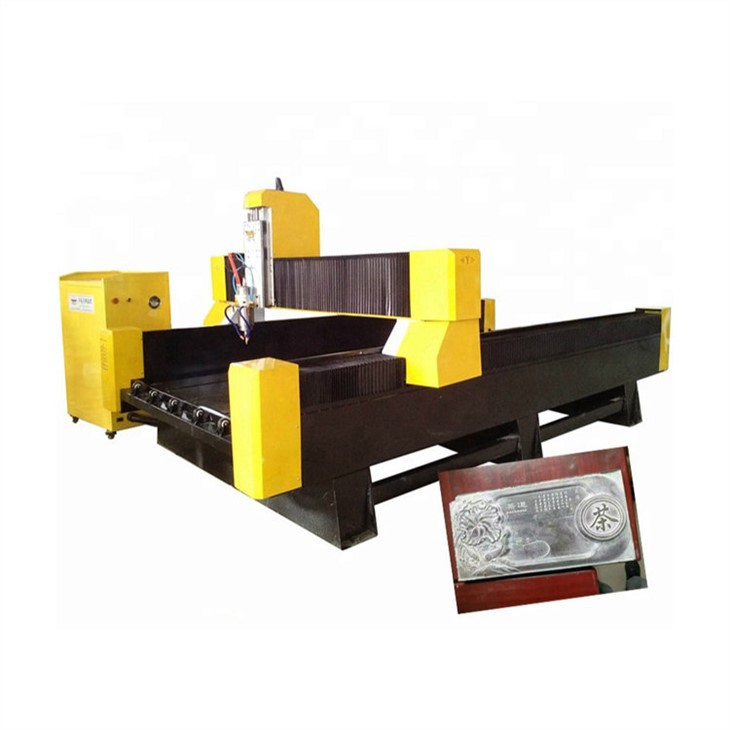

Sample
Suitable for stone, tombstone processing, advertising, decoration, handicraft industry, etc.
Company
Shandong Guandiao CNC Equipment Co., Ltd. is a high-tech enterprise that is engaged in the research, manufacture and sale of Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc. GUAN DIAO CNC has gained CE, FDA and ISO certifications. Our company has successfully produced GUAN DIAO CNC series of products which enjoy a good reputation. Excellent quality and fast service make our products spread over Europe, America, the Middle East and Southeast Asia.
GUAN DIAO CNC machines are widely used in garment cutting, craftwork, rubber plate, package printing, leather cutting, sign marking, wood furniture, construction, decoration, stone engraving and mould making. GUAN DIAO CNC machines have greatly improved the efficiency of relevant industries and the quality of relevant products.
GUAN DIAO CNC constantly pursues the philosophy of "technical innovation, cooperation and all win", together with you for a brilliant future. We are sincerely looking forward to continuous instruction and support from our clients.
Shipping
FAQ
Q: There are so many stone router, which one should I choose?
A: You can tell us what material you want to do, also with the thickness, then we will choose the suitlable spindle power for you.
Q: What is the machine payment term?
A: 1. 30% payment for deposit, 70% balance payment before the shipping.
2. L/C payment.
Q: Before the balance payment, but I don't satisfied with the machine your produce , what should I do?
A: After the machine finished the production, we will text the machine at least 8 hours, after that, we will send you the machine pictures and video for you text, if you have any place not satisfied with our machine, we can change it until you satisfied, then you can pay the balance payment.
Q: Machine delivery time?
A: Within 20 working days after get your payment.
Q: Can I get the sample done by your machine?
A: Sure, you can send us the materials you want to process, then we can made a sample for you , you can see the precision more clearly.
Our Service
1. 1 year warranty period, if there are major components (except consumables) free replacement.
2. Free maintenance for life.
3. Free training courses in our factory.
4. When you need to replace, we will provide consumable parts at cost price.
5. Online service 24 hours a day, free technical support.
6. The machine has been adjusted before leaving the factory.
