Features
1. The bed is made of thick-walled steel pipe welded to ensure small deformation, good rigidity and high strength.
2. Y axis is driven by double motors to ensure smooth movement.
Adopt high precision rack and pinion drive, high precision, fast speed and great strength.
3. Adopt imported square linear guide rail with high precision, large load-bearing redundancy and long life.
4. The machine is equipped with water tank and automatic water supply and cooling system.
5. All dustproof and waterproof design, protect the transmission parts of the machine.
6. Can save 10 break points, and has the function of continuous carving of break points, the power failure and then work is still feasible, effectively reduce the reject rate.
7. Control system optional, Taiwan Syntec/LNC/Shanghai NC studio panel etc.
8. X/Y is with high precision helical guide rack transmission. Z axis is with TBI ball screw transmission.
Product Specification
Name | Marble engraving machine |
Woring size | 1300*2500mm |
Max feeding height | <300mm, (Customized) |
Max travelling speed | 6000-10000mm/min |
Tool diameter | ￠3, ￠4, ￠6, ￠8, ￠12.7, etc |
Transmission mode | Xy precision helical gear transmission, Z imported brand screw drive |
Software working environment | WindowsXP/7 |
Spindle power | 3.5kw4.5kw5.5kw (Optional) |
Driver motor | servo motor |
Working voltage | 220v380v (Optional) |
Engraving command | (G code) (nc), mmg, plt, eng, dxf |
Spindle rotating speed | 6000-24000rpm/min |
Control system | NC studio/DSP |
Product Detail
|
|

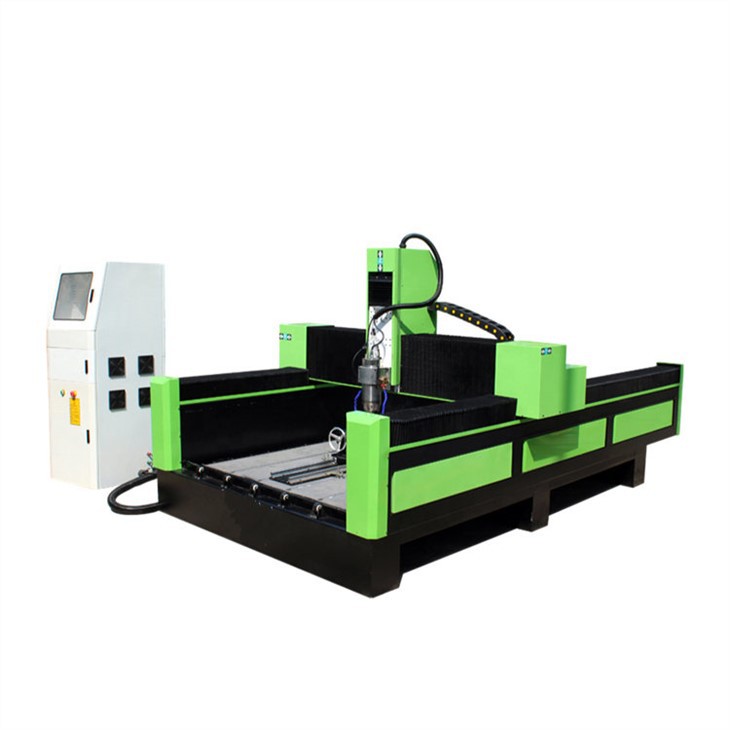

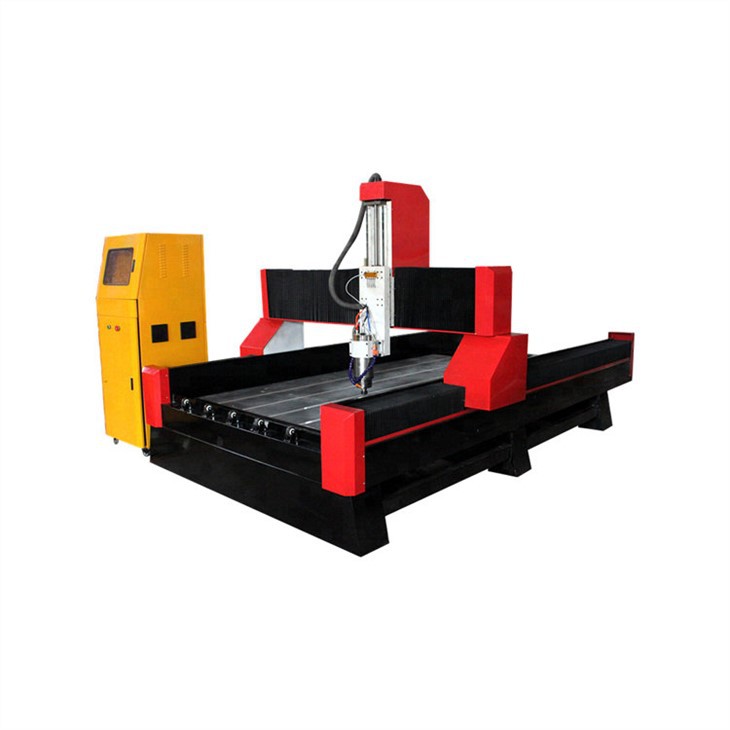

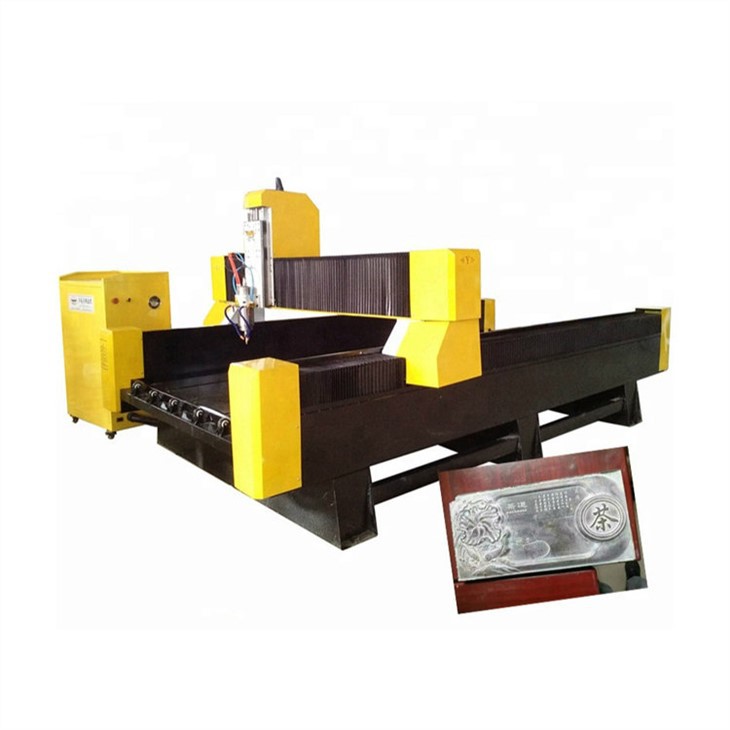

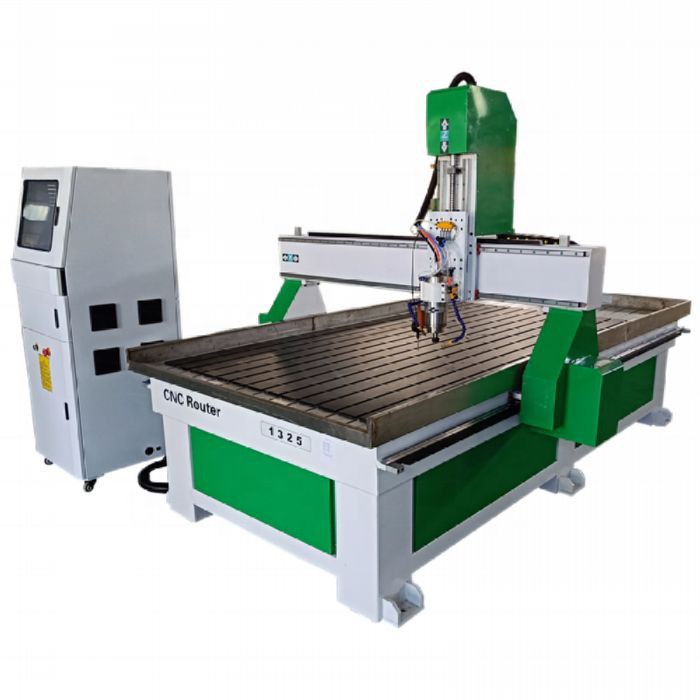

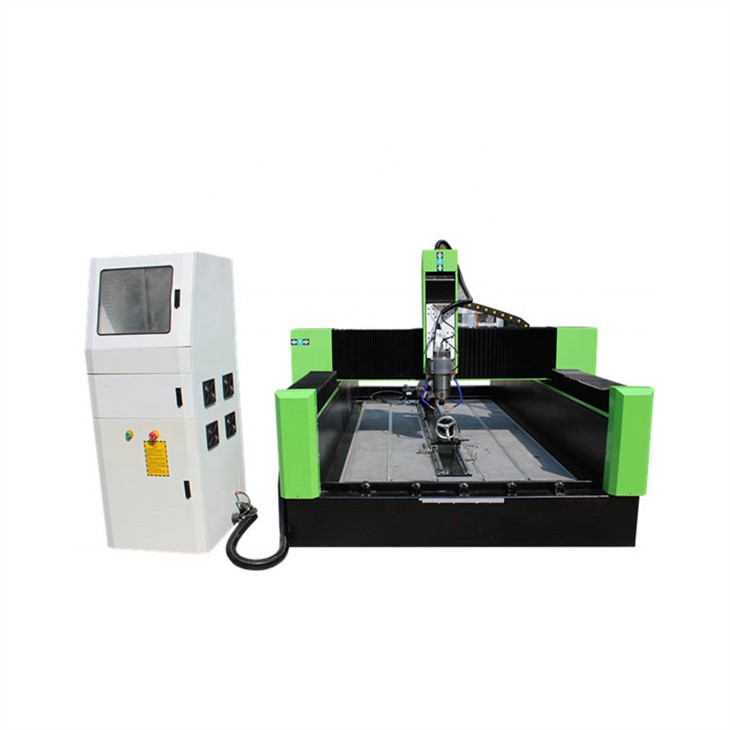

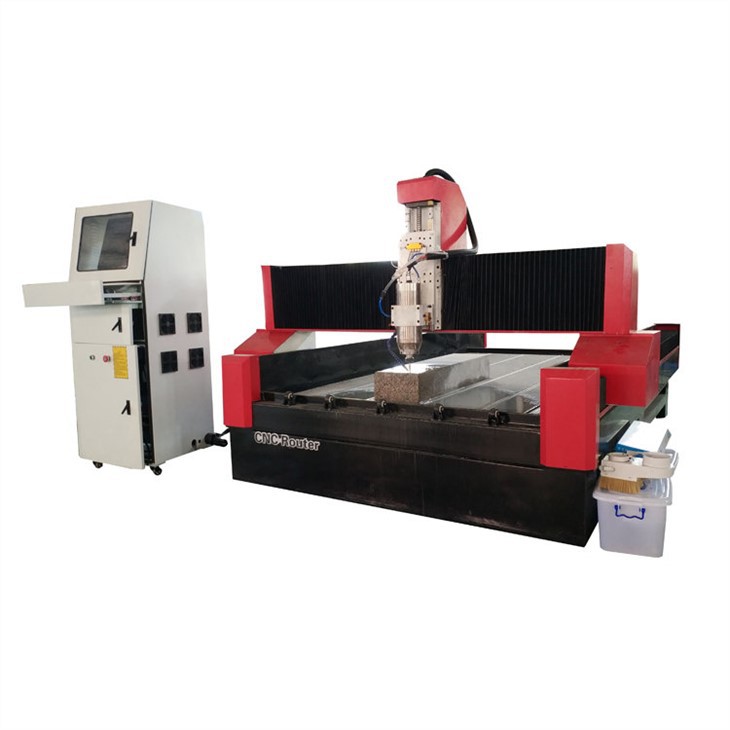

Economical Marble engraving machine is mainly used for light Marble engraving. It is recommended Stone weighing less than 500kg. | Heavy stone cutting machine is mainly used for heavy stone, it is recommended Stone weighing more than 500kg. |

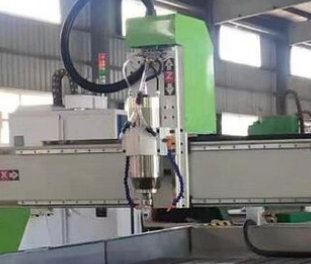

| Professional spindle for stone Stone dedicated 5.5kw spindle, Work stably |

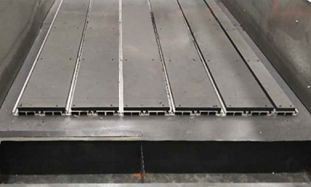

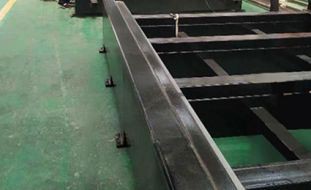

| Thickened machine body design Effectively reduce the resonance and avoid knife breakage |
| Circulating water tank More water-saving, more convenient to use |

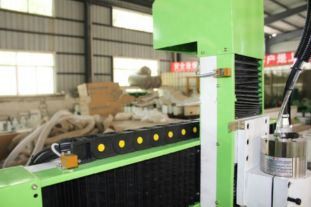

| Fully enclosed drag chain Flexible and durable |

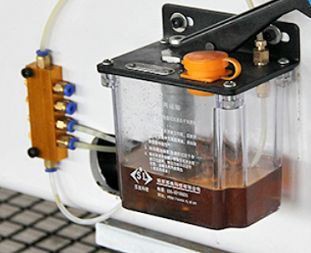

| Automatic Oiling device Oil filling frequency and time can be set |
Applicable Materials
Marble, granite, China black, bluestone, jade, ceramics, crystal, glass, plastic, chemical synthetic board plexiglass, PVC board, bamboo, aluminum plastic board, metal, plastic and other materials for line carving, 2D engraving, 3D pointed bottom engraving, 3D relief, cutting, chamfering, drilling.
Company
Shandong Guandiao CNC Equipment Co., Ltd.is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate.
Our main products are CNC router, 5 axis machineing center, 4 axis machining center, ATC CNC router, General 3 axis CNC router, CNC wood lathe, mould CNC milling machine, CO2 laser engraving cutting machine and plasma cutting machine. The application covers woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc. Our machines are widely sold in many countries, European, American, Africa, Canada, England, and so on.
The aim of GUAN DIAO CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after sale service.
Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
Shipping
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
Our Service
* 12 months quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge if there is any problem during the warranty period.
* Lifetime maintenance free of charge.
* Free training course at our plant.
* We will provide the consumable parts at an agency price when you need replacement.
* 24 hours on line service each day, free technical support.
* Machine has been adjusted before delivery.
* Our staff can be sent to your company to install or adjust if necessary.
If you have any questions, please contact me freely！
