Features
1, The 2.2kw water-cooled spindle has the characteristics of high speed and high power, and it can be engraved on hard materials (or air-cooled spindle) with low noise.
2, Dust-proof system makes the workbench more convenient.
3, Aircraft aluminum T-slot table covered with PVC prevents tool breakage; T-slot with clamps is convenient for fixing materials.
4, The jade cutting machine uses a cast iron bed and a cast aluminum gantry, which is more stable, without deformation and with little vibration.
5, Linear square guide rail + ball screw drive represents higher precision.
6, The T-shaped gantry makes the three-axis work more stable, faster and more precise. With gantry mobile, customers can work materials in any area.
7, Optional control system, such as Ncstudio/DSP/Mach3, is efficient and easy to learn.
8, Continue to work after breakpoint/power failure, which helps to reduce the loss rate.
9, Good software compatibility, compatible with CAS/CAM software such as Type3/Ucancam, easy to use.
10, Control cabinet, including: round transformer, lead-tin driver, inverter
(1) Round transformer: Change the local power supply voltage to 40-60v.
(2) Frequency converter: control the spindle speed and save energy.
Product Specification
Name | Jade cutting machine |
Woring size | 1300*2500mm |
Max feeding height | <300mm, (Customized) |
Max travelling speed | 6000-10000mm/min |
Tool diameter | ￠3, ￠4, ￠6, ￠8, ￠12.7, etc |
Transmission mode | Xy precision helical gear transmission, Z imported brand screw drive |
Software working environment | WindowsXP/7 |
Spindle power | 3.5kw4.5kw5.5kw (Optional) |
Driver motor | servo motor |
Working voltage | 220v380v (Optional) |
Engraving command | (G code) (nc), mmg, plt, eng, dxf |
Spindle rotating speed | 6000-24000rpm/min |
Control system | NC studio/DSP |

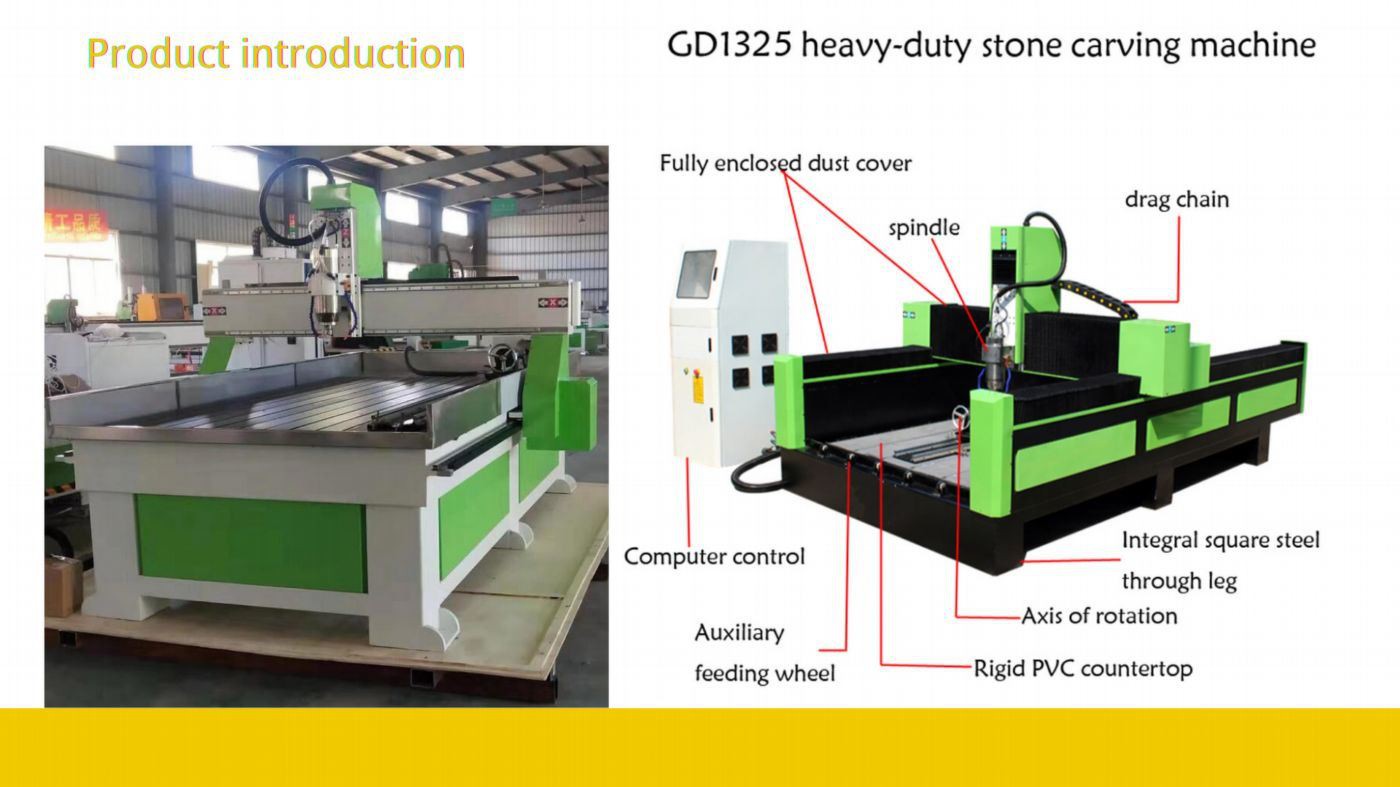

Product Detail

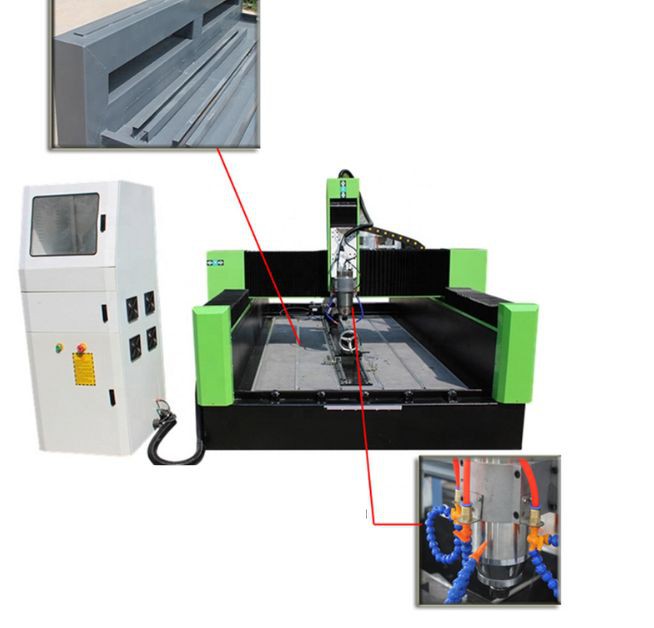

| 1. Thickened heavy bed We strengthened the welding of the thick-walled square steel, and the bottom beam was reinforced by laying flat. The bed is designed with a U-shaped structure. The whole bed gantry has good rigidity, high strength, stable chassis, and its carrying capacity can reach 2 tons. 2. Water-cooled spindle special for stone The machine uses a high-power 5.5kw stone spindle, and its maximum speed can reach 24000 rpm. The four-bearing rotors with high torque and high power work at the same time, which has the advantages of dustproof and waterproof, and long service life. Soft and hard stones and other materials can be processed on one machine. |
| 3. The jade cutting machine adopts high-quality drag chain and high-flexible nylon guide chain, which is flexible and durable. |

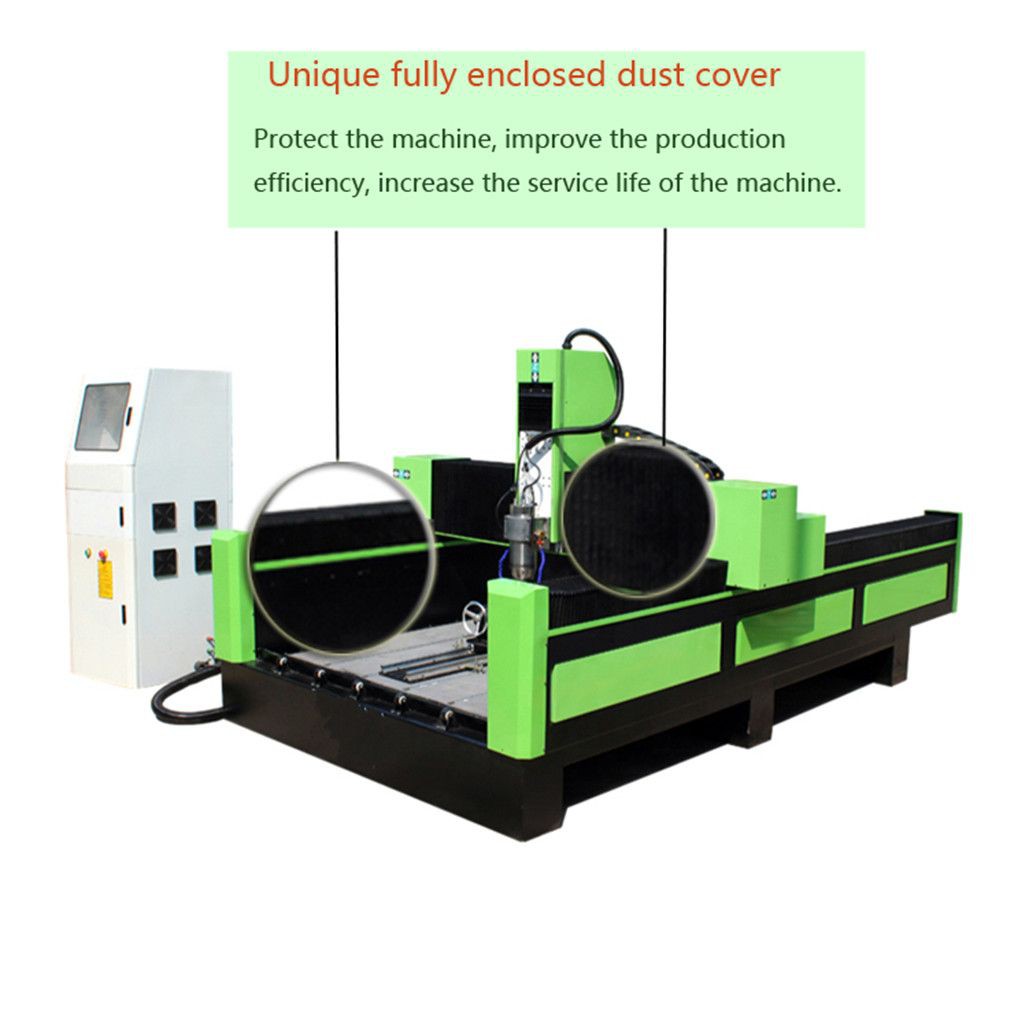

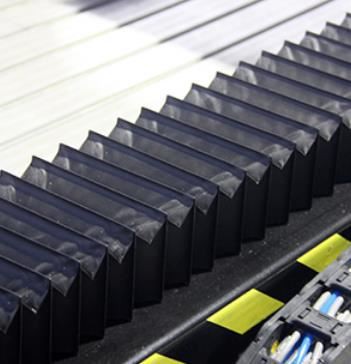

| 4. The guide rail dust cover effectively prevents dust from entering the guide rail and causing damage to the machine. |
Sample
Applications
Jade cutting machine is suitable for stone, tombstone processing, advertising, decoration, handicraft, etc.
1. Woodworking industry: furniture, windows, 3D corrugated boards, MDF, musical instruments, etc.
2. Advertising: signs, signs, acrylic cutting, LED/neon light channels, light box molds, stamps, etc.
3. Mold industry: copper carving, aluminum carving, metal mold, plastic sheet, PVC, etc.
Company
Shandong Guandiao CNC Equipment Co., Ltd. Was founded in 2005, Our company locates in Jinan, factory floor space is about 15, 000 square meters. We have more than 300 workers including 25 professional designers, 35 experienced after sale service engineers and 20 sales persons. We are one of the best CNC router suppliers in China with 13 years experience, our machines are known for the high precision, outstanding reliability, easy operation and simple maintenance.
Our company is devoted in the research and development of carving CAD/CAM technology and CNC technology. "Quick" branded CNC routers have obtained remarkable achievements in the design of precise carving machine as well as artistic carving technology. We have realized industrialization of the computerized numerical control technology.
Our router series are sold in many of European and American countries. These products are very popular in these markets and have established a leading position in the carving machine field.
After several years of rapid development, our routers have already covered advertisement decoration, marking, label industry, woodworking, mold manufacturing as well as crafts and gifts fields. Our routers for woodworking, advertising and molding well meet the demands of customers in different countries.
We are still trying our best to produce innovative products to help customers lower their costs and increase their returns. If you are interested in our products, please no hesitate to contact us for future cooperation. We hope to get a mutual benefit with you in the near future.
Shipping
FAQ
1, How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
2. Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
3. How is the packing?
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Our Service
1. 1 years warranty
2. Engineer can go to your country help you install and repair the machine if machine has big problems.
3. The easy broken parts are all change within the 9 months, so within 9 months if the easy brokens are working under a normal enviroment, so we can change for you for free.
4. 24 hours online to help you slove all the problems.
5. Engineers can speak English.
