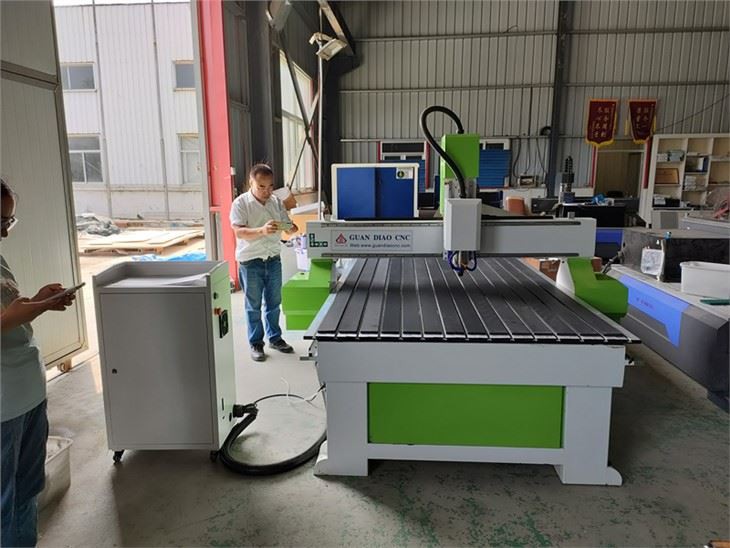

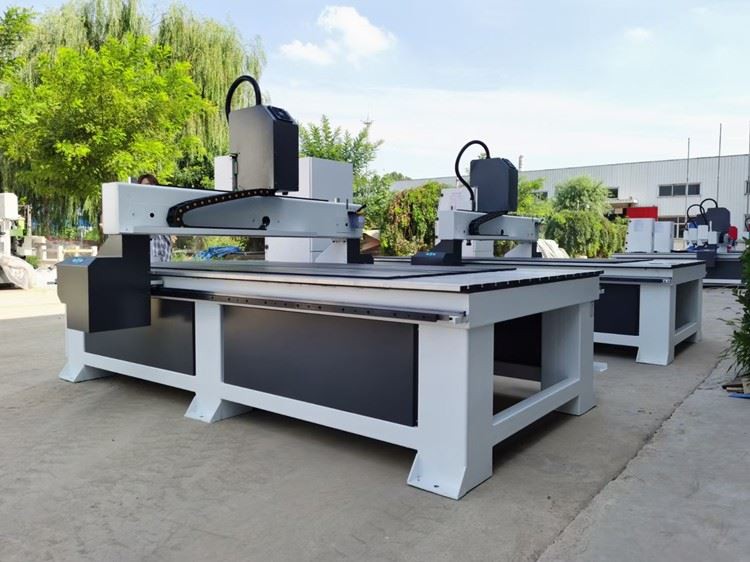

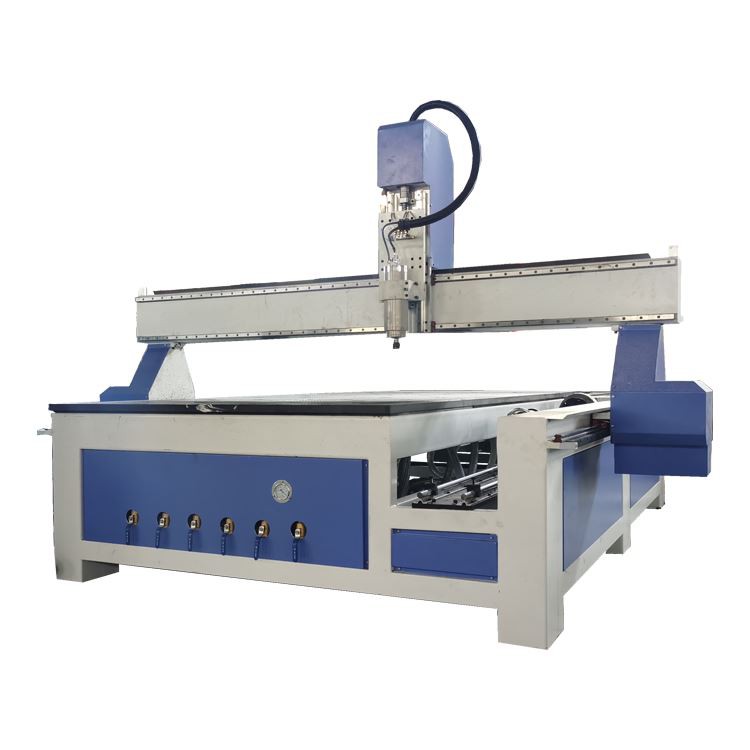

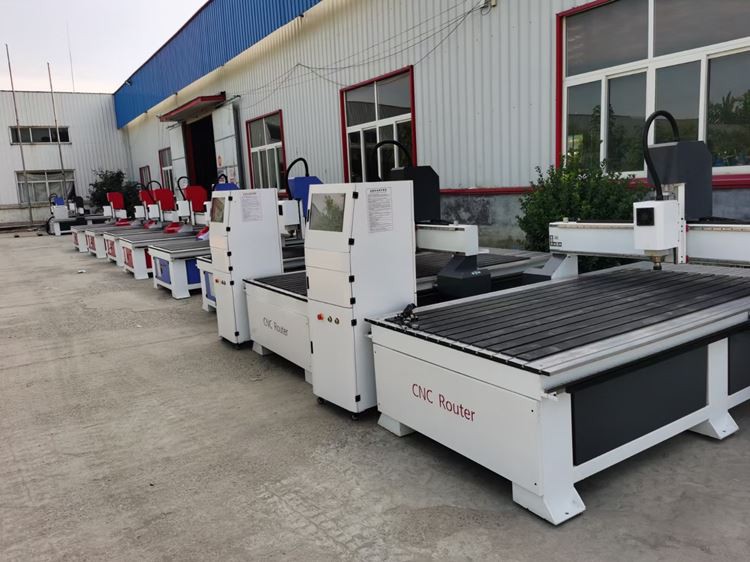

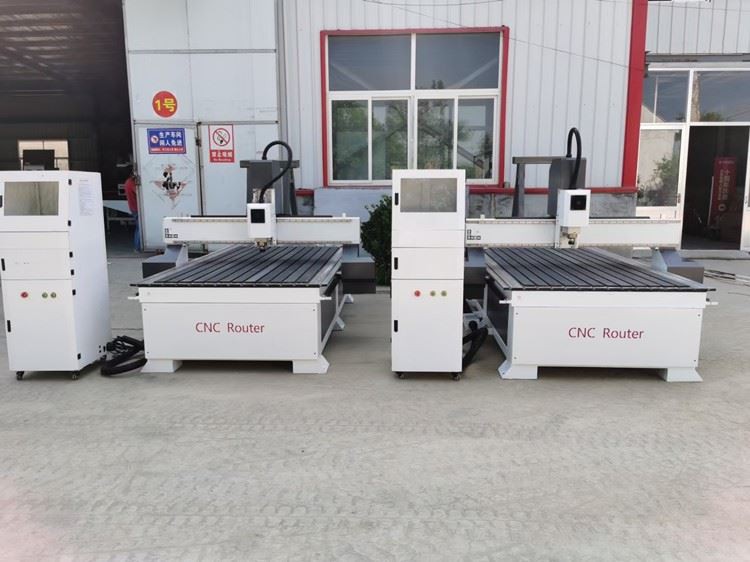

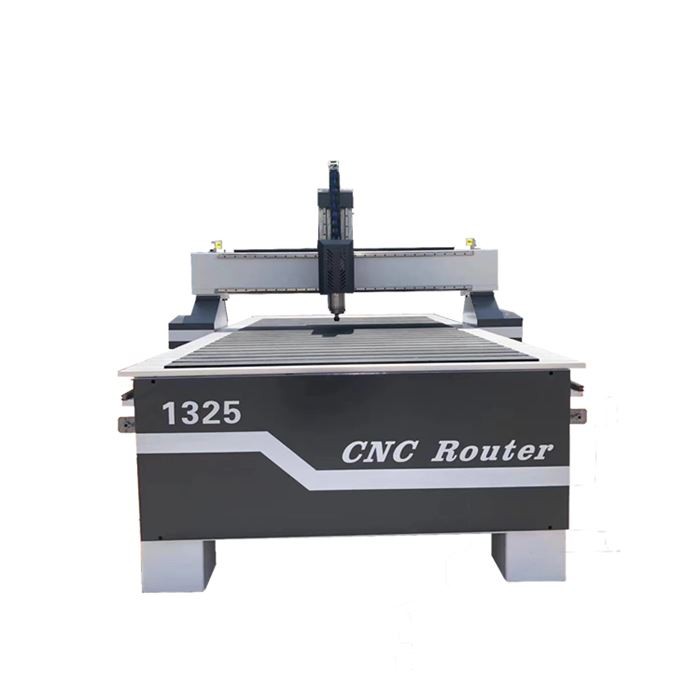

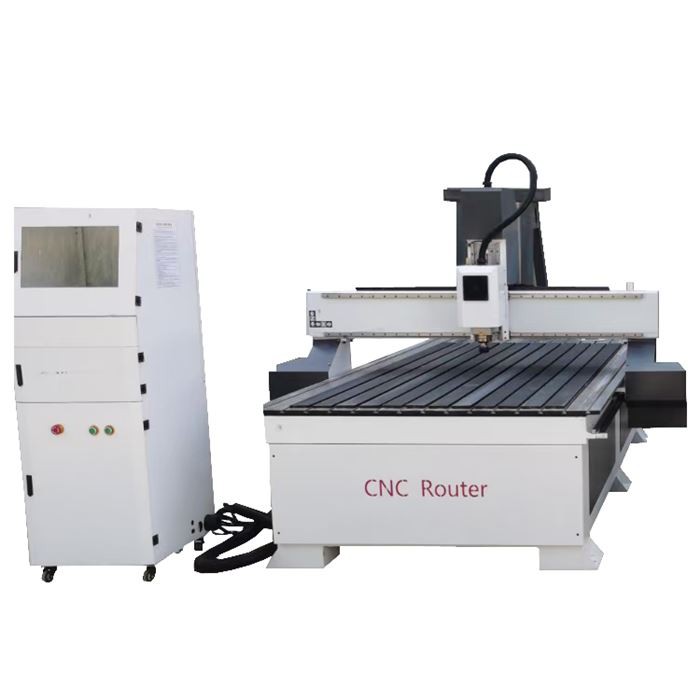

1325 woodworking plastic cnc router
Production Introduction
2.Imported Taiwan 20/25mm linear guide rail,ball screw,self lubricating slide block,making each direction force equal,to ensure that the mechanical precision and strength.
3.good compatibility, software, can compatible type3 / Artcam/ Jd paint/ Aspire Vectric, etc
4.with a high drive stepper motor or servo motor, with strong cutting spindle can make the sculpture speed more improved.
5.Use of the break point memory guaranteed in the accident (blackout) or the next day, to continue processing.
Production features
-3.0KW water cooling spindle
-X Y axis gear transmission
-Z axis Taiwan TBI ball screw transmission
-Taiwan Hiwin 20mm rails
-March 3 controller
-450B stepper motor(Nema34)
-Fuling inverter
-Leadshine M860 driver
technicial parameter
| X,Y,Z Working Area | 1300*2500*200mm|4*8ft |
Optional Working Area | 1300*1300*200mm|4*4ft |
Optional Working Area | 1500*3000*200mm|5*10ft |
Optional Working Area | 2000*3000*200mm|6*10ft |
Optional Working Area | 2000*4000*200mm|6*13ft |
Optional Working Area | 2000*6000*200mm|6*20ft |
Spindle Power | 3.2kw water cooling/3.5kw air cooling spindle |
X,Y,Z Traveling Positioning Accuracy | ±0.05/2000mm |

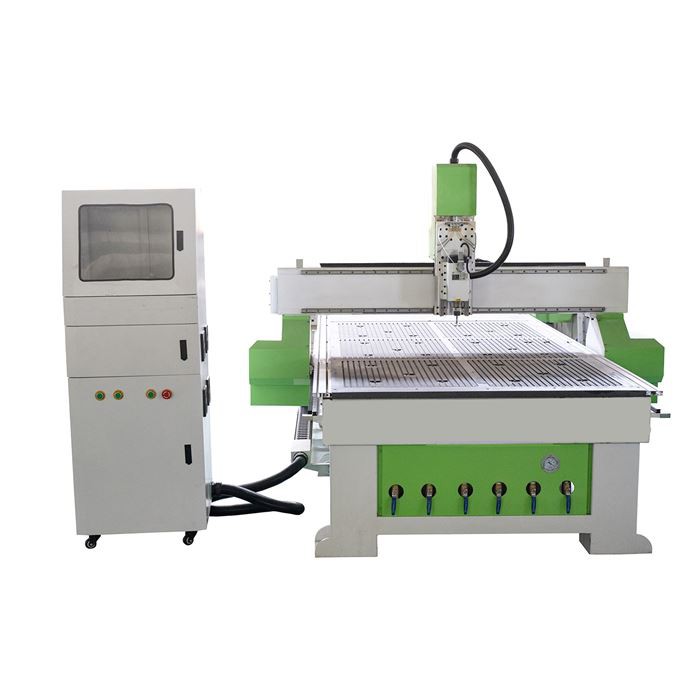

Table Surface | Vacuum table+T-solt table |
X,Y,Z Rail and Trasmission | X Y axis gear transmission,Z axis TaiwanTBI Ball Screw |
Max. Rapid Travel Rate | 30m/min |
guide rail | Taiwan 20mm guide rail |
control system | Nc studio/DSP/Mach 3/syntec/Lnc |
<machine details>
 |  |  |

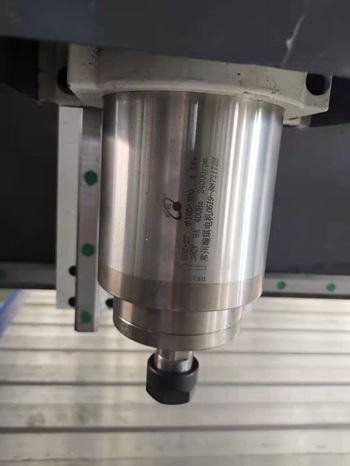

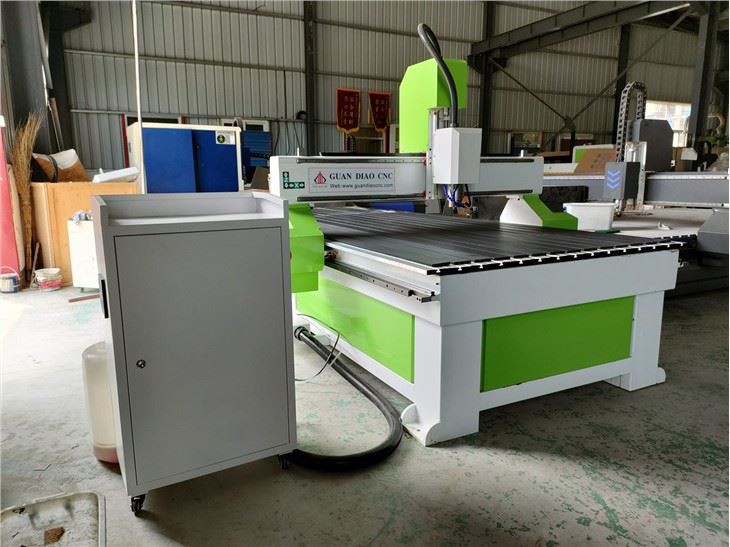

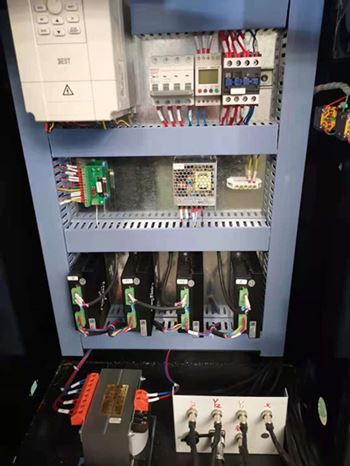

Name: 3.5KW AIR spindle | Name: CNC router vacuum clamp table Brand: guandiao cnc Original: China ,Jinan stronger thicker PVC table .With vacuum pump for fixing material also withT slot clamp for one more step clamping material tightly,for both bigger or smaller sheet | independent control cabinet, clean wire, motor inside, make machine more beauty |
<Applicable>
<about company>
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing
list/Commercial Invoice/Sales contract for customs clearance.
Q: Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q: I don’t know how to use after i receive Or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your
problems finished.We can also provide Door service if you need.
Q: I don’t know which one is suitable for me ?
A :just tell us below information
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.
Q: If we need Guandiao technician to train us after order,how to charge?
A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany
you in factory 1-3 working days.(Every one learning ability is different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician’s
business travelling ticket / room and board/ 100 USD per day.
Q:Why the machine price not include fiber source and tube parts ？
A:Different power different tube diameter price different , that's why we list the price not include fiber source and tube parts .
