Product Description
Specification
Model | GD-2400 |
Panel Feed Speed(m/min) | 13m/min |
Edge Thickness | 0.4-3mm |
Edge Width | 15-55mm |
Edge banding height | 12-60mm |
Panel thickness | 8-30mm |
Mini work Panel Width | > 80mm |
Mini work Panel Length | >120 Mm |
Heating power of plastic box | 1.5kw |
Plate preheating power | 0.3KW |
End cutting motor power | 0.55kw * 2 1200r / min200HZ |
Transmission motor power | 2.2KW |
Polishing motor power | 0.2kw*2 1400r / min 300Hz |
Fine trimming motor power | 0.75kw*2 1800r / min 300Hz |
Total power | 10kw |
Air pressure | 0.9MPA |
Machine weight | 1500KG |
Machine size | 4200*1000*1800mm |

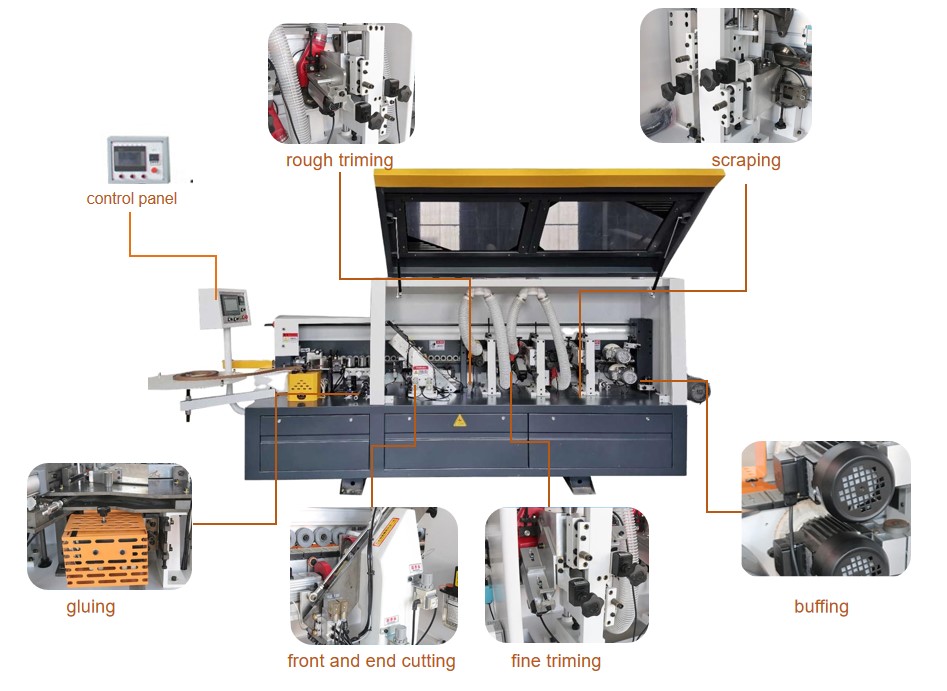

Brief introduction

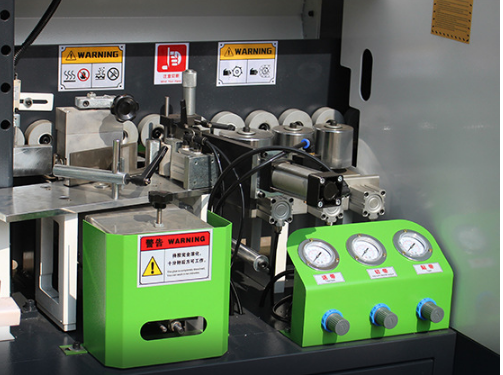

Preheat gelatinization

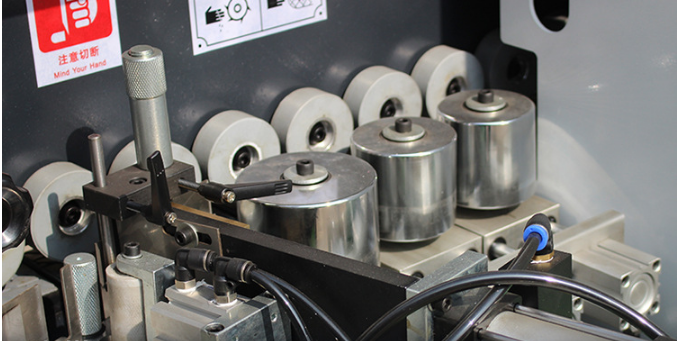

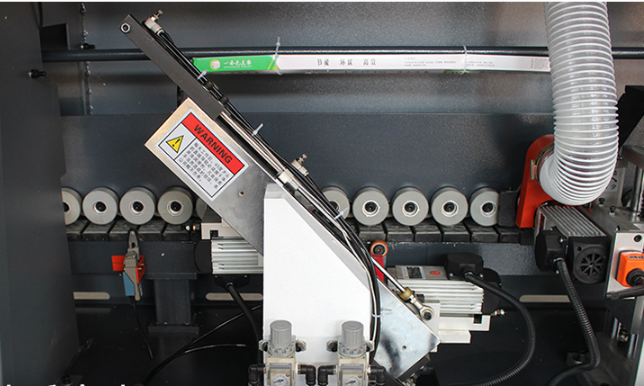

Taping
Front and end cutting

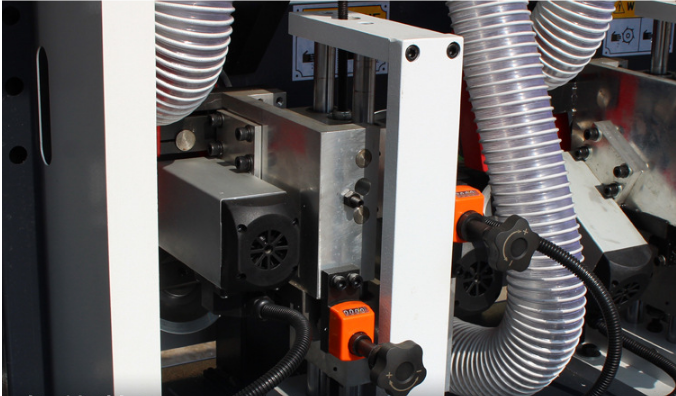

Rough trimming

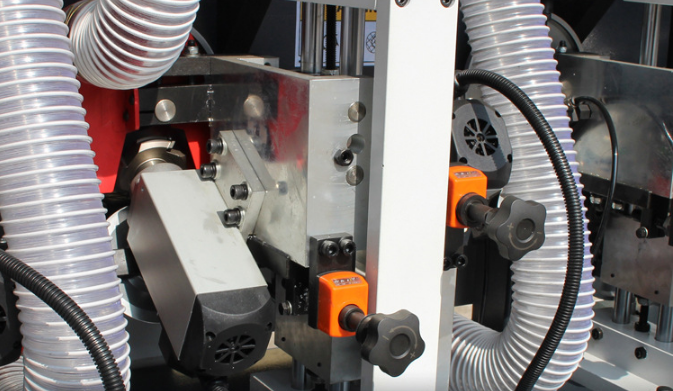

Fine trimming

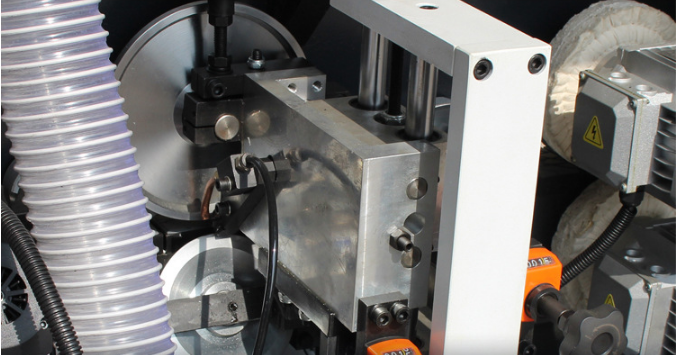

Edge scraping device

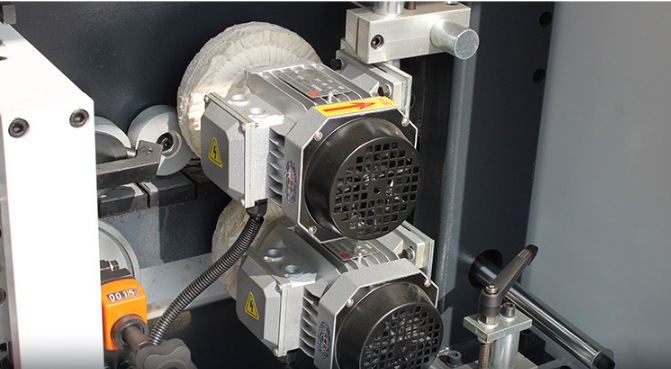

Polishing device
Application
The automatic linear edge banding machine is suitable for such plates: MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.
