Application Industry:
Wide range of applications. Wood CNC machine can be widely used in advertising industry, craft industry, mold industry, electronics industry, construction industry, printing and packaging industry, wood industry, decoration industry, tombstone industry, etc.
Application Materials:
CNC wood router machine can not only process wood, also it can process MDF, plywood, acrylic, aluminum, rubber board, stone, pvc board, double-color board, stainless steel, etc.
1. 1300*2500*200mm work area, can be customized.

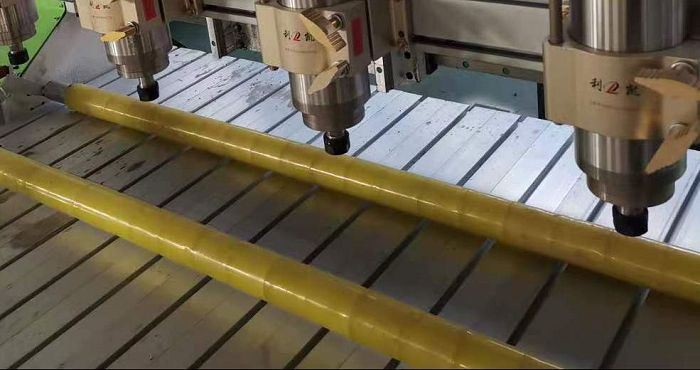

2. 3d rotary device/4th axis for option.
3. 2.2kw water cooling spindle, 24000rpm. WHD/HQD brand, China top quality.
4. Mach3 or Nc studio 4 axis control.
5. Taiwan HIWIN 20mm square guide rail.
6. Helical rack transmission for X, Y axis, powerful and stable.
7. Taiwan TBI ball screw transmission for Z axis, most accurate precision.
8. Aluminum+PVC working table, also can choose vacuum table
9. Water mist cooling sprayer (for metal working).
10. Automatic oil lubrication system.
11. Tool sensor calibration.
12. Japan OMRON limit switch.
13. The best cable, highly flexible, fire resistant.
Details
|
|

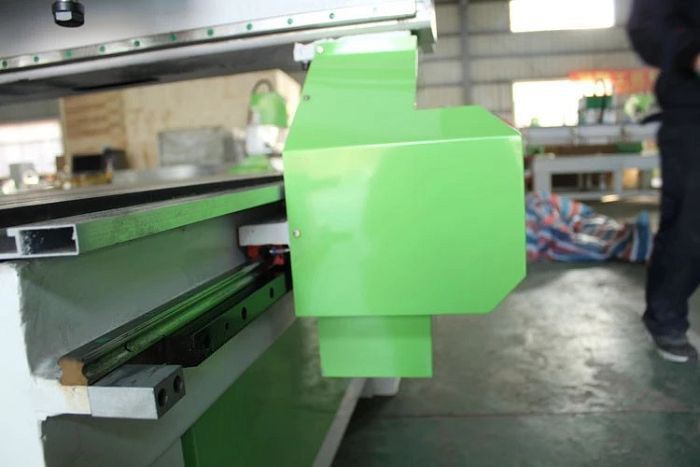

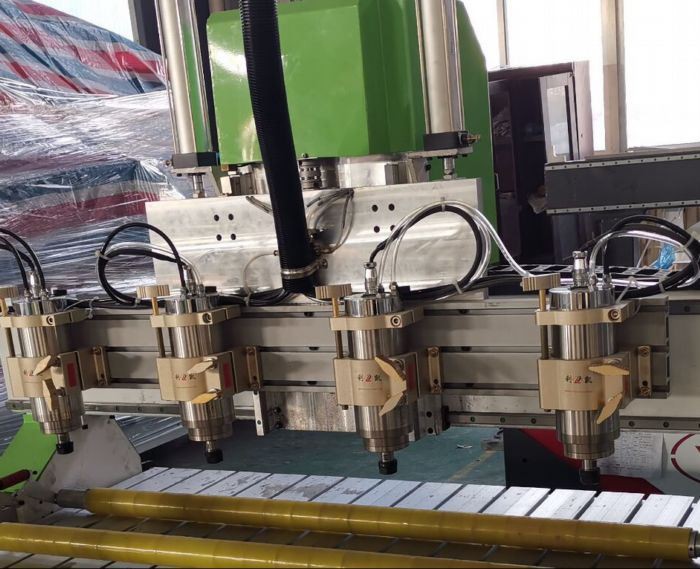

Main Features 2.2kw China HQD/WHD brand quality air cooling spindle Speed: 24000rpm Relief engraving usually used for water cooling spindle for long time working time | Machine Parts Double motor design in y axis, ensure the machine stablity in working process High quality Taiwan Hiwin square guide rail and Germany brand helical rack transmission, more smooth and low noisy |
|
|

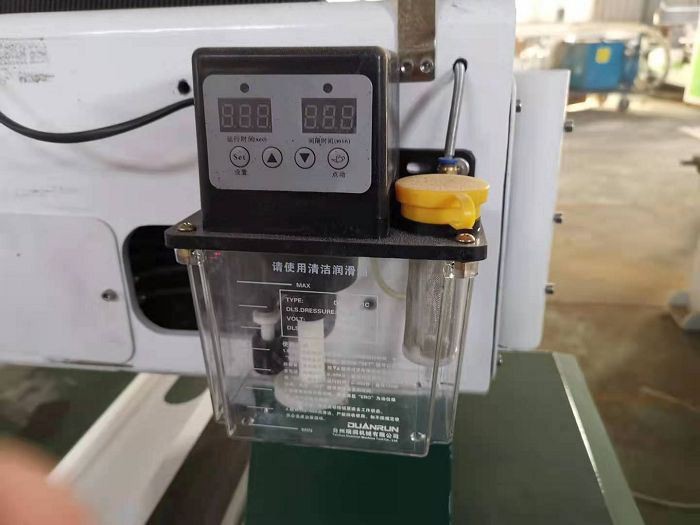

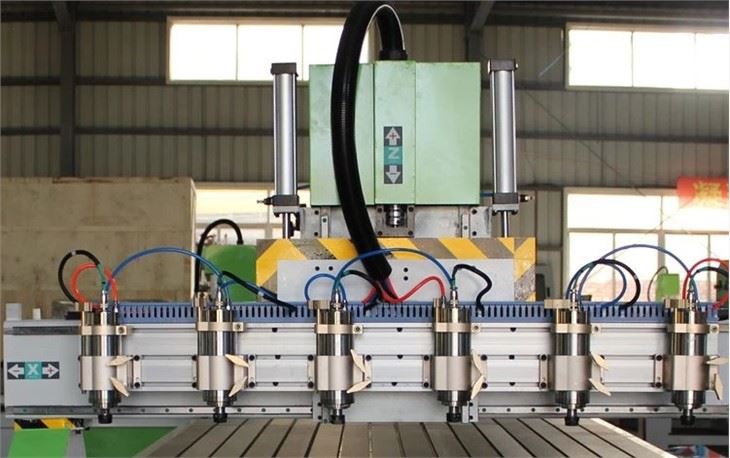

Z aixs with two pics balance cylinders Cylinder can hold spindle, more stable processing | Automatic lubrication device Compare to manual oiling, automatic device more convenience |
|
|

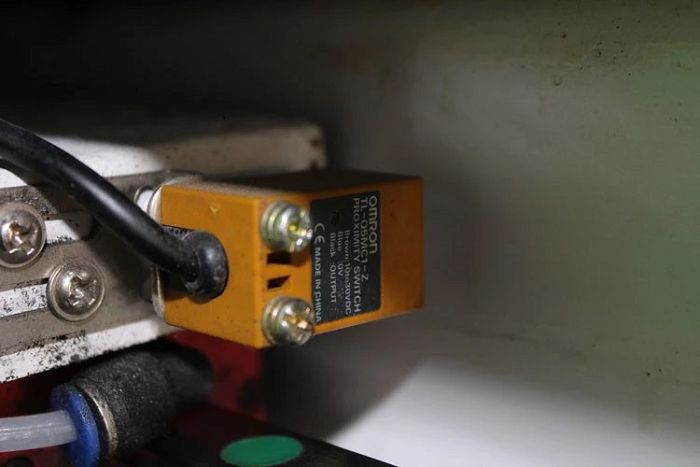

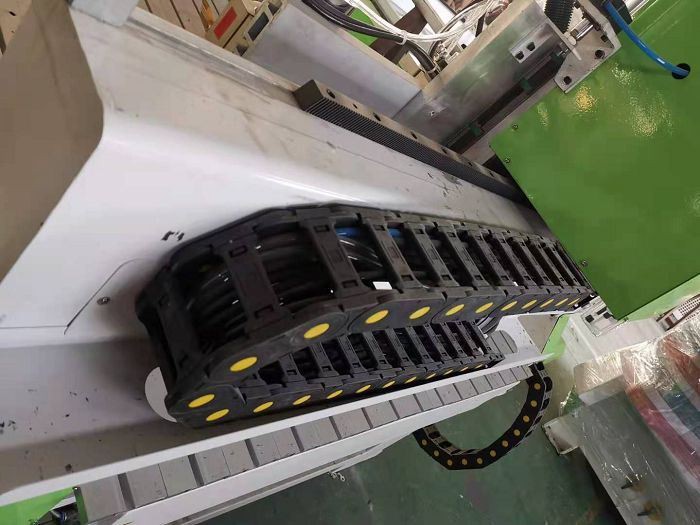

Quality chain High quality chain, can achieve thousands of bend, no deformation | Three axis traveling limit Japan Omron electric limit, protect machine working safe and precision |
|
|

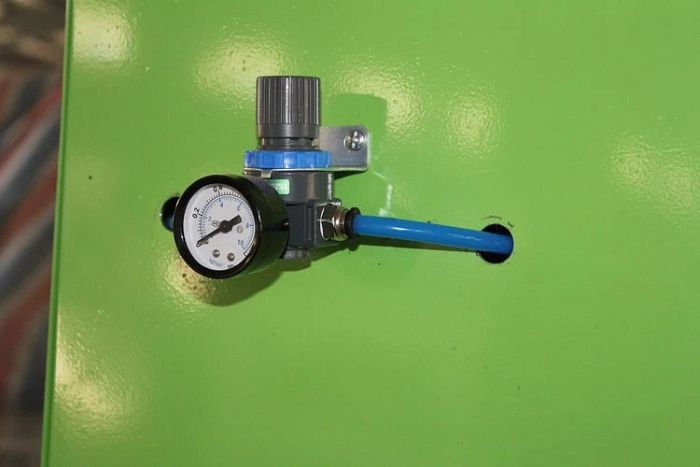

Oil-water separator Each machine we install oil-water separating device, for protecting cylinders long life time | Press bar That will be helpful for fix the board |
|
|
Parameters

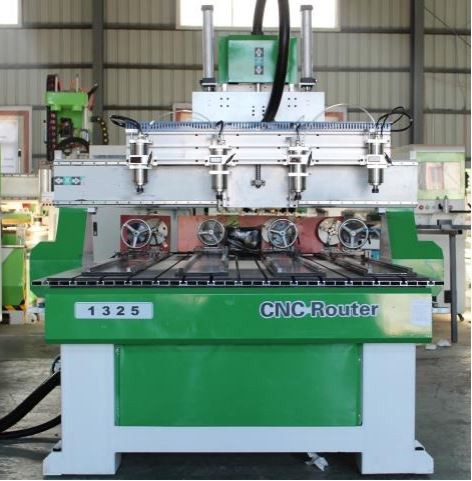

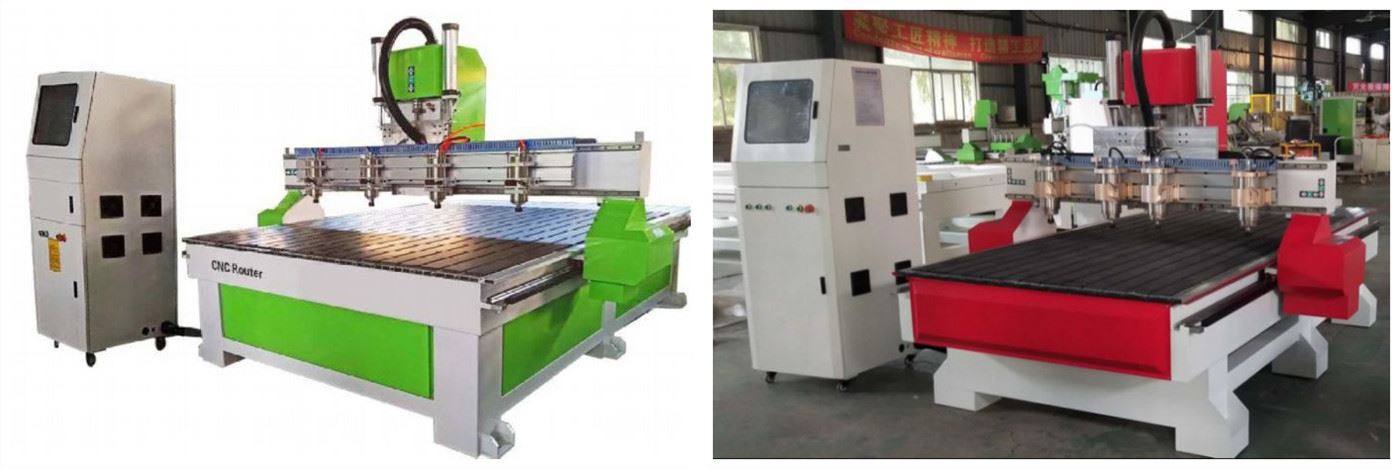

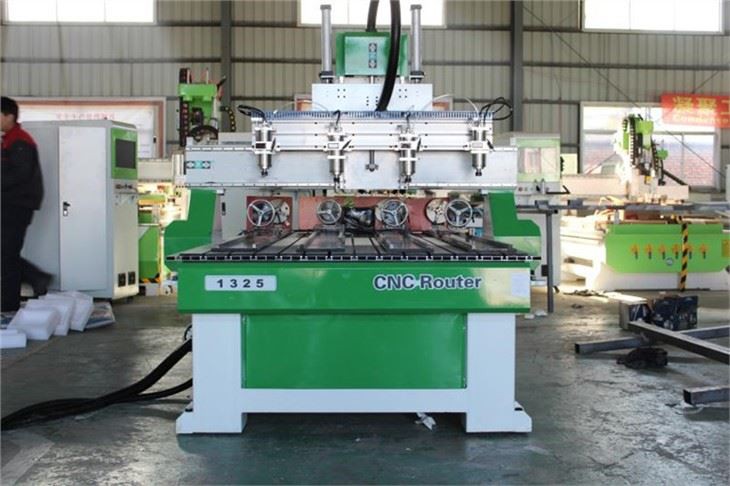

Mode | 1325 WOOD CNC machine |
Working size | 1300*2500*200mm (size can be customized) |
Table structure | Aluminum+PVC (vacuum table optional) |
Guide rail | 20mm guide rail |
Rack | Grinding Helical rack, z axis TBL ball screw |
Spindle | 2.2kw, water cooling |
Driving | 450B Stepper motor, Leadshine 860 driving |
Voltage | 380/220v |
Control system | Nc studio/DSP/Mach 3 |
Limit | Omron |
Engraving command | G code*.ENG/ u00*.mmg*.plt |
warranty | 1 year |
Samples
Q1: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q2: How to install and run the machine?
A: Our technician have installed and Full test before shipping, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q3. What is the producing time after order?
A: The producing time is about 10-20 days depend on different machines.
Q4. If we don't know how to use the machine, can you teach us?
A: Yes, we will, if you come to China, we will offer you free training until you can use machine freely. And if you are busy, we will have the special engineer to your country, but you need to bear some fee, like tickets and hotel and meal.
Q5. How about your after-sales service?
A: We offer you 24 hours service phone, skype or whatsapp, our engineer also can go to door install or training.

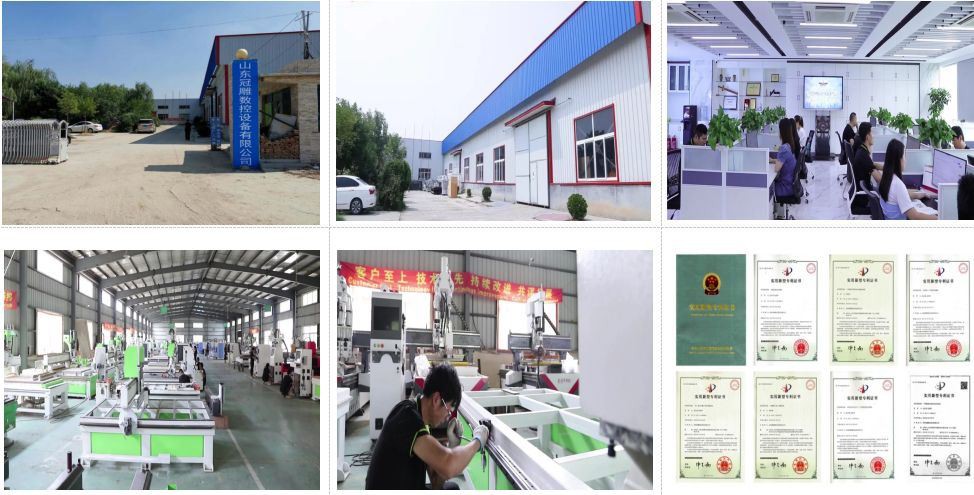

About us
