Wood furniture industry, wooden table legs, sofa legs
Crafts industry: wooden Buddha head, 3D state
Description
This upgraded Relief CNC Engraving Machine is in cast iron, which has high strength and shock resistance during processing. It adopts various imported motors and guides to ensure efficient operation while guaranteeing high quality of engraved products. The cutting head is highly accurate, rigid, flexible and durable, suitable for processing various materials with high precision and industrial strength.
Features
1. This Relief CNC Engraving Machine has an original system, easy to learn to operate, and to get started and convenient.
2. The machine adopts imported linear guide made in Taiwan, German ball screw, equipped with moment stepping motor, these precision parts ensure its excellent performance and accuracy.
3. It is perfected with automatic electric oiling lubrication system, which can prolong the service life of the machine.
4. The whole engraving machine is made of steel structure, welded firmly, and the blade rotates firmly and smoothly during operation, without deformation during long-time operation at high speed.
Details

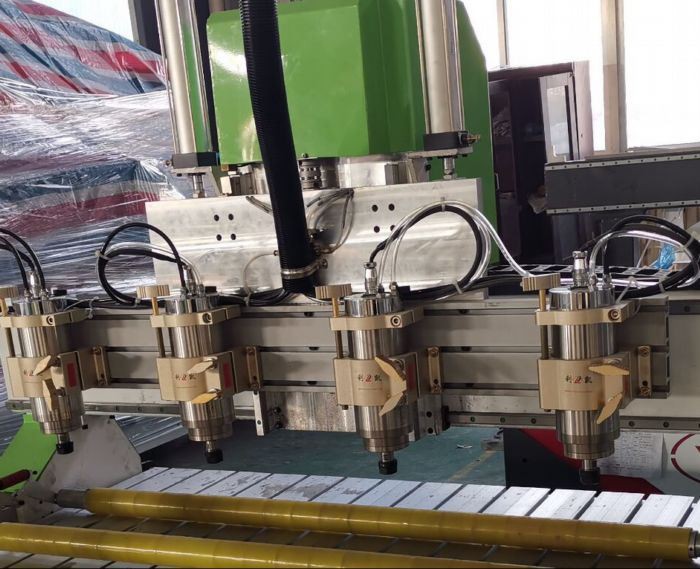

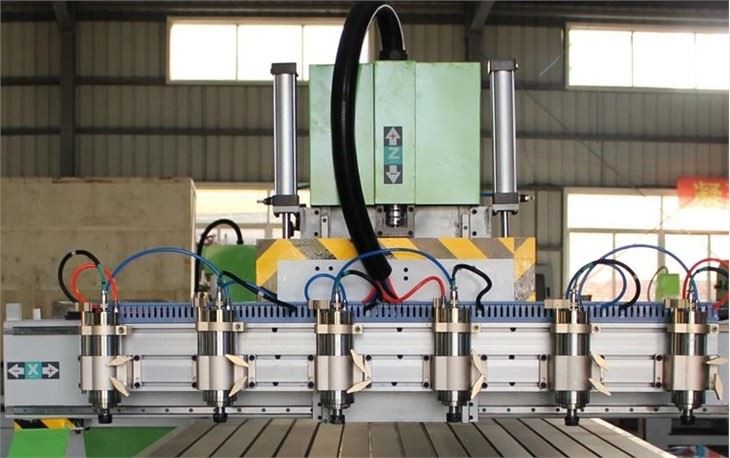

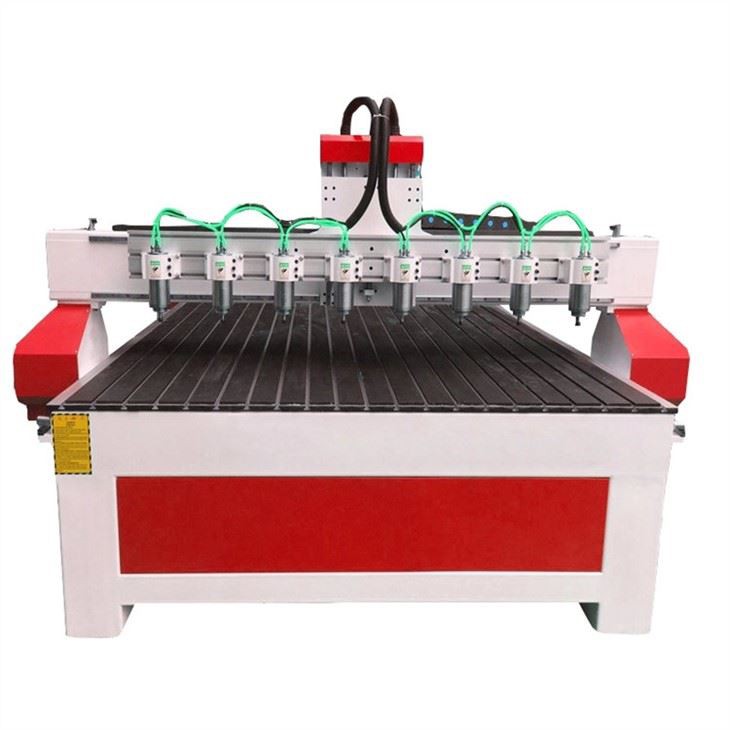

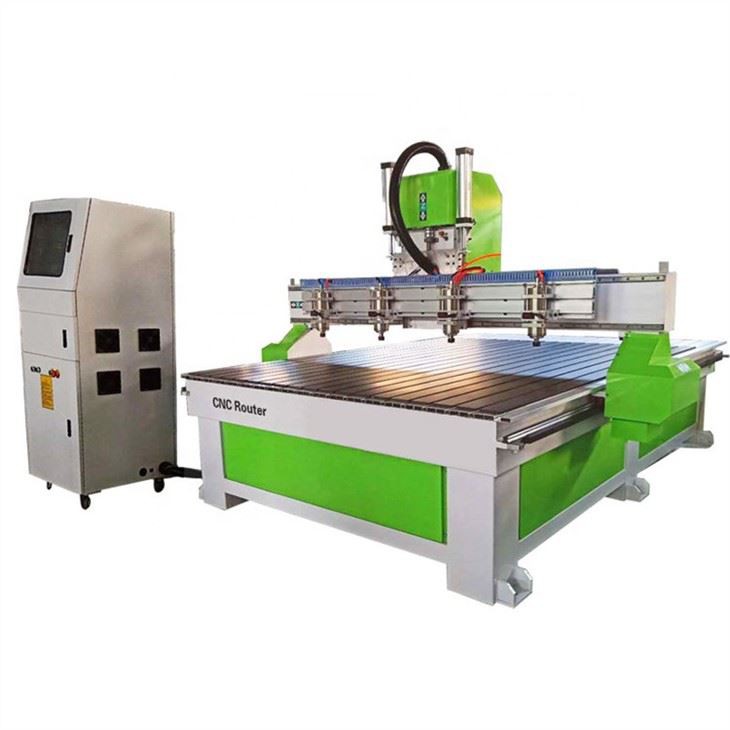

Main Features Name: multi spindles Machine equip with 4/6/8/10 pics spindles according to user's productions, multi heads, high efficiency and each spindle with adjustable holder for same level adjusting when process material, easy for position, ensuring working precision, saving calibration time |
|

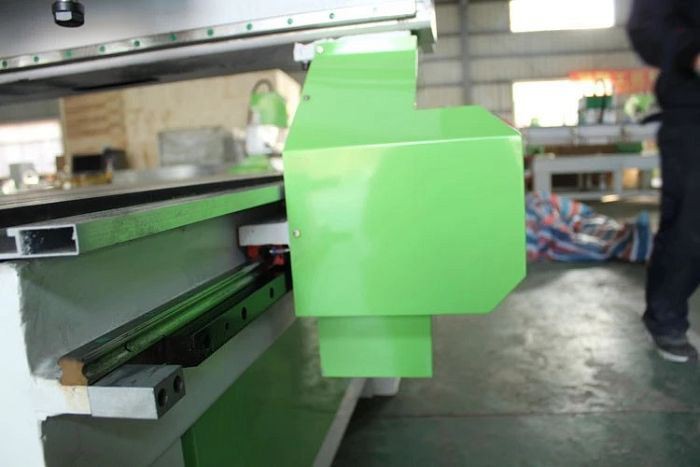

Machine Parts Y axis adopts two motor, to ensure moving more stable. And Taiwan Hiwin square guide rail and Germany brand helical rack transmission, stable running, longer using life. |
|
Z aixs with two pics balance cylinders Guandiao CNC use unique patent design on the machine for the Z axis head, two cylinders working with compressors ensure Z axis balance working, improve working accuracy |
|

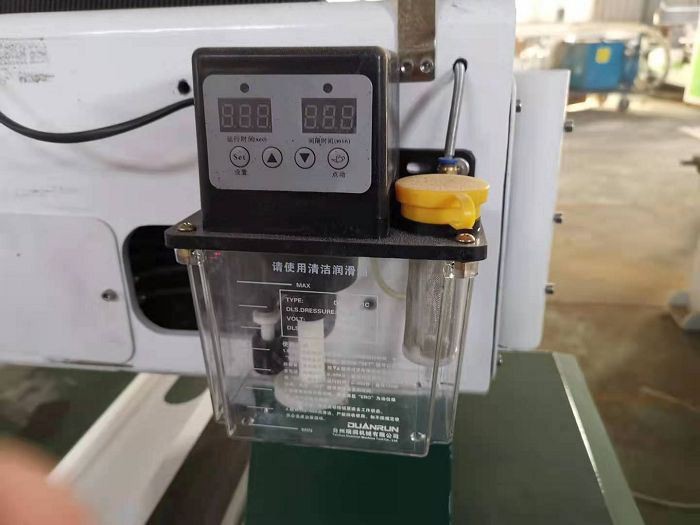

Automatic lubrication device Automatic oil lubrication for guide rail and rack after setting time save labor, easy for maintenance for machine |
|

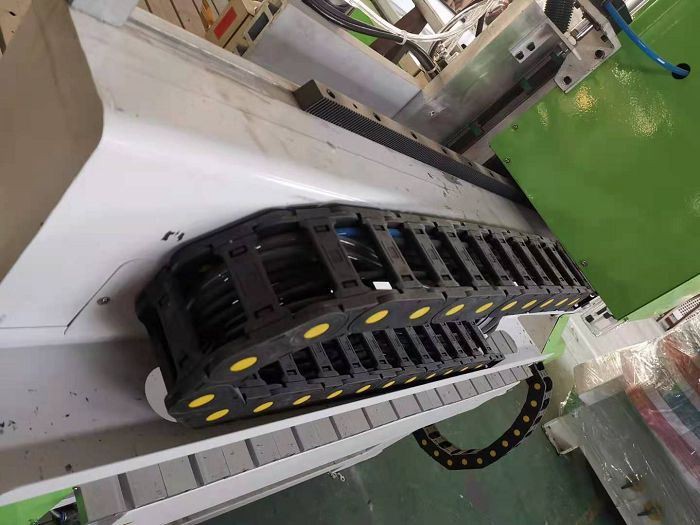

Quality chain High quality chain, can achieve thousands of bend, no deformation |
|

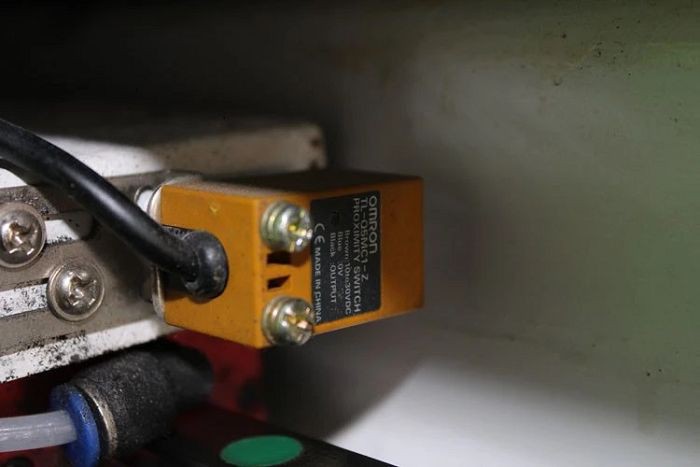

Three axis traveling limit One machine equip with three pis limit for protecting machine safe & efficient working, we adopts world famous brand Japan Omron limit, stronger sensor, long life time convenient maintenance. We also add hard limit on each axis for safety issue |
|

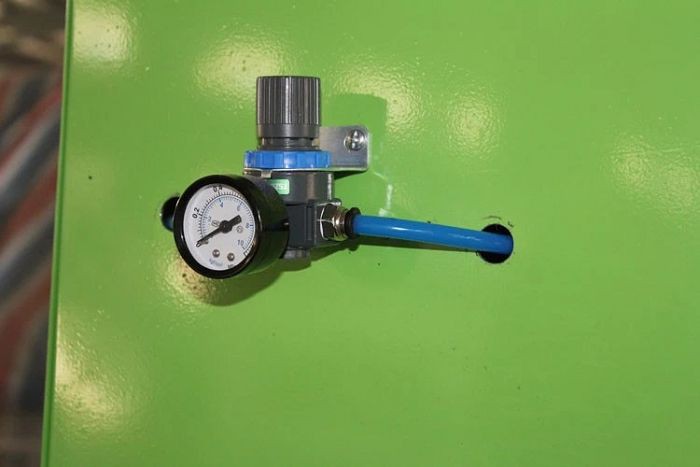

Oil-water separator Each machine we install oil-water separating device, for protecting cylinders long life time |
|

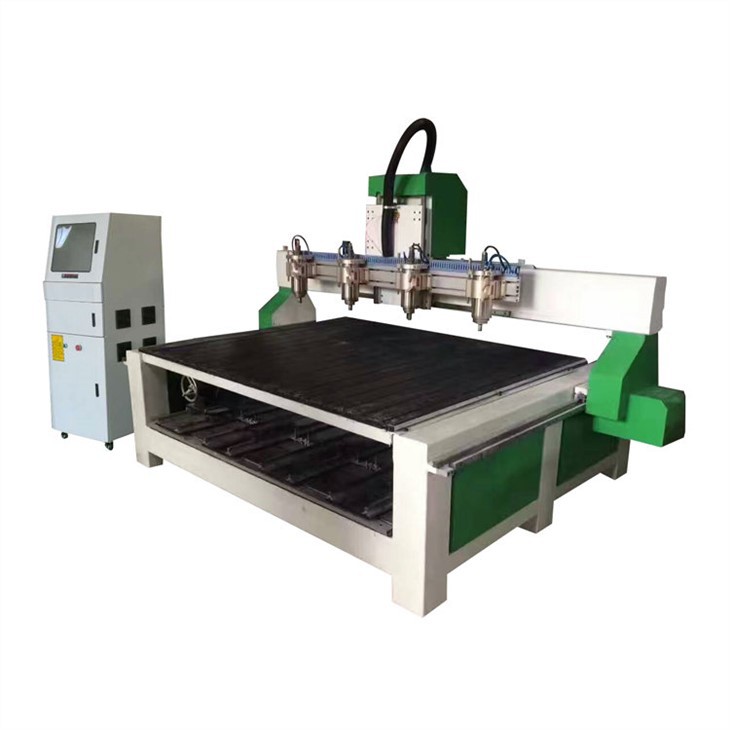

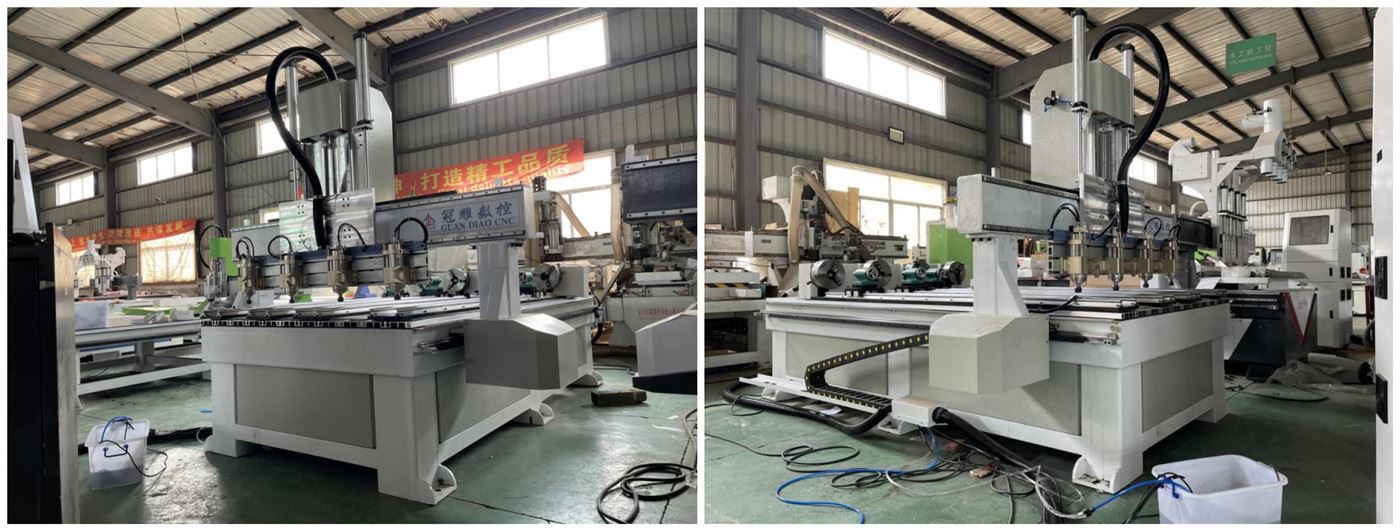

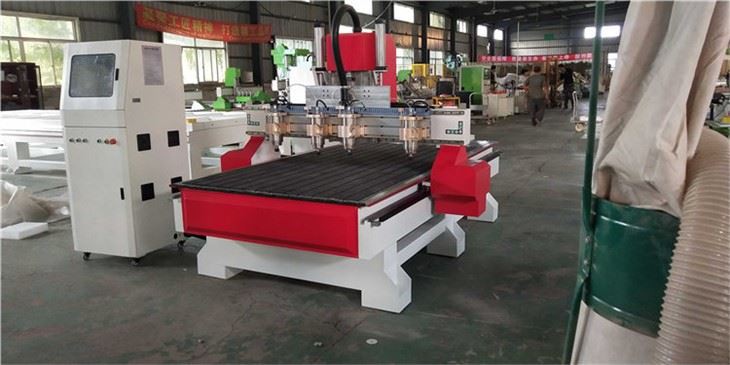

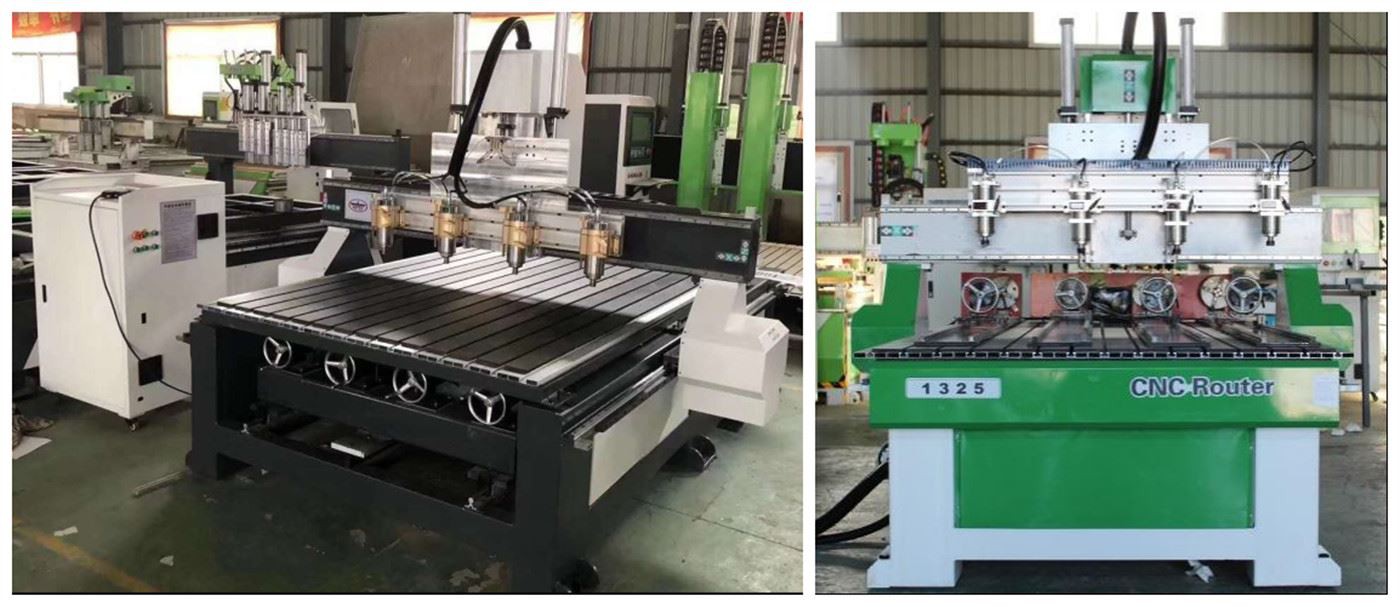

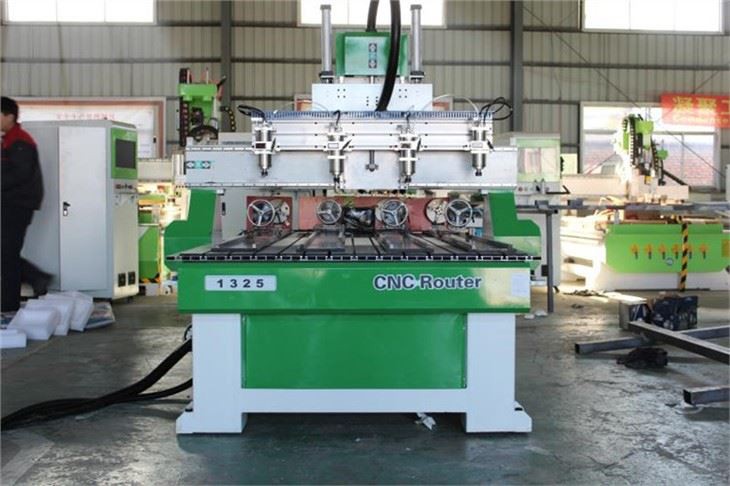

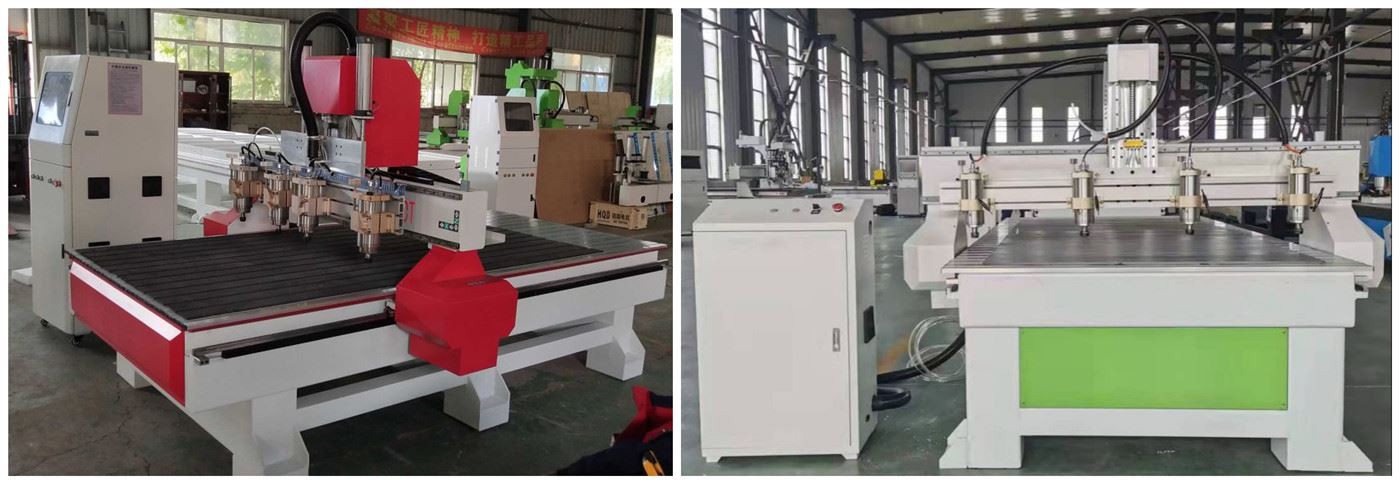

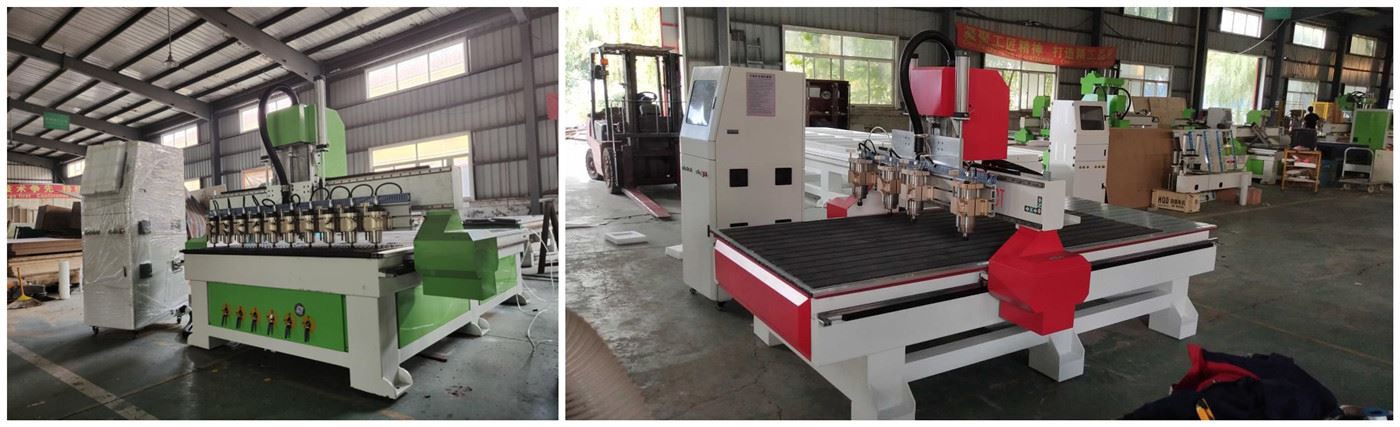

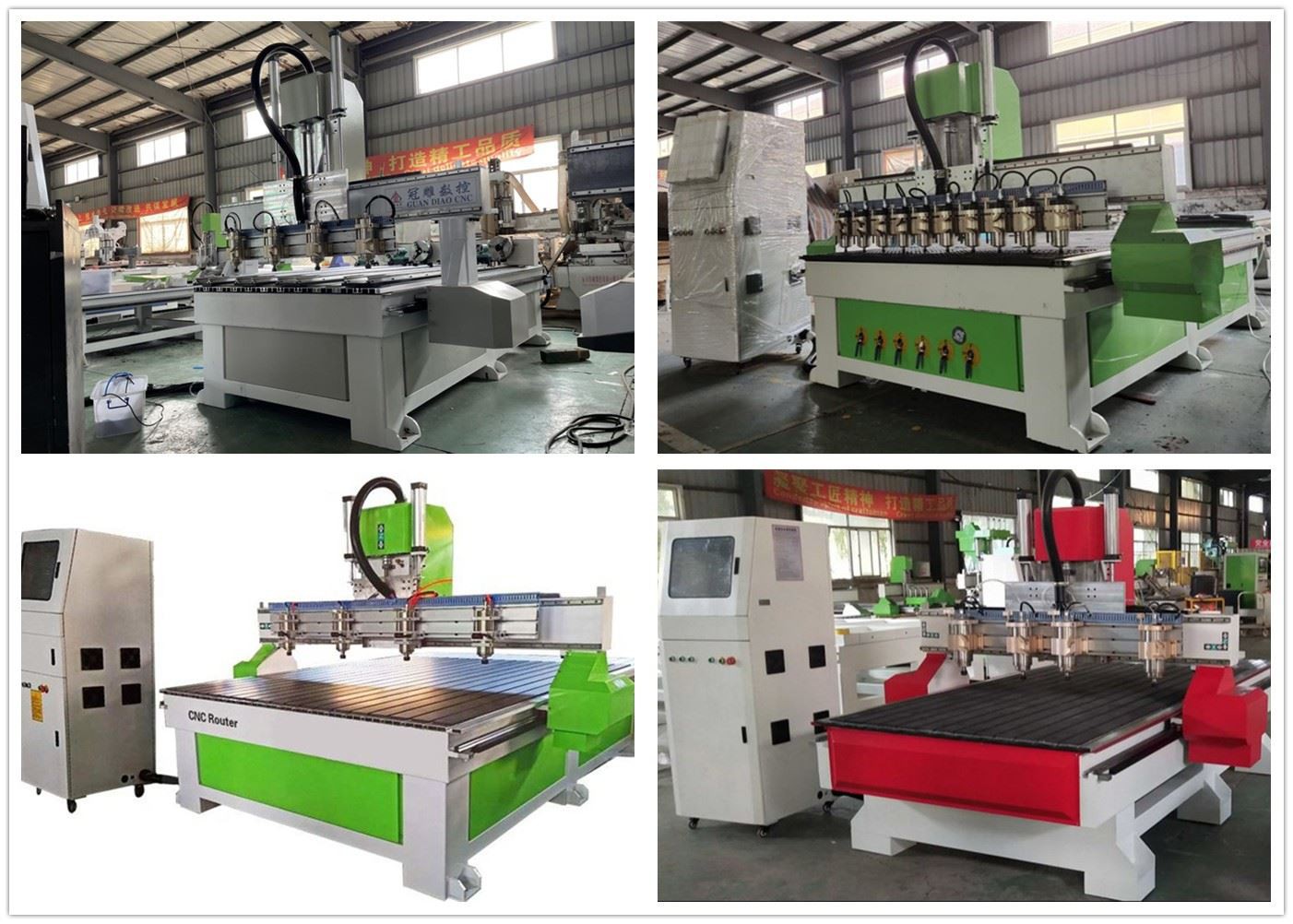

Machine Photo
Parameters
Mode | 1325 relief cnc engraving machine |
Working size | 1300*2500*200mm |
Table structure | Aluminum+PVC |
Guide rail | 20mm guide rail |
Rack | Grinding Helical rack, z axis TBL ball screw |
Spindle | 2.2kw, water cooling |
Driving | 450B Stepper motor, Leadshine 860 driving |
Voltage | 380/220v |
Control system | Nc studio |
Limit | Omron |
Engraving command | G code*.ENG/ u00*.mmg*.plt |
Others
Samples
Technical Support
1. All detailed consulting service before sale.
2. 12 month quality guarantee time after sale, the machine main parts (excluding the consumable parts) broken which is not caused by man-made, we will send you a new one for free during the guarantee term (but need you help return back the old part).
3. Free training at our factory.
4. Will supply you parts at cost price.
5. 24 hours on line service each day, free technique support all lifespan.
Our staff can come to your place for training or adjust.
