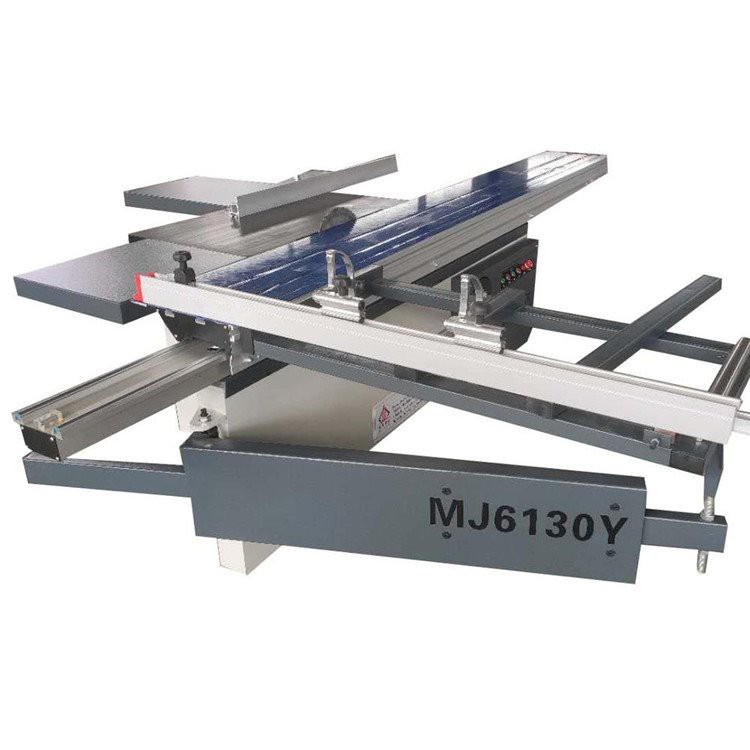

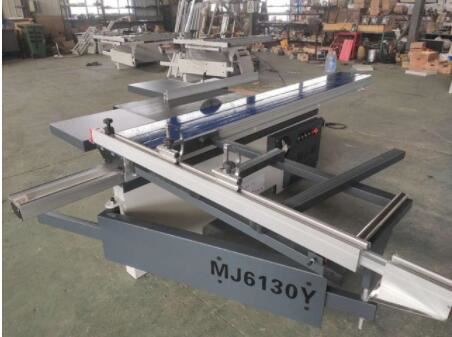

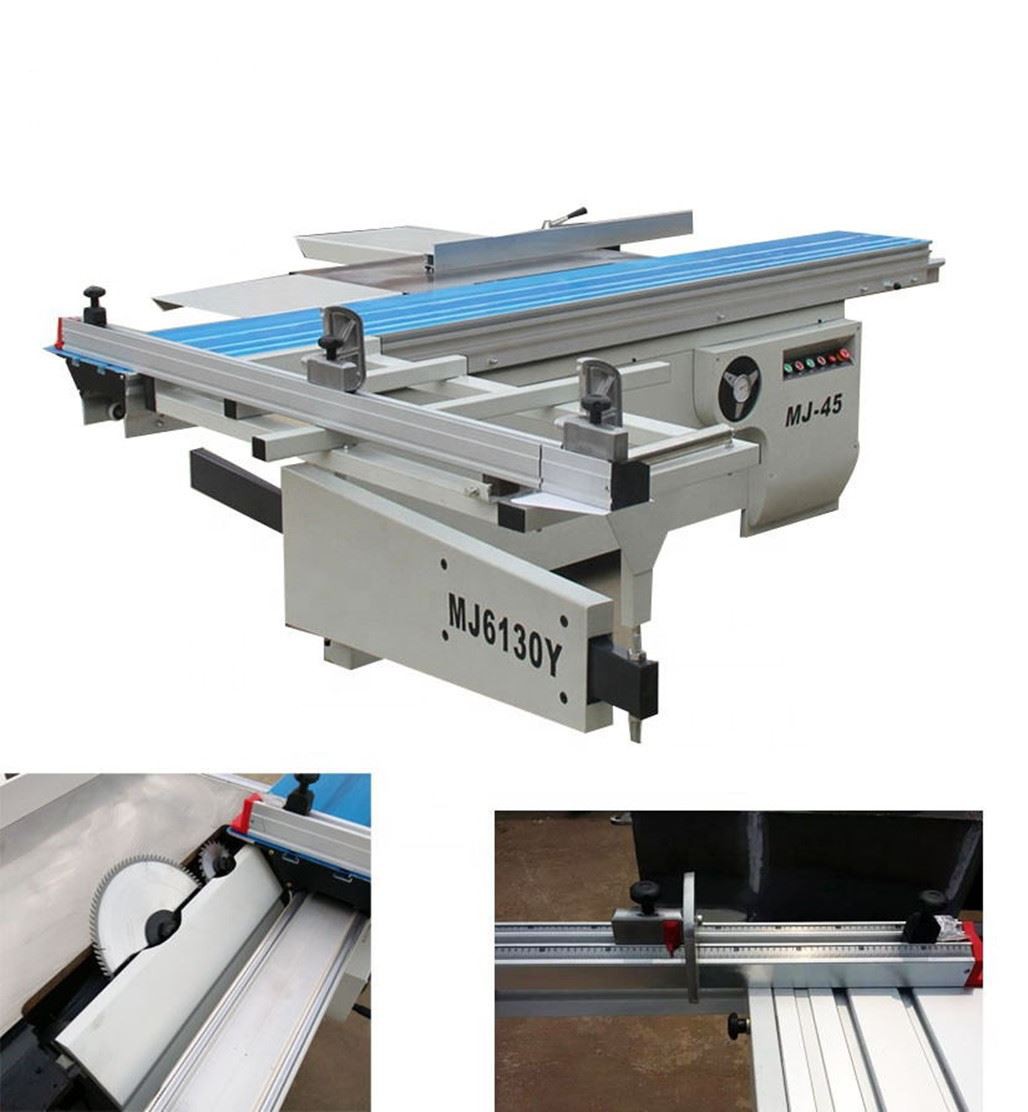

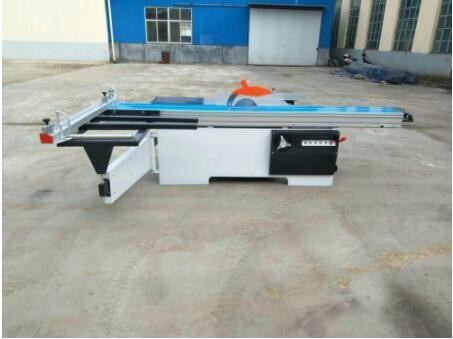

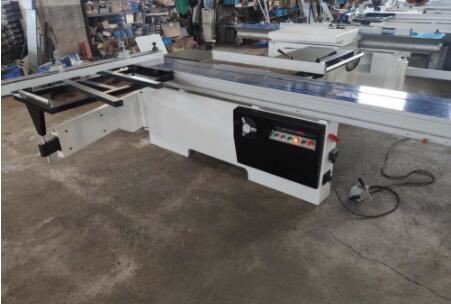

Customized Table Saw Woodworking Sliding Table Panel Saw for Board Mdf Pvc Cutting
Product Induction
Suitable for cutting materials such as density board, polished board, man-made board, solid wood board, ABS board, PVC board, etc.
Product Specification
Product model | 2.8m45° MJ45YD | 2.8m9° MJ45YD | 3m45° MJ45YD |
Dimensions of sliding table saw | 2800*320mm | 2800*320mm | 3000*375mm |
Maximum sawing length | 2750mm | 2750mm | 2950mm |
Maximum sawing width | 1250mm | 1250mm | 1250mm |
Blade Diameter | 300mm | 300mm | 300mm |
Maximum blade thickness | 80mm | 80mm | 80mm |
Spindle speed | 4000/6000rpm | 4000/6000rpm | 4000/6000rpm |
Spindle diameter | 30mm | 30mm | 30mm |
Angle of saw blade | 0-45° | 90° | 45° |
Main motor power | 4.0/5.5kw | 4.0/5.5kw | 4.0/5.5kw |
Diameter of scoring saw | 120mm | 120mm | 120mm |
Speed of scoring saw | 8000rpm | 8000rpm | 8000rpm |
Diameter of countershaft | 20mm | 20mm | 20mm |
Auxiliary motor power | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw |
Net weight(kg) | 700 | 700 | 770 |
Size (mm) | 2850*3050*900 | 2850*3050*900 | 3050*3100*900 |
Product Details

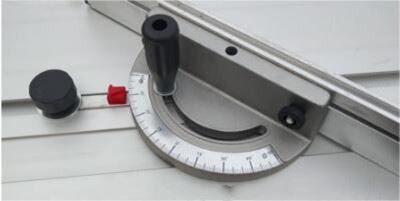

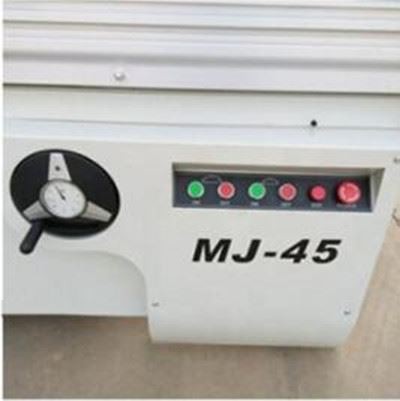

![]() | Adjustment button |

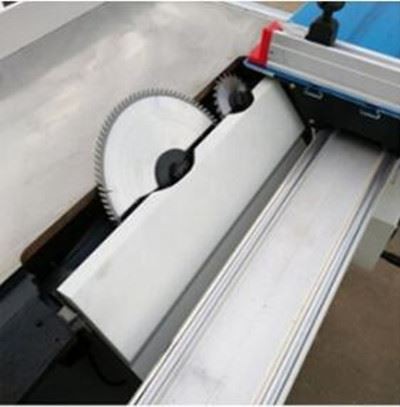

45 degree saw | |

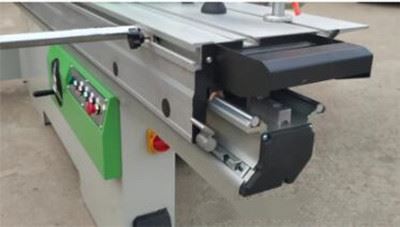

Round guide rail | |
Ruler |
Product Functions and Advantages
(1) Effort to promote large travel convenient operation.
(2) Saw blade can be adjusted for 45 degrees, enlarge the using range of the sawing machine.
(3) Double layer of sliding table.
(4) Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.
Product Application

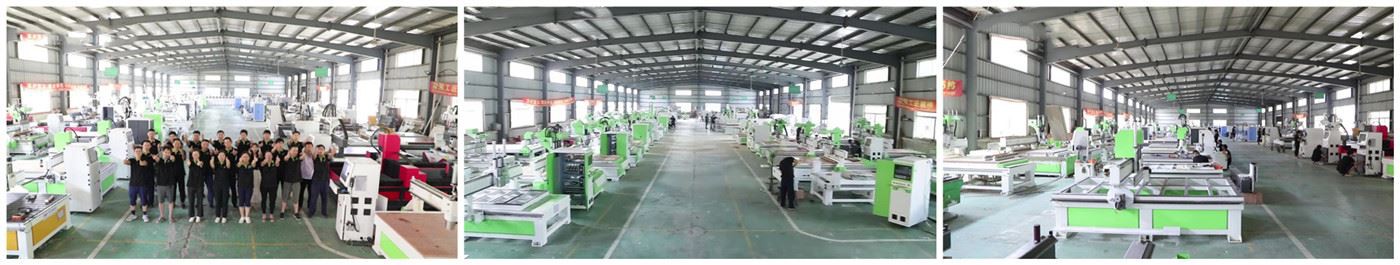

Company Factory Introduction
Shandong Guandiao CNC Equipment Co., Ltd It has been working on researching and manufacturing CNC machinery in field of woodworking, stone engraving, metal processing, glass cutting and advertising etc. over 10 years.
The main products: Heavy moving column CNC machining center, Heavy static column CNC machining center, High accuracy metal cutting machine, High precision fiber laser machine, Vanguard series CNC engraver, Multistage CNC machine center, high accuracy CNC engraver, laser cutting machine, plasma cutting machine, totally 23 series, more than 100 models.
Our sales net not only covers all Chinese provinces and municipalities, including HongKong, Taiwan& Macao, also the products are exported to more than 120 countries and regions such as Europe, America, Middle-east, South-east Asiaetc.
Certificate
After 10 years of development, the National High- -tech Enterprises, CE certification and other certificates.
Packing and Ttransportation
Our Service
Pre-Sales Service
1. We have many exhibitions very year, hundreds of clients was coming to our booth for further communication.
2. 24-hours online Inquiry and consulting support.
After-Sales Service
1. Training how to install the machine, training how to use the machine online.
2. Guarantee for one year
