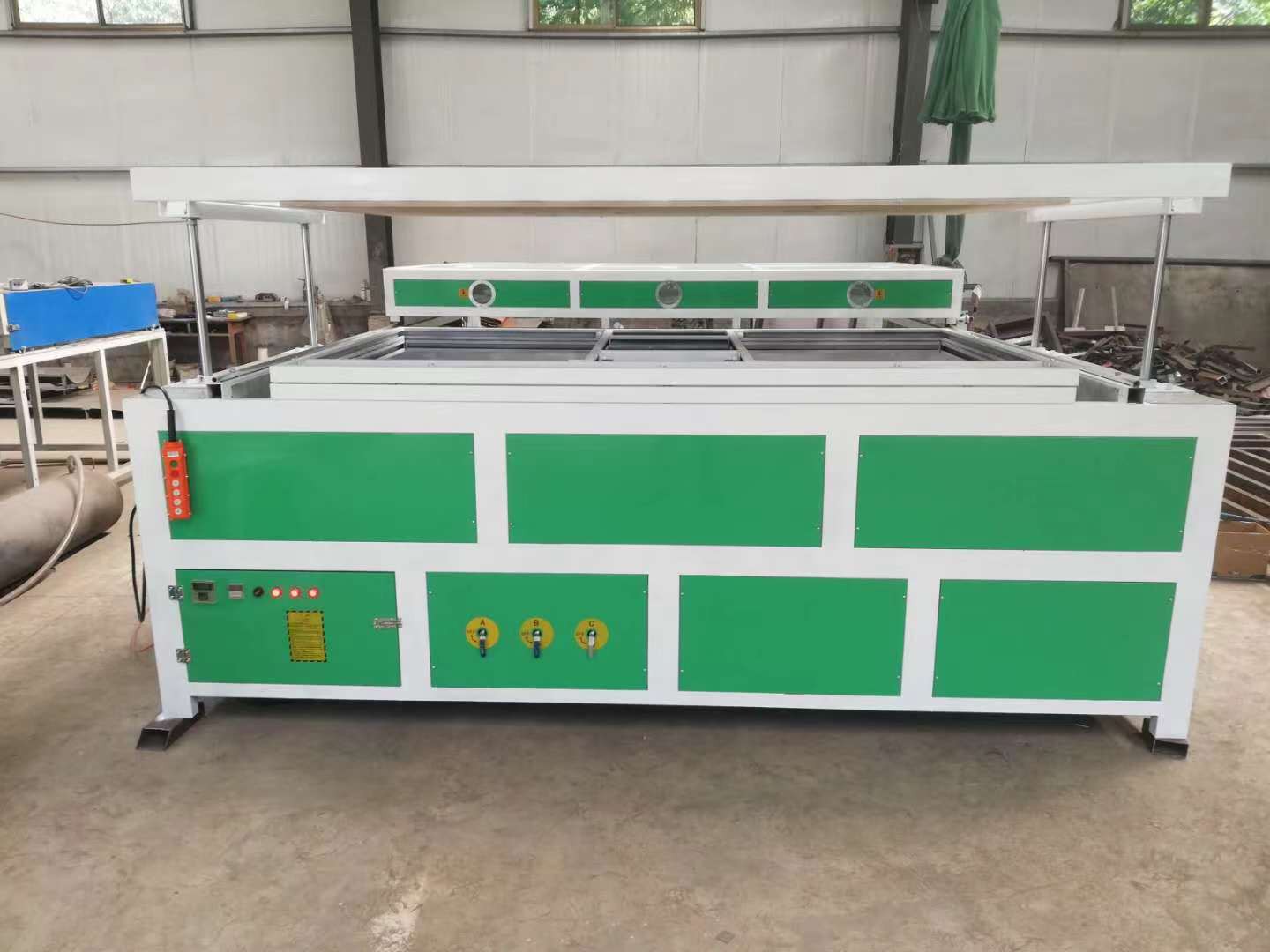

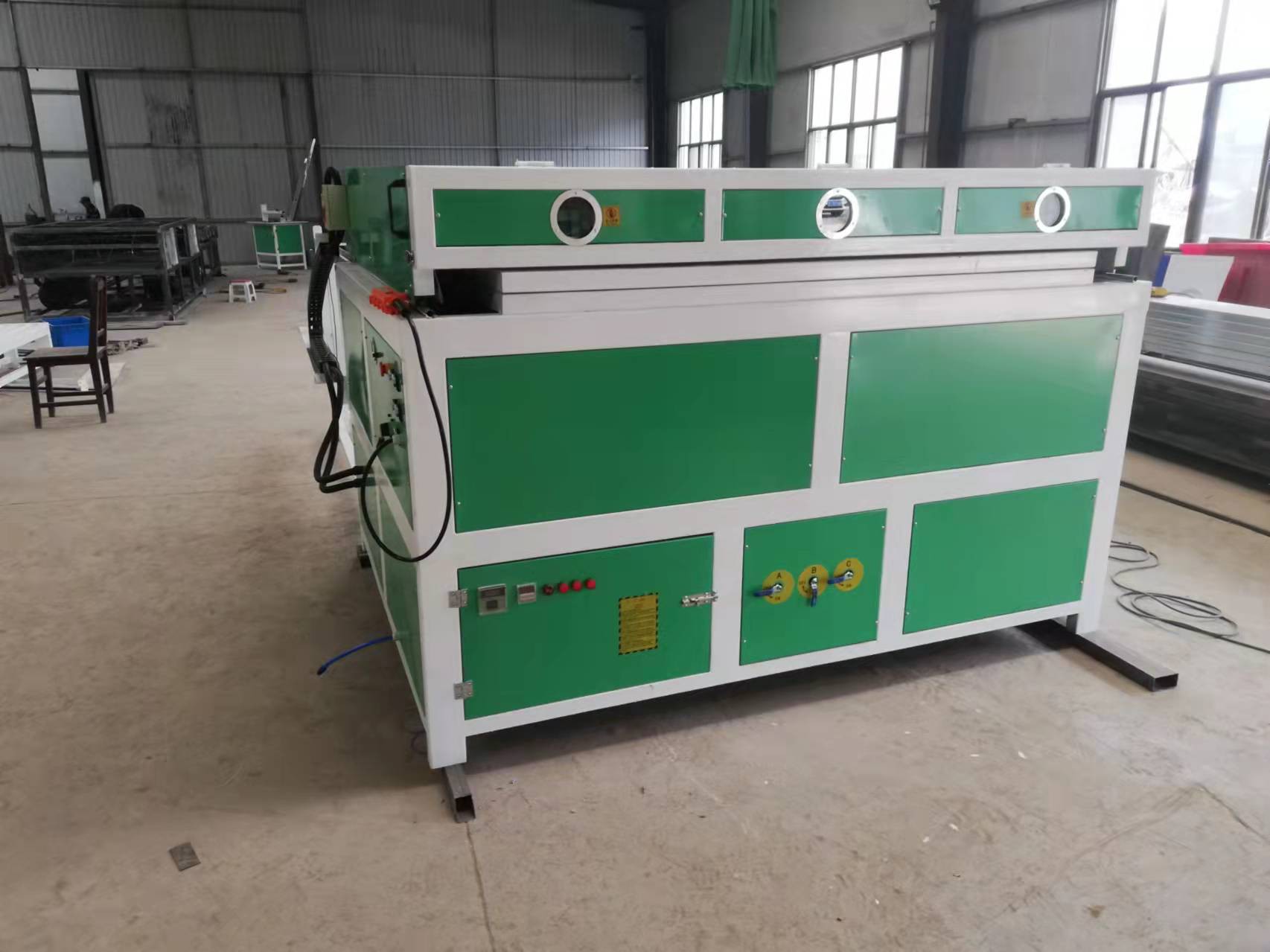

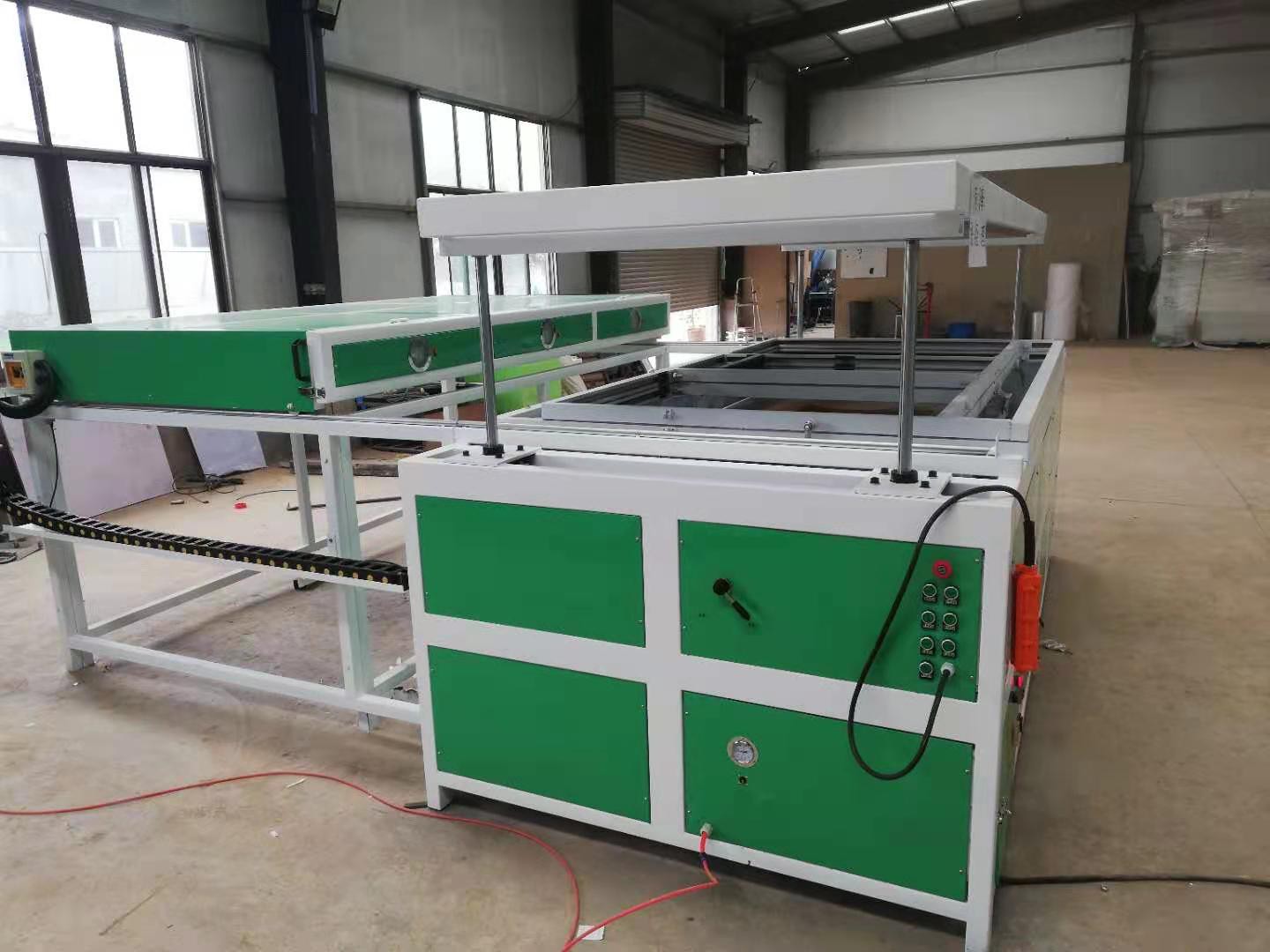

Therm Forming Machine
Product Description
Mainly information :
1.Intelligent temperature controller, heating area adopt energy-gathered reflecting cover, save electricity.
2. Heating tubes are special customized from our factory, can run 24 hours continuously, service life 8000-10000 hours, make sure heating material balanced, can not partial rupture.
3. Lifting working table use high precision round rail, move stable, couldn’t be distortion.
4. Heating box is controlled by cylinder, tight closed, beautiful appearance, easy to open and close.
5.Working table lifting speed is adjustable, can lower damage rate of product.
Technical Parameter
|
Model |
GDX-6060 |
GDX-1200 |
GDX-1218 |
GDX-1224 |
GDX-2030 |
|
Working area(mm) |
600*600 |
1200*1200 |
1200*1800 |
1200*2400 |
2000*3000 |
|
Forming area |
540*540 |
1040*1040 |
1040*1640 |
1040*2240 |
1840*2840 |
|
Total power(kw) |
5 |
9 |
18 |
22 |
30 |
|
Function |
Suction and Blow |
||||
|
Max suction forming height(mm) |
200 |
300 |
300 |
300 |
300 |
|
Voltage(V) |
AC380V50HZ3P (Customized) |
||||

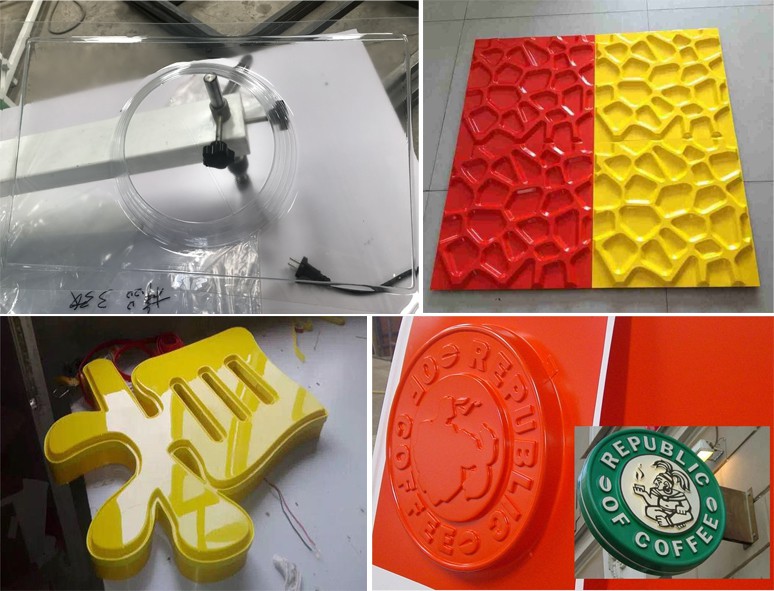

Working Sample
Application:
1.Advertising sign company
2.Building industrial
3.Plastic moulding & mask making
4.Different packaging box making
5.Thermoplastic material forming
6.Suitable material : PMMA(Acrylic ), PVC,ABS,PE,PET ,Poly styrene ,poly propylene ect.
Packing & Shipping

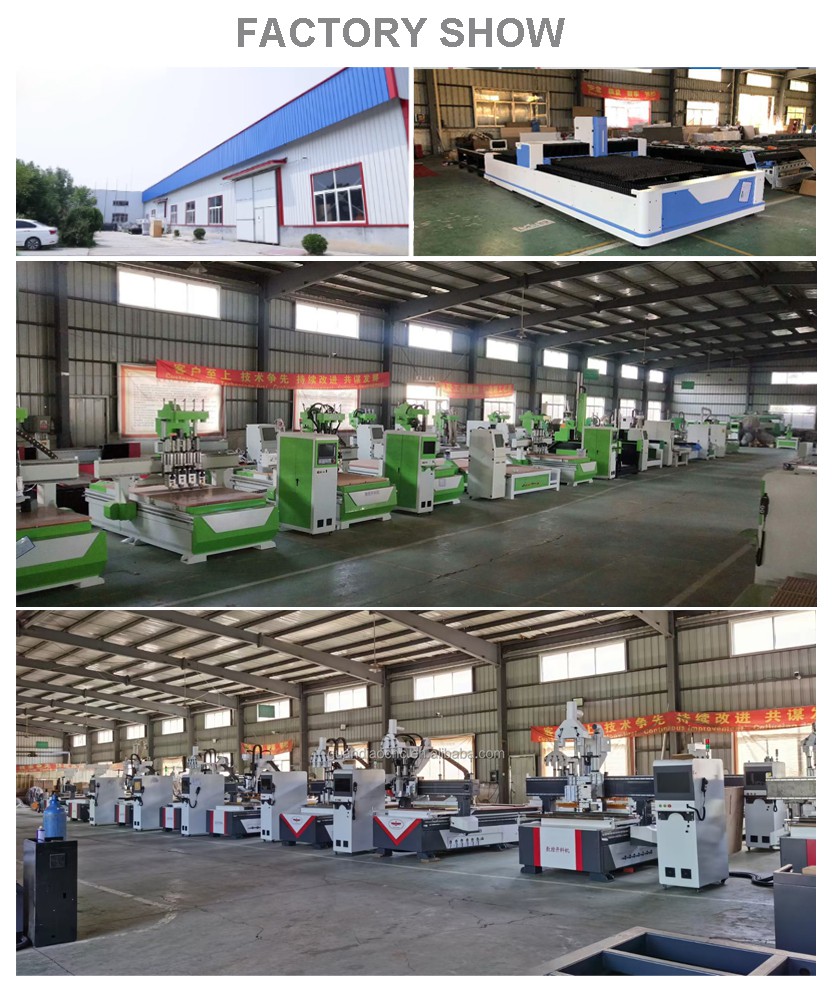

Company Information
