Products Description

Machine Advantage
1. Improve production efficiency
The dual head CNC rotary engraving machine adopts advanced digital control technology and automated production processes, which can greatly improve production efficiency. Compared to manual operations and traditional mechanical processing equipment, it can complete more work tasks in a shorter time, reducing labor and material costs.
2. High precision machining
The dual head CNC rotary engraving machine precisely controls the machining process through a digital control system, allowing for high-precision machining. It can accurately cut, carve, and engrave on different materials, producing high-quality workpieces and products, and transforming different design requirements into actual solid models.
3. Multifunctionality
The dual head CNC rotary engraving machine has a wide range of applications. It can be cut and carved on materials such as wood, plastic, metal, and stone, and can be used to manufacture various products such as furniture, architectural decoration, automotive parts, and artworks. Therefore, it can meet the needs of different manufacturing enterprises and industries.
4. Easy to operate
The digital control system of the dual head CNC rotary engraving machine has a friendly user interface and is easy to operate. Operators only need to master basic operating skills and operate according to the process flow. In addition, they also have automated operation functions, making the operation process more convenient and fast.
Model |
1325 double spindle router |
|||
spindle |
3.5kw*2 HQD air cooled |
|||
Working size |
1300*2500*200mm |
|||
Work fixing |
PVC+ALUMINUM TABLE |
|||
Body structure |
Heavy duty steel welding body structure |
|||
Transmmsion |
XY axis helical rack, Z axis Taiwan TBI ball screw transmission |
|||
Driving mode |
450B Stepper motors and Leadshine 860H drivers |
|||
Guide rail |
Taiwan HIWIN 25 linear square guide rail |
|||
Control system |
Nc studio / Mach 3 / DSP A11 control system |
|||
Inverter |
5.5kw*2 BEST/Fuling Inverter |
|||
Max working speed |
>25m/min |
|||
Engraving command |
G code *.ENG,u00*.mmg*.plt |
|||
Power(Without spindle) |
1000W above |
|||
Working Voltage |
380V 50Hz(220V is optional) |
|||
Machine weight |
1800 KG |
![]() |
![]() |

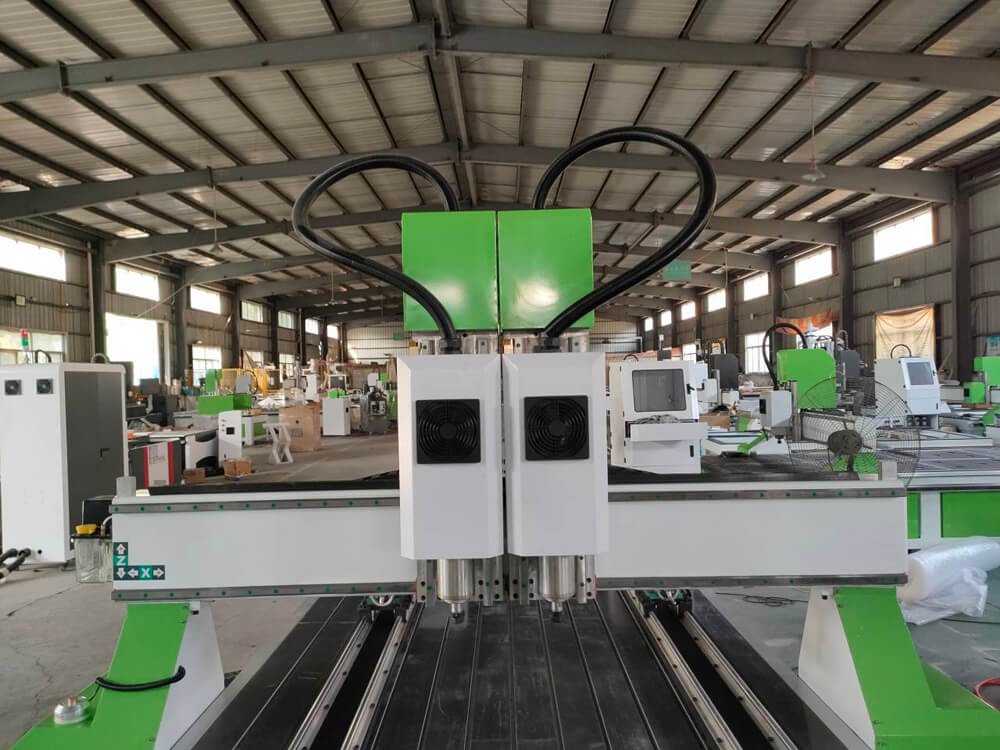

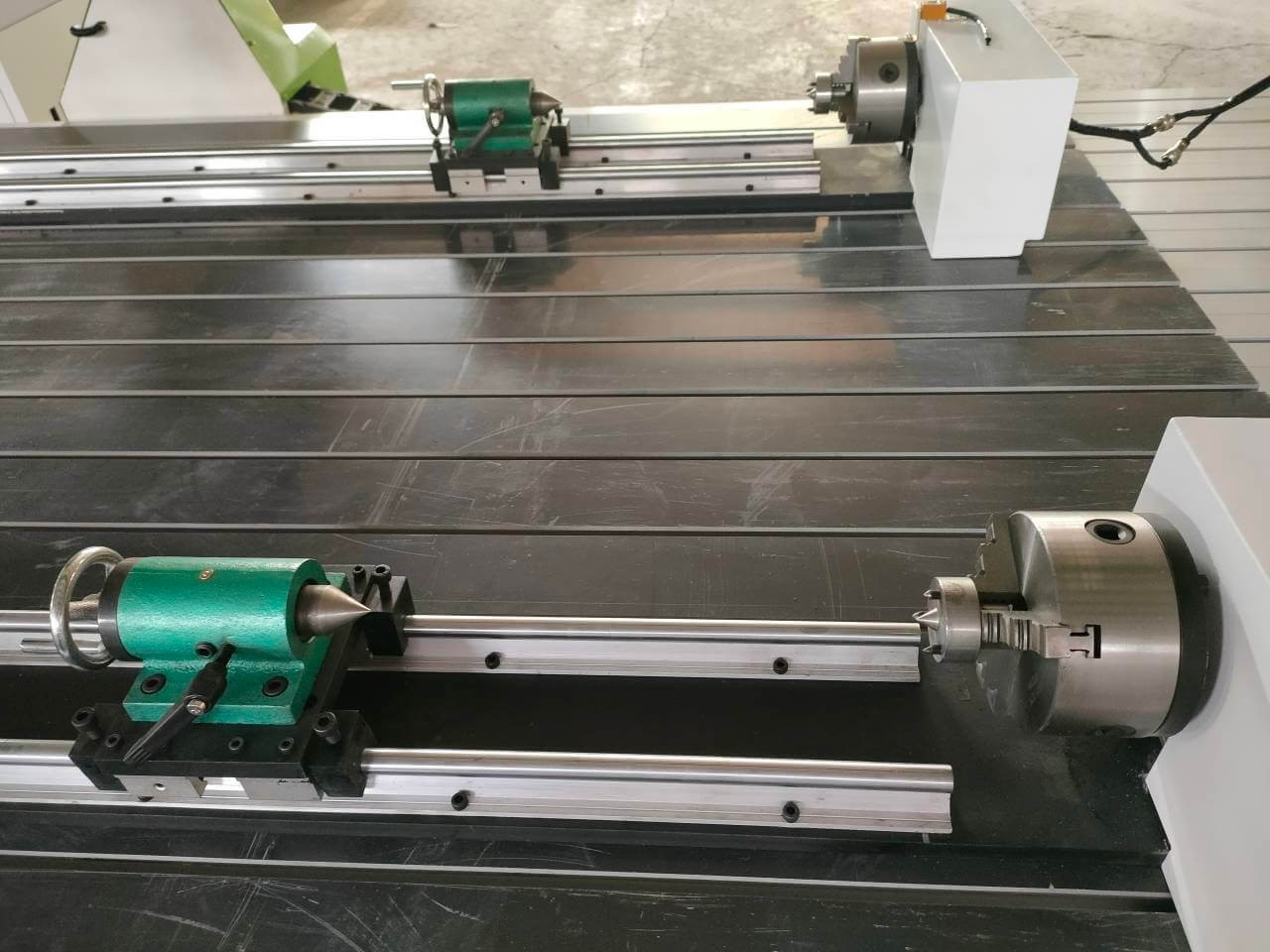

Double Spindle | Rotation Axis |
![]() |
![]() |

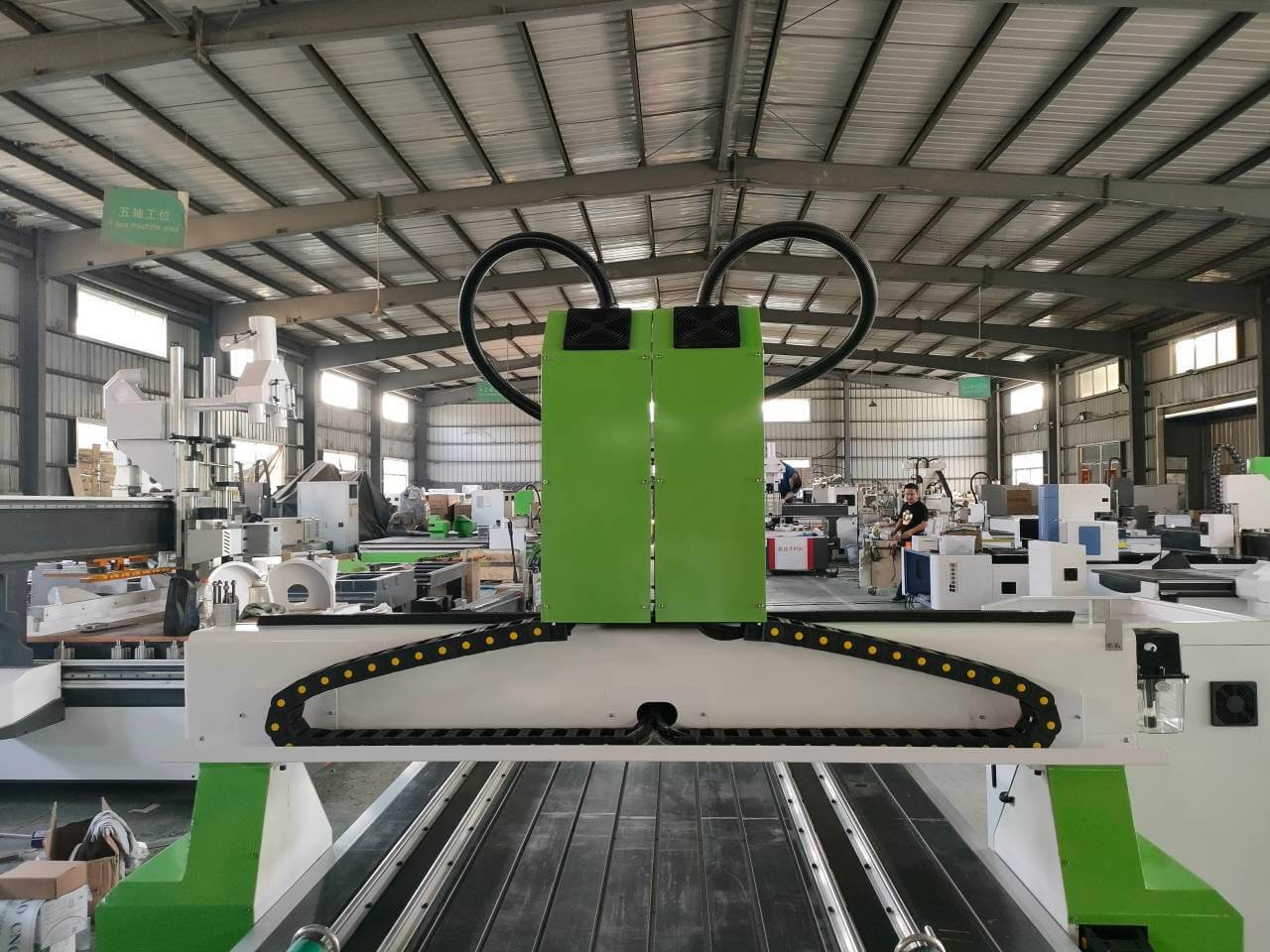

Dustproof Drag Chain | Cast Iron Thickened Bed |
