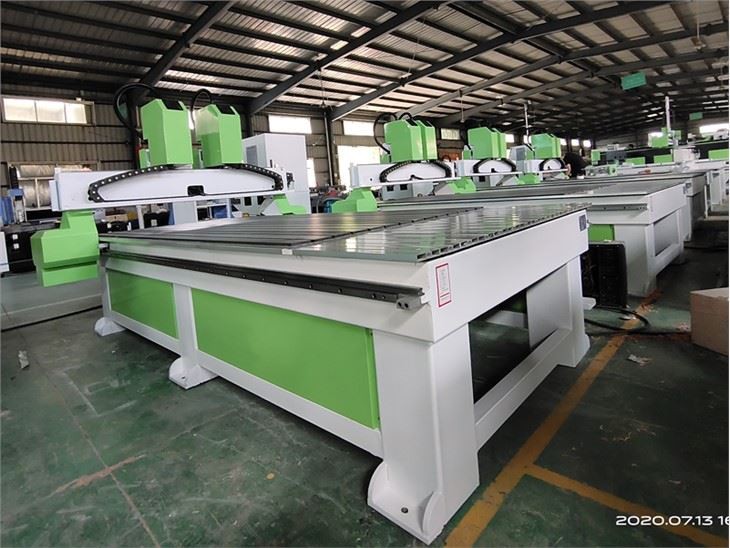

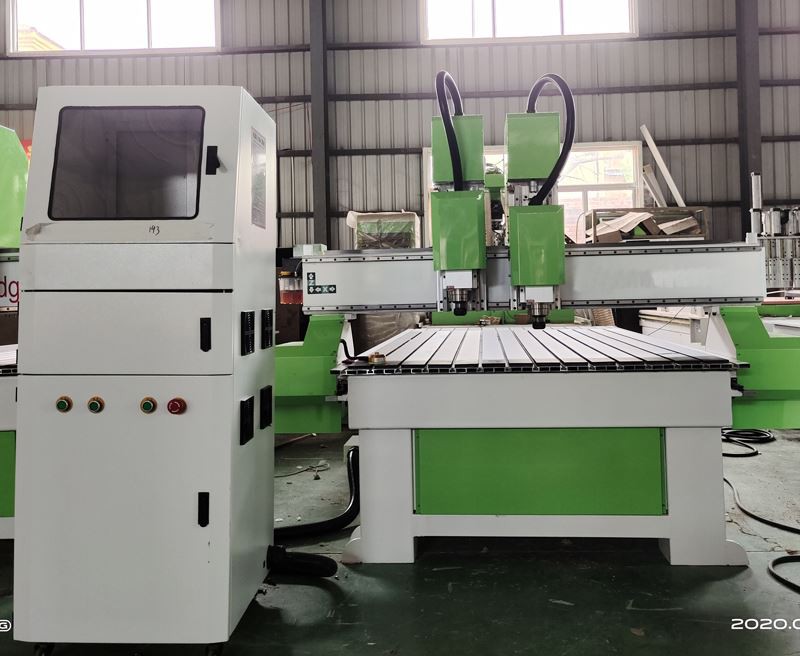

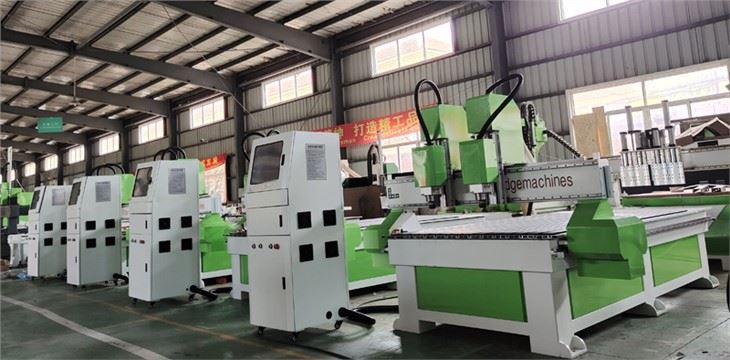

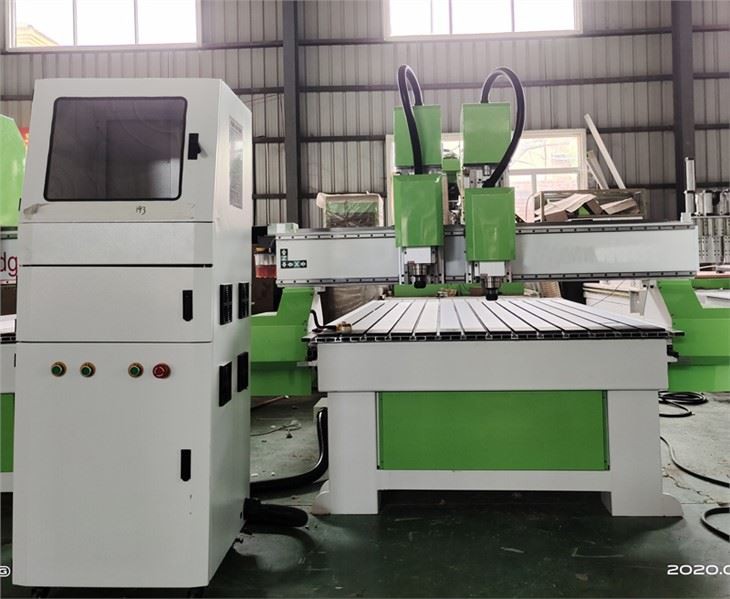

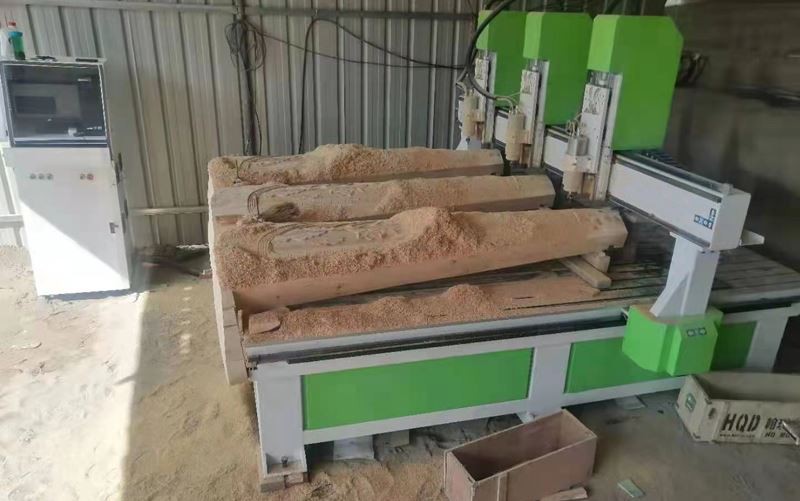

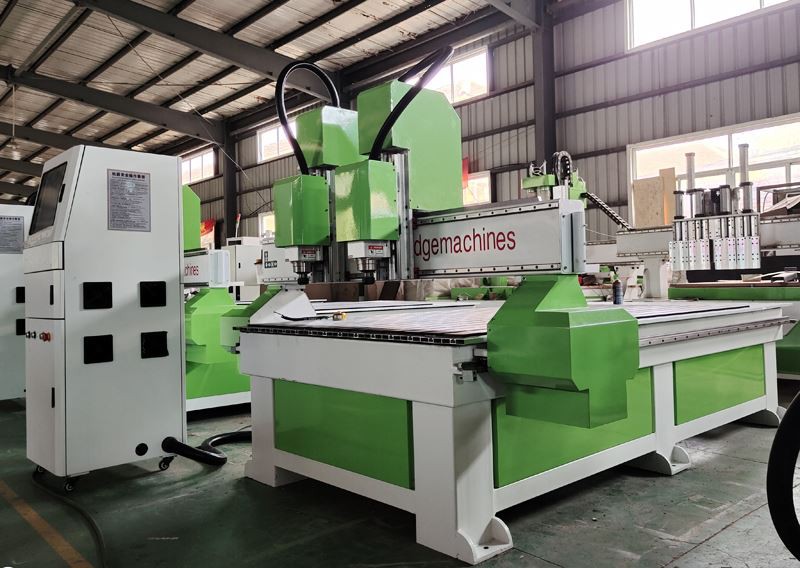

Production Pictures

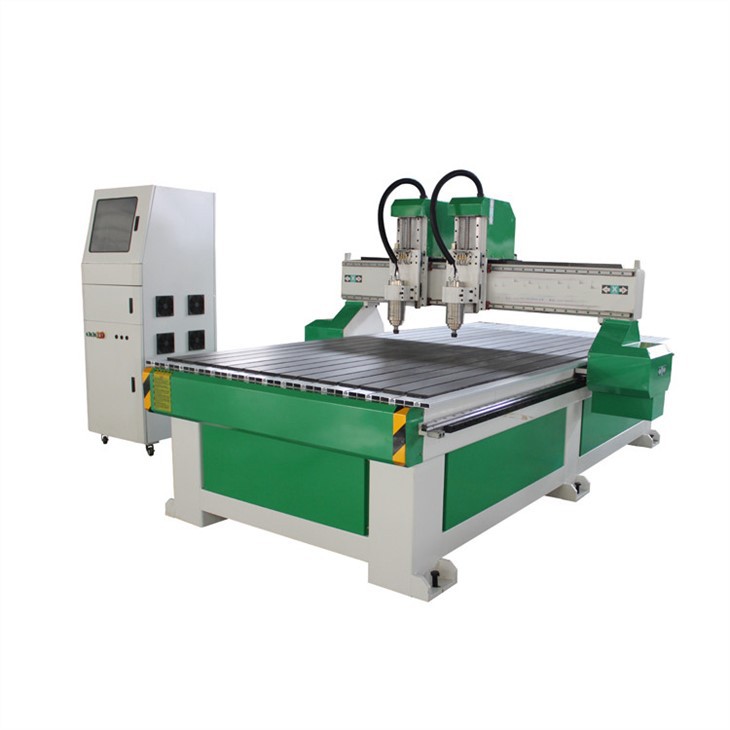

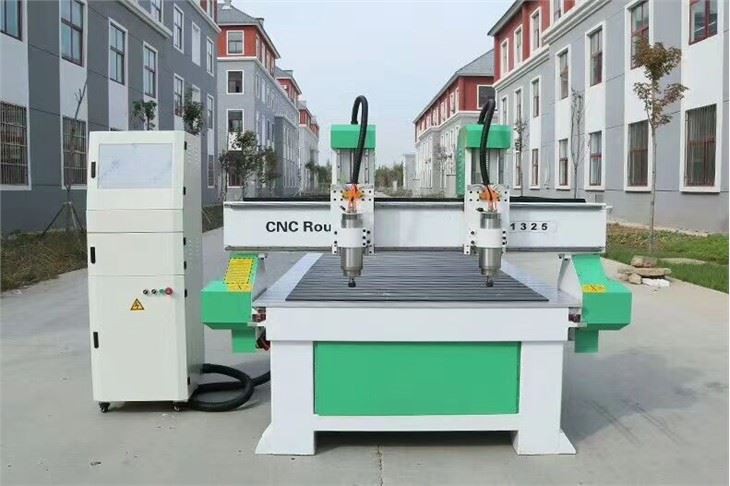

Two Spindles Wood CNC Router Application
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4. relief sculpture, 3D engraving & Cylinder object engraving.
Production Samples
Production Parameters
| Model | GD-1325 |
| Working Area | 1300*2500*200 mm(can be customized) |
| Spindle | 2*3.2 kw,/2*4.5kw 24000 rpm, Air cooling(Optional) |
| Table | Vacuum Suction |
| Transmission | Rack and pinion for x.y, ball screw for z |
| Guideway | HIWIN square linear guideway |
| Resolution | 0.01 mm |
| Traveling speed | 35m/min |
| Working Speed | 30 m/min |
| Driver | China stepping motors and leadshin driver |
| Code | G Code, HPGL Code |
| Power Supply | AC380V/50Hz |
| Control System | NC Studio / DSP/Weihong/Syntec |
| Software | JD/TYPE3/Artcam/Castmate/UG/CAD/CAM,etc |
Production Specifications

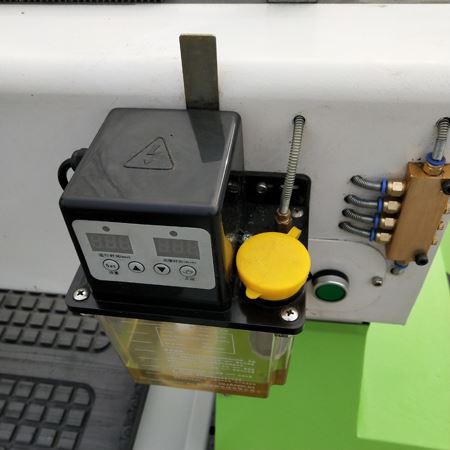

Auto lubrication system with button to lubrication the guide rail and ball screw then to extend the service life of the machine.
NC sutudio controller,easy operate. Weihong NK105,Rich Auto,Syntec for optional.

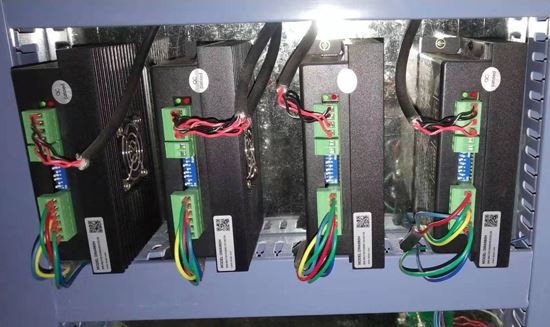

High Performance Leashine Driver

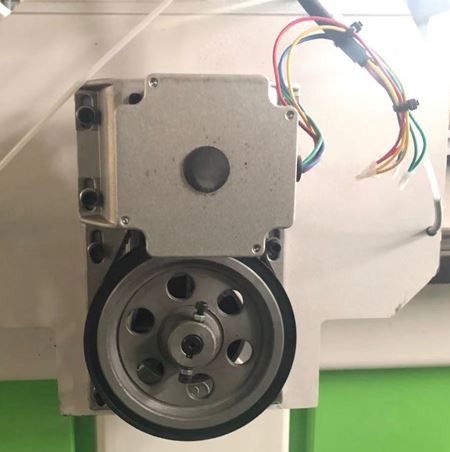

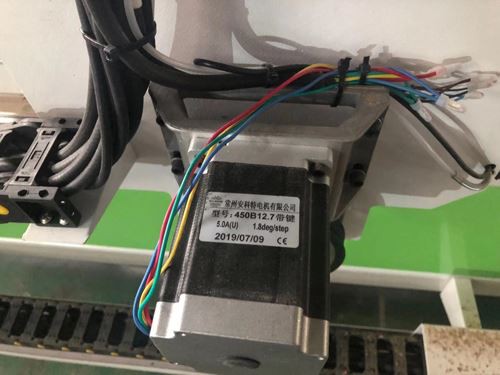

High Quality motor With high quality belt and gear

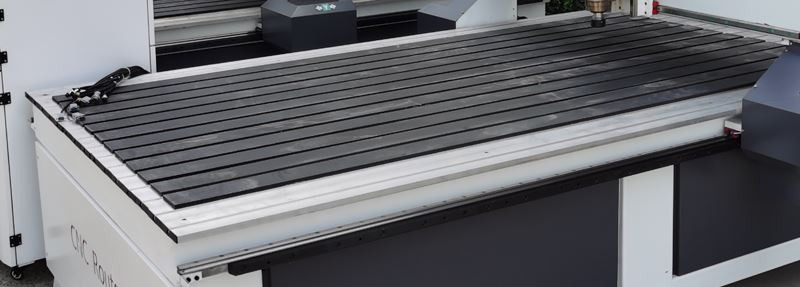

T slot table

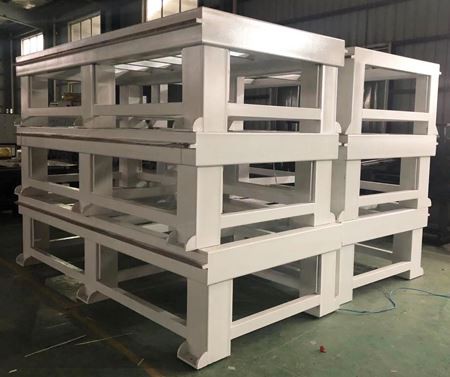

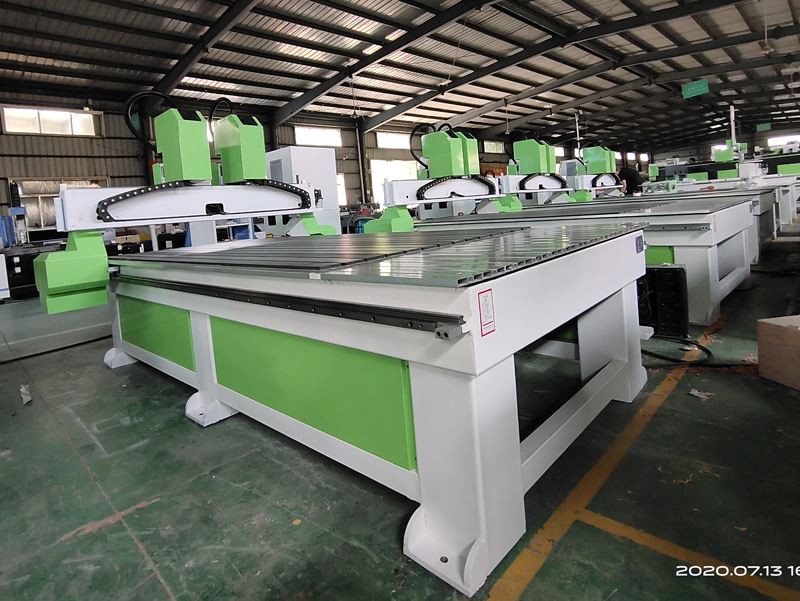

Strong Machine Body
