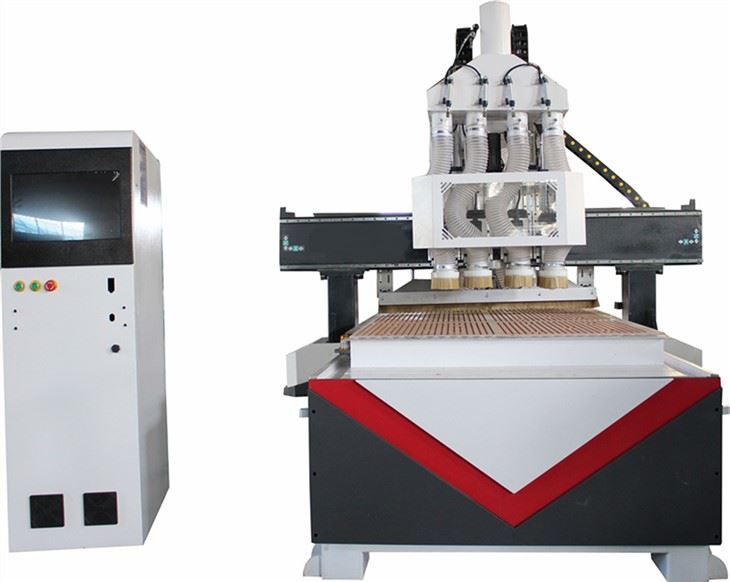

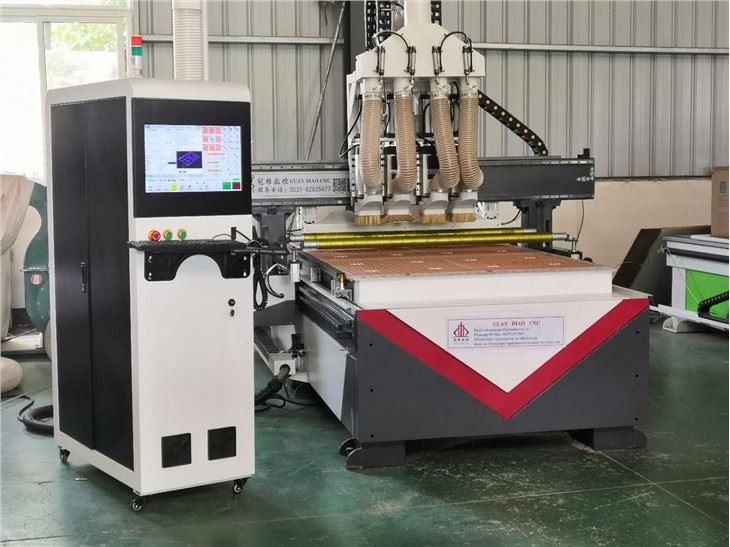

Cnc Four Process Wood Router
Professional furniture factory cabinet or closet making machine--pneumatic system 4 spindles cnc router. In some degree, it can help you finish many works by different tools in one time automatically, working efficiency is much higher. its function is very similar to auto tool changing atc. But, Cost for pneumatic system multi spindles cnc is much more economic than ATC, so it is good model to choose if you are in furniture industry.
Overview
1.)Frame: Welded Structure, very strong and stable
2.)The international leading LNC control system
3.)The spindle can be automatically replaced, for different processing.
4.)One spindle can be rotated 90 degree for lock slot.
Machine Features
1. Steel structure seamless welding tempering aging treatment, rigid and strong, no deformation.
2. Well-known brands of HQD Air-cooled spindle, strong cutting ability, low noise, to ensure the woodworking cnc router working for long time.
3. High-performance driven motor to ensure the machine's high speed and accuracy.
4. Using vacuum adsorption table, the plates with different sizes can be adsorbed.
5. Centralized automatic lubrication system to extend the service life of the machine.
6. Perfect design, top quality accessories, to minimize the machine's failure rate.
7. Break point specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.
Parameter configuration table
Mode | GD1325-Q3 | GD1325-Q4 | GD1325-Q4D | |
spindle | 4.5/6/7.5kw | |||
Working size | 1300*2500*200mm | |||
Work fixing | Vacuum suction table (Double vacuum suction table optional) | |||
Driving mode | Servo drive | |||
Max working speed | >30000mm/min | |||
Engraving command | G code *.ENG,u00*.mmg*.plt | |||
Power(Without spindle) | 1000W above | |||
Working Voltage | 380V 50Hz(220V is optional) | |||
Machine size(mm) | 3200*2200*1900 | 3200*2300*1900 | 3200*2400*1900 | |

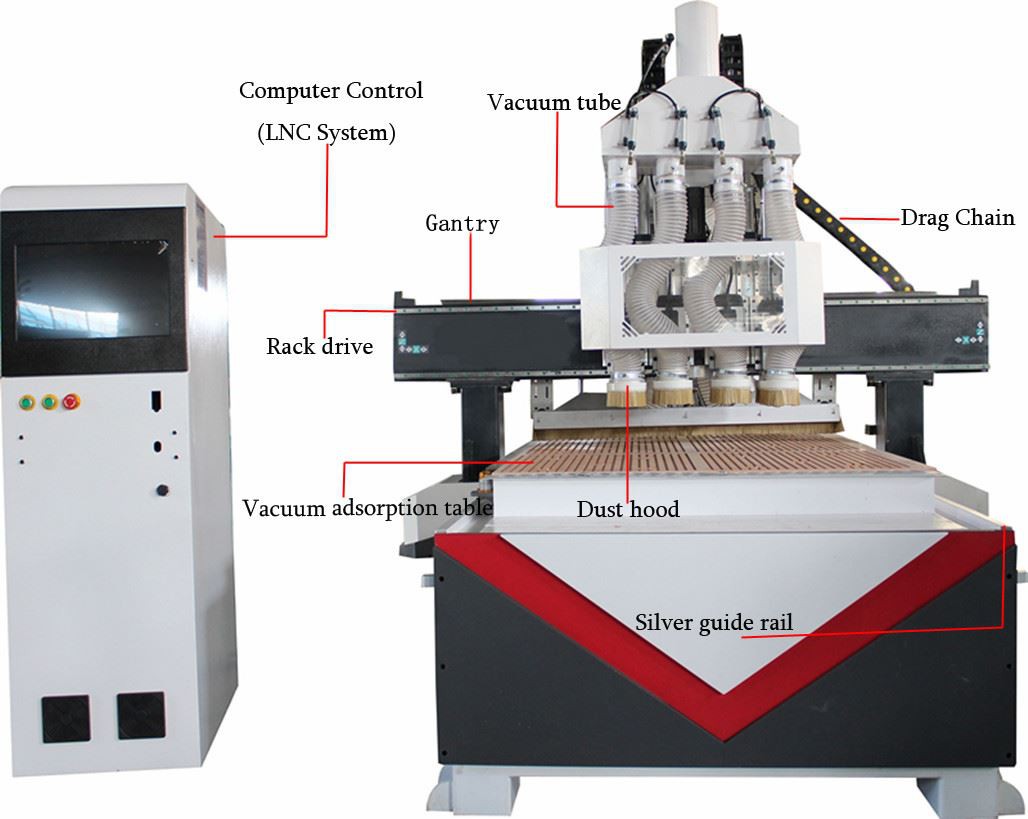

Machine Details

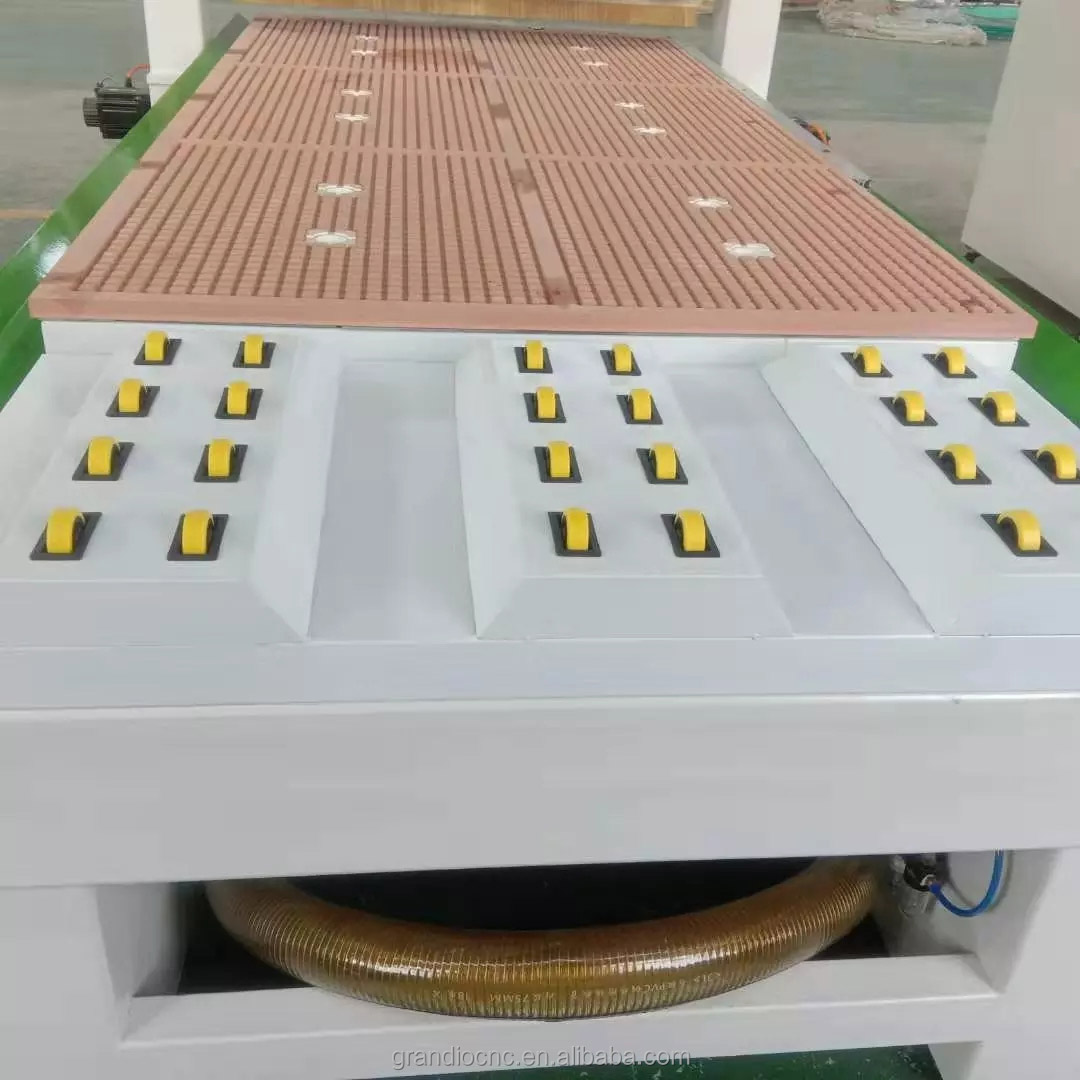

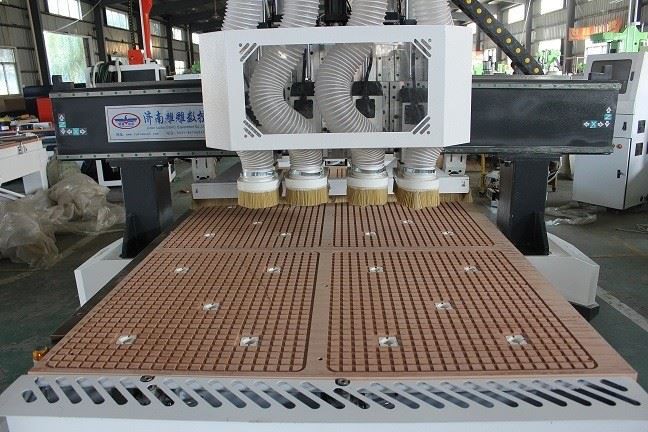

Vacuum adsorption table

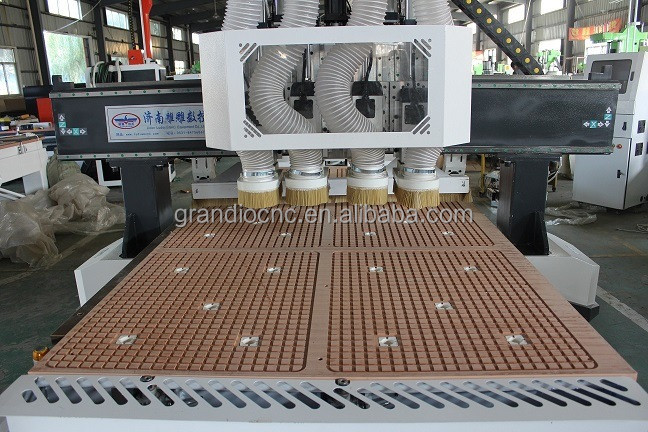

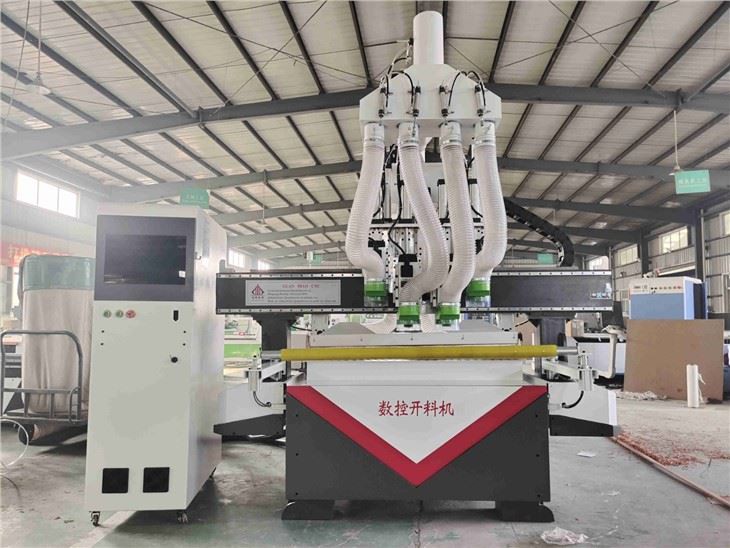

Four spindles

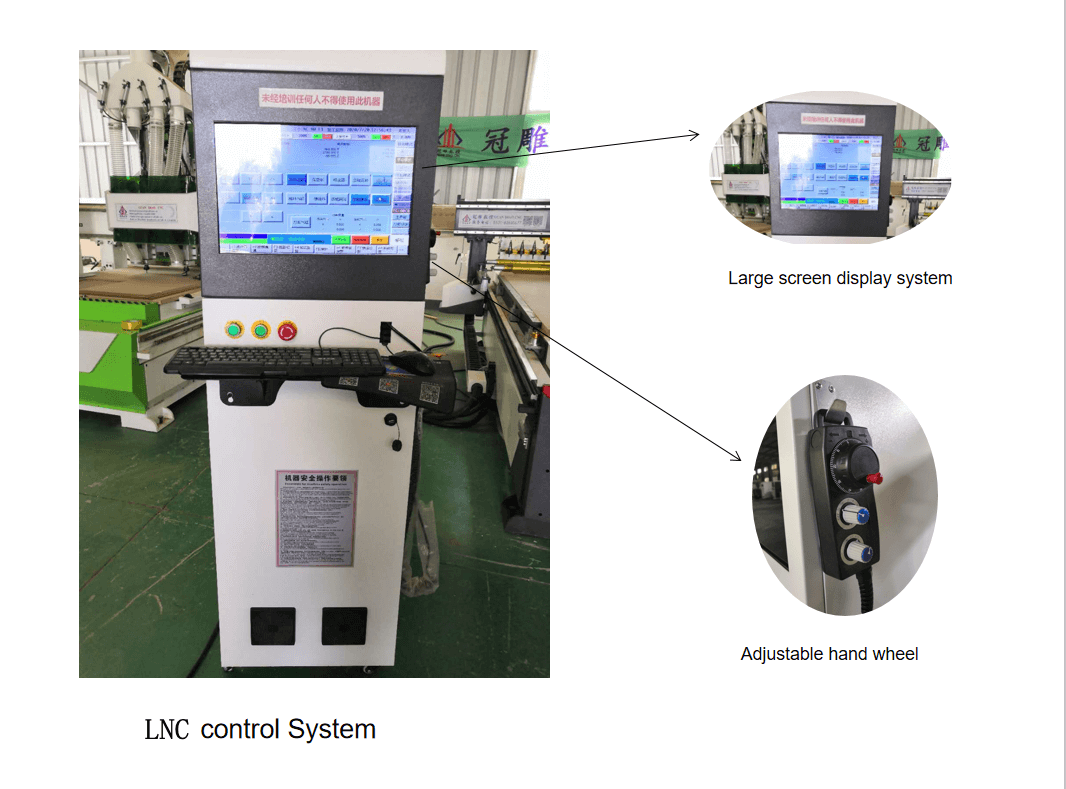

Control System

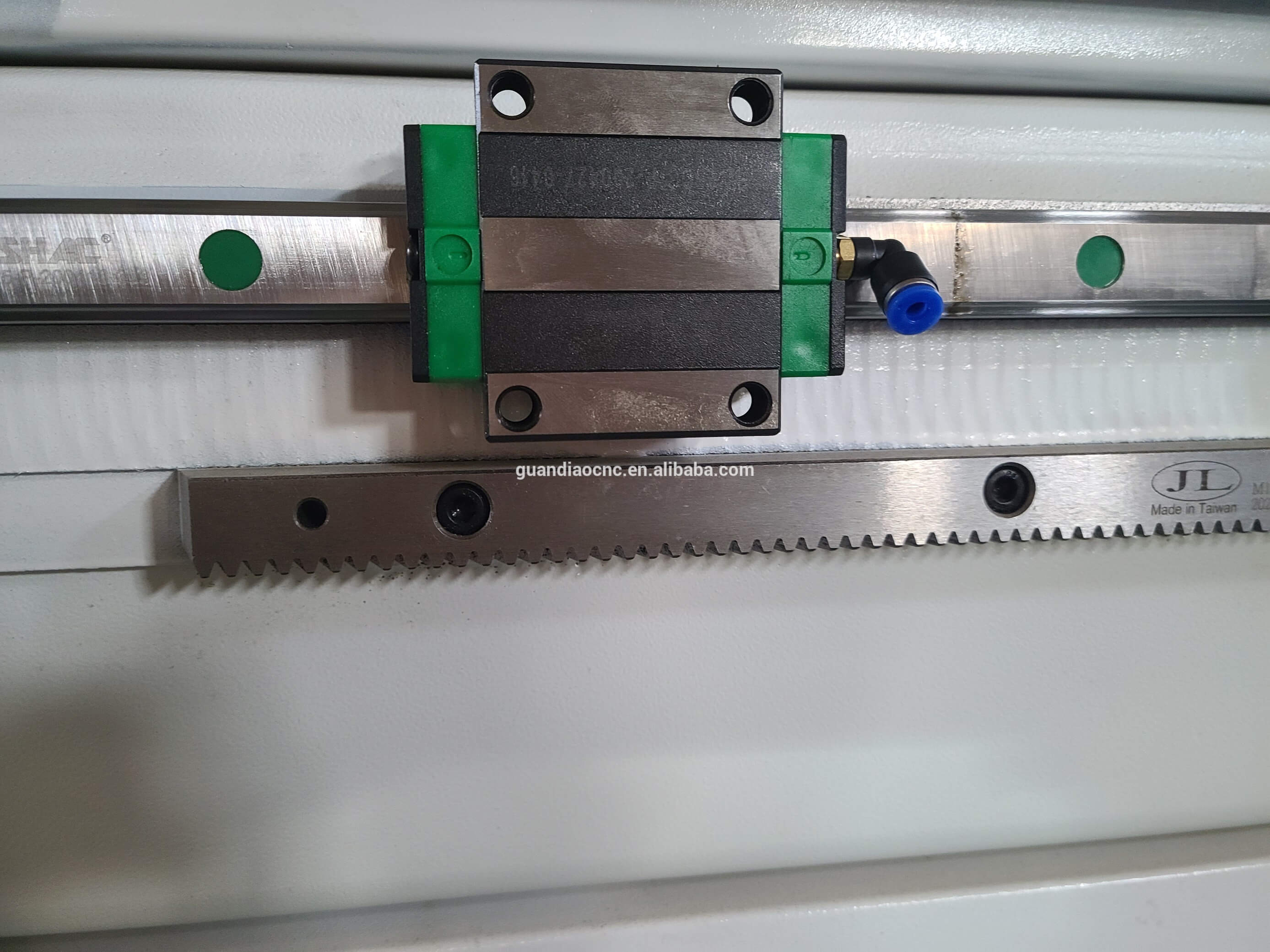

High precision rack

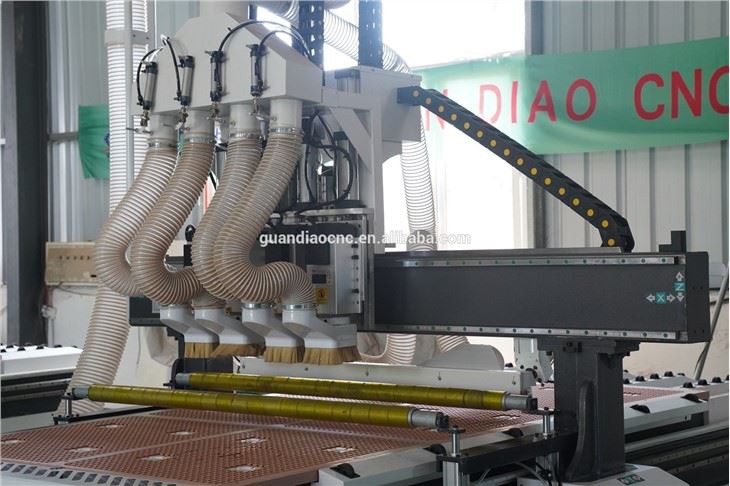

Automatic feeding wheel

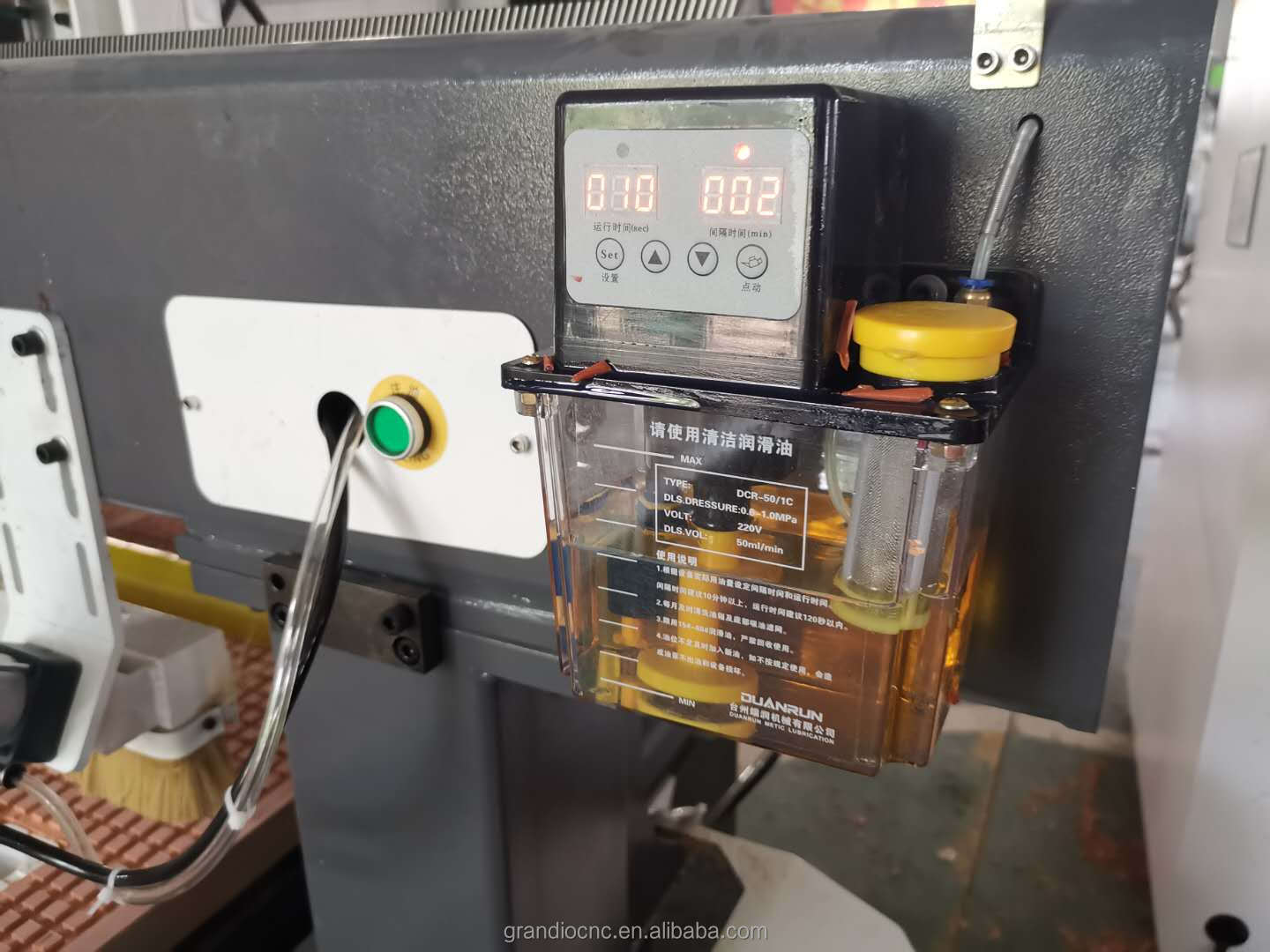

Oil injection
Application
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.

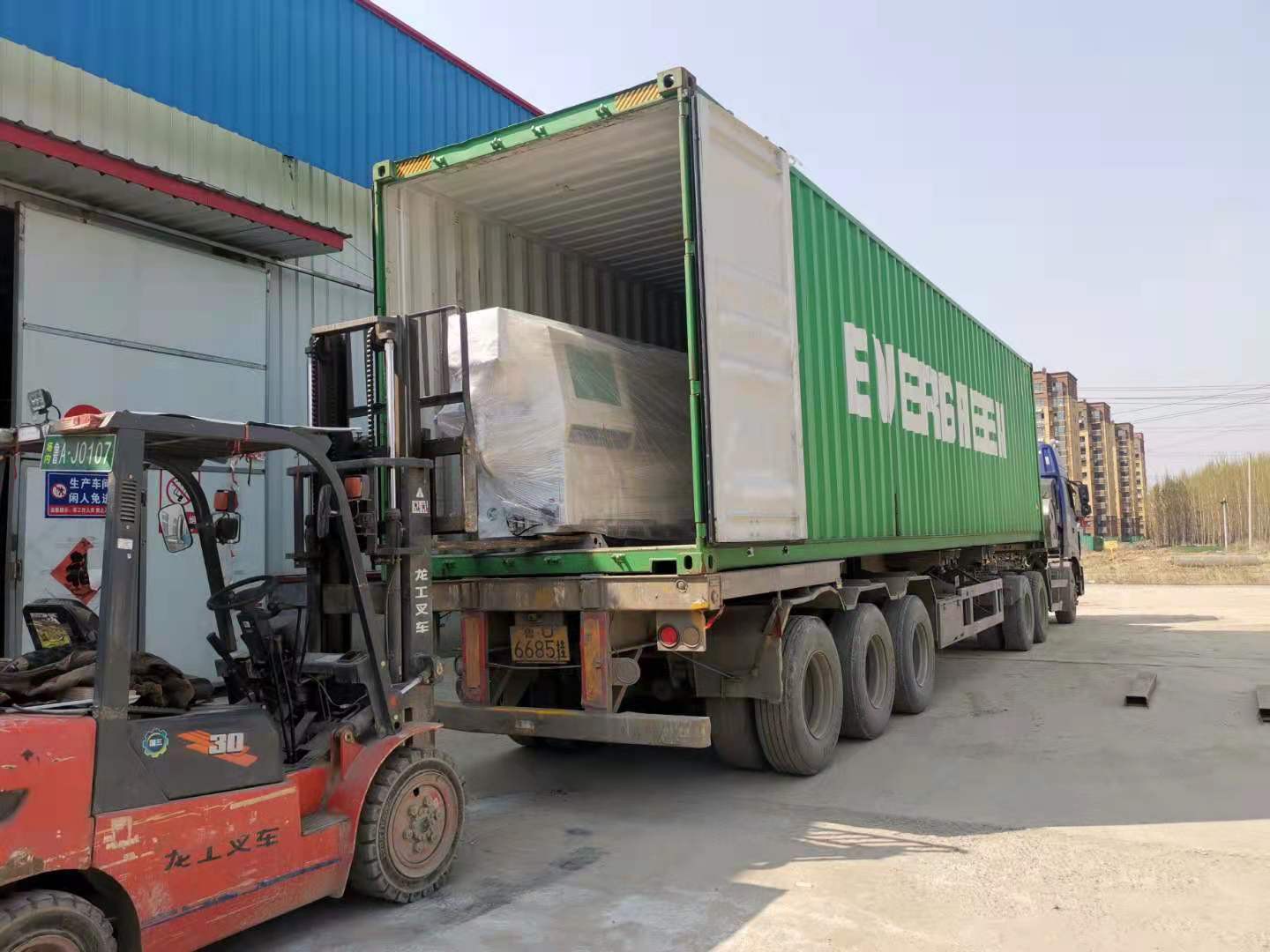

Packing&Shipping
Firstly, packed the machine with plastic sheet for clearing and damp proofing.
Secondly, then put the machine in the plywood case
for safety. Thirdly, transport the plywood case into the container.

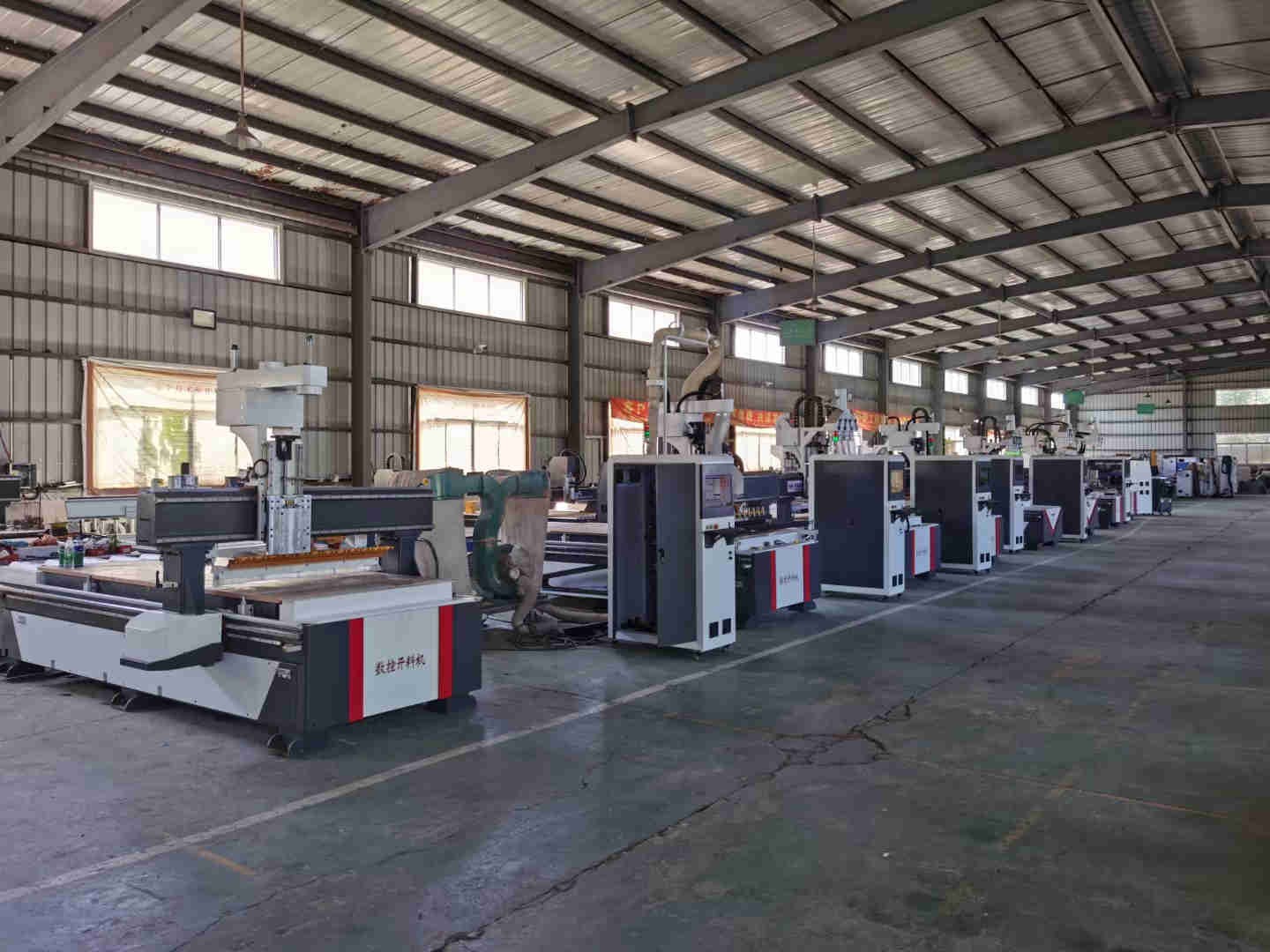

Company Profile
The company's products used in stone, wood, advertising, construction, decoration, crafts and mould making,our main products includes :Board furniture production line ,CNC cutting machine, wood carving machine, stone carving machine. Advertising engraving machine, mold engraving machine,saidiao series engraving machine has the advantages of processing strength, running speed and continuous stability.
The company has a professional installation training technical team,we constantly provide users with satisfactory new products, so that our provide customers with thoughtful services.
Guarantee and After-sale service:
1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
FAQ
Q1: Are you manufacturer ?
Yes,We are factory since 2008.
Q2: How can I get an accurate price?
Please tell us your cutting material and the working size.
Q3: How is your after sales service?
Our sales are online for 24-hours. We can also supply overseas install service. Also we have more than 10 countries warehouse and department.
Q4: How long is the delivery time?
Generally 10 ~ 25 days.
