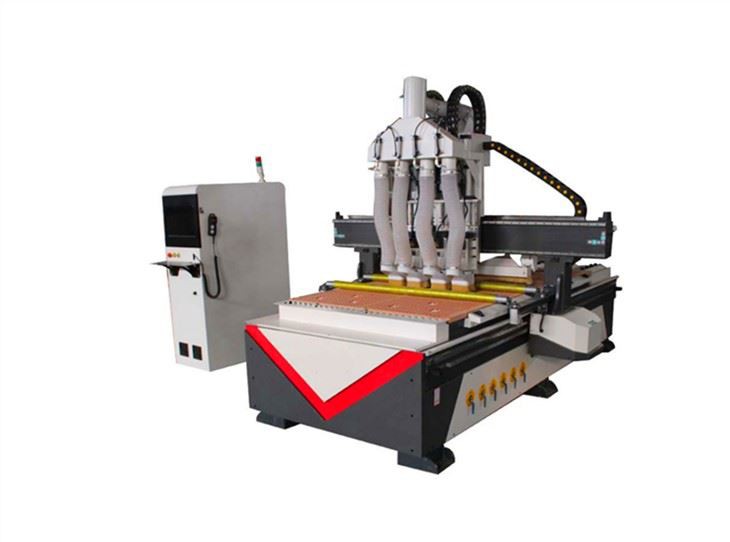

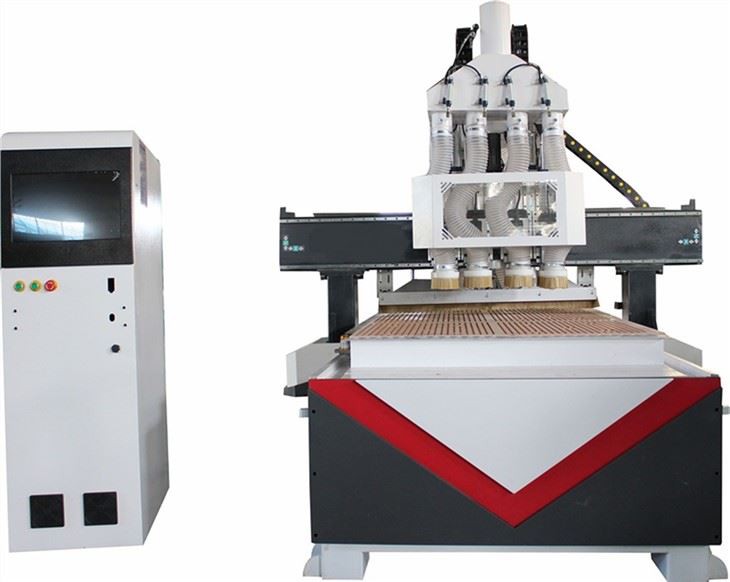

Four heads processing wood engraving machine

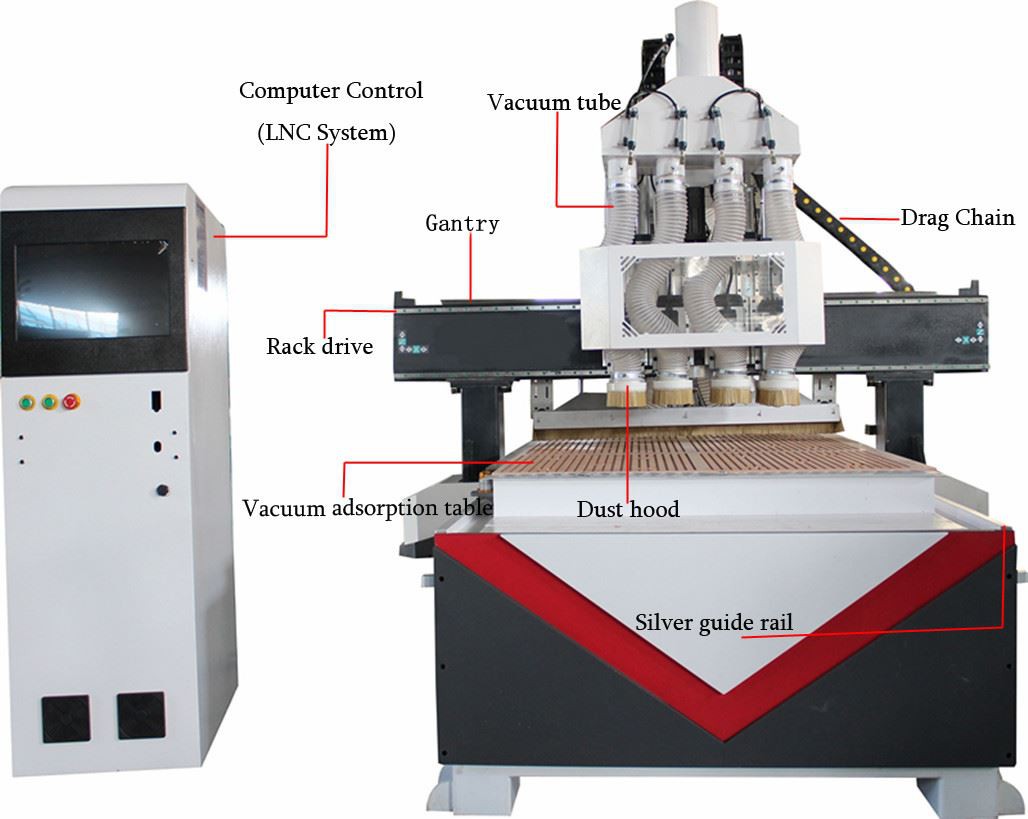

Features of multiheads router cnc:
1. The whole bed is welded by seamless steel structure, tempering and aging treatment, with strong rigidity and no deformation.
2. Taiwan linear square guide, double row of four row ball slide block, heavy load bearing, smooth operation, high precision, long life, double screw with high precision and precision cutting.
3. Original air cooling spindle 6kW and 4.5kw and the cutting intensity is large.
4. With independent cabinet, separate keyboard operation, split type keyboard operation,easy to learn, and flexibly grasp the use of equipment, more independent.
5. With vacuum equipment and the six zoning vacuum adsorption table is specially designed for the soft material, such as density plate. It can also place different sizes of plates, keep the flatness of the plate surface, make the engraved effect diagram consistent, and improve the loading and unloading time. The vacuum system can be processed in the processing process. Remove wood chips and froth, keep the worktable clean and maintain the equipment indirectly.
Parameter configuration table
Mode | GD1325-Q3 | GD1325-Q4 | GD1325-Q4D | |
spindle | 4.5/6/7.5kw | |||
Working size | 1300*2500*200mm | |||
Work fixing | Vacuum suction table (Double vacuum suction table optional) | |||
Driving mode | Servo drive | |||
Max working speed | >30000mm/min | |||
Engraving command | G code *.ENG,u00*.mmg*.plt | |||
Power(Without spindle) | 1000W above | |||
Working Voltage | 380V 50Hz(220V is optional) | |||
Machine size(mm) | 3200*2200*1900 | 3200*2300*1900 | 3200*2400*1900 | |
Machine Details

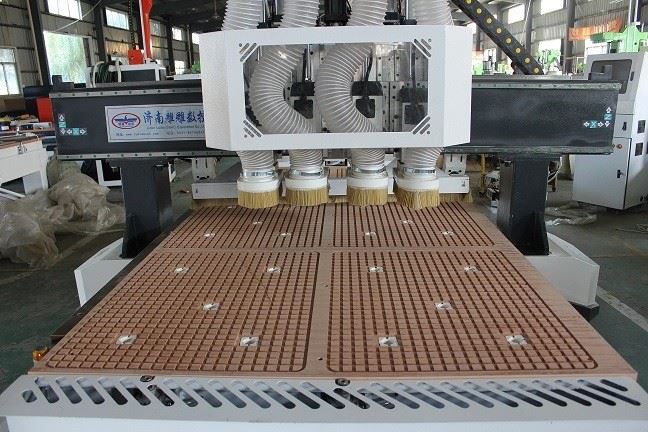

Vacuum adsorption table

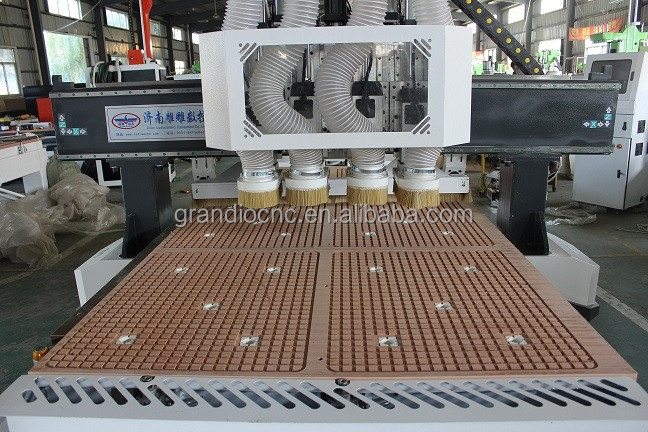

Four spindles

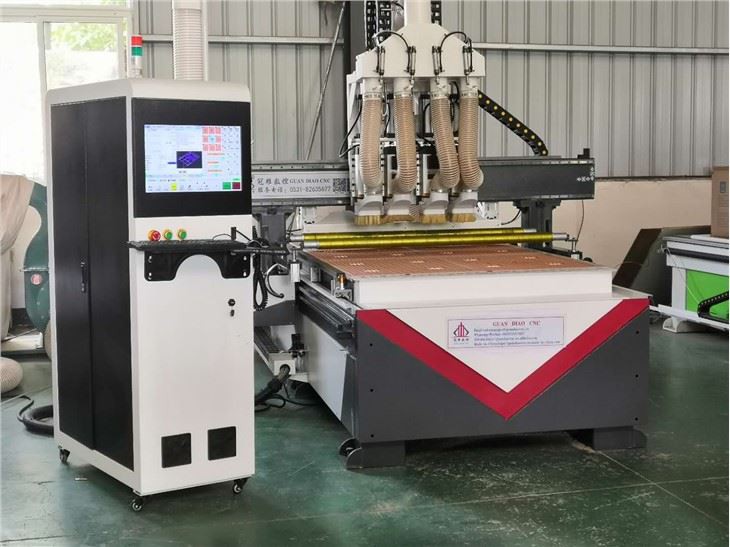

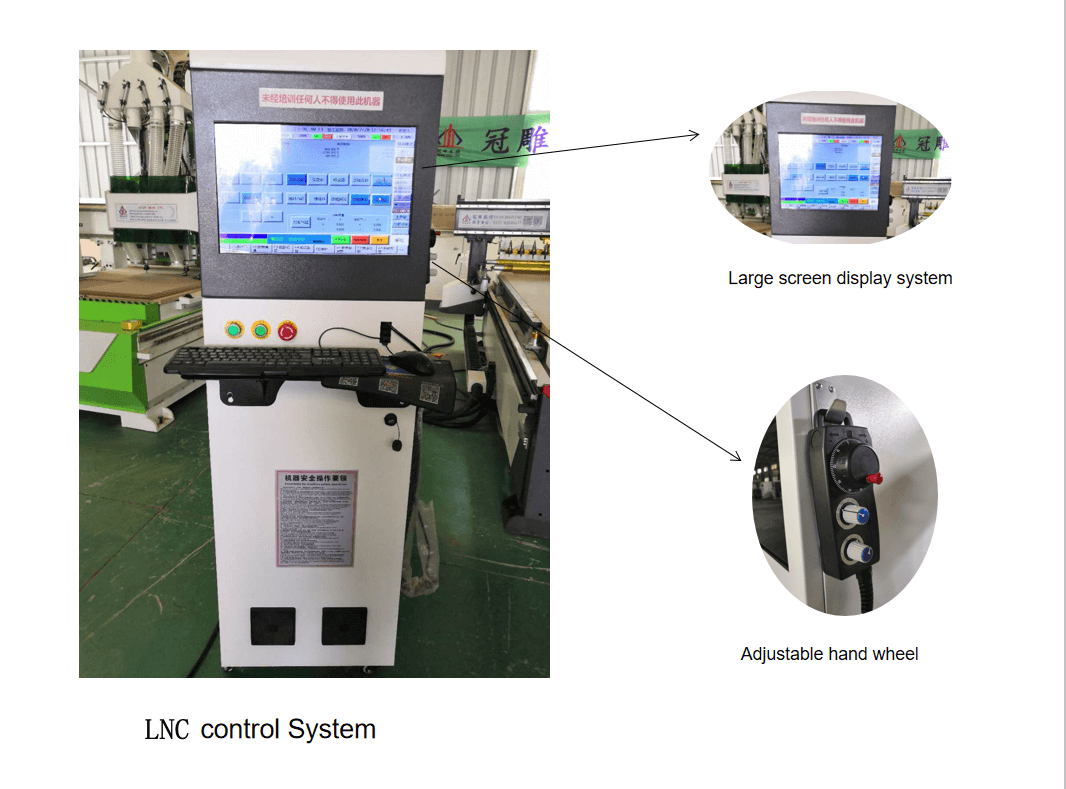

Control System

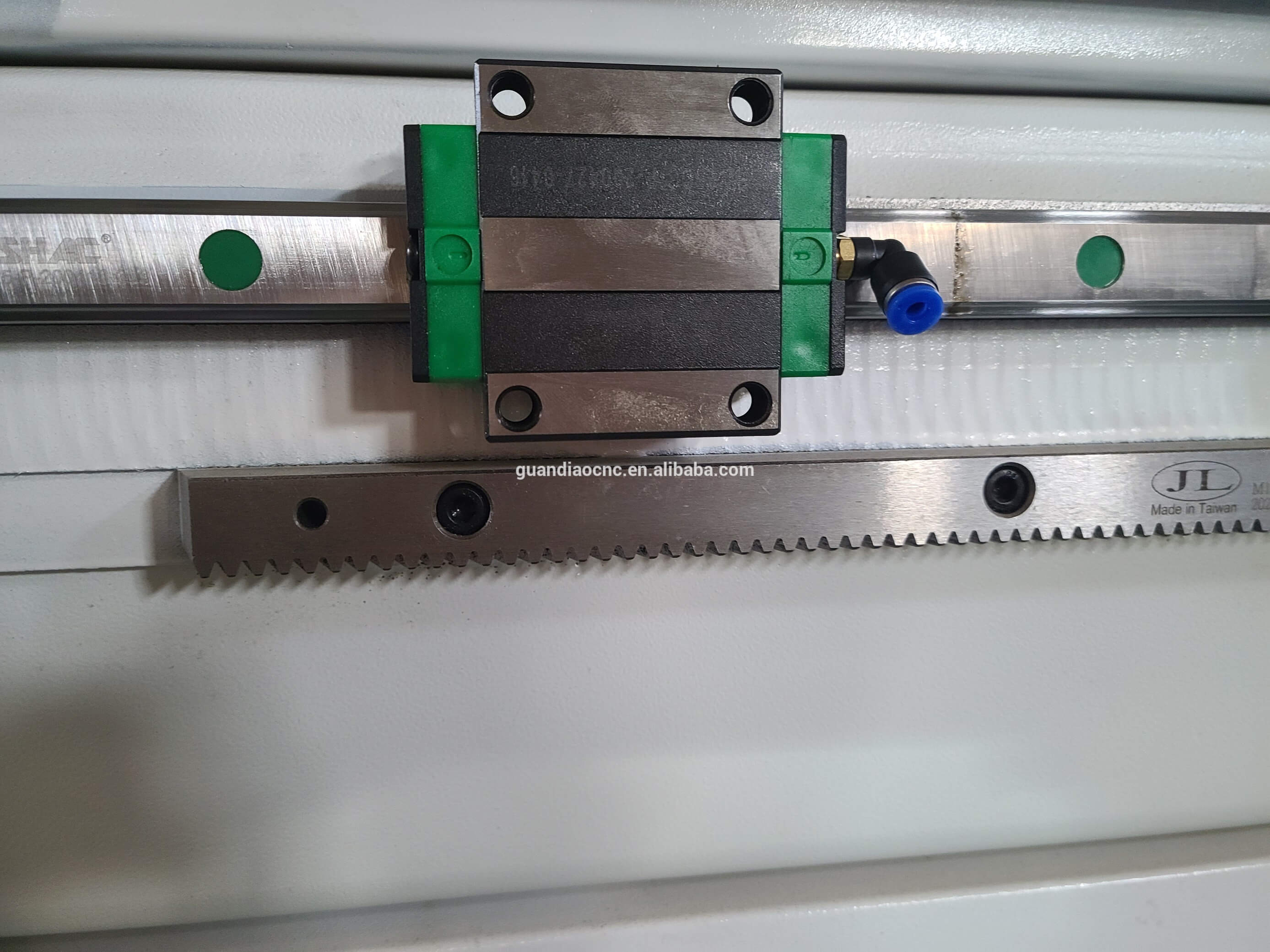

High precision rack

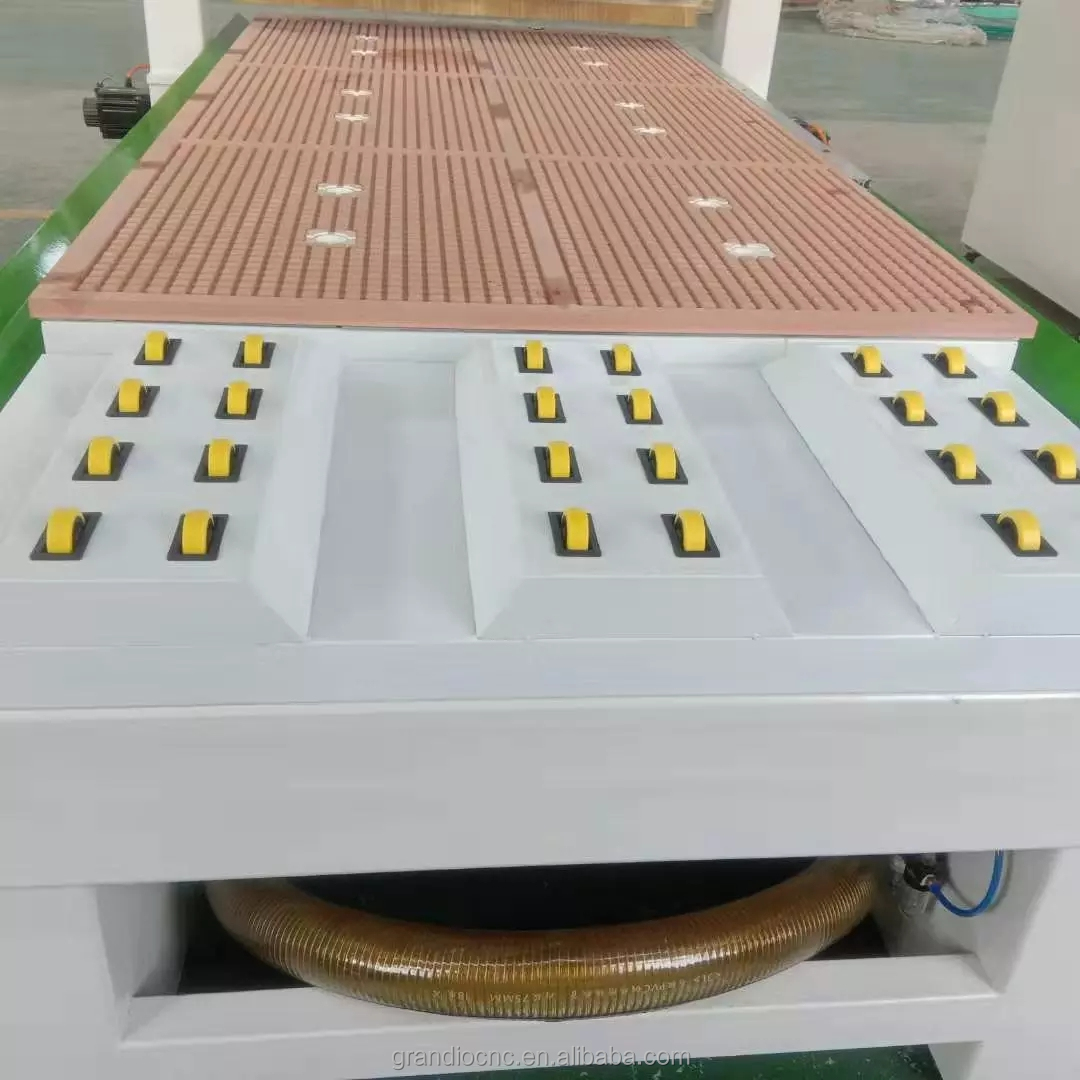

Automatic feeding wheel

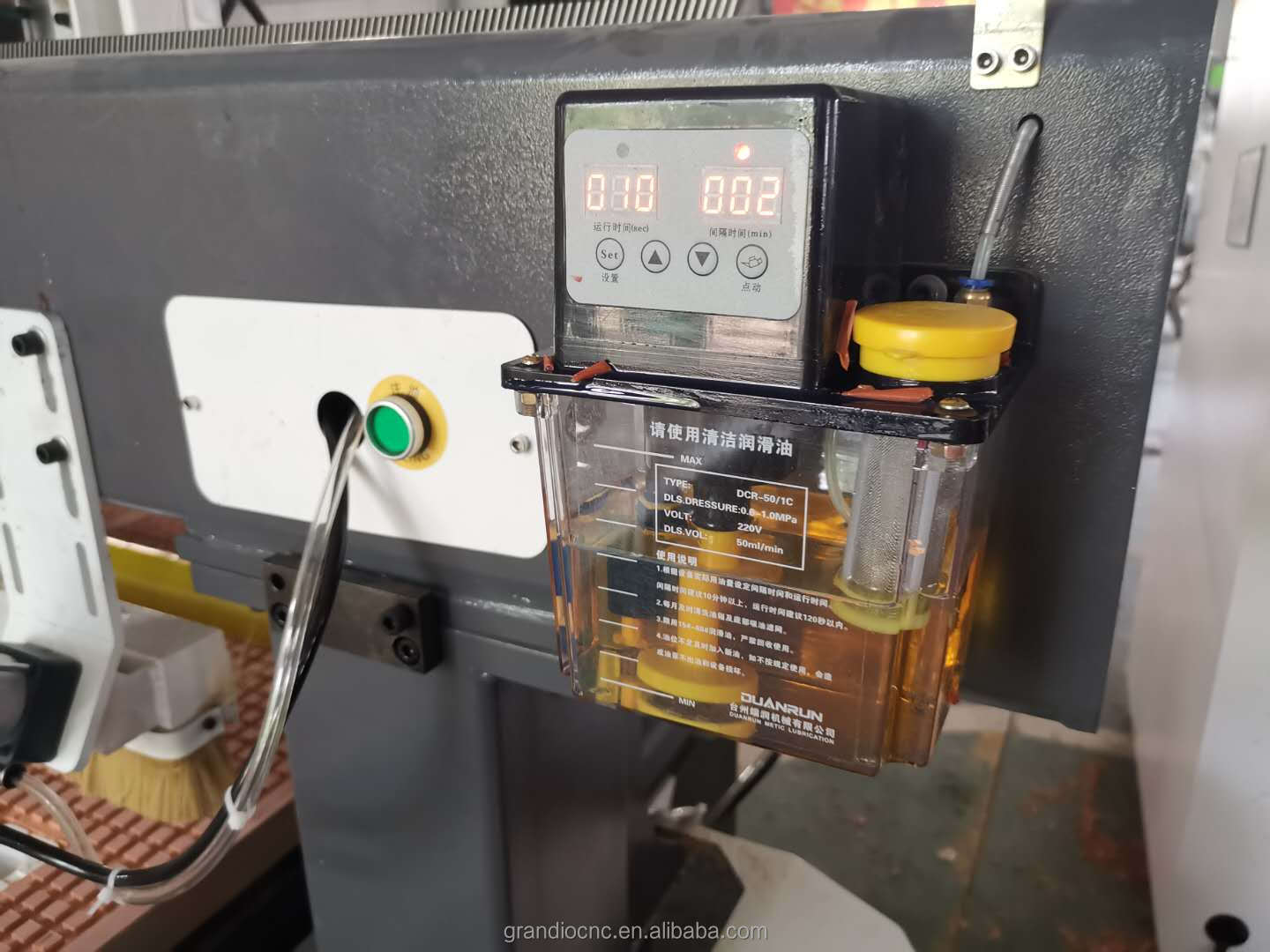

Oil injection
Application
* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

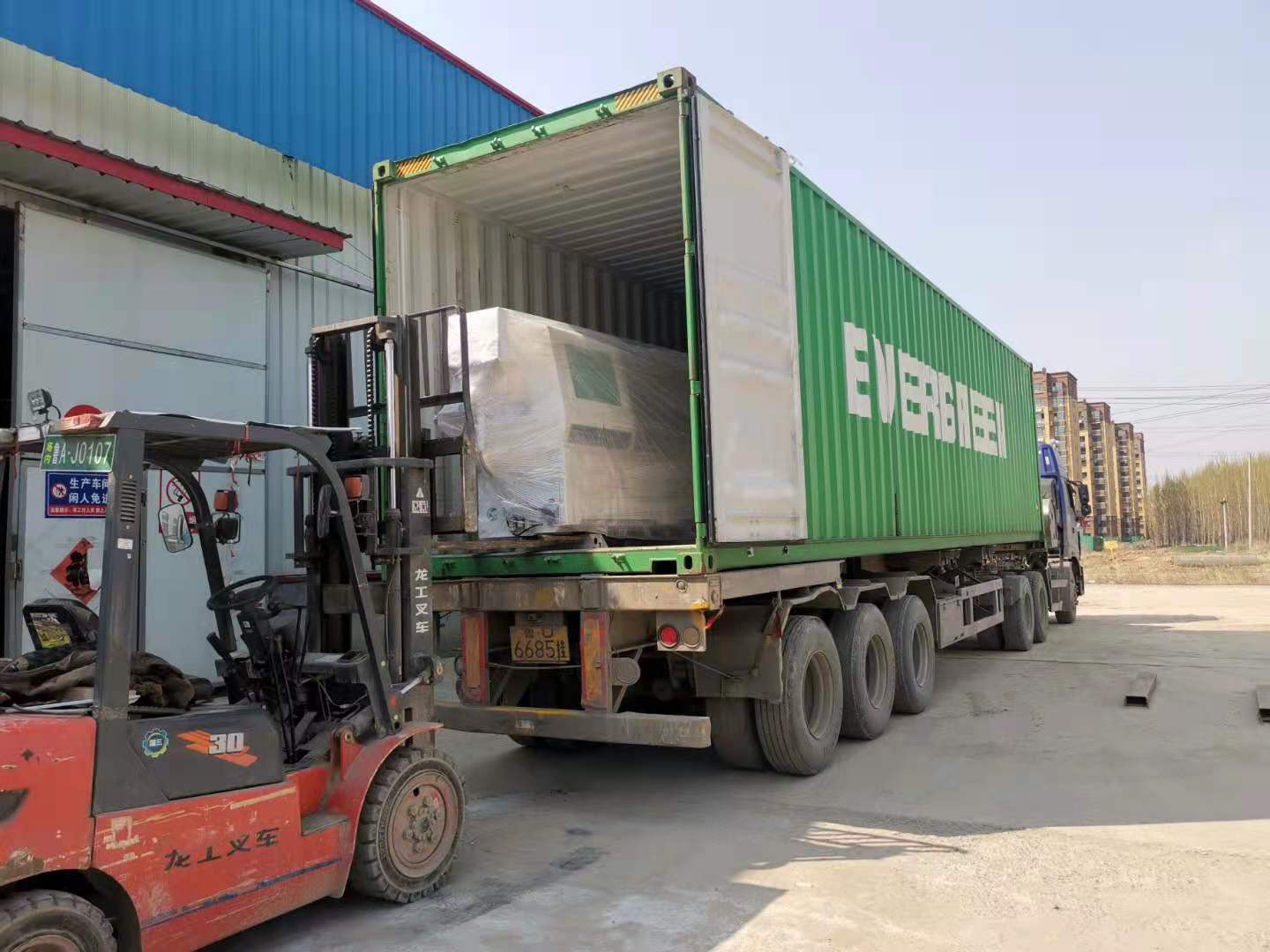

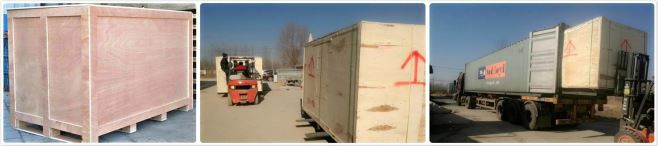

Packing&Shipping

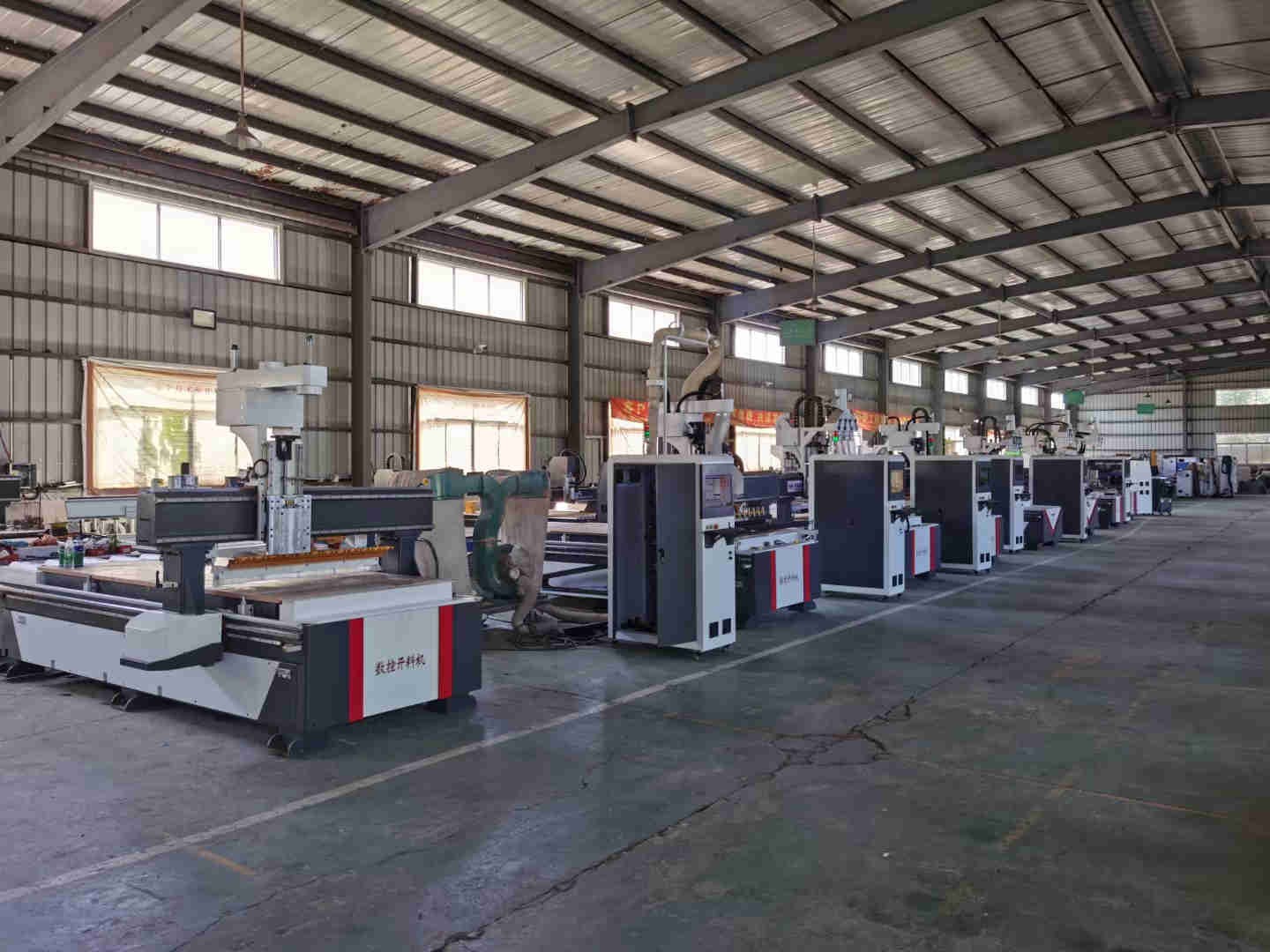

Company Profile
Shandong Guandiao CNC Equipment Co., Ltd. was founded in 2008, produce brand plate furniture production line,woodworking engraving machine, cnc wood router, advertising engraving machine, stone engraving machine, Buddha engraving machine,metal mold machine. fiber laser cutting machine etc.
We are professional CNC router machine, laser cutting&engraving machine and plasma cutting machine manufacturer.Our machine mainly used for advertising,woodworking,steel cutting and stone processing industries.
After serval years' development, JCUT products are used by over 50,000 companies, schools , government offices in more than 30 countries. For instance, countries and area like USA, England, France, Germany, Canada, Russia, India, Southeast Asia, Middle East and so on.
FAQ
Q1: Are you manufacturer ?
Yes,We are factory since 2008.
Q2: How can I get an accurate price?
Please tell us your cutting material and the working size.
Q3: How is your after sales service?
Our sales are online for 24-hours. We can also supply overseas install service. Also we have more than 10 countries warehouse and department.
Q4: How long is the delivery time?
Generally 10 ~ 25 days.
Q5: Can I get a machine according to my own requirements?
Sure.We accept OEM and ODM
Q6: If my machine is broken. Can you repair it for me?
Yes. We have free traning online. If there is big trouble with your machine in the warrenty time, we can repair it.
Q7: How is the quality of your machine?
Our machine adopts heavy lathe bed, and each part is processed by CNC machining center, which greatly improves the accuracy of machine operation.
Q8: What’s your MOQ and delivery?
1 set by LCL.
3~9 sets by container
