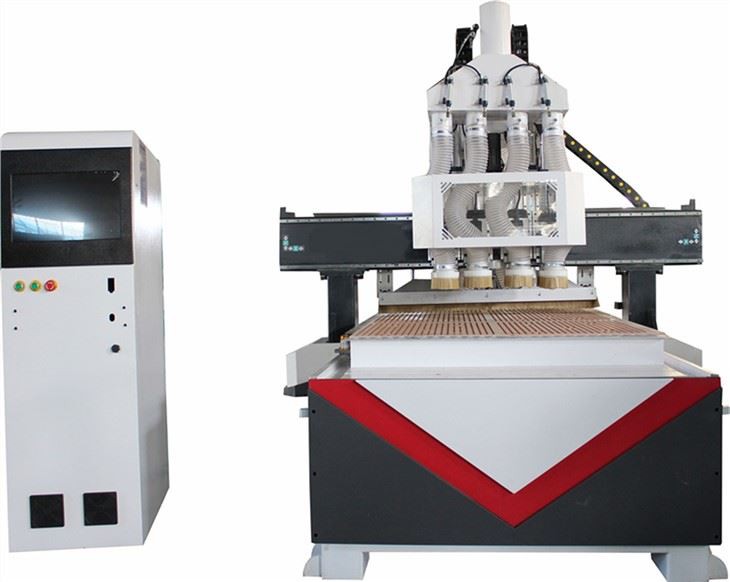

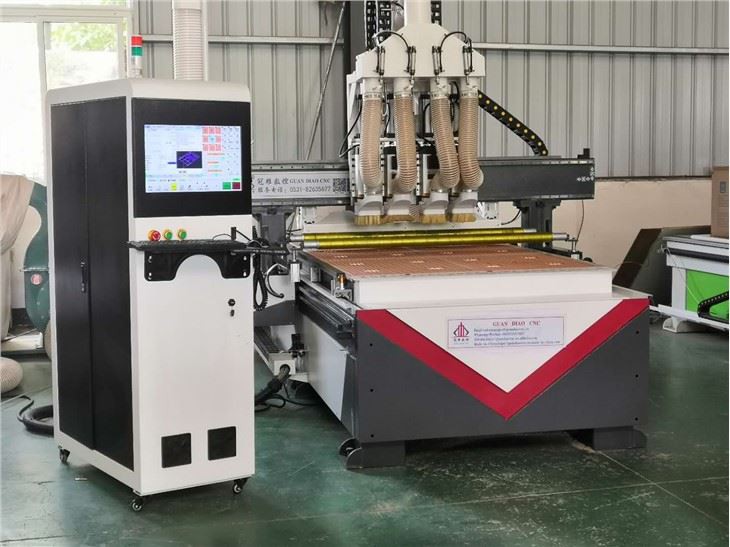

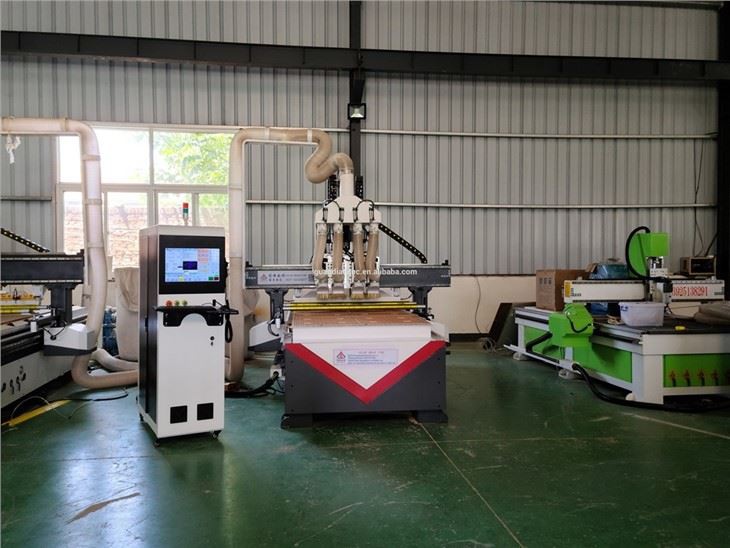

Four Heads CNC Machine
Feature
This style is equipment with 2-4 kinds of cutters, there is no need to change the cutters when engraving or cutting. The program can work automatically. The advantage is low investment. High profit, low maintenance, easy to operate. It is also very easy for new user to operate.
1.Advanced control system can multiply level of 3D work automatically. It is very convenient, and can finish the 3D work fast and smoothly.
2.The whole machine is welded with thick seamless steel structure, the stability is good, not easy to be deformed. The machine adopts gantry movement, it can process any kinds of materials freely.
3.Adopt important linear square orbit, two line sliding track, heavy loading, stable working, high precision and long lifetime. Adopt imported ballscrew, high precision.
4.Well compatibility: CAD/CAM designing software e.g.TYPE3/Artcam/Castmate/ Wentai etc.
5.This model is suitable for processing any kinds of materials in bulk.Some clients can not afford the ATC CNC ROUTER with more than 20000 dollars but also want one automatic and economical tool changing equipment. The multi function woodworking cnc router is such machine with 2,3,4 or 5 processing and intelligent multi-function.
Parameter configuration table
Mode | GD1325-Q3 | GD1325-Q4 | GD1325-Q4D | |
spindle | 4.5/6/7.5kw | |||
Working size | 1300*2500*200mm | |||
Work fixing | Vacuum suction table (Double vacuum suction table optional) | |||
Driving mode | Servo drive | |||
Max working speed | >30000mm/min | |||
Engraving command | G code *.ENG,u00*.mmg*.plt | |||
Power(Without spindle) | 1000W above | |||
Working Voltage | 380V 50Hz(220V is optional) | |||
Machine size(mm) | 3200*2200*1900 | 3200*2300*1900 | 3200*2400*1900 | |

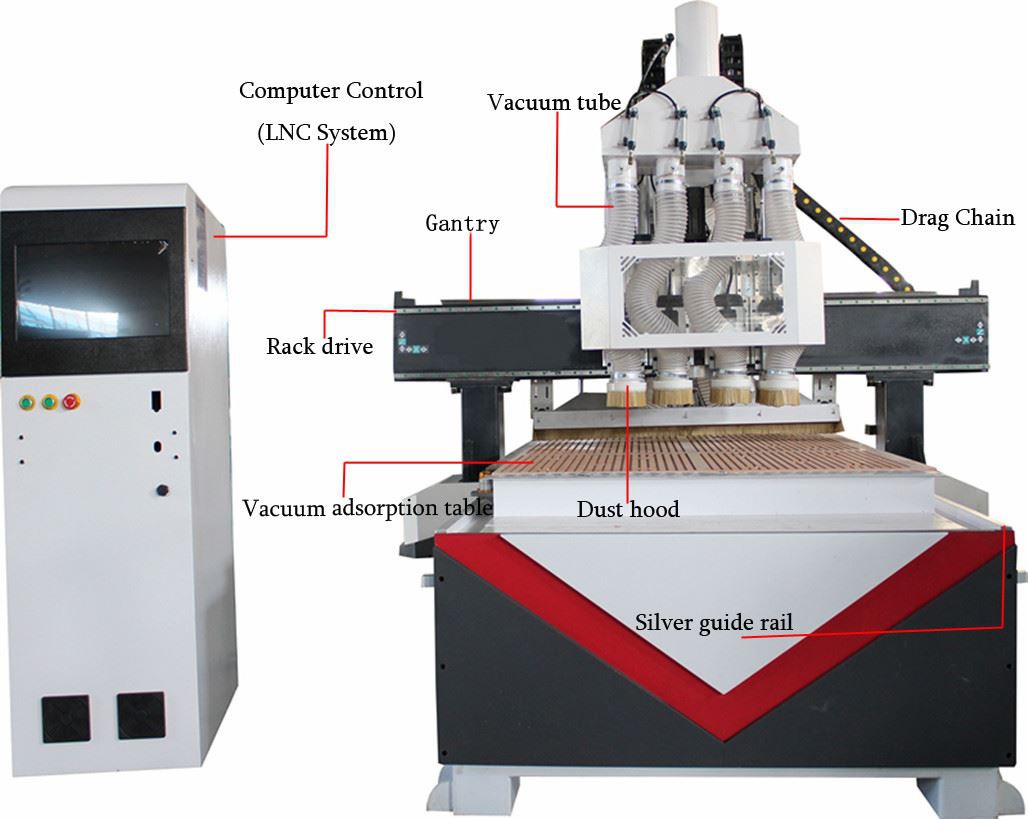

Machine Details

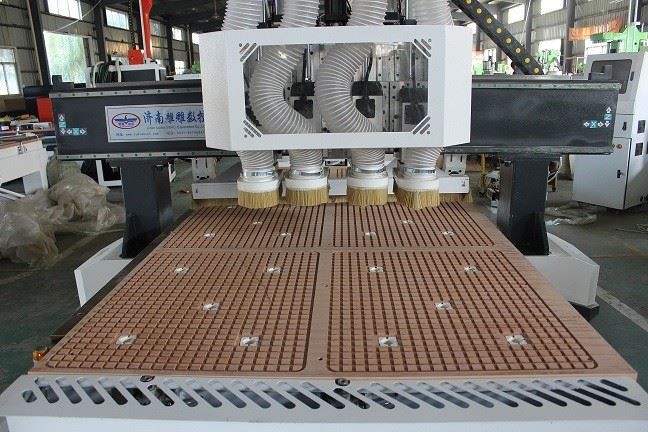

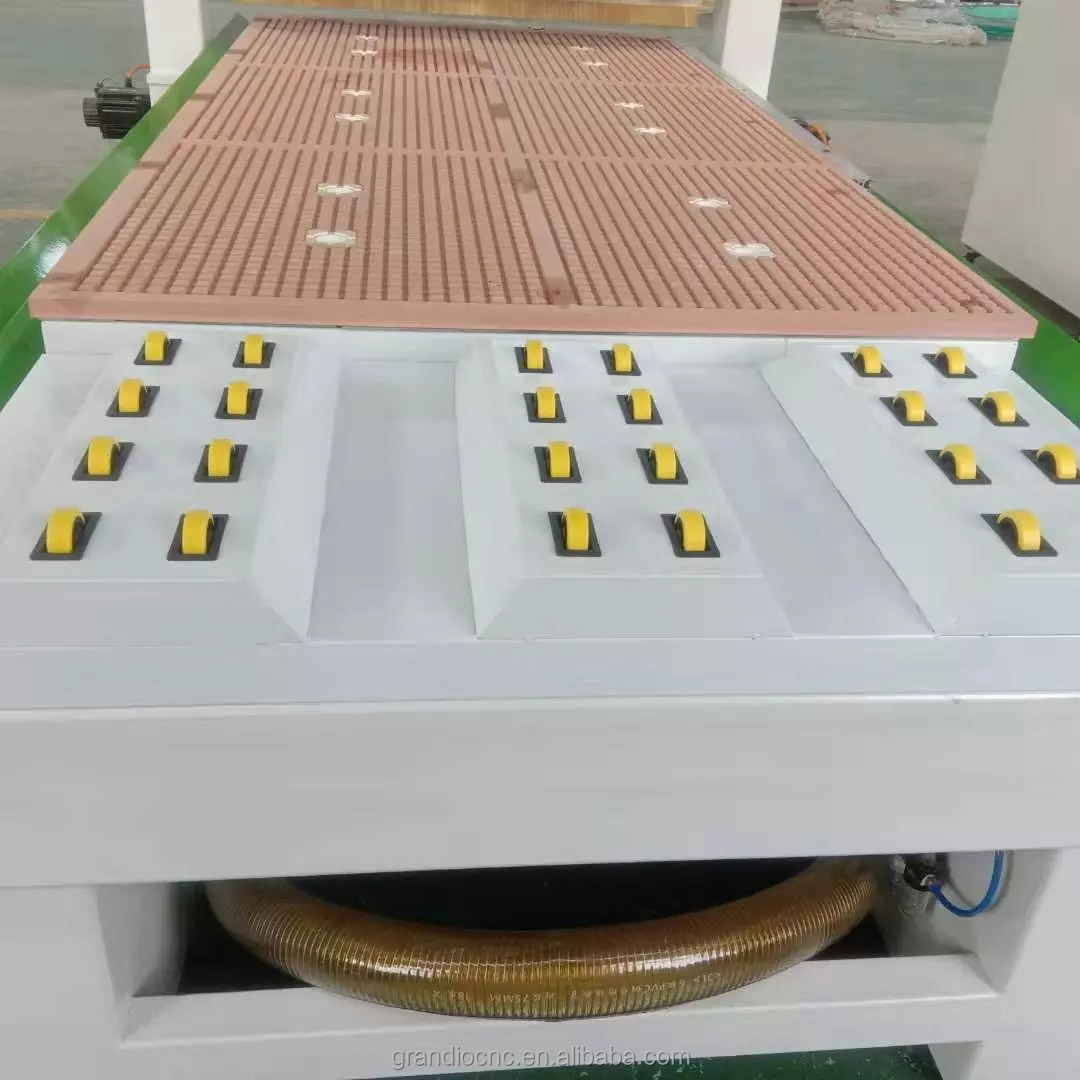

Vacuum adsorption table

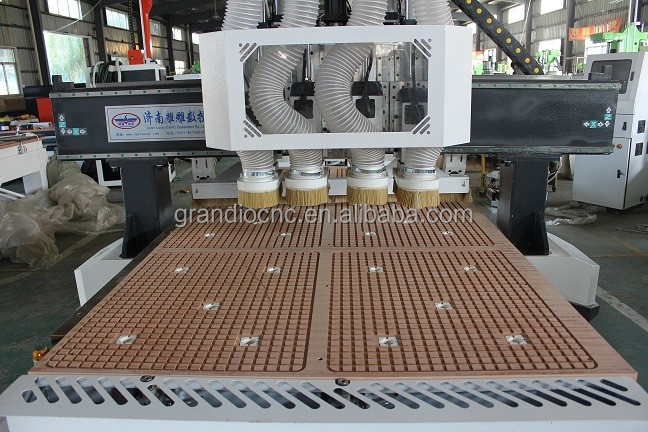

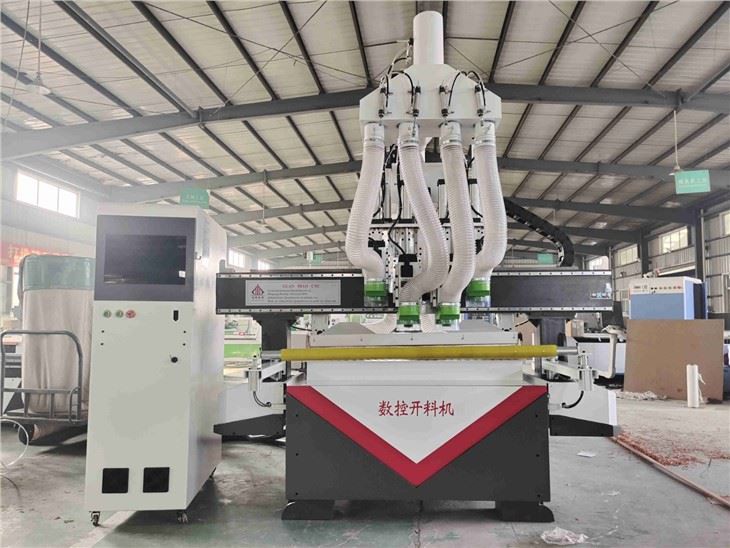

Four spindles

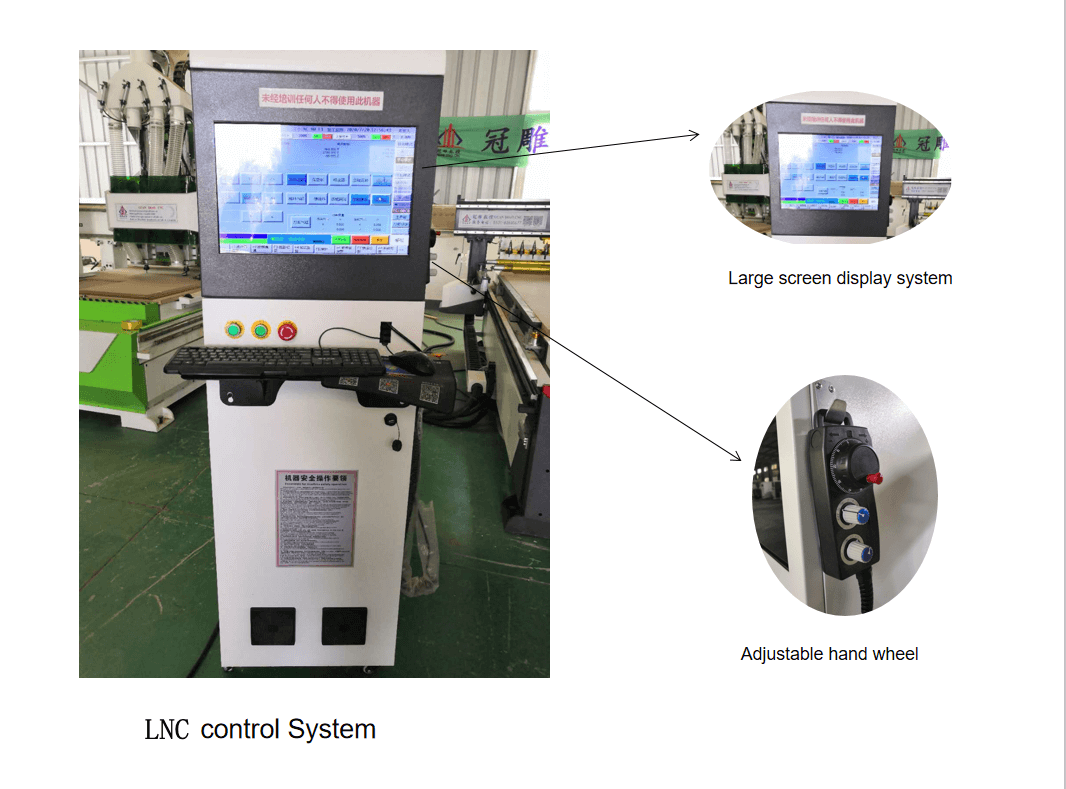

Control System

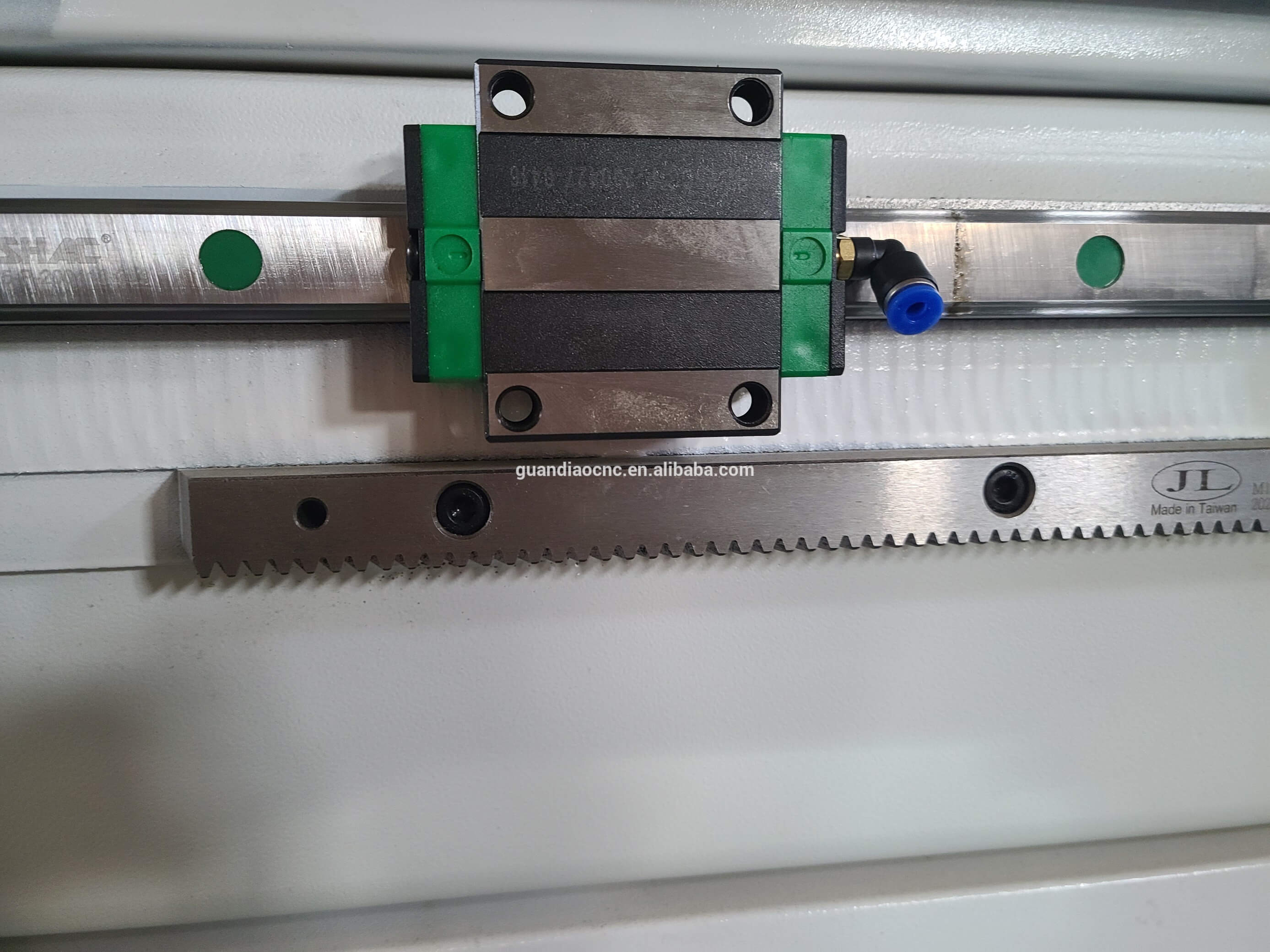

High precision rack
Automatic feeding wheel

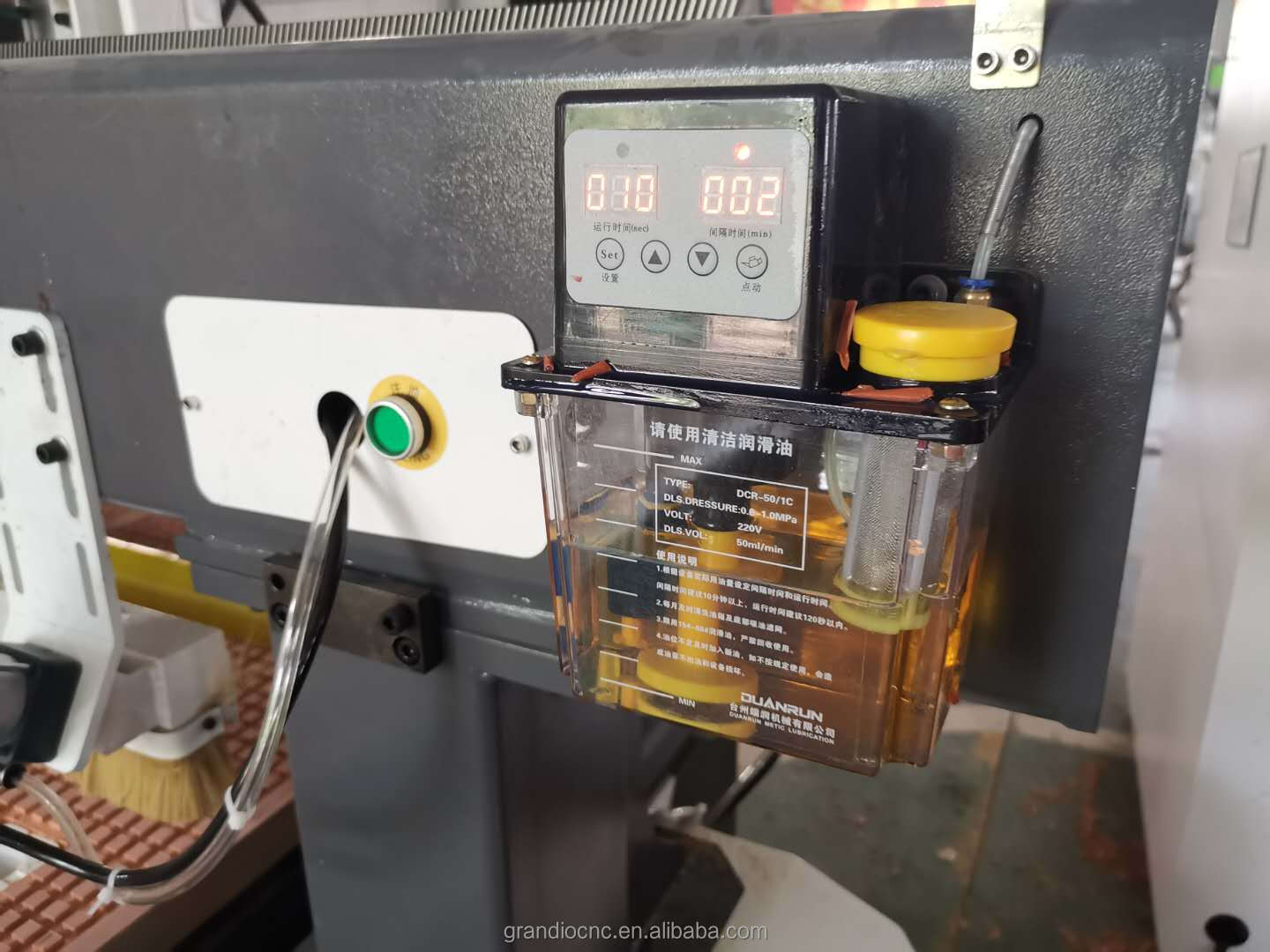

Oil injection
Application
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
Packing&Shipping
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PEstretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 20-30 working days after payment.
Company Profile
Shandong Guandiao CNC Equipment Co., Ltd. was founded in 2008, produce brand plate furniture production line,woodworking engraving machine, cnc wood router, advertising engraving machine, stone engraving machine, Buddha engraving machine,metal mold machine. fiber laser cutting machine etc.
Our Service
A Guarantee:
1. 12 months for the whole machine.
2. Within 12 months under normal use and maintenance,
If something is wrong with machine, you will get spare part for free.
3. Out of 12 months, you will get spare part at cost price.
4. You will also get technical support and service all the lifetime.
B Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS.
2, Friendly English version manual and operation video CD disk.
3, Engineer available to service machinery overseas.
C After sales services:
1 Normal machine is properly adjusted before dispatch.
2 You will be able to use the machines immediately.
3 You will be able to get free training advice towards our machine in our factory.
4 You will also get free suggestion and consulting, technical support and service by email/fax/tel and lifetime technical support.
FAQ
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
