Product Descrption

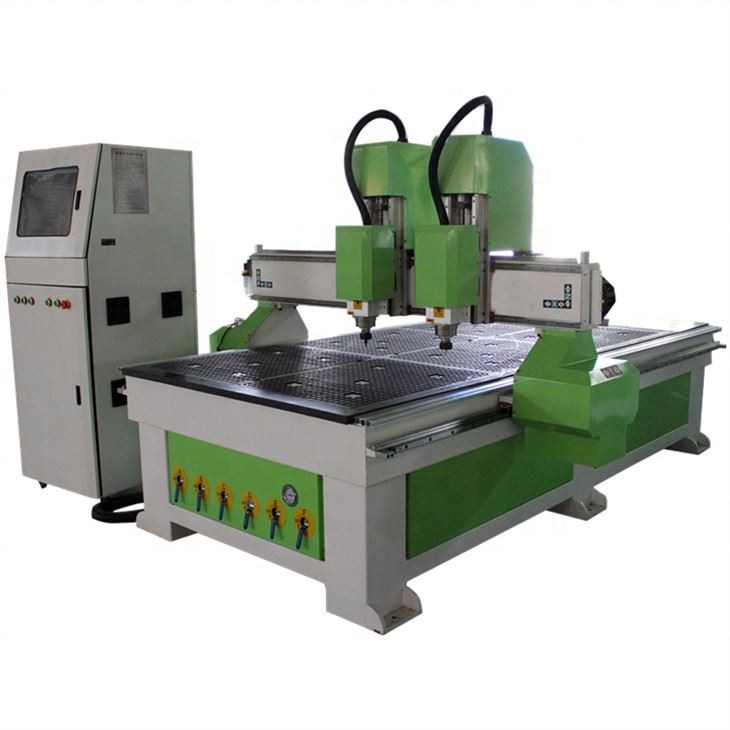

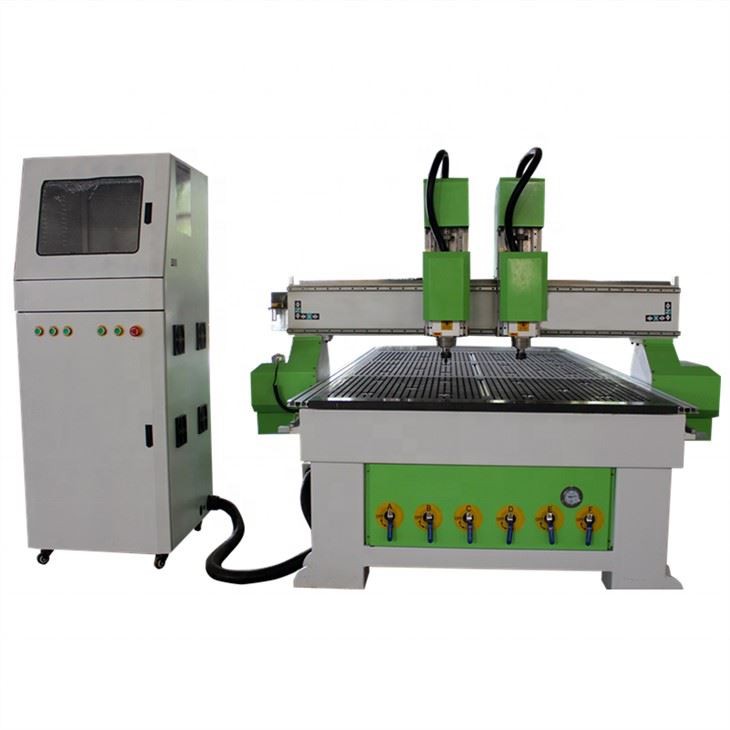

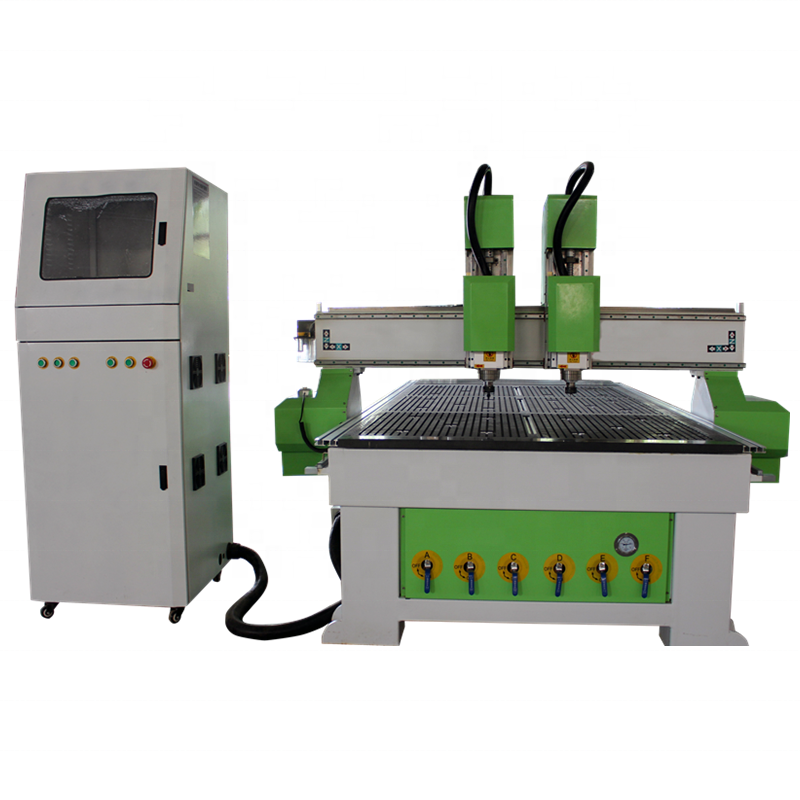

Double Spindle CNC Router is our 1325 CNC Router with 2 independent spindles for woodworking, the 2 spindles can work at same time to save time.
Features & Service
1. Two heads can be processed at the same time, also can be used alone, two times higher than the efficiency of the single head. ,
2. Germany double nut ball screw, Taiwan rail. Using the breakpoint memory, to ensure that the accident (power) or the next day to process.
3. Gantry style mobile, durable and long time use is not deformed, so that the positioning accuracy is more accurate.
4. the high power cutting not only makes the carving fine without the saw tooth, the bottom surface smooth light pulley outline is clear.
5. It can improve the work efficiency of the carving master in the processing of complex graphics products, in the process of mass production, the product is good, the quality is high, the equipment has good stability, and the error rate is low.
Technical Parameters
| Model | 1325 |
| Working size | 1300*2500*200mm |
| Table | Vacuum and T-slot table with 5.5kw vacuum pump |
| Guide | Taiwan HIWIN 20mm square guide rail |
| Spindle | 3.5kw*2 HQD water cooled |
| Motor | 450B Stepper motor and Leadshine 860 drivers |
| Transmission | XY axis helical rack, Z axis ball screw |
| Control system | Nc studio / DSP A11 |
| Tool sensor | Manual |
| Oil lubrication | Yes |
| Inverter | 3.7kw BEST / Fuling |
| Software | Artcam/Type3/Ucancam |
| Dust collector | 3kw double bags |
| Rotary device | can be attached |
| Vlotage | 220 single phase/380V 3 phase , 50-60Hz |
| Warranty | 2 years |

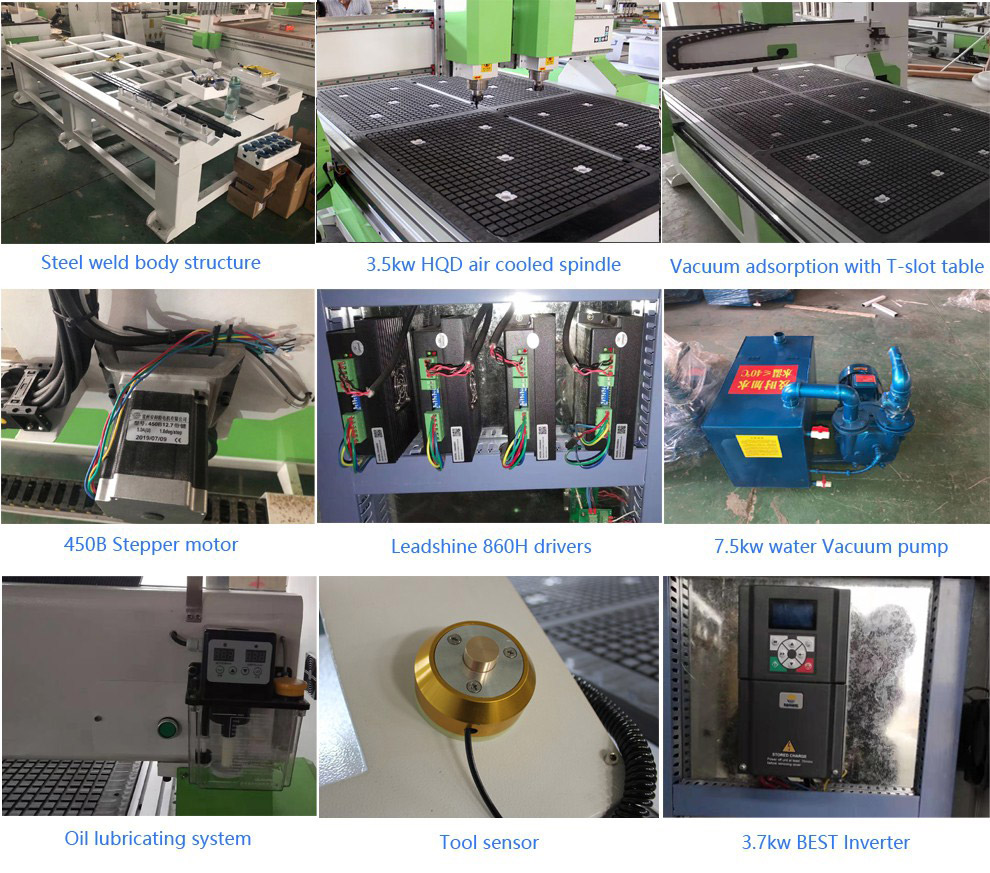

Machine Details

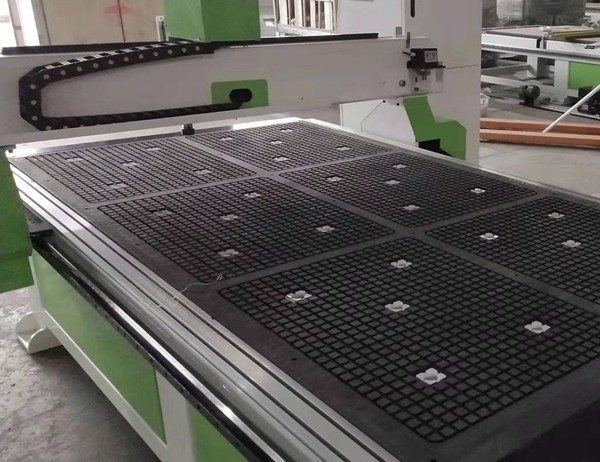

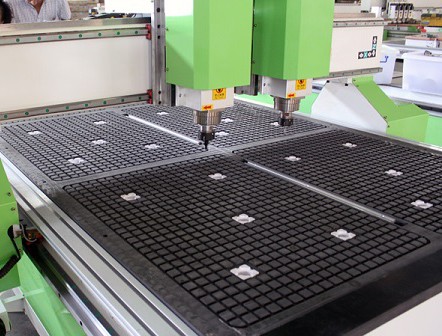

3.5kw*2 HQD air cooled spindle Vacuum with T-slot table

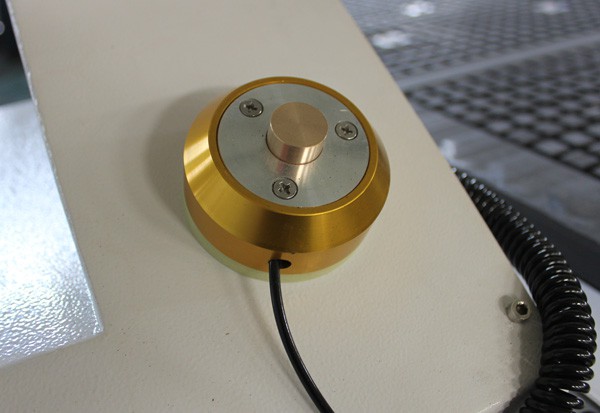

Manual oil lubricating system Tool sensor

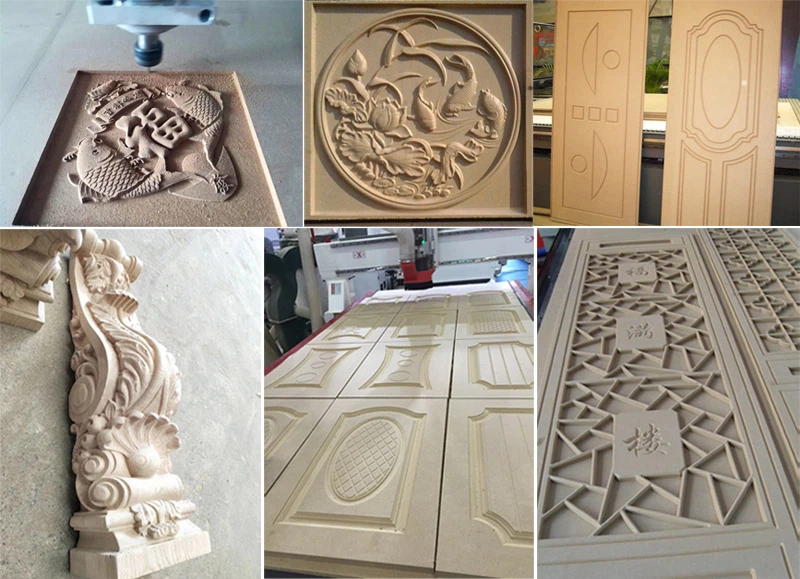

Application
(1)WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
(2)Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,blaster molding, and other advertising materials derivatives making.
(3) Artwork and Decoration: wood crafts, gift box, jewelry box
(4)Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
(5)Relief Sculpture and 3D Engraving & Cylindrical object.
Packing & Shipping
Packaging: Standard Strong Wooden Box
Shipping: 15-20 working days after get deposit

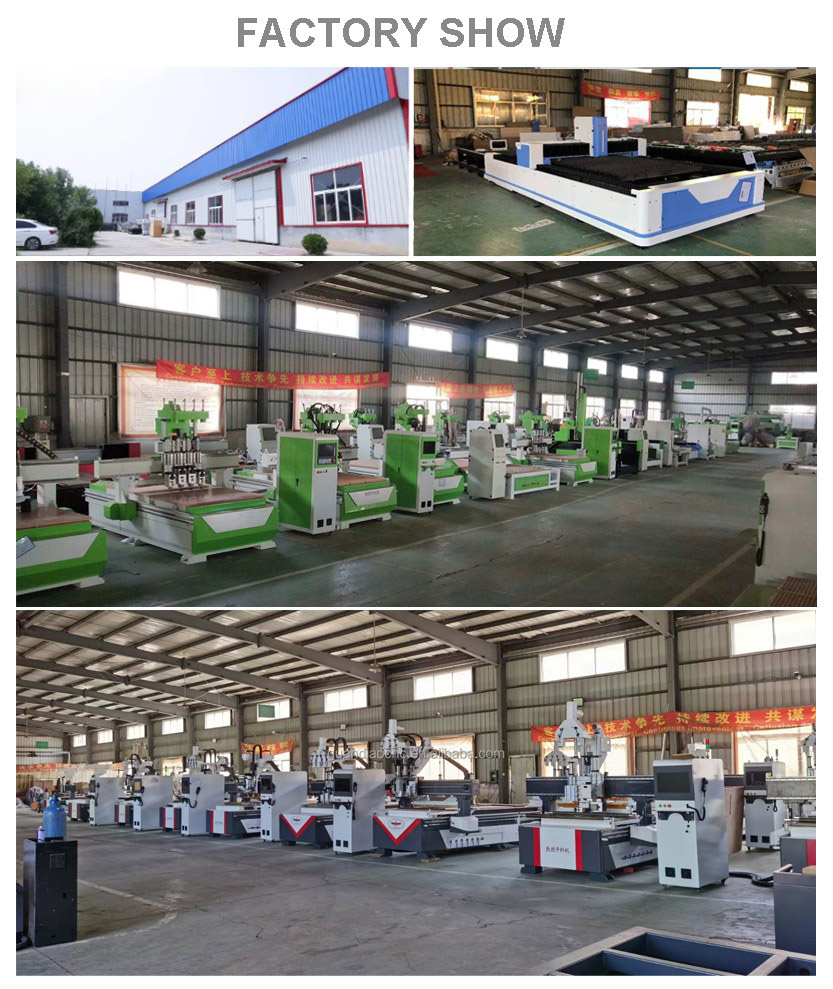

Company Information
Shandong Guandiao CNC Equipment Co., Ltd based in Jinan, China, has been leading the industry in woodworking innovations since 2012 years and continues to challenge the industry with new advancements. We provide our clients advanced and original, high-tech products, as well as solutions in the field of CNC laser-based production for different material processing applications.
