Machine Working video:

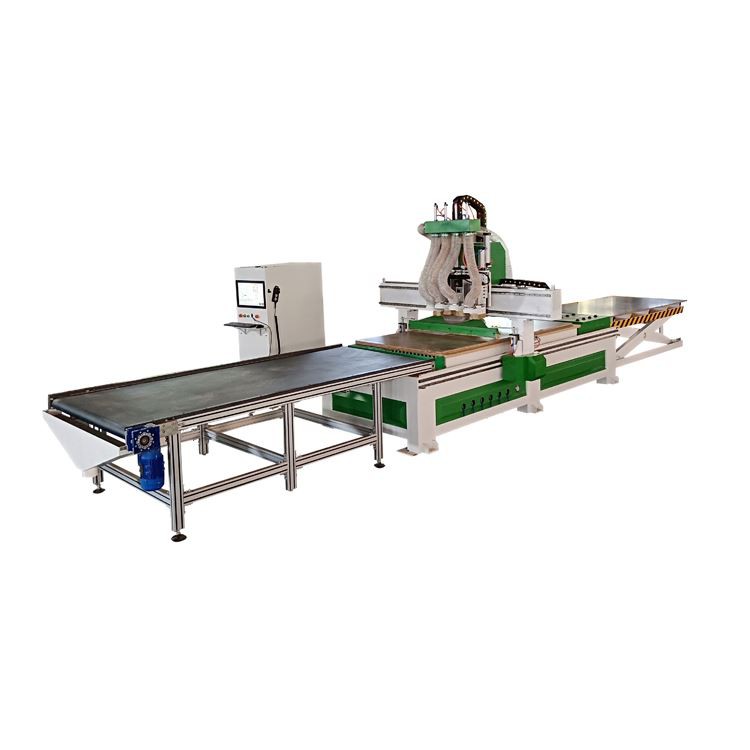

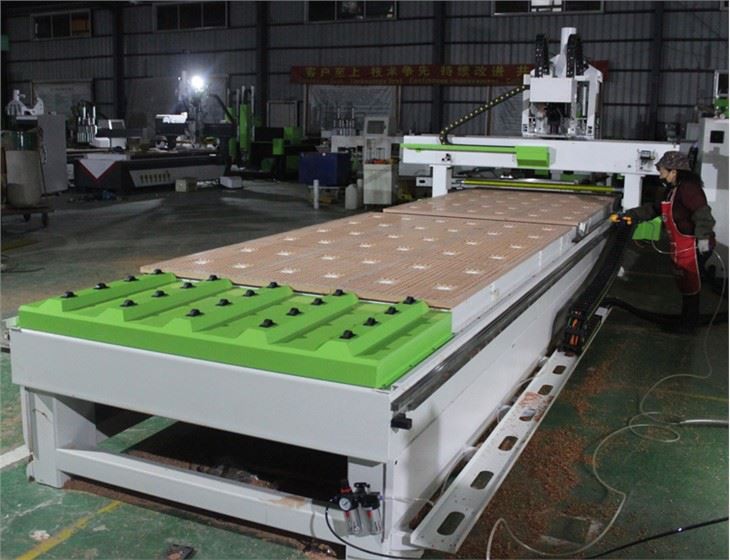

Also can be with auto loading & unloading tables:
The Mainly Different Between Double tables CNC Router and Auto loading & unloading CNC Router:
@1.The Double tables floor space more smaller than Auto loading & unloading
@2. Double tables working more faster than auto loading & unloading,because when machine working on one table,the workers can be loading materials on another tables
@3.But Auto loading & unloading can save more worker force when machine working,it can loading unloading materials automatically,no need by workers' hands. The double table need workers to load plate.
@4.The auto loading & unloading will be your good choice if your workshop space bigger and work force expensive. Because only need one worker can operate the auto loading & unloading cnc router,but the minimum 2 peoples to operate double tables cnc router.
So we will according to your workshop space and salary for workers to make a best suitable plans. That is the reasona why we ask more from you before quotation for you.

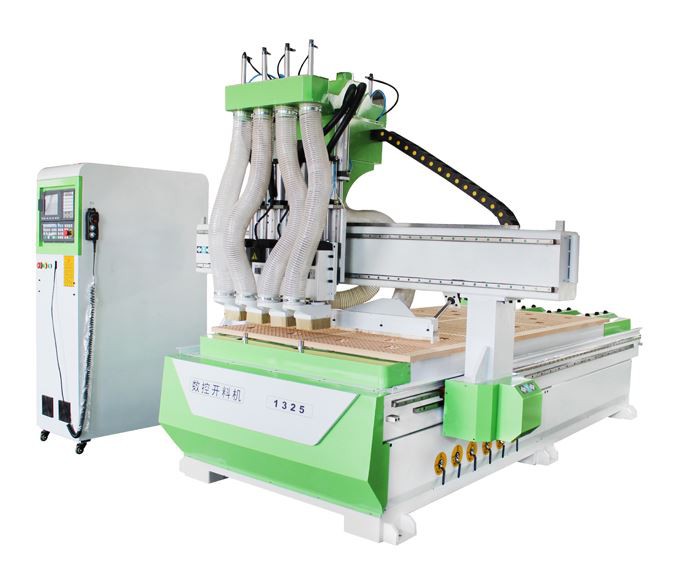

Machine Parameters:
| Model | GD-1325Q2/GD-1325Q3/GD-1325Q4 |
| Working area | 1300*2500mm |
| Table size | 1740*3100mm |
| Z azis working area | 200mm(300mm for optional) |
| Resolution | +/-0.01mm |
| Max cutting speed | 70m/min |
| X and Y axis transmission | Germany Herion 1.5M rack and pinion |
| Z axis transmission | Germany TBI ball screw |
| Guide rail | Taiwan Hiwin 25mm linear rail |

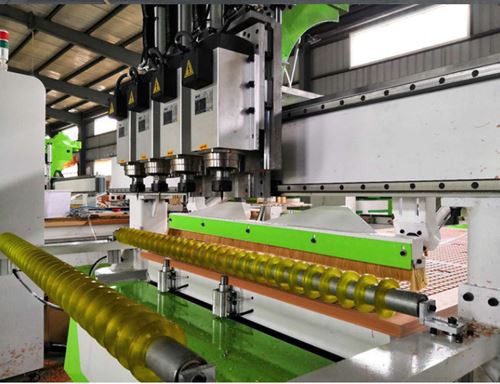

| Spindle | 3.5KW*2+6KW*2,air cooling ATC spindles |
| Working mode | 1.5KW servo motor |
| XY transmission | Imported rack |
| Z axis transmission | Taiwan TBI ball screw |
| Reducer | Japan shimpo |

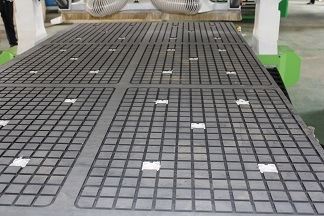

| Working table | T slot vacuum table |
| Auto lubrication | Yes |

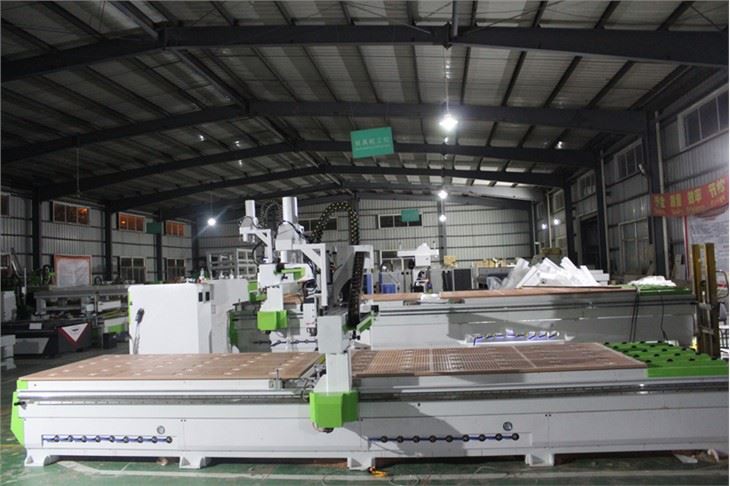

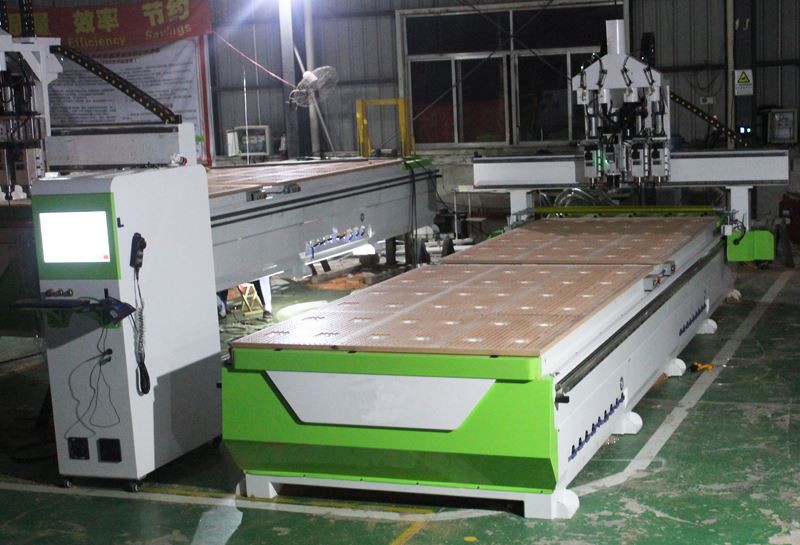

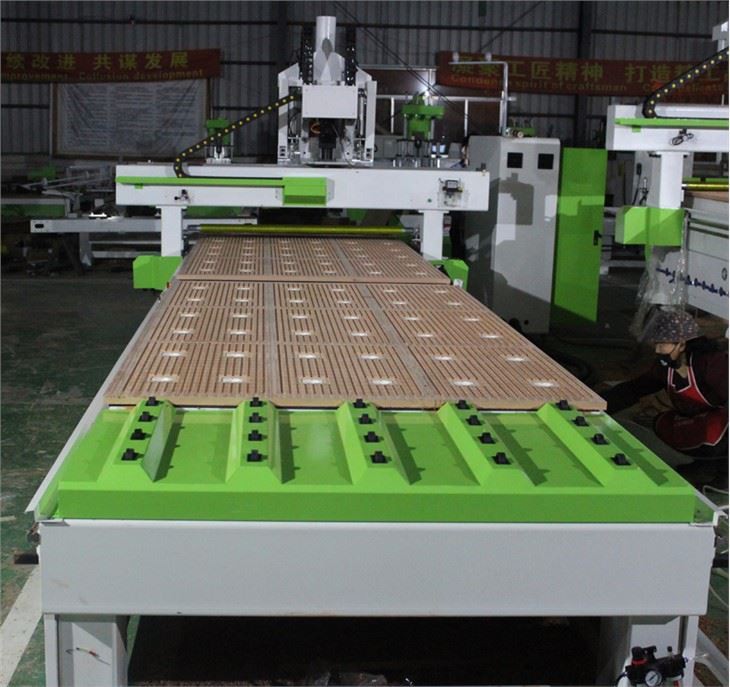

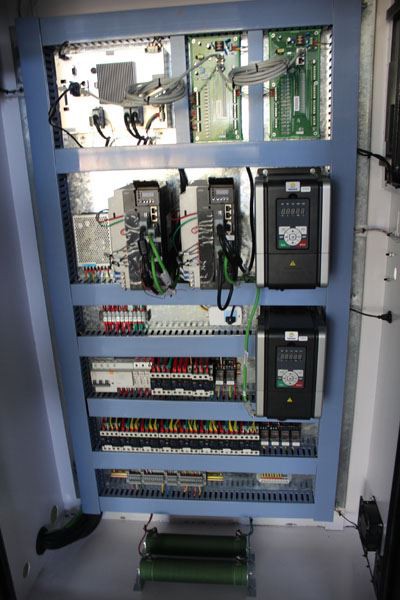

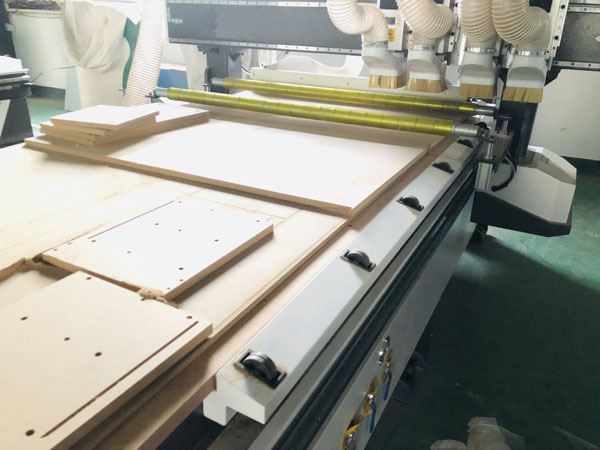

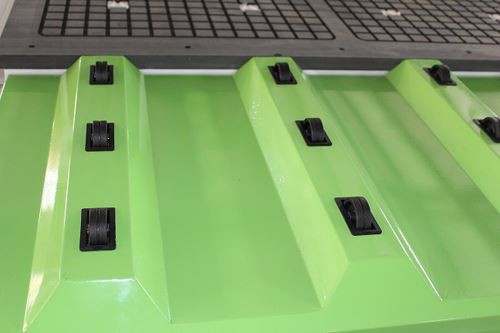

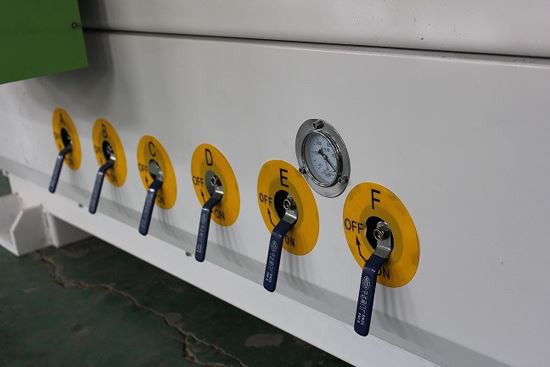

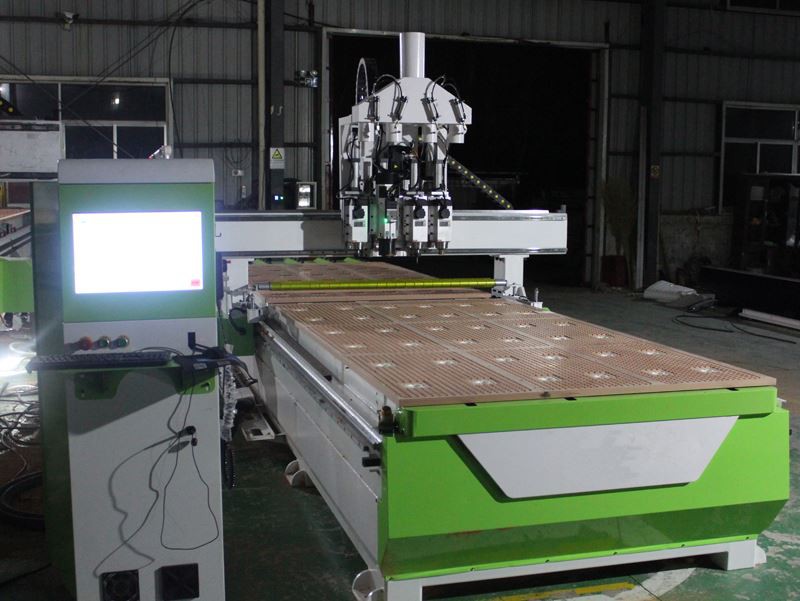

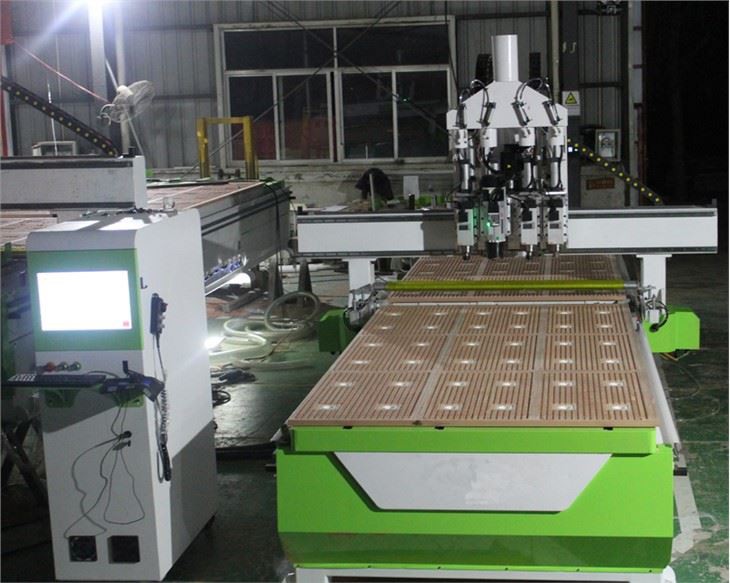

Machine details:
Machine Samples:
* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

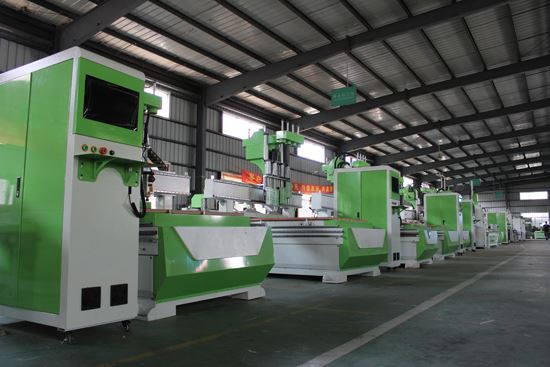

About us:
FAQ
Q1:How can I trust your company and your products?
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.
Q2.If machine have any problem after I ordered it, what could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24 hours service from phone and Skype.
Q3. Can I visit your factory?
Yes! We greatly welcome customers to visit our factory!
