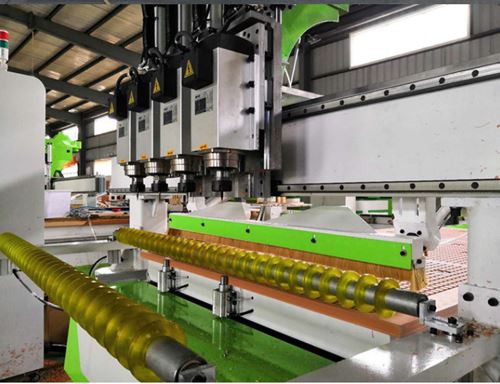

Machine Working video:

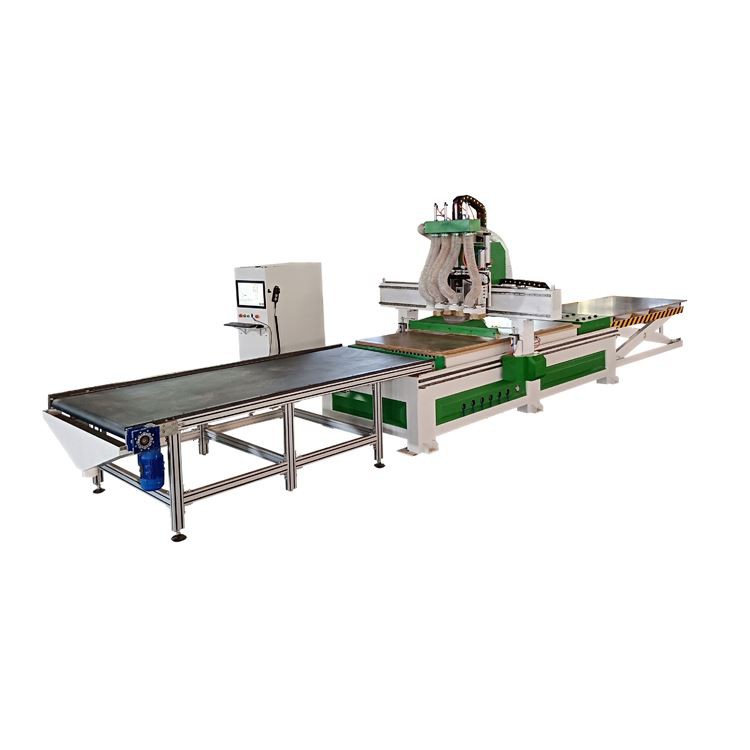

Also can be with auto loading & unloading tables:

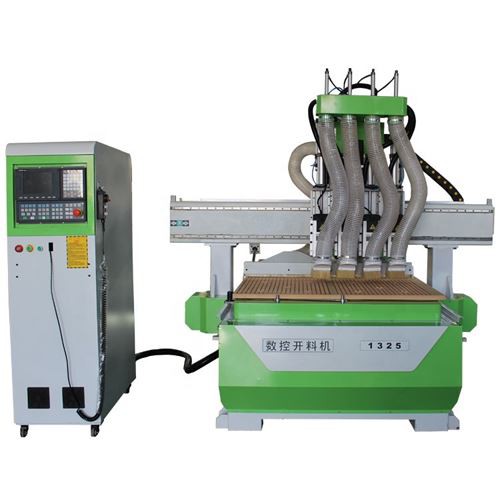

Machine Parameters:
| Model | GD-1325Q2/GD-1325Q3/GD-1325Q4 |
| Working area | 1300*2500mm |
| Table size | 1740*3100mm |
| Z azis working area | 200mm(300mm for optional) |
| Resolution | +/-0.01mm |
| Max cutting speed | 70m/min |
| X and Y axis transmission | Germany Herion 1.5M rack and pinion |
| Z axis transmission | Germany TBI ball screw |
| Guide rail | Taiwan Hiwin 25mm linear rail |
| Spindle | 3.5KW*2+6KW*2,air cooling ATC spindles |
| Working mode | 1.5KW servo motor |
| XY transmission | Imported rack |
| Z axis transmission | Taiwan TBI ball screw |
| Reducer | Japan shimpo |
| Working table | T slot vacuum table |
| Auto lubrication | Yes |
Machine details:

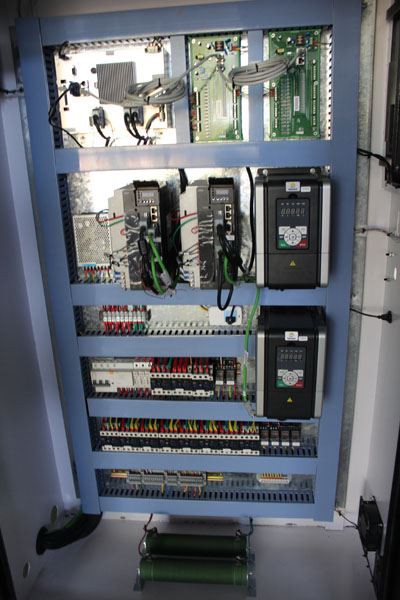

Independent Control Cabinet
Absorb Cake with Cylinder

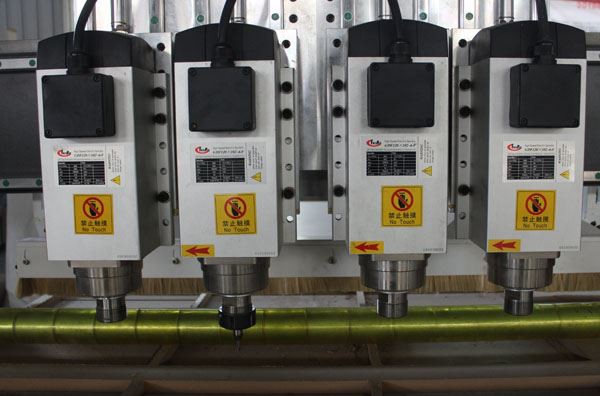

High quality fast speed spindle,you can change any brand you want

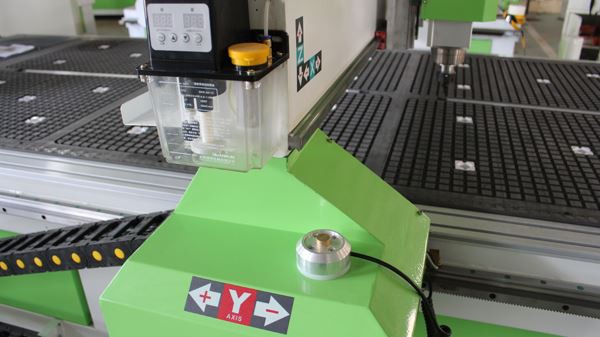

Auto lubrication system and auto tools sensor

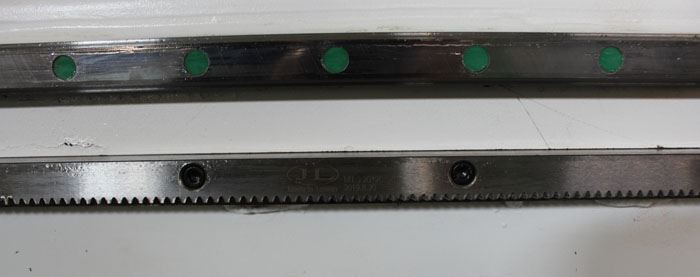

Famous Brand guide rail and rack

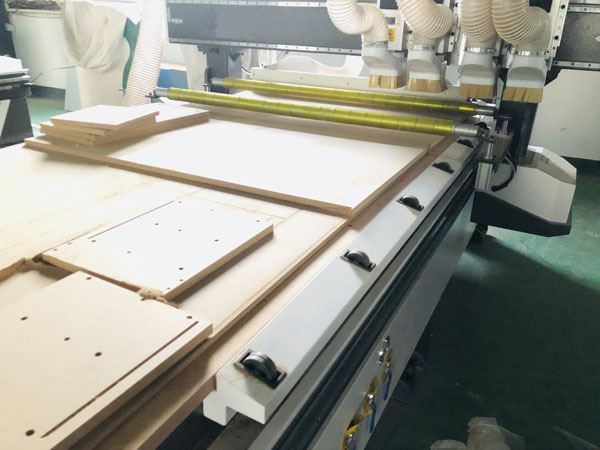

Pressure wheel for press more thin plate tightly

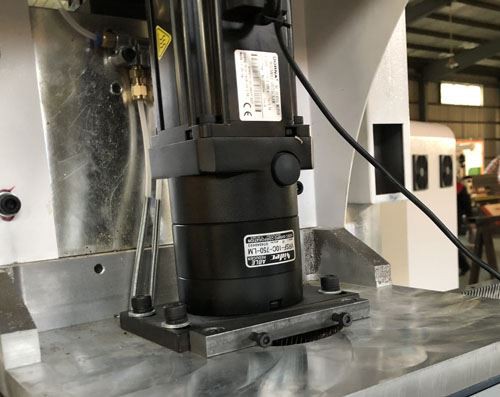

Big power high quality motors,drivers and recuder

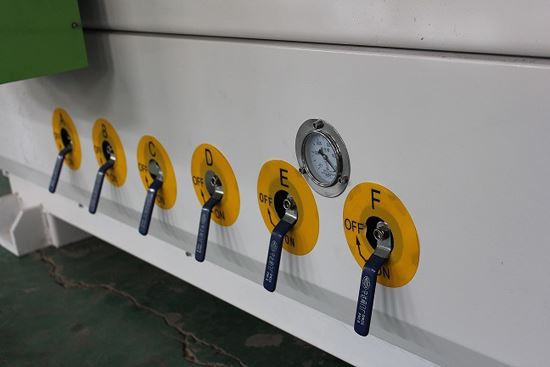

Vaccum table control valves with high precision vacuum meters

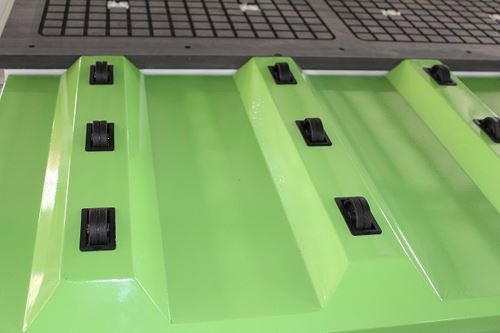

Wheels for protect plate from scratch,also help human to load materials easily

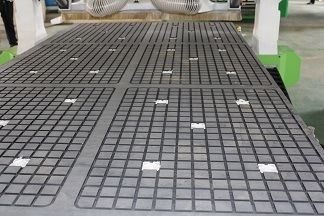

High Quality vacuum table with absorb holes

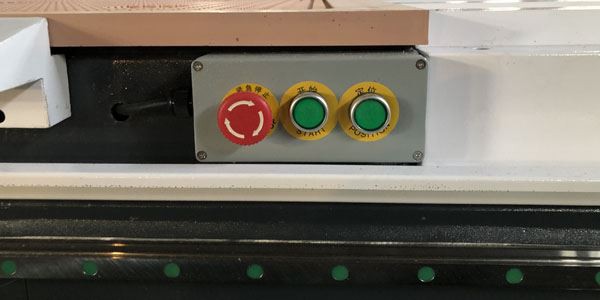

Emergency,start,position buttons on the back of the machine,
More conveniently for workers operation
Spindle cover for optional
Machine Samples:

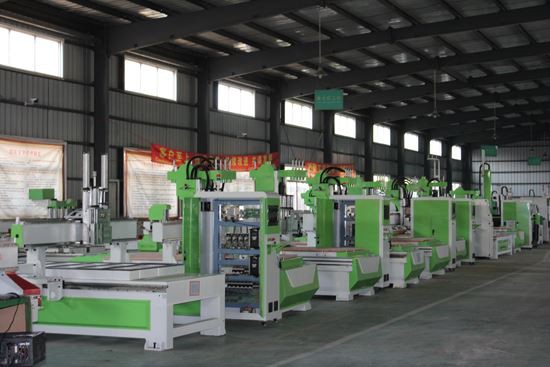

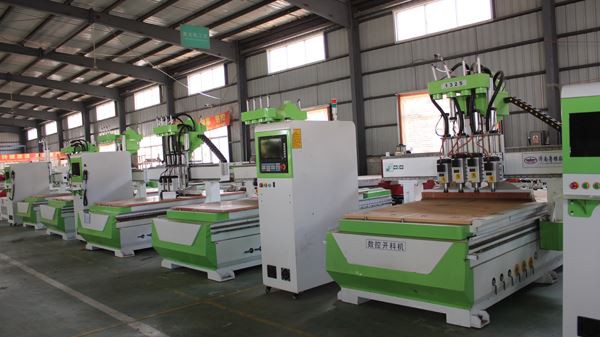

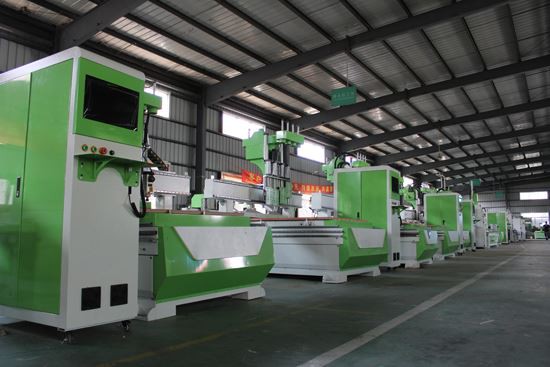

About us:
