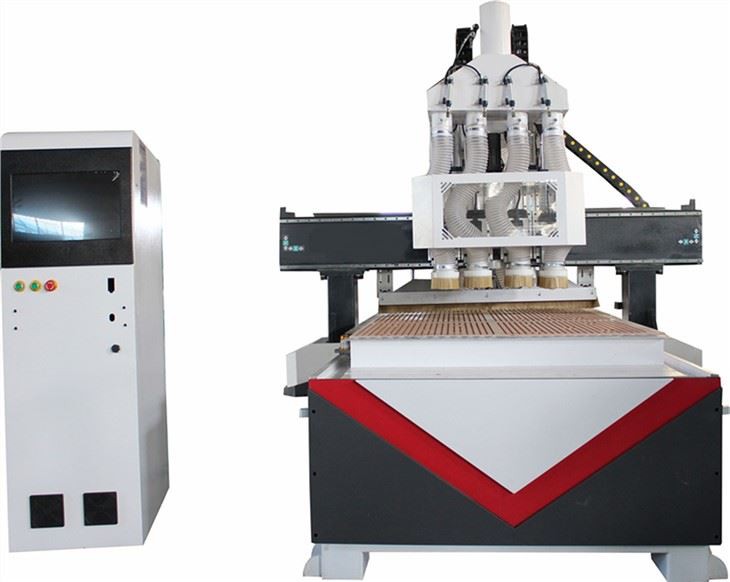

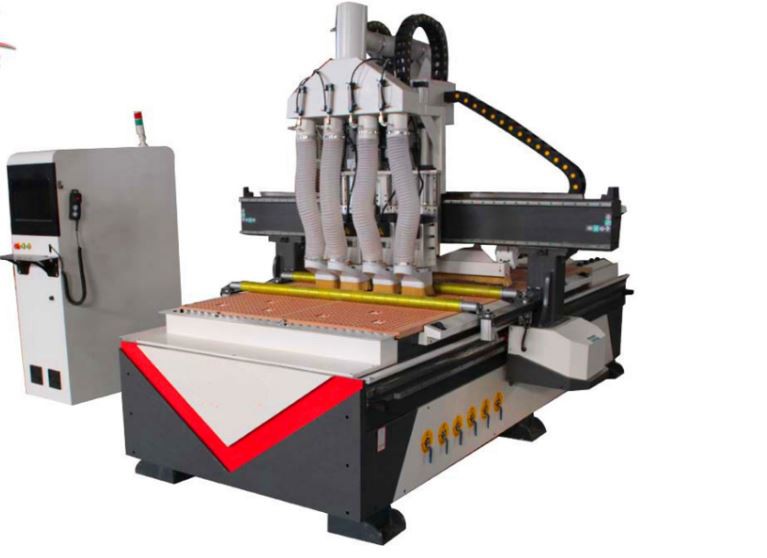

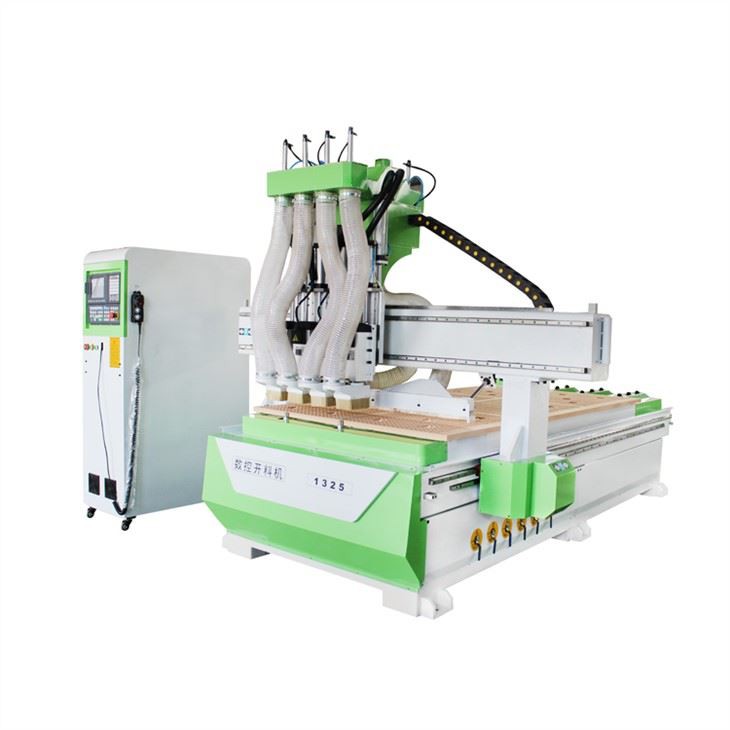

Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows. * The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments. * Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds. * Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process. NEW 1325/1530 woodworking cnc atc machine linear type atc tool changer cnc router with 12/16 pcs tools atc nesting machine
Details

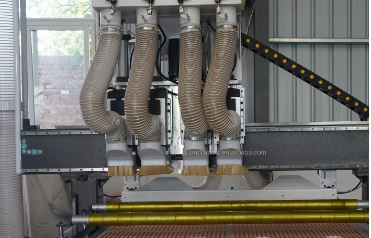

| Multi - axis and multi - spindle motor work alone, save the time of tool change, can complete mass product processing. |

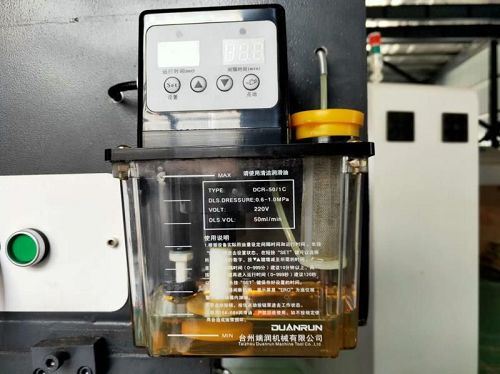

Automatic oiling system Can setting a time limit to oiling machine guide rail and others, it can oiling machine automatic, easy operated |
|

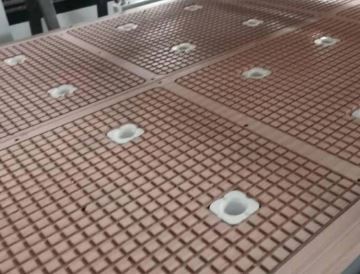

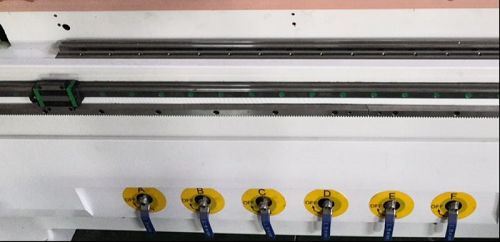

| Vacuum table, 6 separate vacuum adsorption table, high stability. It can absorb different sizes of plates, more flat plates |

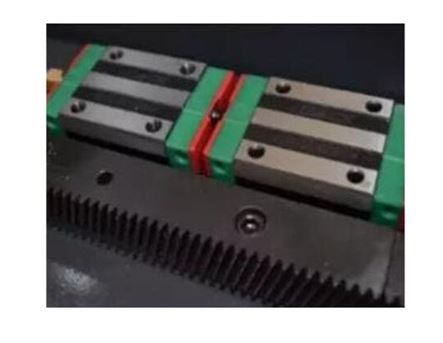

Taiwan guide rail and ball screw High precision and durability |
|
Parameters
| Model | GD-1325Q2/GD-1325Q3/GD-1325Q4 |
| Working area | 1300*2500mm |
| Table size | 1740*3100mm |
| Z azis working area | 200mm(300mm for optional) |
| Resolution | +/-0.01mm |
| Max cutting speed | 70m/min |
| X and Y axis transmission | Germany Herion 1.5M rack and pinion |
| Z axis transmission | Germany TBI ball screw |
| Guide rail | Taiwan Hiwin 25mm linear rail |
| Spindle | 3.5KW*2+6KW*2,air cooling ATC spindles |
| Working mode | 1.5KW servo motor |
| XY transmission | Imported rack |
| Z axis transmission | Taiwan TBI ball screw |
| Reducer | Japan shimpo |
| Working table | T slot vacuum table |
| Auto lubrication | Yes |

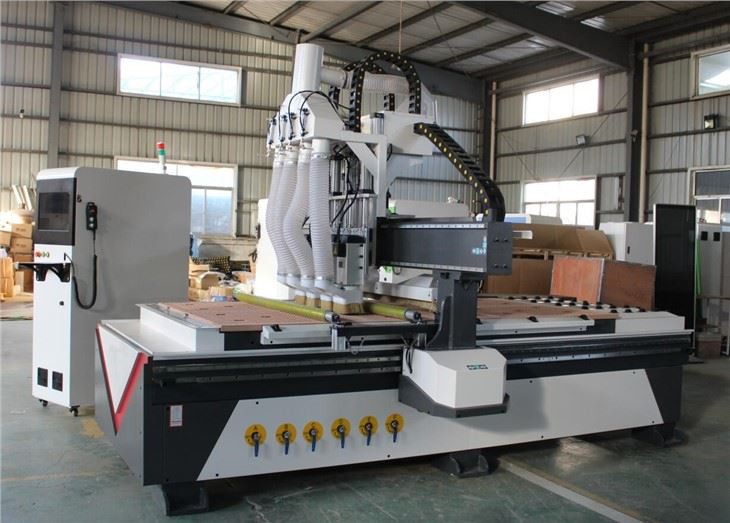

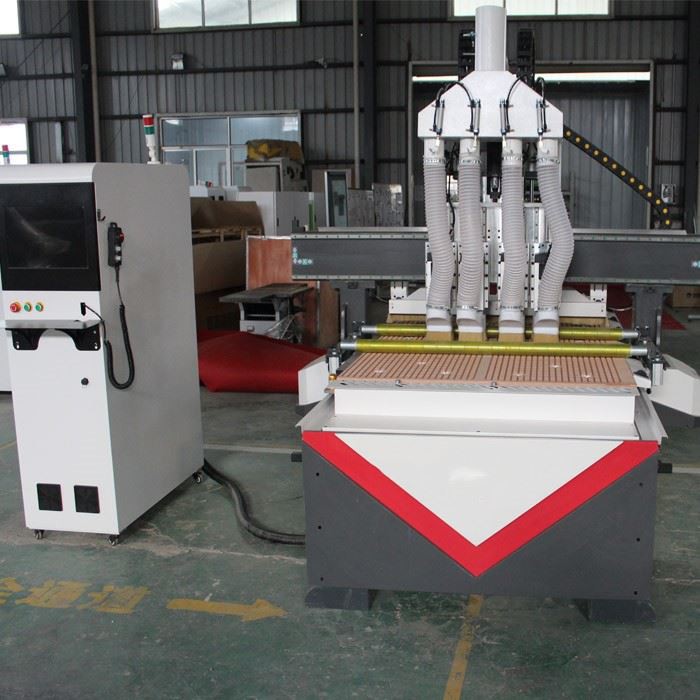

Samples
Our service
12 months guarantee of the whole machine, we will provide the consumable parts at an agency price when you need replacement.
Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
Software is on update for free whole life.
Our enginner could service on weekend even on vacation.
Our engineer could train you in our factory for free.
Our engineer could service you 24 hours online by we chat ，WhatsApp ，QQ, or by cellphone.
English manual and CD video for machine using and maintaining will send to you with the machine.

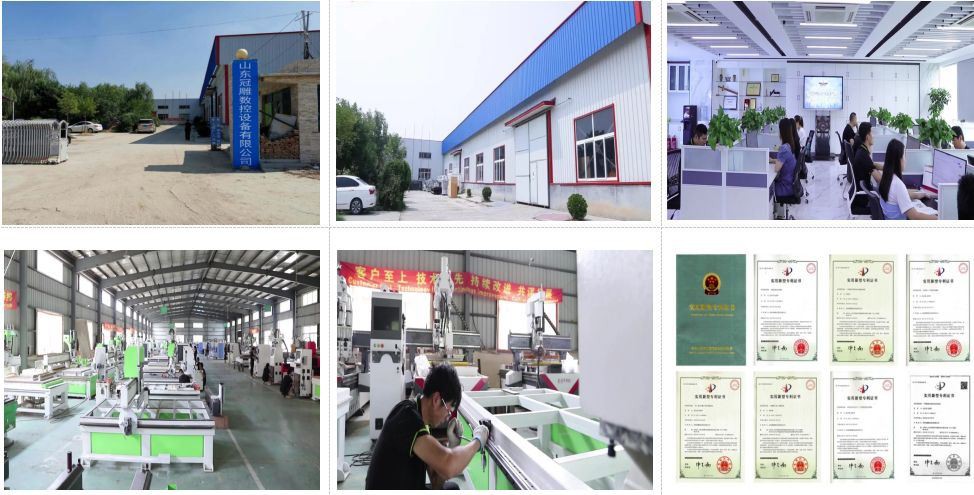

About us
