1. The bed is welded with thickened large pipe,
- 2. The guide rail adopts imported linear square gauge,
- 3. Specially designed z-axis structure,
- 4. Double sheathed high flexible shielded cable and CNC special cable are adopted
- 5. Y-axis adopts double motor drive to ensure smooth operation.
- 6. The system adopts Taiwan control system, efficient automatic processing, greatly saving time and investment cost for you, improving production efficiency.
- 7. All the limits are original from Omron of Japan to improve the accuracy of returning to the origin
Details

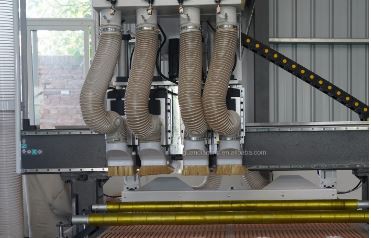

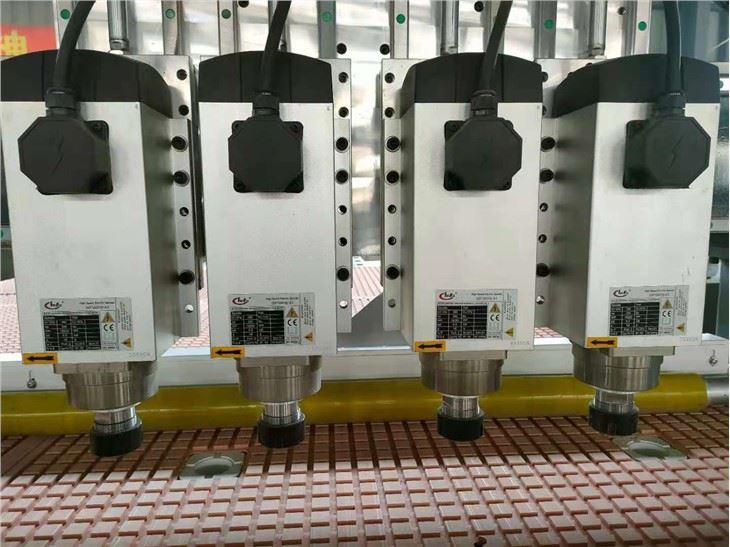

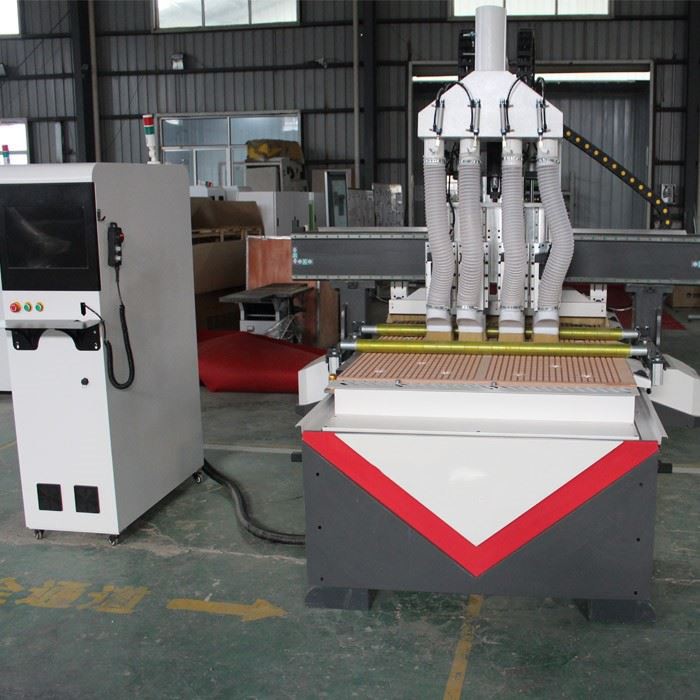

| Multi - axis and multi - spindle motor work alone, save the time of tool change, can complete mass product processing. |

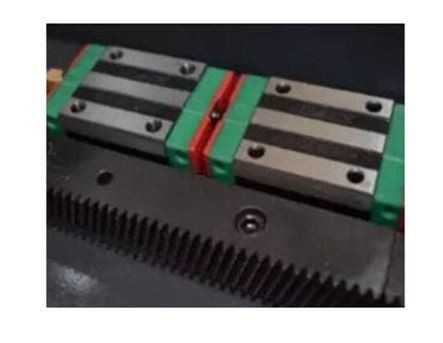

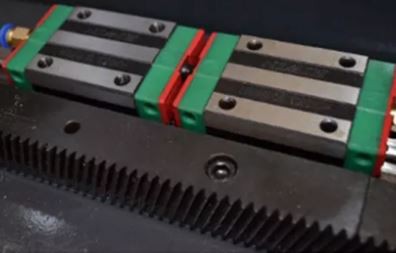

Helical rack,adopting high precision rack transmission,high precision&speed |
|

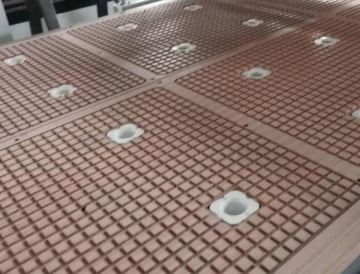

| Vacuum table, 6 separate vacuum adsorption table, high stability. It can absorb different sizes of plates, more flat plates |

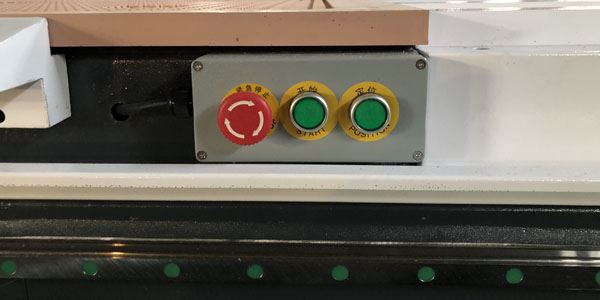

Emergency,start,position buttons on the back of the machine, |
|
Parameters

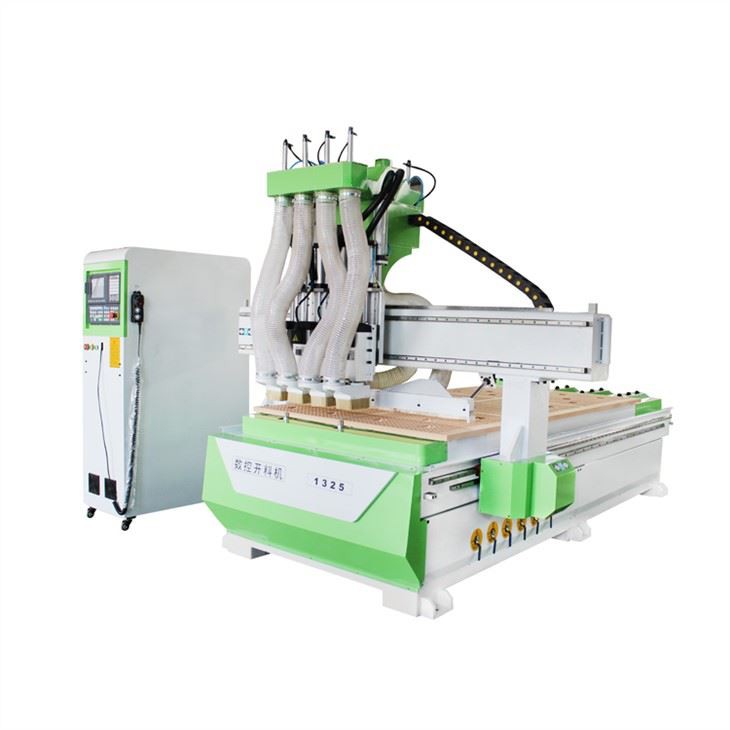

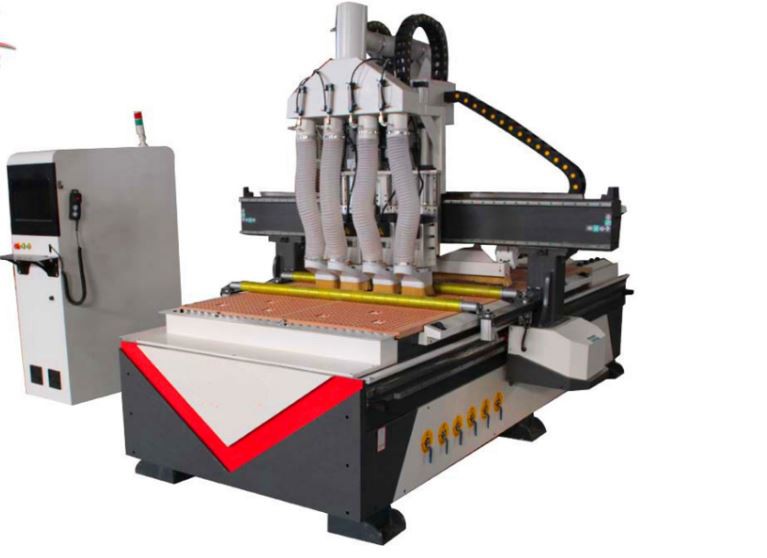

| Model | GD-1325Q2/GD-1325Q3/GD-1325Q4 |
| Working area | 1300*2500mm |
| Table size | 1740*3100mm |
| Z azis working area | 200mm(300mm for optional) |
| Resolution | +/-0.01mm |
| Max cutting speed | 70m/min |
| X and Y axis transmission | Germany Herion 1.5M rack and pinion |
| Z axis transmission | Germany TBI ball screw |
| Guide rail | Taiwan Hiwin 25mm linear rail |
| Spindle | 3.5KW*2+6KW*2,air cooling ATC spindles |
| Working mode | 1.5KW servo motor |
| XY transmission | Imported rack |
| Z axis transmission | Taiwan TBI ball screw |
| Reducer | Japan shimpo |
| Working table | T slot vacuum table |
| Auto lubrication | Yes |

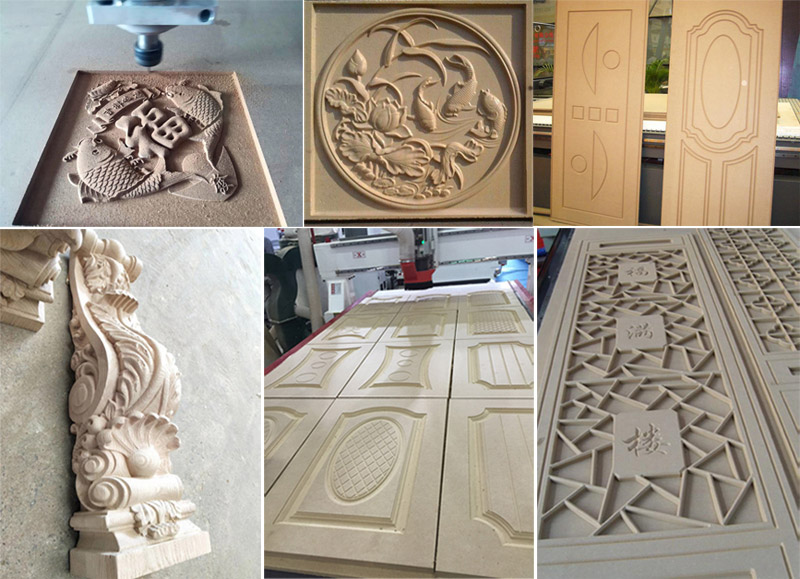

Samples
Our service
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any
problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an cost price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.

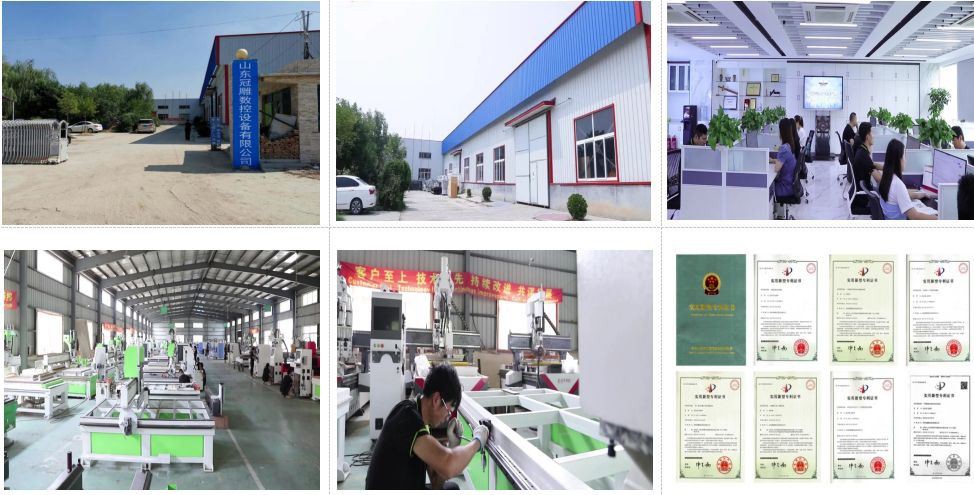

About us
