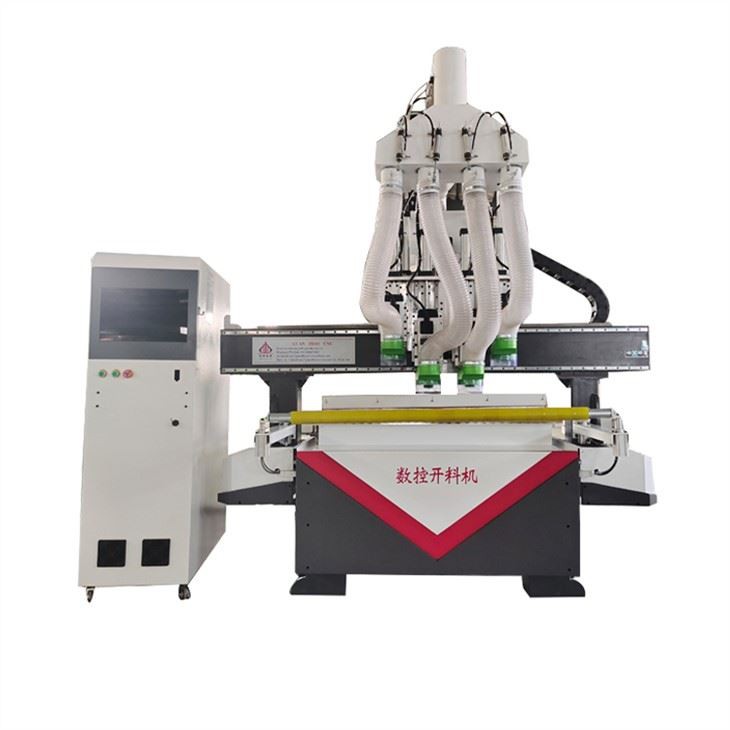

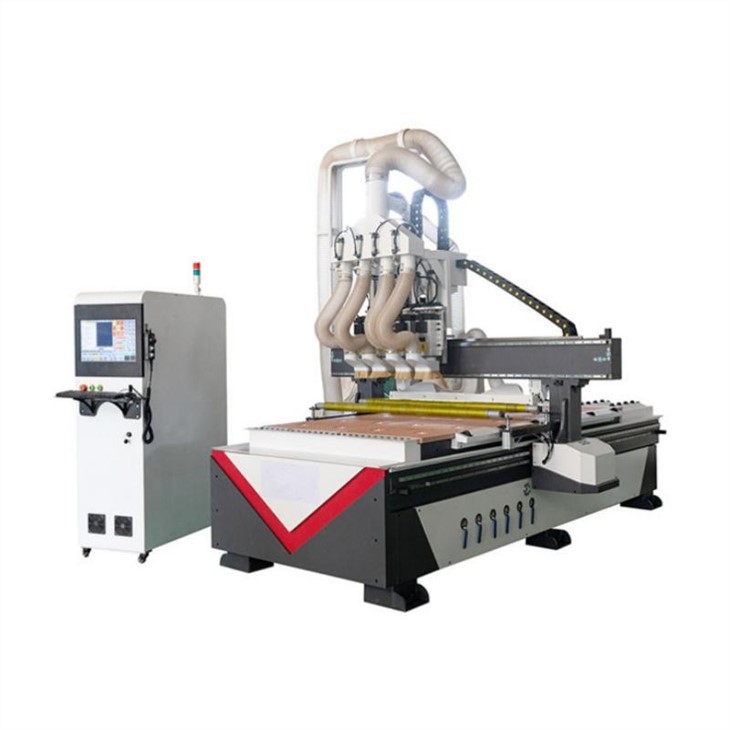

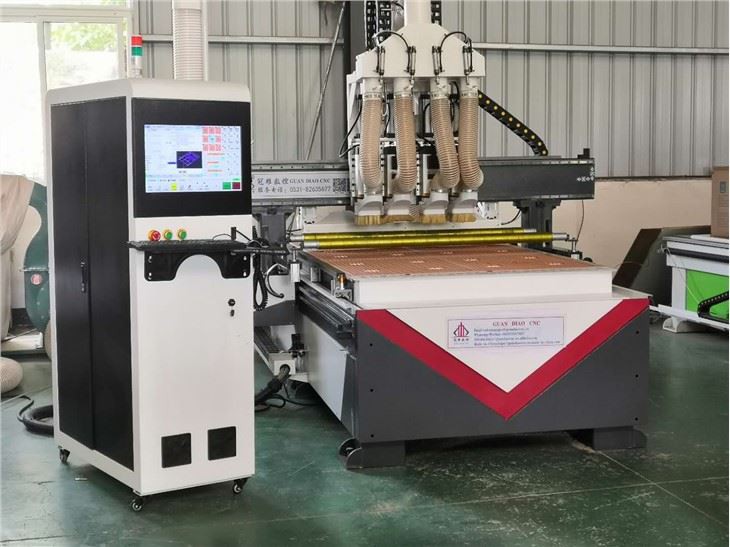

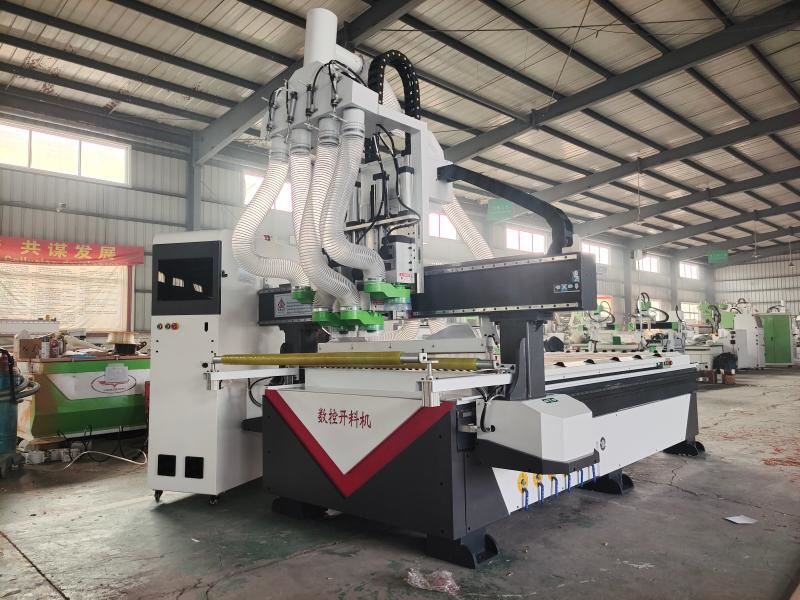

Multiple Function CNC Router Machine for Wood Furniture 4 Spindles Woodworking
Model | GD1325/1530/2030 |
Working area | 1300*2500*200mm |
Travelling speed | 80m/min |
Working speed | 20m/min |
Spindle speed | 24000r/min |
Control system | DSP /Nc studio/mach 3 etc |
Driving system | Stepper motor and drivers |
Working voltage | AC380V/3PH/50HZ (optional: 220V) |
spindle | Double 3.0kw water or air cooling spindle |
Working table | Vacuum and T-slot table |
X/Y-axs transmission | Taiwan rack transmission |
Z axis transmission | Taiwan TBI ball screw transmission |
Command language | G Code |
Software | Ucancam / TYPE3 |

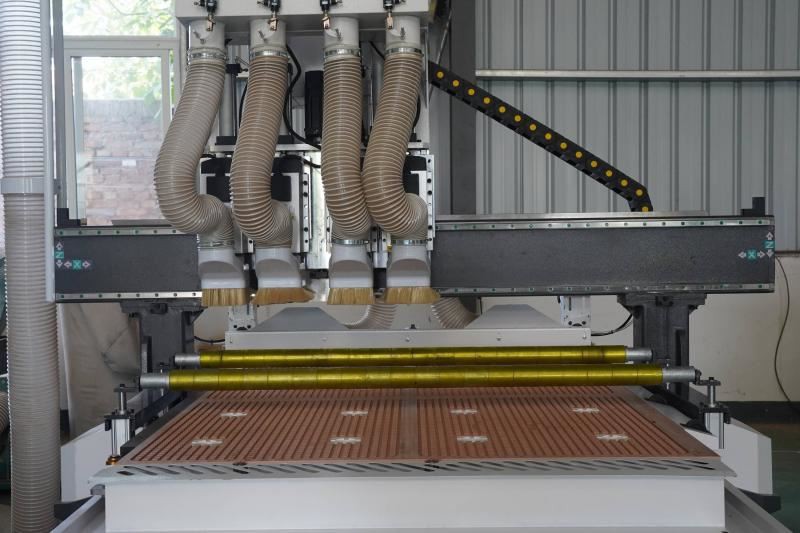

Usage: Equipped with automatic order splitting and typesetting software, which can process orders from different customers at the same time, so as to save materials and directly produce finished products at the fastest speed. Workers only need to put the plate on the automatic feeding table, and the machine will automatically take the material, position it, automatically open the material, automatically slot, and automatically punch the vertical hole. After the processing is completed, the automatic unloading device pushes the plates onto the conveyor belt and vacuums them at the same time. At this time, only one person needs to pick them up at the unloading place.
⇨⇨⇨Heavy strong steel structure,auto loading table with pneumatic cylinder position define,stable performance ,fast loading .

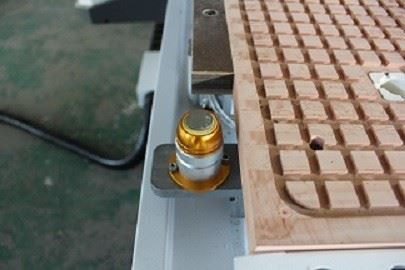

⇨⇨⇨Vacuum table with Dust collecting device ,fast to fix to the table and keep workshop clean .
⇨⇨⇨24000 RPM Air cooling spindles automatic switch between different cutters ,long working life and free maintenance .
⇨⇨⇨Taiwan Hiwin Square orbits and ball screw ,Helical rack and pinions for high accurate motion control and power transmission.

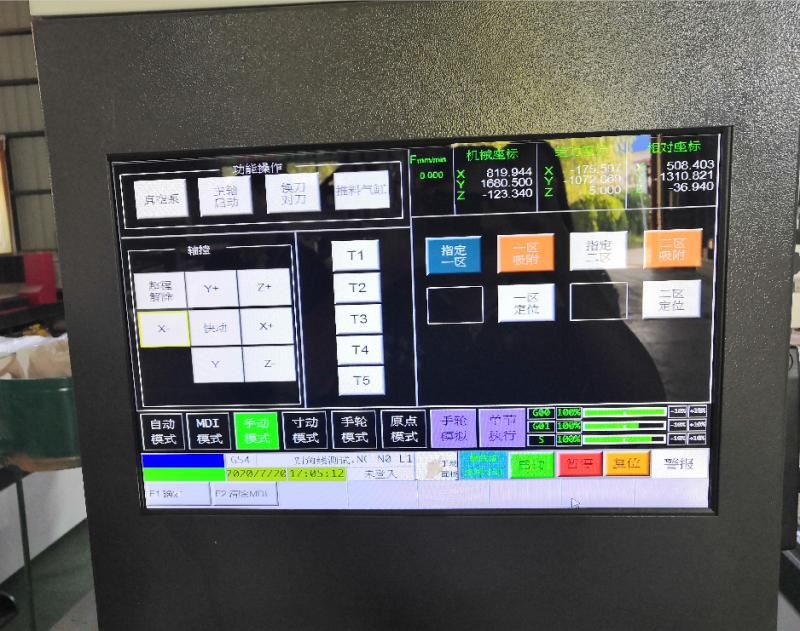

⇨⇨⇨DSP control helping aid ,helps the operator control machine engraving and cutting more safe

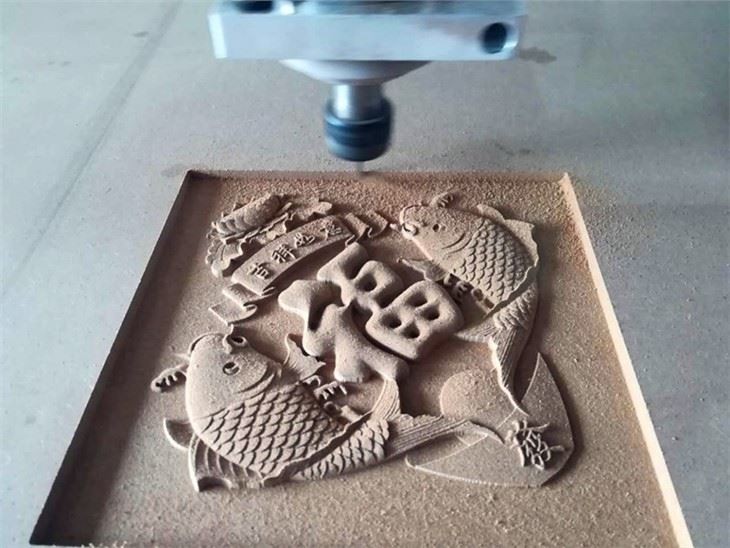

4 Spindles ATC CNC Router Machine is widely used for the industry such as Panel Furniture ,cabinet door ,kitchen cabinet door,wood panel carving ,Circuit board carving ,Non metal material hollow out ,musical instrument carving etc on the material such as MDF ,chipboard ,PVC ,acrylic ,solid wood etc these non-metal material .
1. Outside package: Standard marine export plywood case.
2. inner package: Stretchy film and plastic film for humidity.
3. We can package according to your requests.
Delivery Detail: Shipped in 7-15 working days after payment.
