1. The whole machine is made of thick wall steel pipe, after eliminating stress processing, no-deformation for a long time.

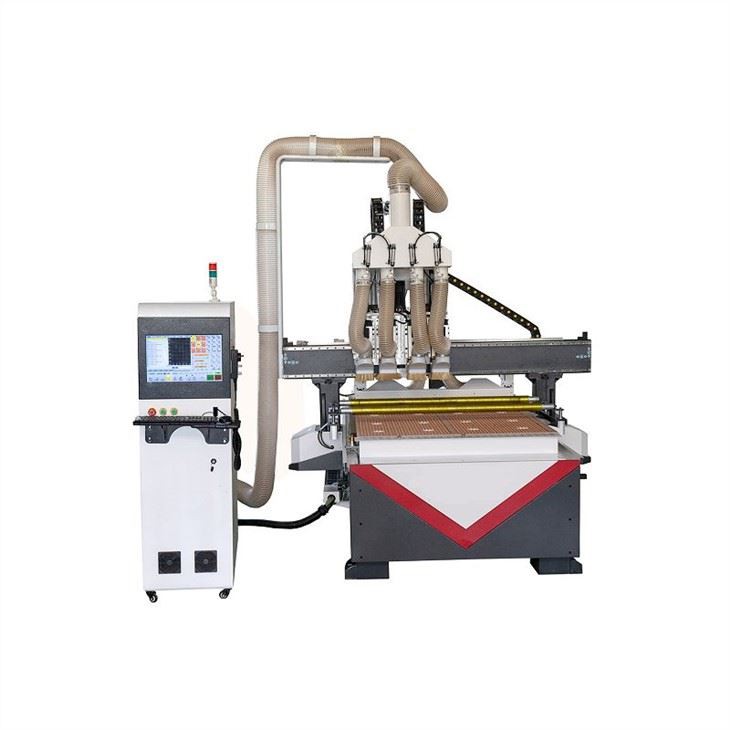

2. Three air cooling spindle motor, you can install three different tools, to process complex craftwork, reduce processing difficulty, improve processing efficiency.
3. This machine adopts leadshine 758 mixed power servo drive in motor, high precision linear guide to Taiwan Chang silver rack, Y axis adopts greatly improves the strength and overall operation of precision cutting, double drive gear rack.
4. Spindle motor adopts high-power air-filled motor, high precision, low noise, high speed, long service life, stable operation give full play to the machine superior performance.
Parameters
1 | XYZ working area | 1300*2500*250mm |
2 | Accuracy | ±0.05mm |
3 | Re-position accuracy | ±0.05mm |
4 | Machine table | PVC table combined aluminum T-slot extrusion |
5 | X Y Z structure | X Y axis Helical rack and pinion drive, Taiwan Hiwin square rail linear bearing 25mm Z axis Ballscrew from german and taiwan Hiwin square linear rail 25mm |
6 | Idling speed | 18000mm/min |
7 | Run speed reference (according to material) | 15000mm/min |
8 | Spindle power | 6kw air cooling with*2/3/4 spindle motor |
9 | Spindle speed | 0-18000rpm/min |
10 | Drivers & motors | China Leadshine 758 servo motors & drivers |
11 | Working voltage | AC380V/50Hz-60Hz |
12 | Work instruction | G code |
13 | Control system | Shanlong Control system |
14 | Net weight | 1500KG |
15 | Packing | Wooden package |
16 | Gross weight | 1600KG (14 CBM) |
Application
Wood working:
Solid wave board process, door of cabinet, wooden door, artistic wooden door, no-paint door, avoid wind, process of the artistic window, shoes cleaning machine, the cabinet of the playing machine and the board, mahjong table, computer table and the assistant process of the household effect.
Advertising:
Advertising board, Label design, Acrylic cutting, model, of the multi material decoration products.
Model industry:
It can engrave on the steal materials such as copper, aluminum, iron etc and non-mental materials such as manmade marble, sand, plastic board PVC materials, wood board
Other Field:
It can engrave many image, engrossment, It is widely used in artistic industry.
Details and Image
|
|

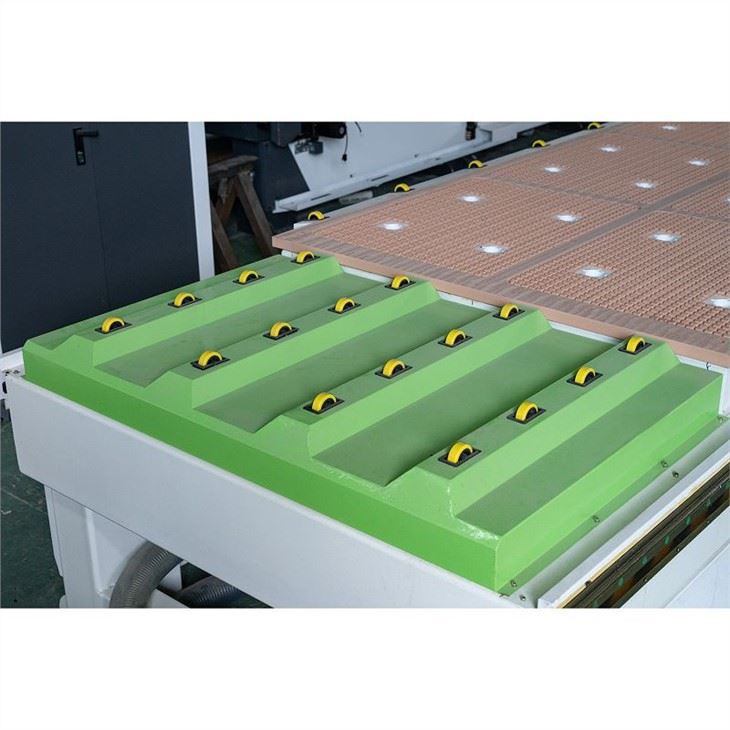

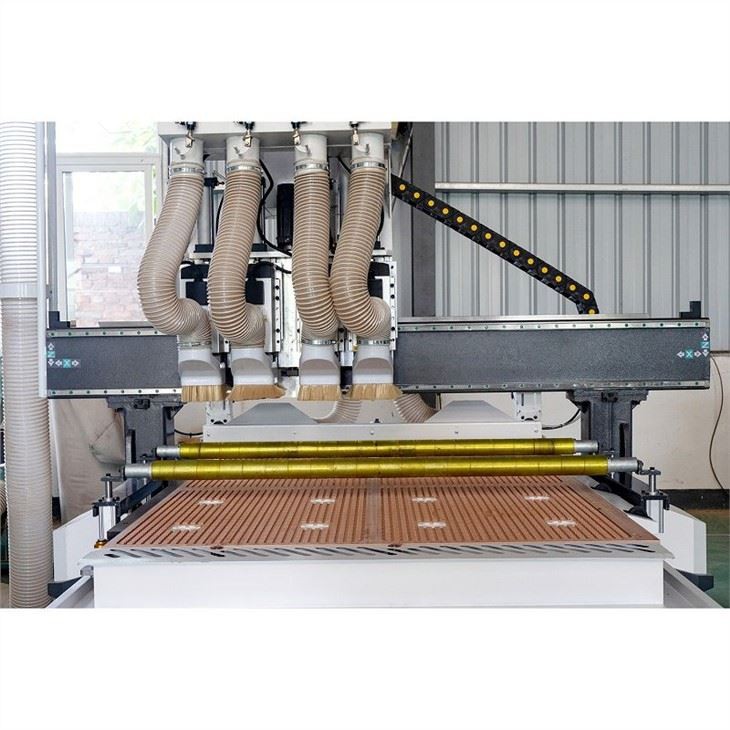

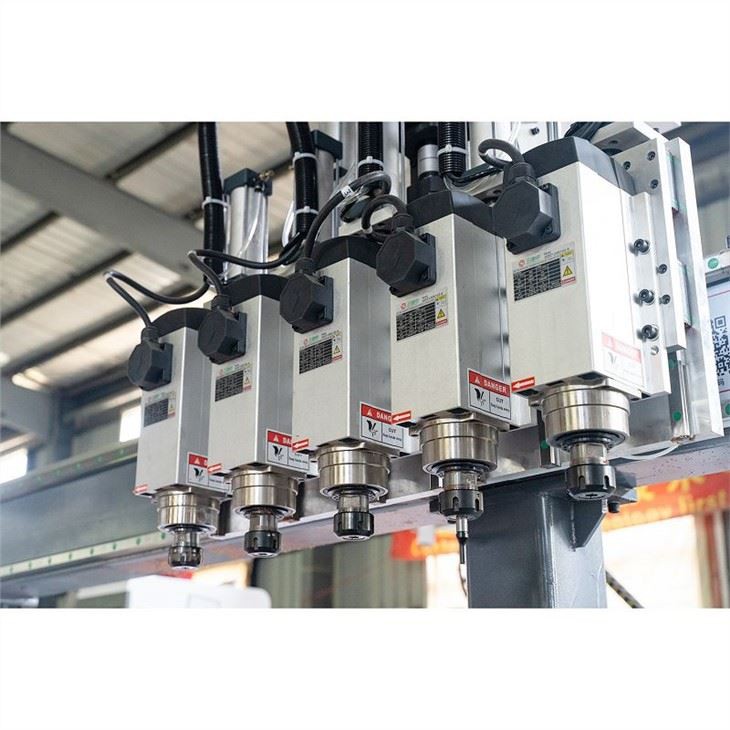

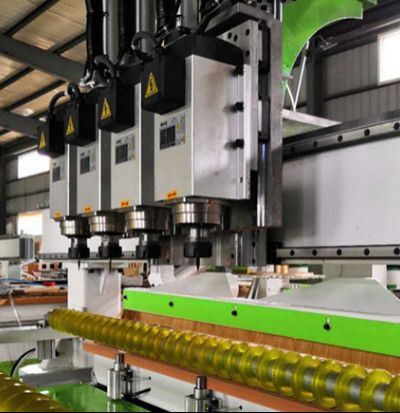

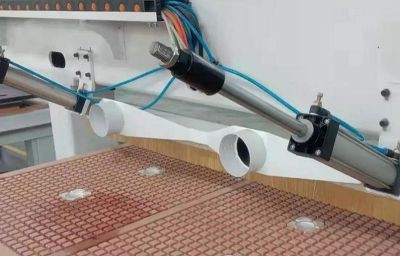

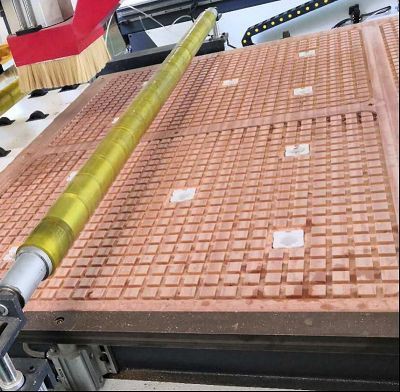

Spindle High power and brand spindle Speed: 18000rpm Also you can choose water cooling spindle | Press bar and vacuum working table, to ensure the performance of fix the plate board |
|
|

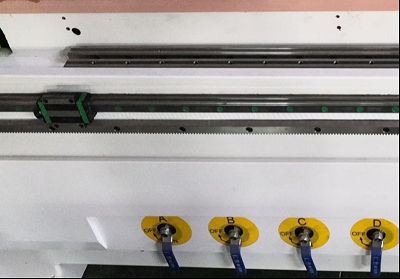

Taiwan imported guide rail and rack, transmission precision | TBL ball screw, z axis transmission mode |
|
|

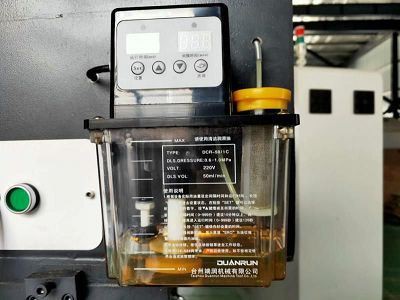

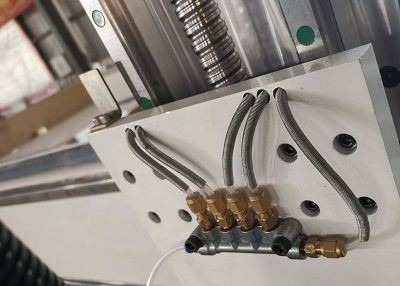

Brand air cylinder Pneumatic tool change | Automatic oiling system |
|
|

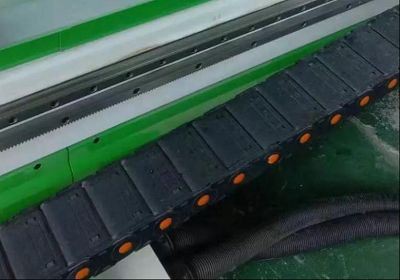

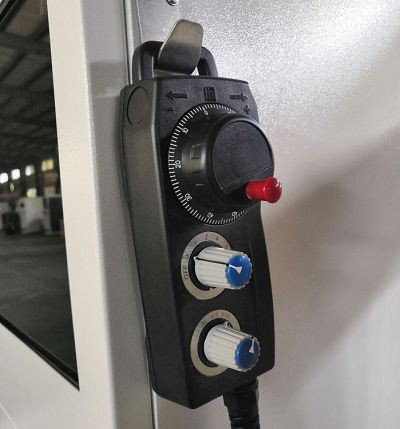

Handwheel auxiliary control | High quality chain |

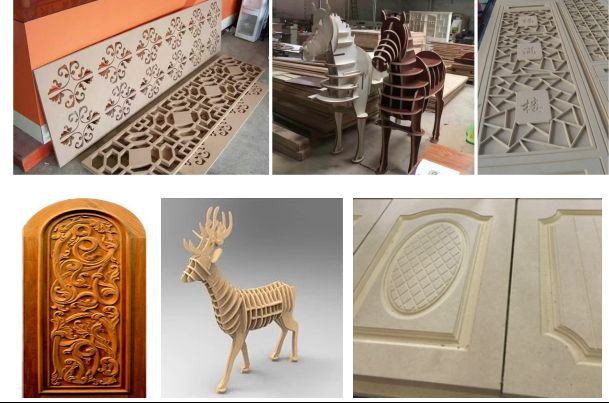

Samples
Our Services
* Of the training
We offer free training in our factory, welcome foreign friends come here to study the machine.
Engineer oversea service is available if you like, and Engineers will be trained user programming, operation, processing, and routine maintenance.
We will offer Multi-language software and operation CD, Detailed User Manual together with the machine for your reference.
* Of online service
24 hours (all days) technical support by call, e-mail, skype, or computer remote control service by an engineer.
