Features
1. Using high-precision linear guide rail, X Y adopts high-precision helical gear transmission, which has large bearing capacity, stable operation, high precision, long service life and accurate lower cutter.
2. The whole machine adopts steel structure for seamless welding, good rigidity, strong strength and rigidity, and the machine bearing capacity can reach more than one ton.
3. High-power spindle motor with high cutting force and high efficiency.
4. Software compatibility, compatible with a variety of CAD / CAM esign software such as Typ3 / Artcam / Castmate / Wentai.
5. It has the functions of power failure recovery, breakpoint continuous carving and so on.
6. Thickened square tube welding, fine grinding by milling machine to ensure installation accuracy
Application
1) Woodworking industry: wood crafts, picture frames cutting, handicraft carving wave plates, wooden door production and processing.
2) Advertising industry: advertising materials such as PVC, acrylic, double color plate
3) Stone working industry: such as natural marble, granite, artificial stone, tombstones, milepost, ceramic tile, glass and other materials
4) Metal industry: carving aluminum, copper, stainless steel and so on.
5) Mold industry: casting, cars, ships, yachts, aerospace industry, wind power generation, rail transport, large arts and crafts.

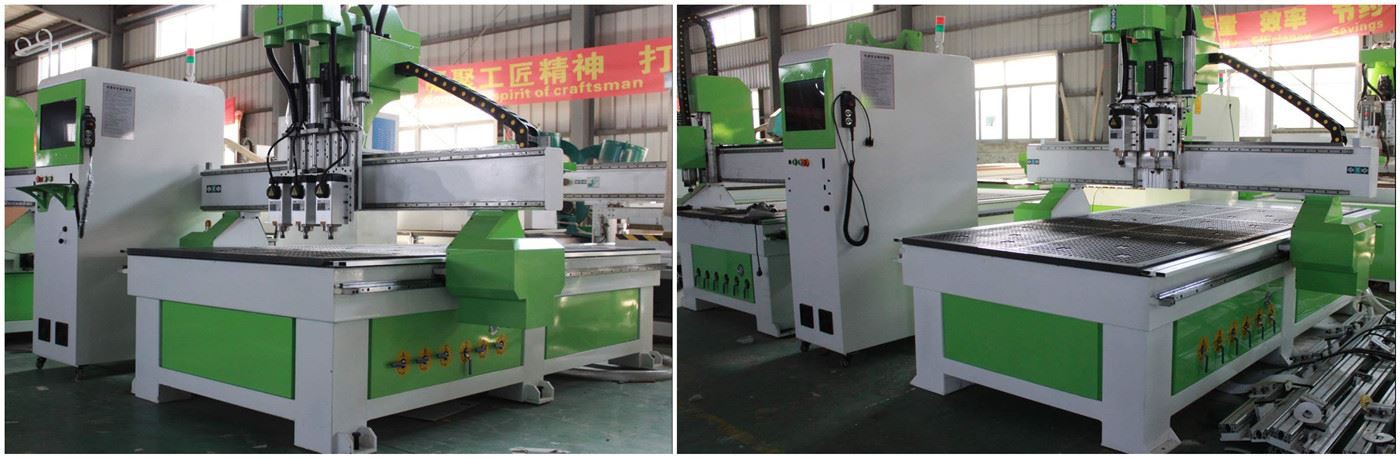

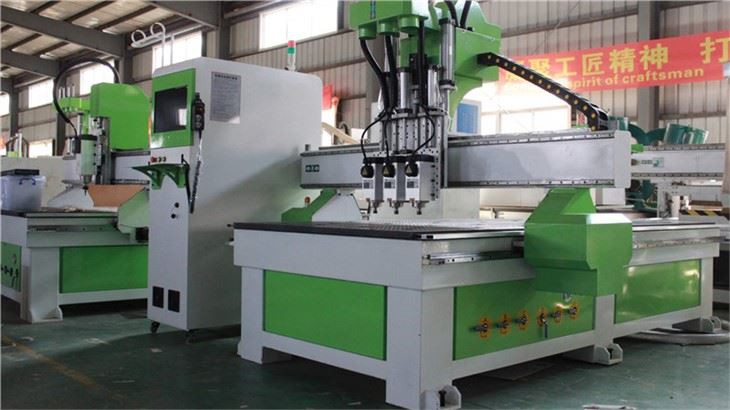

Dual and three head wood cnc router, there have different spindle amount with 4 head cnc, usually used for kitchen, bathroom cabinet, door, sliding door, wooden furniture making.

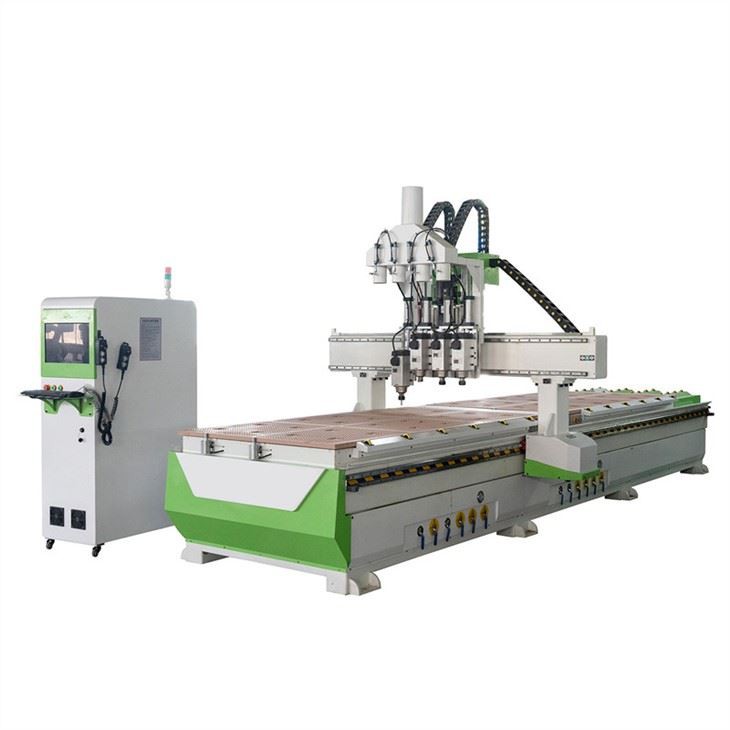

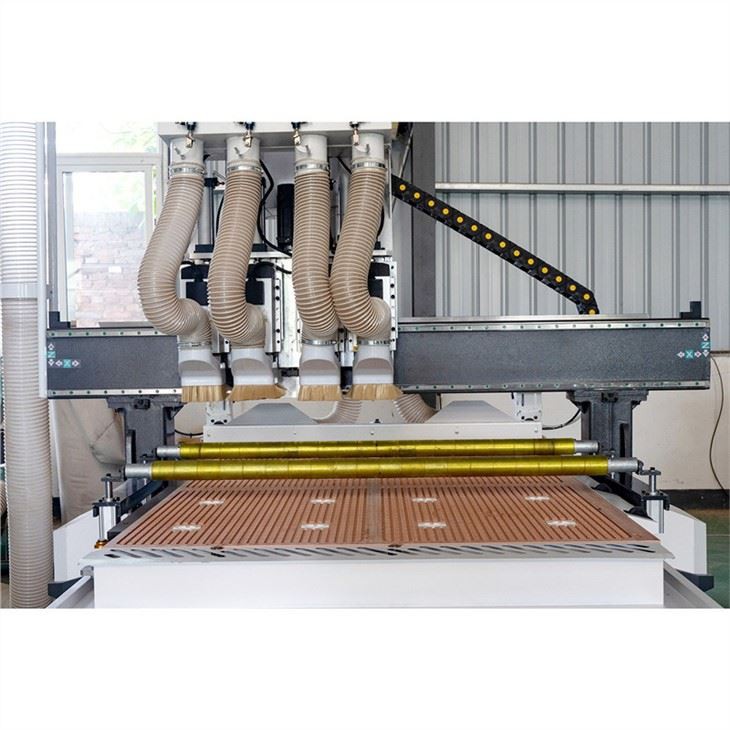

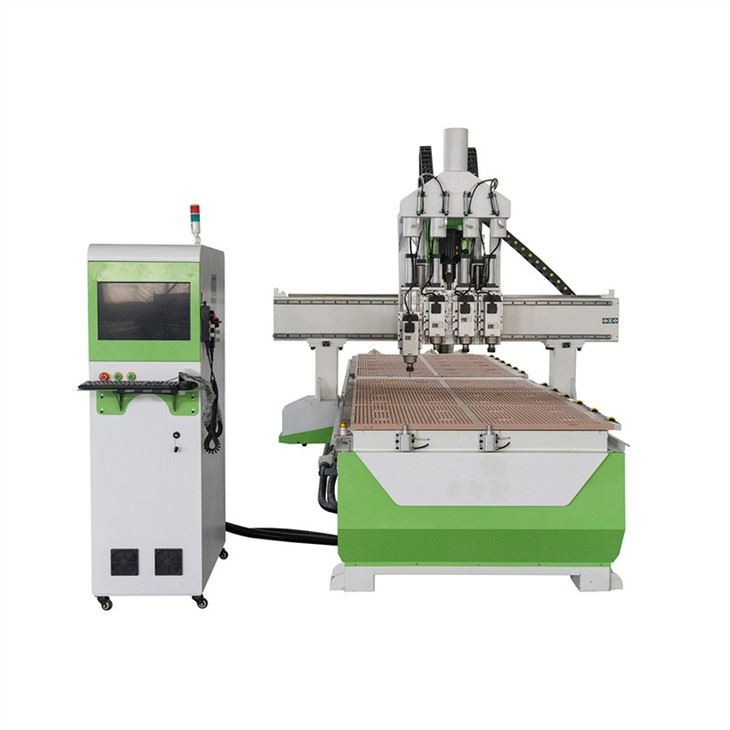

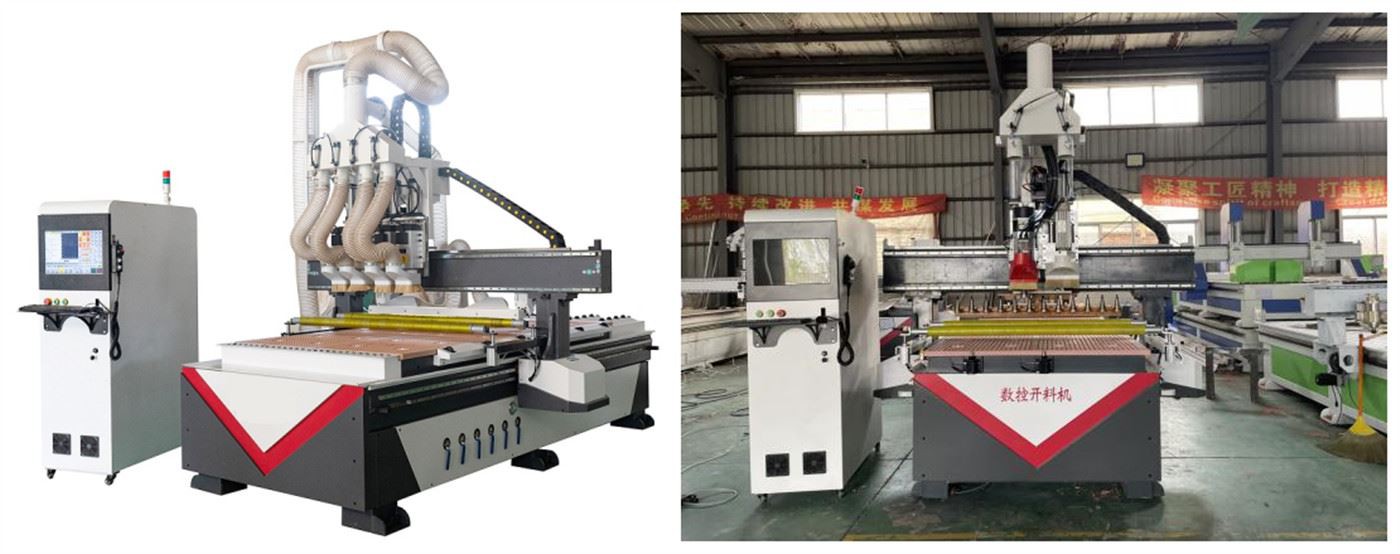

4 head multi head 4 axis cnc router, equipped with servo motor, Shanlong control, vacuum working table, and have third dust collecting device.
Parameters
Mode | 1325 cnc router machine | 1530 wood cnc router |
Working table | Vacuum working table | |
Working size | 1300*2500*200mm | 1500*3000*200mm |
Guide rail | Taiwan 25mm guide rail | |
Rack | Grinding Helical rack, z axis TBL ball screw | |
Transmission | X y aixs rack Z axis ball screw | |
Spindle | 3kw/4.5kw/5.5kw/6kw air or water cooling | |
Driving | Servo motor | |
Inverter | Best/hpmont/Delta | |
Limit | Omron | |
Feeding roller | Support | |
Dust collector | 3kw | |
Voltage | 380/220v | |
Control system | Nc studio/mach 3/DSP optional | |
Software | For free | |
Engraving command | G code*.ENG/ u00*.mmg*.plt | |
Total power | Almost 10kw | |
Warranty | 1 year | |
Notice | Machine configuration and size can be customized | |
Details and Image

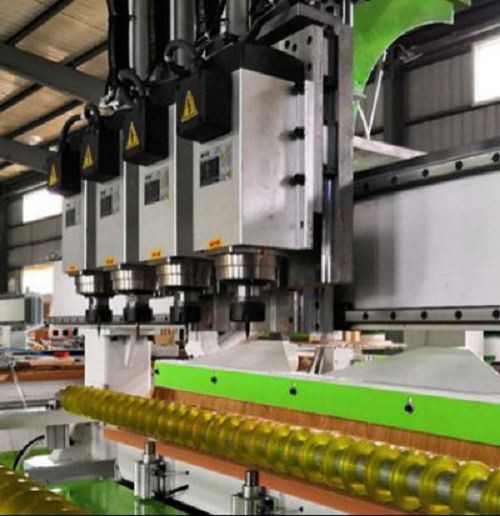

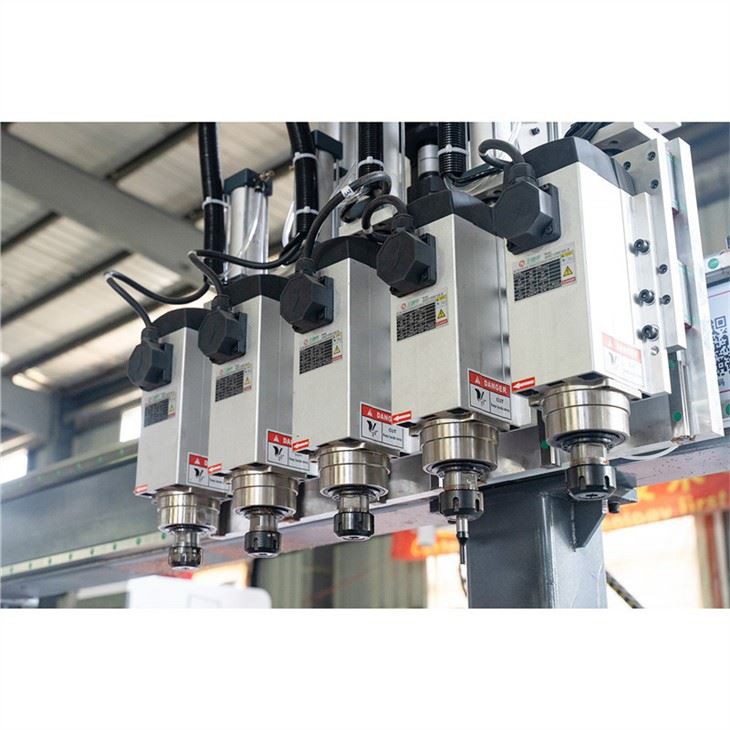

Spindle: for 4 head wood cnc router, the spindle configuration is 6kw*2, and 4.5kw*2 For dual head cnc, 6kw*1, 4.5kw*1 For three head wood cnc router, 6kw*1, 4.5kw*2 There can choose multi head wood cnc router, and water or air cooling spindle both can customized |
|

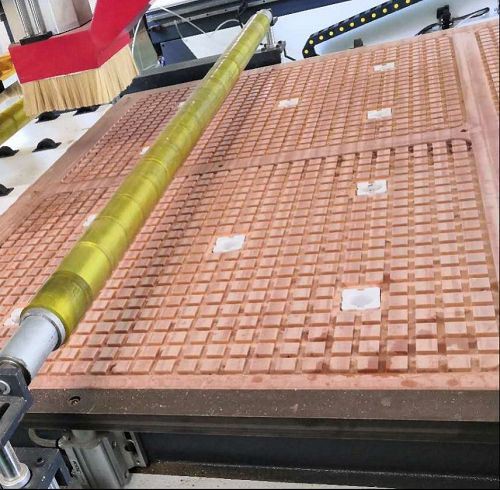

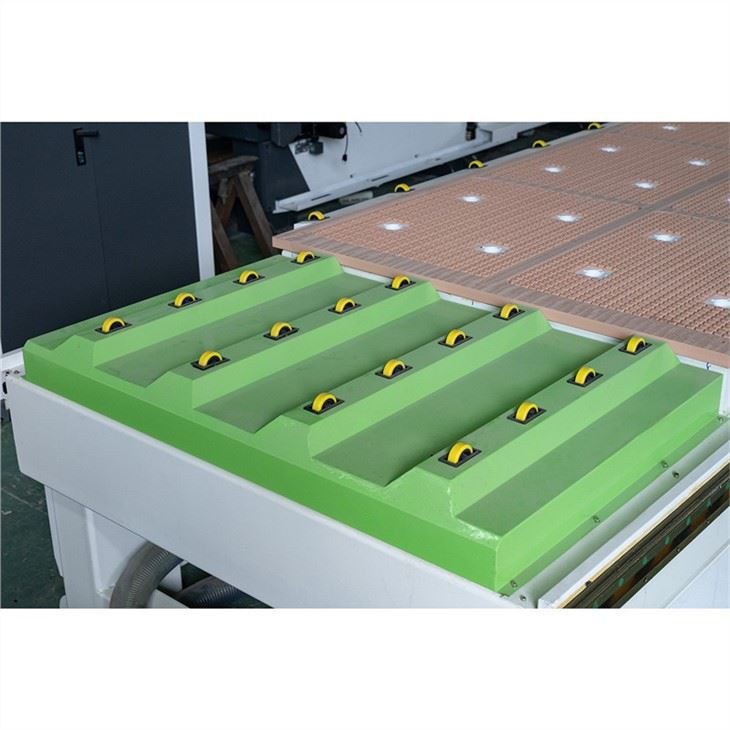

| Vacuum working table, large diameter adsorption vacuum hole. Machine adopted 5.5 kw large power vacuum pump There have 6 zones of 1325 wood cnc router, 8 zones, 9 zones also can be customized. There also have switch to control the vacuum zone separately Also there will be adopt press bar to auxiliary fix the board |

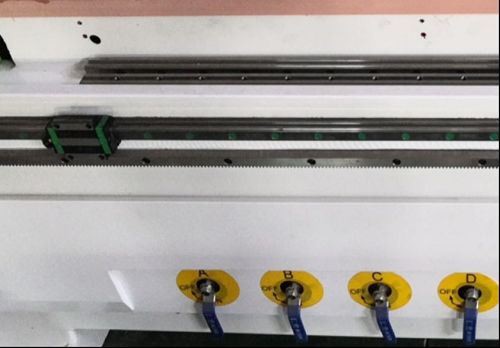

Machine adopts Taiwan Hinwin 25mm guide rail, ensure machine working high precision Ball slider, loading capacity, smooth operated, high precision |
|
| Z axis ball screw transmission X y axis guide rail transmission Move smooth and precision, no noisy |

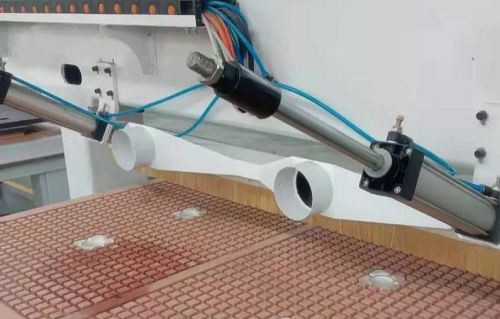

Brand air cylinder Auxiliary change bits and press board |
|

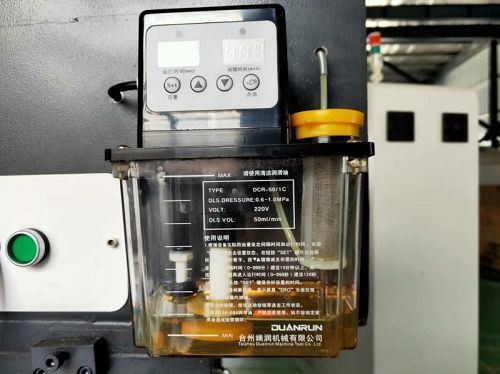

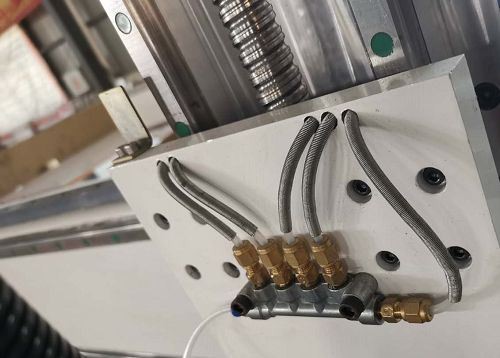

| Automatic oiling system Can setting a time limit to oiling machine guide rail and others, it can oiling machine automatic, easy operated |

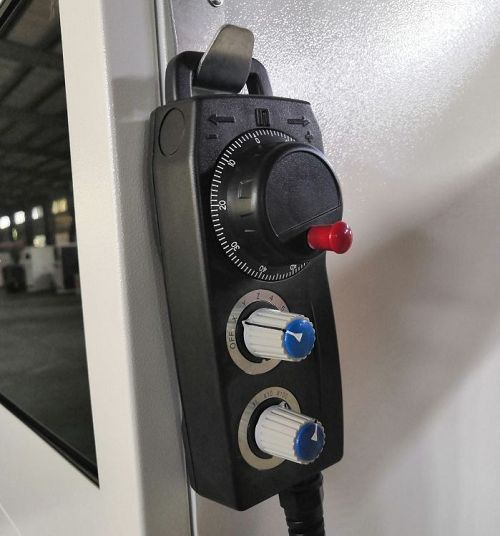

Handwheel auxiliary control Easy to control when machine processing Large screen touch-able display control cabinet |
|

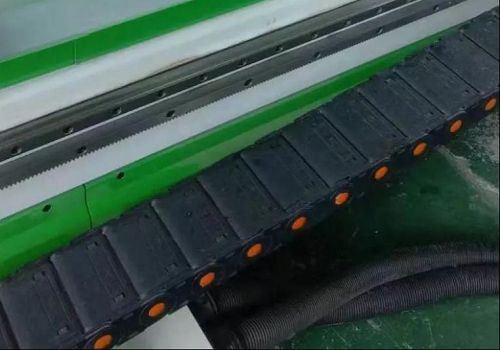

| High quality chain Can achieve thousands of kneebend, no deformation |
Samples
Our Services
1. 1 years quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an cost price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using cnc router, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but i did not know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype.
Q3: If some problems happened to this machine during warranty period, what should I do?
We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just us know, we will give you solutions in 30 minuets.
Q4: What is the MOQ?
MOQ for our products is 1 set machine, we could send it to your country if you tell detail information about your country port.

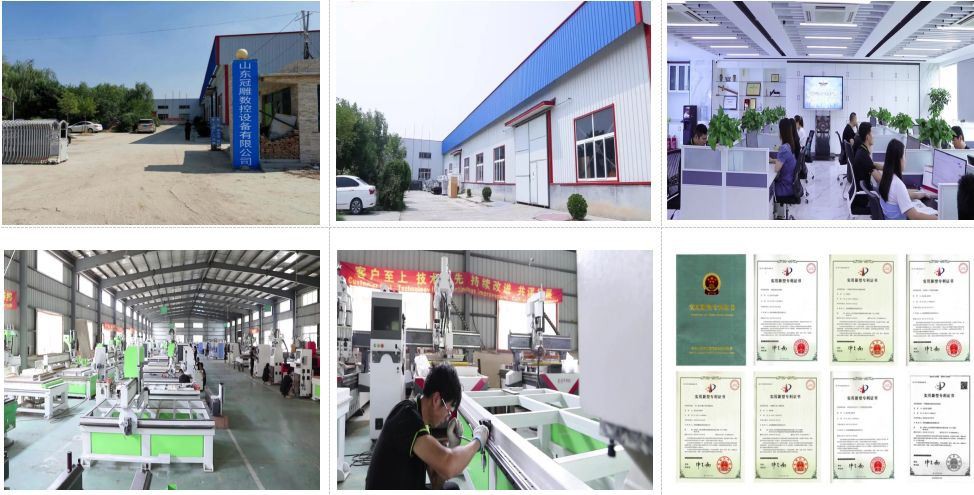

About us
