Features
1. High efficiency: multiple motor work separately, saving tool changing time, can complete large quantity production processing. Advanced automatic tool changer, without manual intervention, the program automatic executes.
2. High engraving speed: adopting high-speed drive stepper (or servo) motor and drive, Y axis using a dual motor drive, high precision rack drive, with the strong cutting of the spindle to make engraving speed faster.
3. Stable operation: adopts imported linear square guide rail, double row and foul ball slide loading capacity, smooth operation, high precision, long service life, imported ball screw and high precision, the knife accurate.
Application
Advertising industries: Logo design, advertising board,D IY, plastic, acrylic cutting...
Decoration industries: wave boards, sign making, decorations...
Arts & Crafts industries: Engrave on artificial woods, bamboos, organic boards, double-color boards and so on for achieving effects of exquisite patterns and characters.
Processing material: engraving, milling and cutting processing for acrylic, PVC, density boards,organic glass, plastics and soft metal sheets such as copper and aluminum.

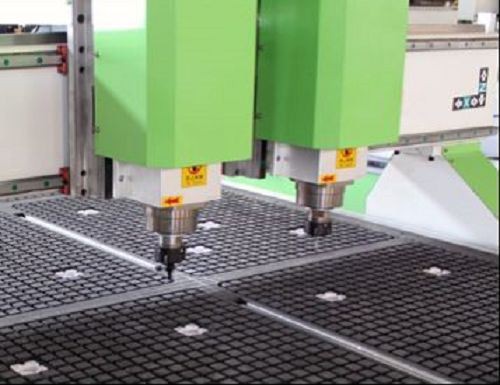

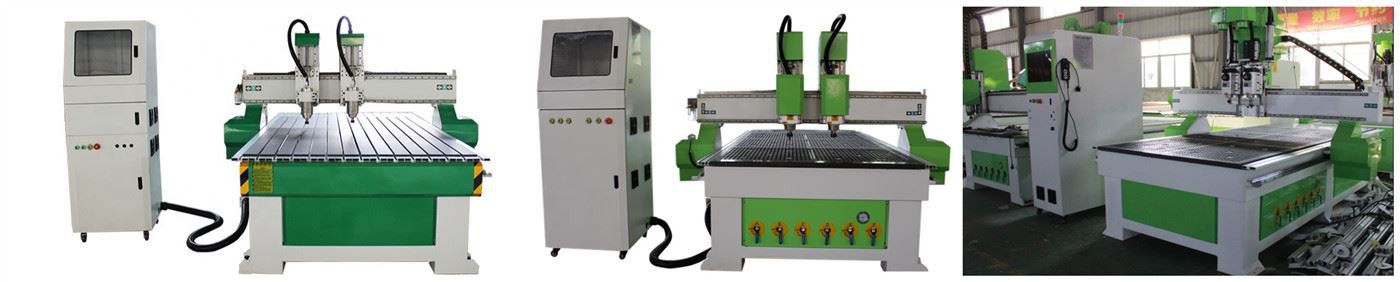

Double heads water cooling spindle: Double heads can work at the same time and improve working efficiency.
Parameters
Model | GD1325/1530/2030 |
Working area | 1300*2500*200mm |
Travelling speed | 80m/min |
Working speed | 20m/min |
Spindle speed | 24000r/min |
Control system | DSP /Nc studio/mach 3 etc |
Driving system | Stepper motor and drivers |
Working voltage | AC380V/3PH/50HZ (optional: 220V) |
spindle | Double 3.0kw water or air cooling spindle |
Working table | Vacuum and T-slot table |
X/Y-axs transmission | Taiwan rack transmission |
Z axis transmission | Taiwan TBI ball screw transmission |
Command language | G Code |
Software | Ucancam / TYPE3 |
Details and Image

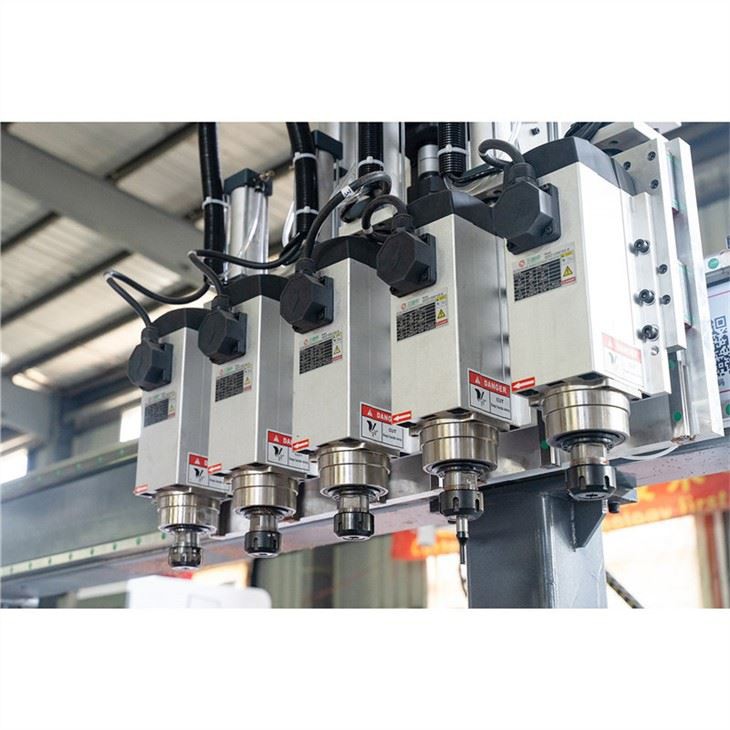

Spindle: For dual head cnc, 4.5kw*2 Others power spindle also can choose, about brand, we use China famous brand WHD/HQD, if you have others needs, also can according your request |
|

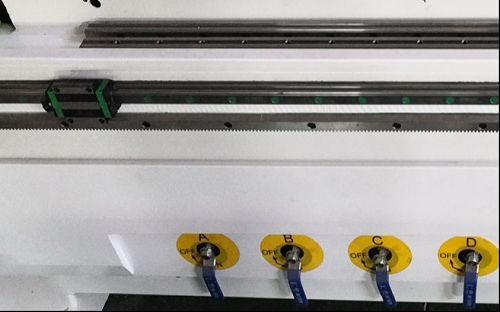

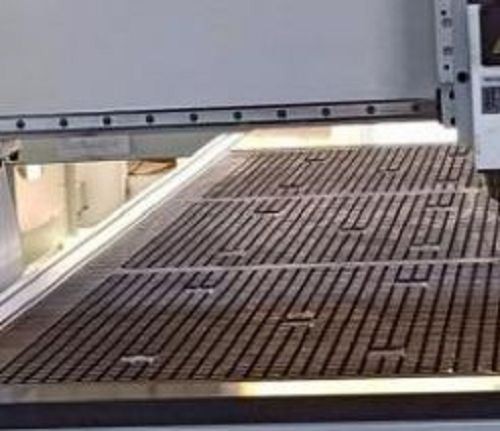

Vacuum working table, 6/8/9 vacuum zones,each zone have its own switch, if you process small board, then no need to open all the vacuum zone, This for electric saving |
|
Hinwin 25 guide rail and rack High quality and precision Ensure machine working more stale and low noisy |
|
Y axis adopts ball screw transmission Taiwan famous brand TBL ball screw |
|

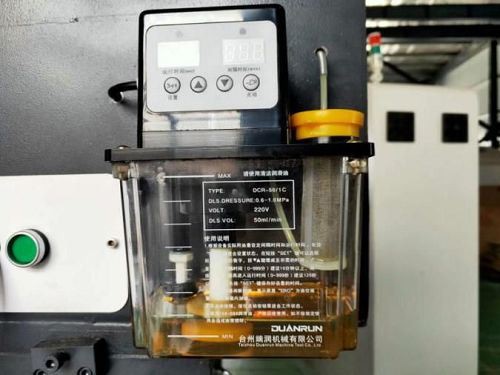

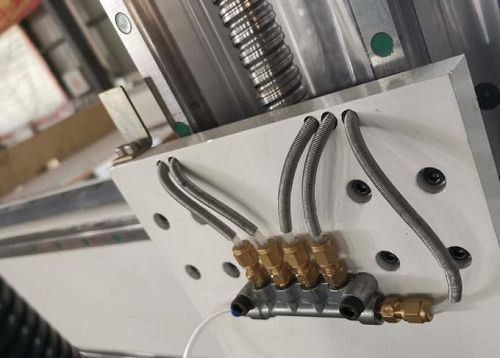

Automatic oiling system |
|

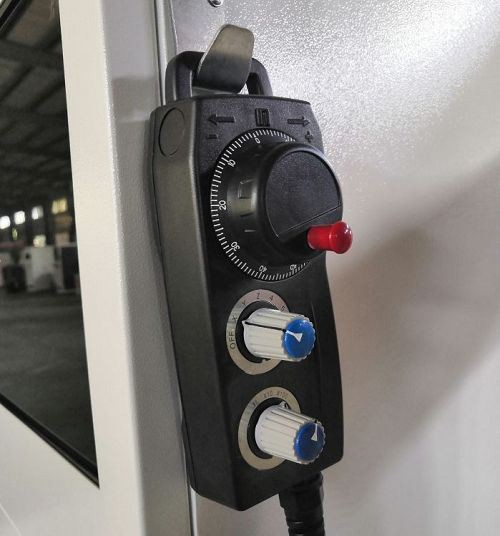

Handwheel auxiliary control Easy to control when machine processing Large screen touch-able display control cabinet |
|

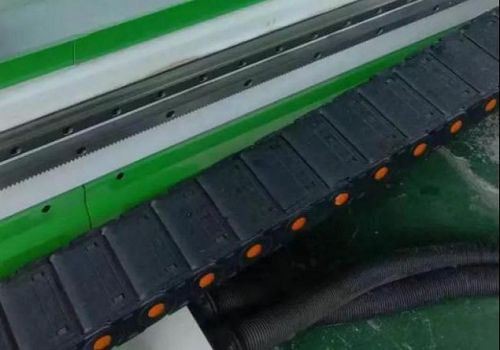

High quality chain Can achieve thousands of kneebend, no deformation |
|

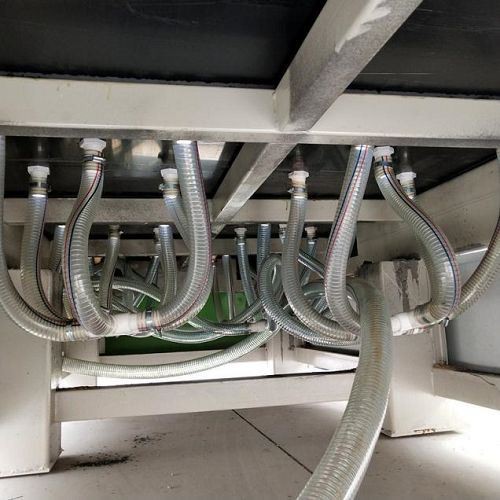

Vacuum tube Quality tube to adsorption the working table, easy to fix the board |
|
Samples
●With Ship-shaped machine body, improving the stability of the machine.
● With leakage structure design, clear the waste material timely, improve the ball screw & linear guide using –life under extremely harsh environment.
● With thick square steel tube structure design, the machine is best choice for high speed & precision cutting, routing, engraving
● Suitable for all kinds of materials processing, like solid wood, MDF, panel wood furniture, door, cabinet door.
FAQ
Payment:
T/T, 30% deposit and the balance 70% should be paid before shipment.
Our main product:
CNC routers, CNC Engravers, laser engravers, plasma cutting machines, and knife cutting machines in China.
Advantage of our company:
1. Experience and professional
2. Talented and passionate work team
3. High tech products
4. Perfect after-sale service
To provide you detailed quotation, we need to confirm the following details:
1. What is raw material
2. The size of material
3. Your other requirement
Detailed information will be sent to you the moment we get your confirmation

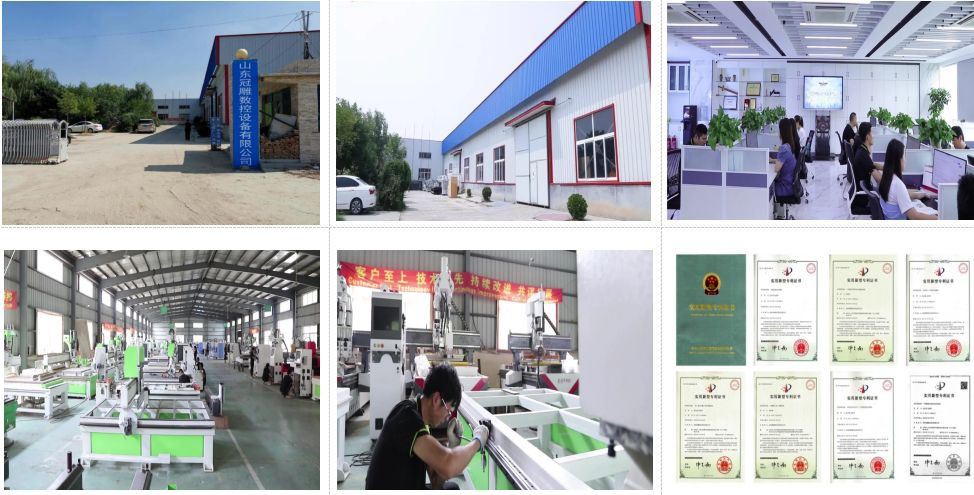

About us
Guandiao cnc, mainly included cnc machine multi head cnc, dual head cnc router, polishing machine, edge banding machine, etc. which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. We have established complete sales system. Our company takes the principle of quality first and customer foremost, and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
