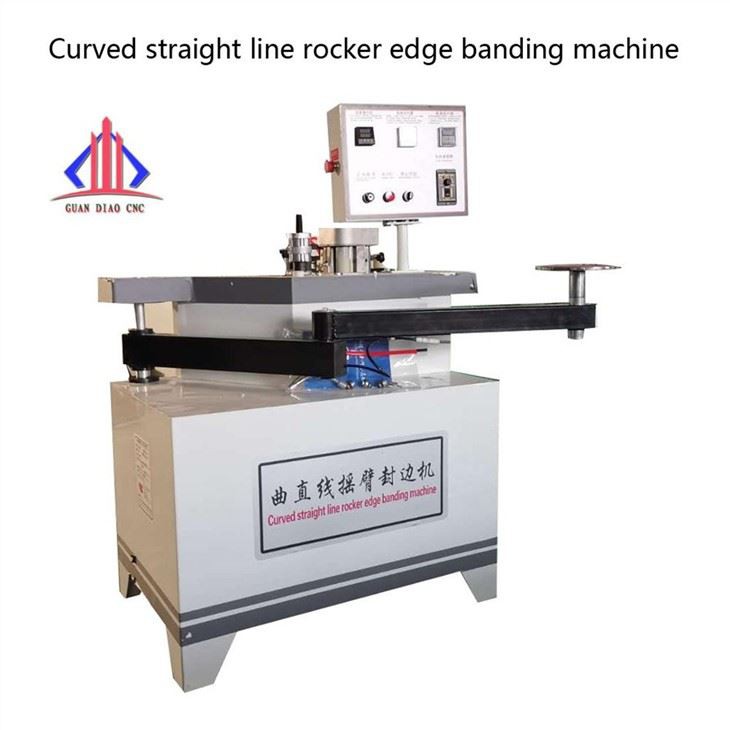

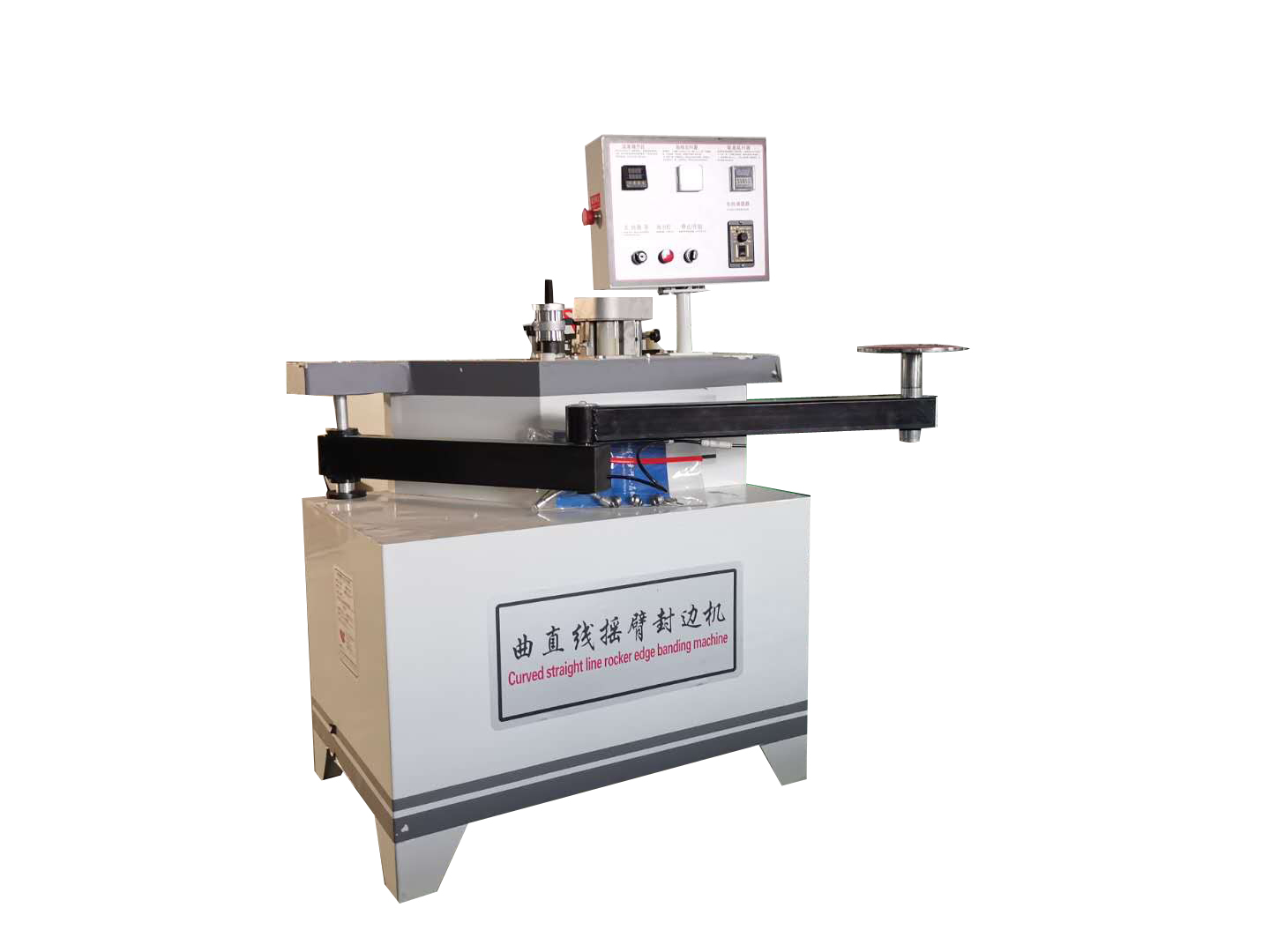

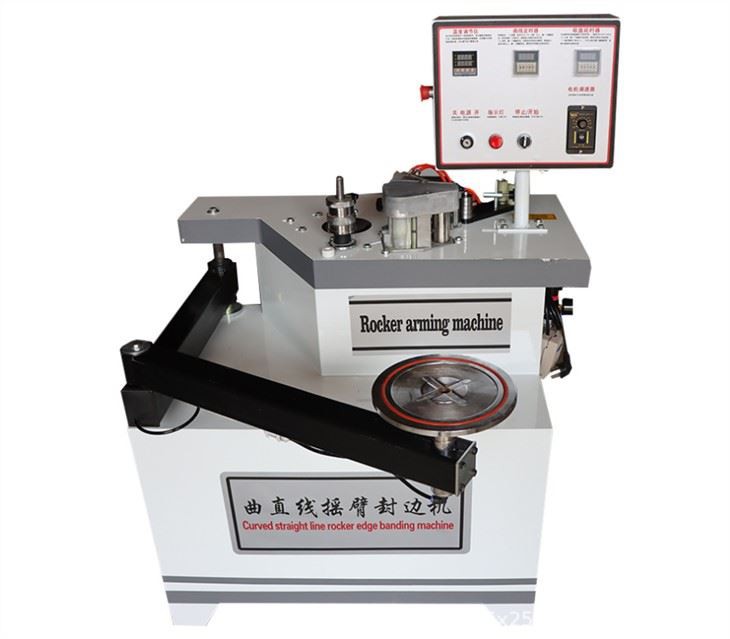

Production Introduction
Name | Automatic polishing, sealing and repairing machine |
|
Power Of Trimming Machine | 800w | |
Power Of polishing Machine | 100w | |
Self-running motor | 60w | |
Feeding motor | 25w | |
Voltage | 220v | |
Left and right width strip size | 50cm | |
sealing side height | 10-60mm | |
sealing side thickness | 0.3-3mm | |
Feeding speed | 0-6m/min | |
Transport speed | 0-15m/min | |
sealing side shape | line/Curve | |
GW | 80kg | |
Machine size | 120*54*72cm |
 | The operation process of the edge banding machine: 1. When using, first open the lid of the glue pot and add an appropriate amount of hot melt glue to the glue pot to confirm the type of hot melt glue. 2. After confirming that the motor switch is in the off position, connect the power supply, press the power switch, adjust the temperature of the temperature controller sol, and preheat the edge banding machine for use. 3. Preheat for 5-10 minutes. After confirming that the hot melt adhesive is completely melted, turn on the motor switch, adjust the knob, and adjust to high speed for gluing. At this time, tighten the glue measuring sheet to make the glue amount small. 4. After the double glue rollers are all glued and the glue amount is uniform, adjust the glue amount sheet to the appropriate glue amount, adjust the speed control knob, and slow down the motor speed to reach the edge sealing speed. 5. Before edge sealing, adjust the front, middle and rear three belt pressing devices to the appropriate position according to the width and thickness of the edge sealing tape |

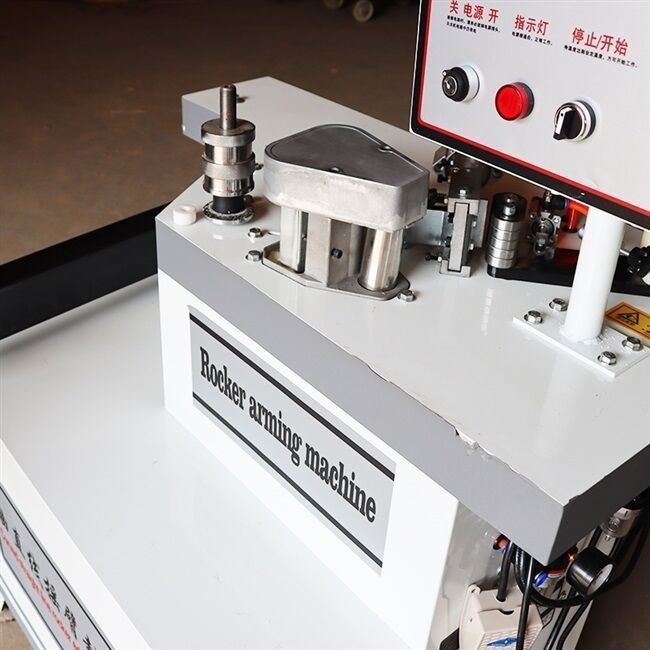

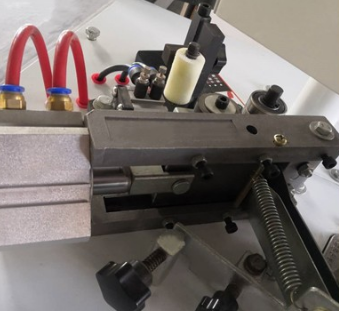

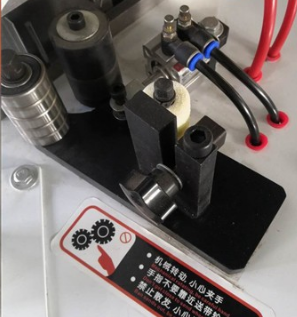

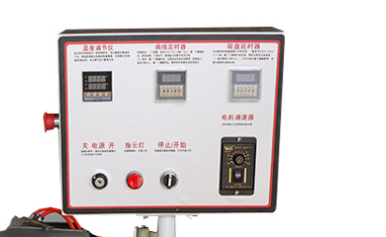

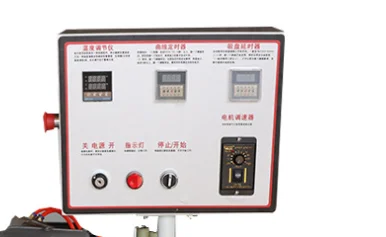

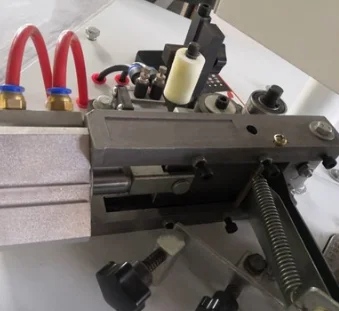

 control panel Temperature controlled edge sealing |  tape feeder Automatic conveying edge banding |
 Double-sided glue Conducive to the control of the amount of glue |  Swing arm chuck Easy to rotate |

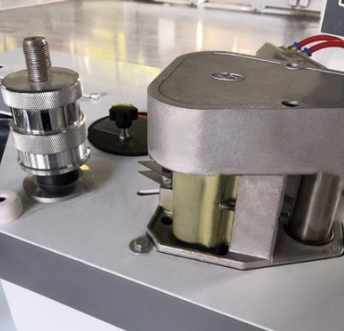

 Strip break cylinder Good for adjusting control time |  Glue pot Heat evenly and warm quickly |

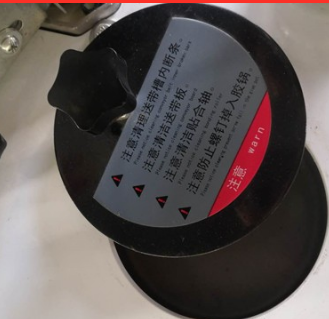

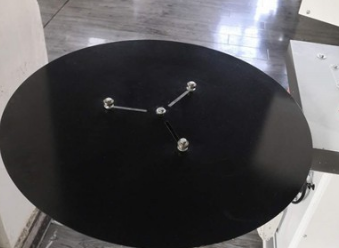

 Edge banding tray The edge strip tray adopts hot and cold steel plate, which is not easy to be deformed | Features: The decorative woodworking I-type edge banding machine adopts automatic control, and the edge banding operation range is large, which can ensure that the hot melt adhesive does not paste or leak. It is suitable for straight and curved edge sealing of various sheets, with small size and light weight. Suitable for all kinds of furniture, cabinets, teaching aids factories, etc. |
Application
 | Precautions for the operation of edge banding machine 1. Plug in the power supply. 220v household voltage is sufficient. 2. Pour in the medium temperature glue, the granular medium temperature glue with the melting point of 150-170. Do not use high temperature glue! This portable edge banding machine is double-sided, so the use of medium temperature glue can achieve very good results. The factory temperature has been set! Note: The medium temperature glue can not be poured too full, and three-fifths or two-thirds can be injected at one time. to avoid overflow. 3. Turn on the power, the big red button in the portable edge banding machine. The glue pot starts to heat up. When the temperature rises to 160 degrees, which is the factory set temperature. 4. Turn on the motor switch, the small red button on the portable edge banding machine. 5. Adjust the speed. Novice operation can choose 10-20. 6. Adjust the edge band pressure plate so that the edge band just passes through. 7. Adjust the amount of glue applied. Rotate the top to adjust the glue amount of the edge band, and adjust the glue amount of the plate below. 8. Adjust the pressure plate, not too tight, it is easy to squeeze the edge band and cause twisting. Do not be too loose, the edge band cannot be coated with glue. 9. Adjust the height of the outlet edge band so that the edge band can enter and exit freely. If it is too low, it will not pass, and if it is too high, the edge will be uneven. |
