Product Information

Production Introduction

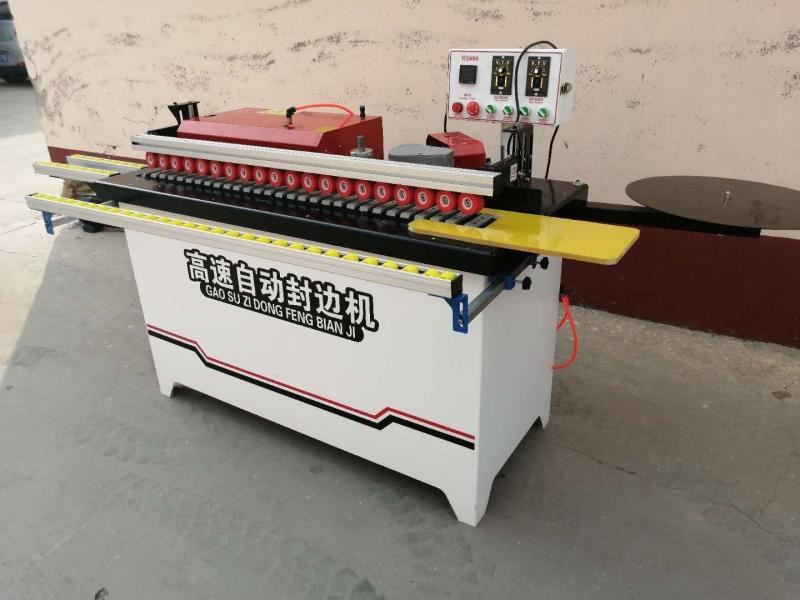

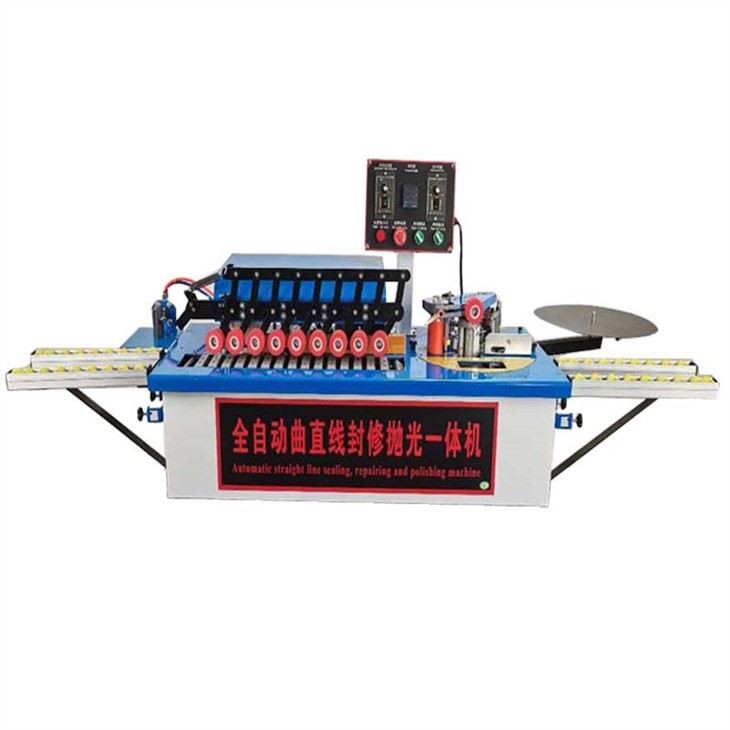

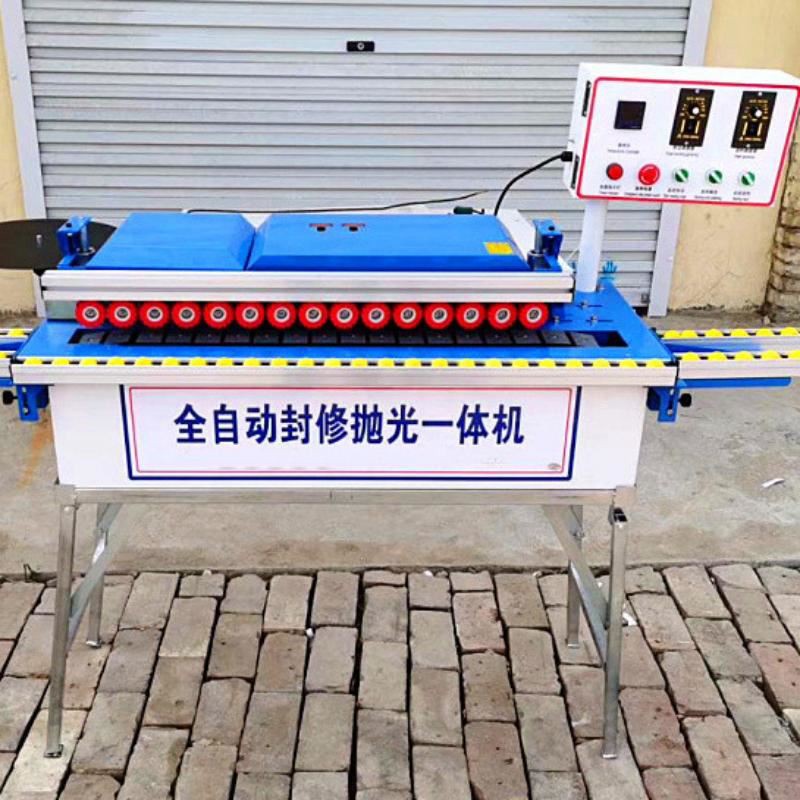

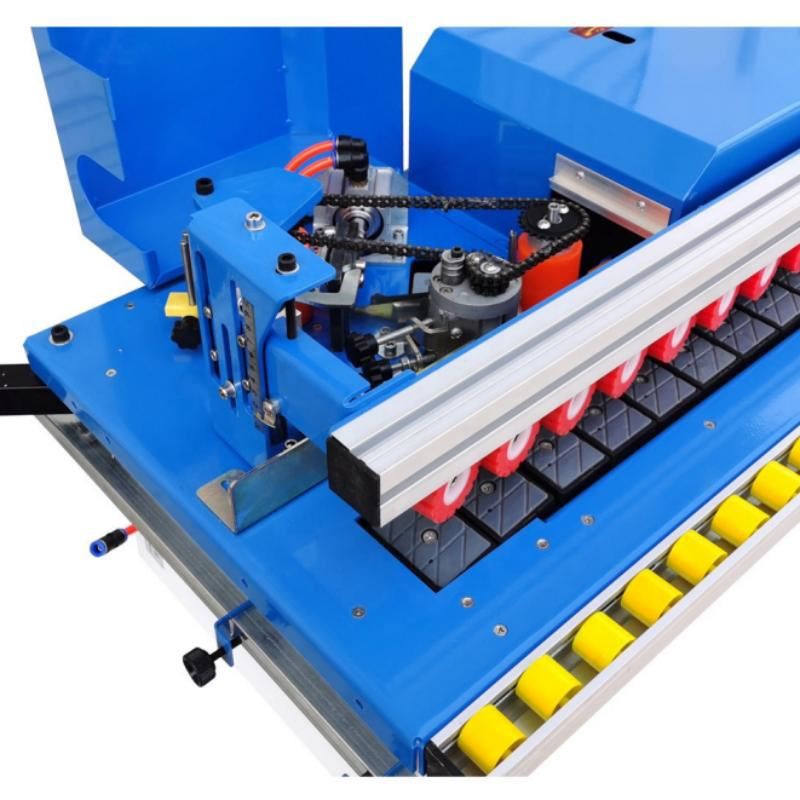

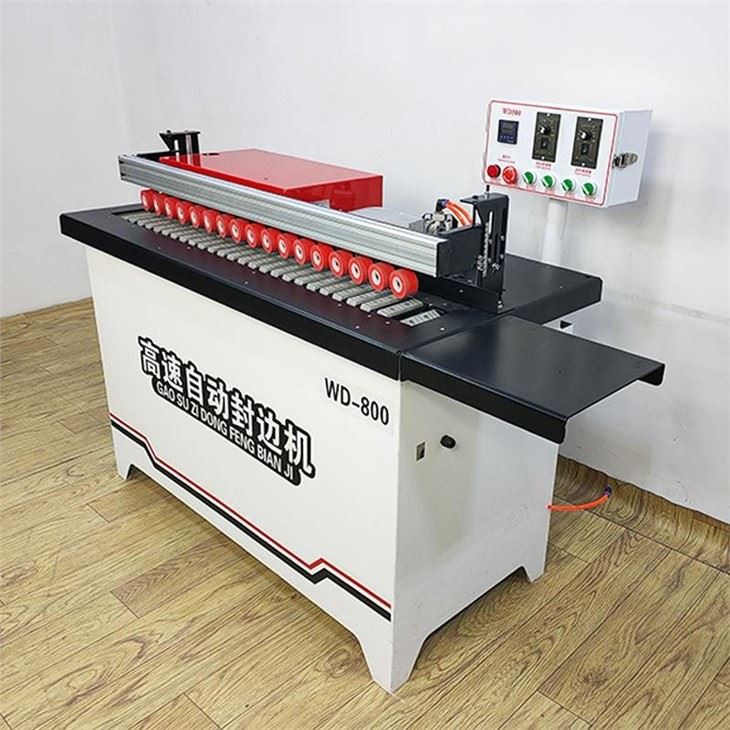

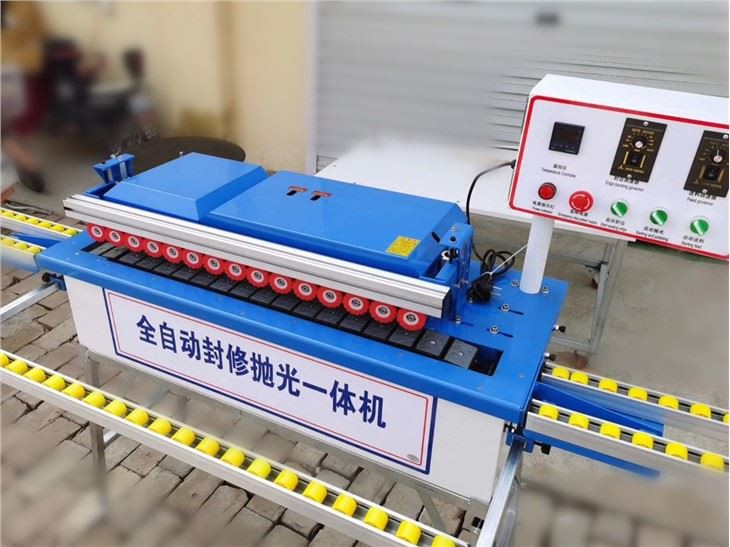

woodworking machinery MY06D automatic mini MDF double pvc edge trimmer manual edge banding machine wood edge bander

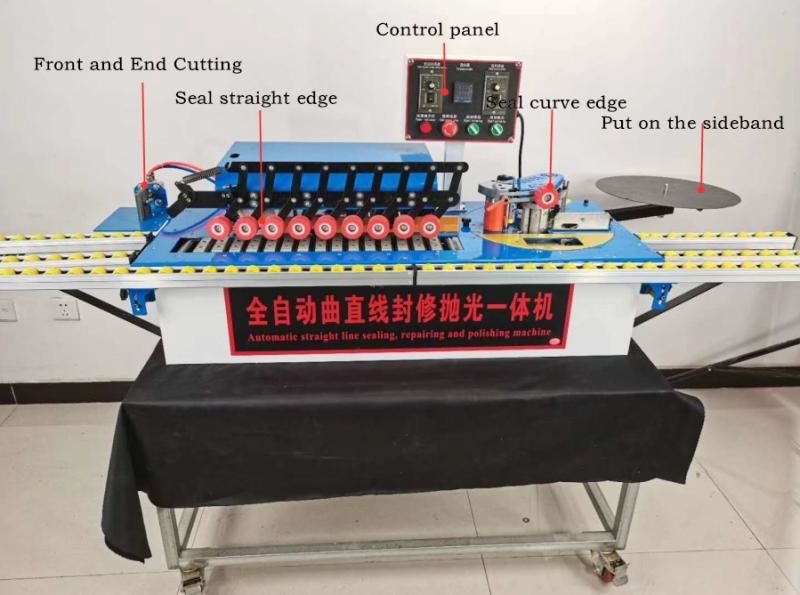

MY06D-1 Functions:automatic edge banding,edge trimming,edge polishing and pneumatic end cutting
MY06D-2 Functions:manual edge banding,automatic edge trimming,edge polishing and pneumatic end cutting

This machine is suitable for medium density fiber board, blockboard, wood panels, particleboard, plywood and other polymer doors,

straight edge trimming, disposable with double-sided adhesive tape cutting edge bonding edge pressing, block, chamfer, Tinker, finishing, polishing and other functions of scraping edge, edge smooth, smooth, feel good sealing wire, flat and smooth.

The equipment operation is stable, reliable and durable, is especially suitable for large and medium-sized furniture, cabinets and other furniture manufacturers plate using.

Model	MY06B	MY06C	MY06D-1	MY06D-2
Max banding Thickness	0.3~3.0mm	0.3~3.0mm	0.3~3.0mm	0.3~3.0mm
Max banding Height	10~45mm	10~45mm	10~45mm	10~45mm
Working pressure	3~6kg/cm square	3~6kg/cm square	3~6kg/cm square	3~6kg/cm square
Working Temperature	130~180 degree	130~180 degree	130~180 degree	130~180 degree
Speeding	0~5m/min	0~5m/min	0~5m/min	0~5m/min
Glue Pot	1000ml	1000ml	1000ml	1000ml
Type way	double glue cover	double glue cover	double glue cover	double glue cover
Trimming/Buffing power	1300W/NO	1300W/1300W	1300W1300W	1300W1300W
Total power	1900W	3000W	3600W	3600W
Voltage	110V/220V	220V	220V	220V
Overall dimensions	85x48x50cm	92×48×50cm	100×48×50cm	100×48×50cm
Weight	45kg	55kg	75kg	75kg
Edge banding	straight and curve	straight and curve	straight	straight and curve
Trimming&Buffing	straight	straight	straight	straight
Operation way	manual	manual	automatic	automatic
Funtions	gluing,trimming,pneumatic end cutting	gluing,trimming,buffing pneumatic end cutting	gluing,trimming,buffing pneumatic end cutting	gluing,trimming,buffing pneumatic end cutting

It is suitable for straight edge sealing of solid wood board, fiberboard, particle board, high-gloss board and other board workpieces. The edge sealing materials can be solid wood strips, PVC, melamine, veneer, etc.

◇Adopt imported motors and high-quality electrical components.

◇Product serialization, customer choice diversification.

◇High precision and high efficiency.

Company Culture

To customers - focus on customer experience;

For the company - the spirit of ownership is the foundation of enterprise development;

To the team - teamwork allows us to increase cohesion;

To colleagues - simple sincerity, honesty and integrity;

For the profession - keep striving for excellence.

Quality Control

Control and rigor are reflected in our quality control system throughout the production process;

During the assembly phase, each machine undergoes an average of 160 inspections designed to simulate wear testing in production processing, followed by rigorous verification testing.
