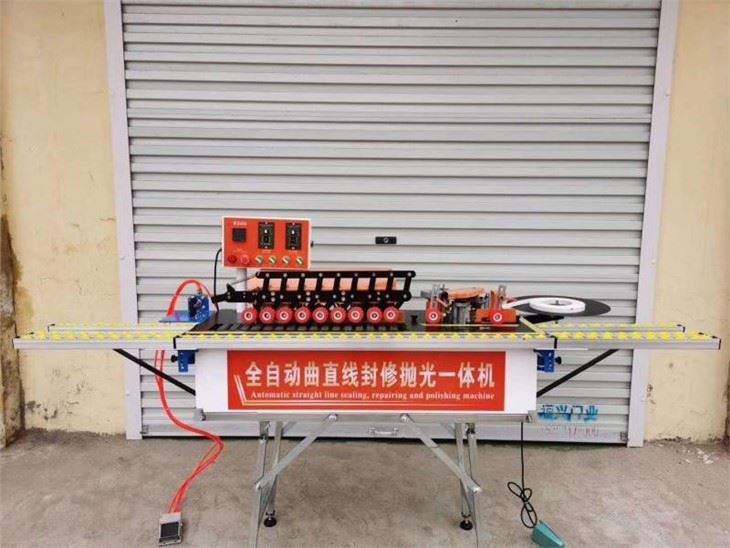

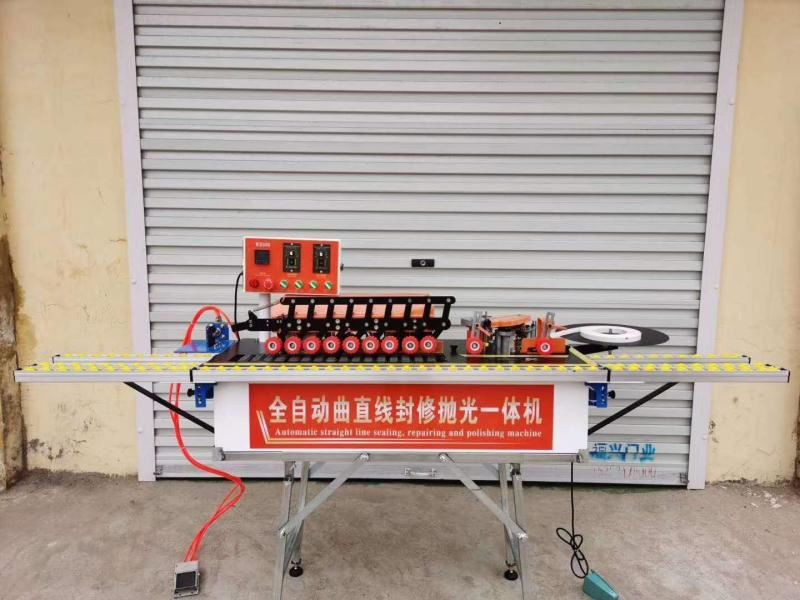

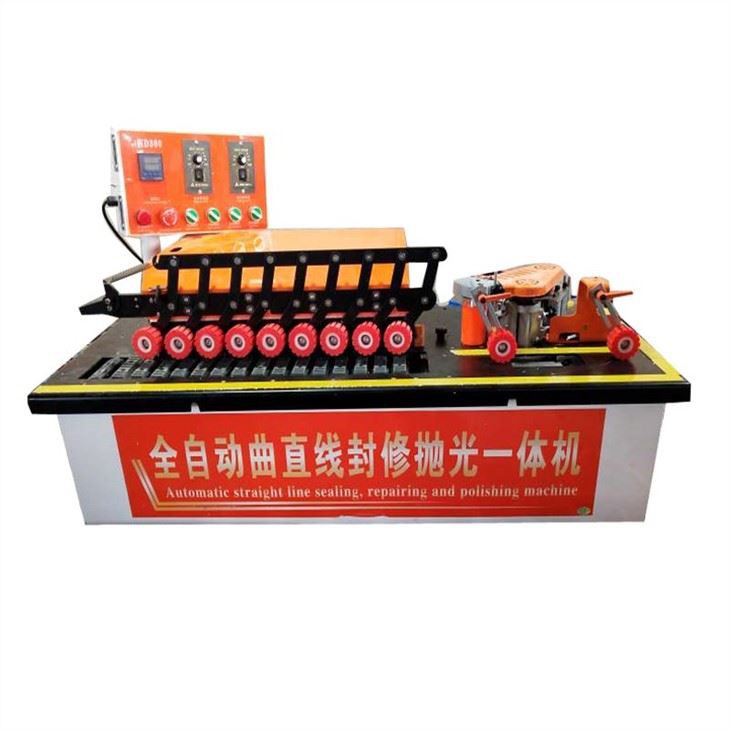

Production Introduction

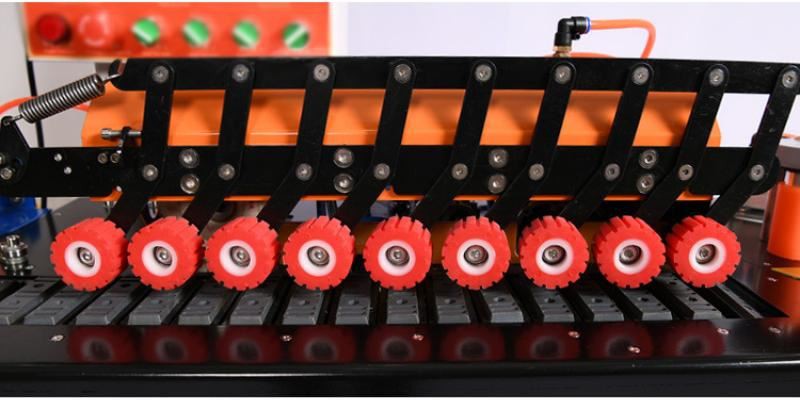

| Steps for usage Step on the electric foot switch to start the edge banding operation. During edge sealing, the belt feeding mechanism and the gluing mechanism automatically convey the edge banding tape and apply a uniform and mild high-temperature hot melt adhesive, and then accurately transport the glued edge banding tape to the proper position of the edge banding roller, and then rotate automatically. When the edge banding roller and the plate automatic conveying mechanism work together, the automatic edge banding is completed. When trimming, control the start and stop of the trimming motor by operating the compound electric button on the trimming machine. When operating, step on the pneumatic foot switch, manually insert the plate to be cut into the upper and lower edge trimming guide wheels of the edge trimmer, and complete the upper and lower edge trimming knife by contacting the edge trimming guide arc plate and rotating at high speed. side action. |
Machine details

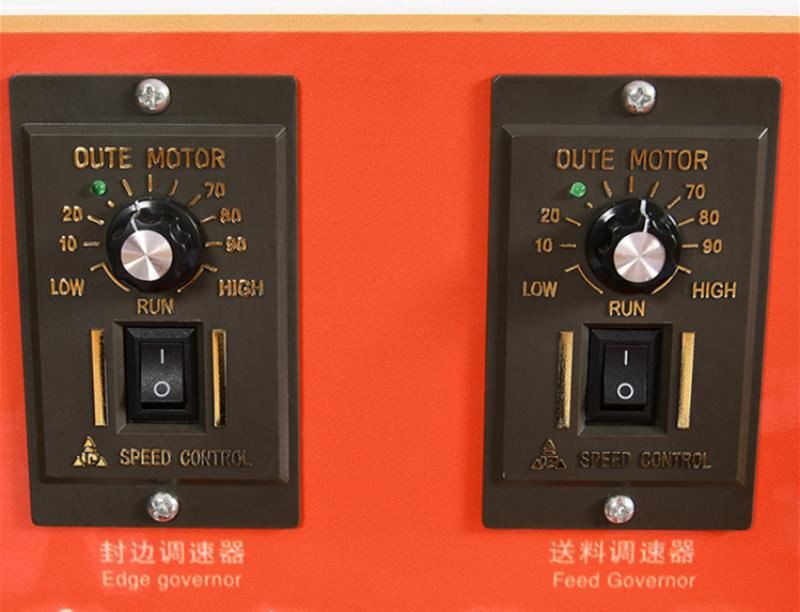

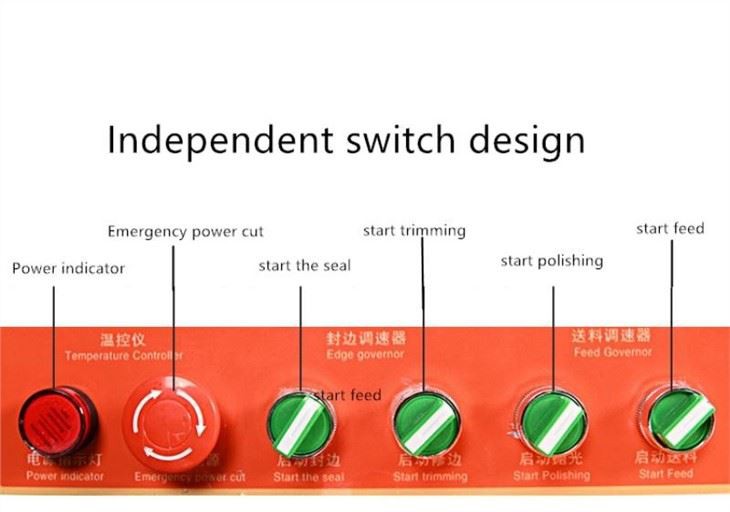

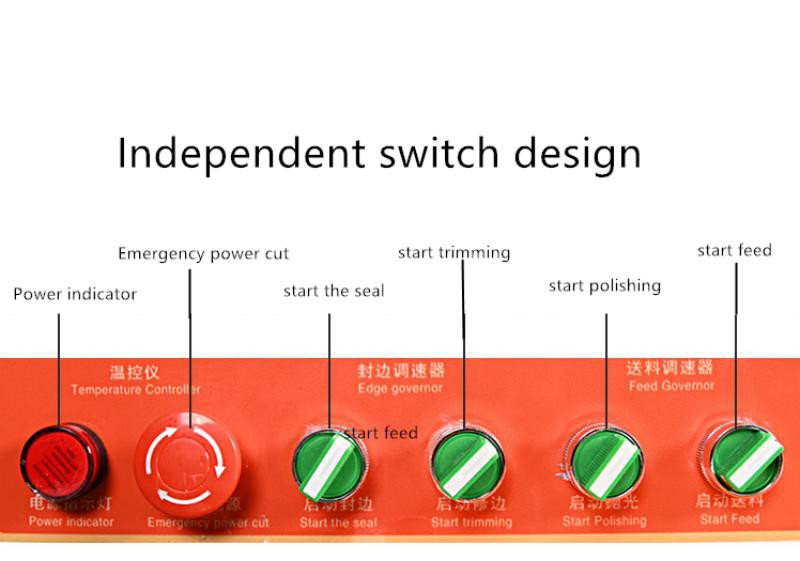

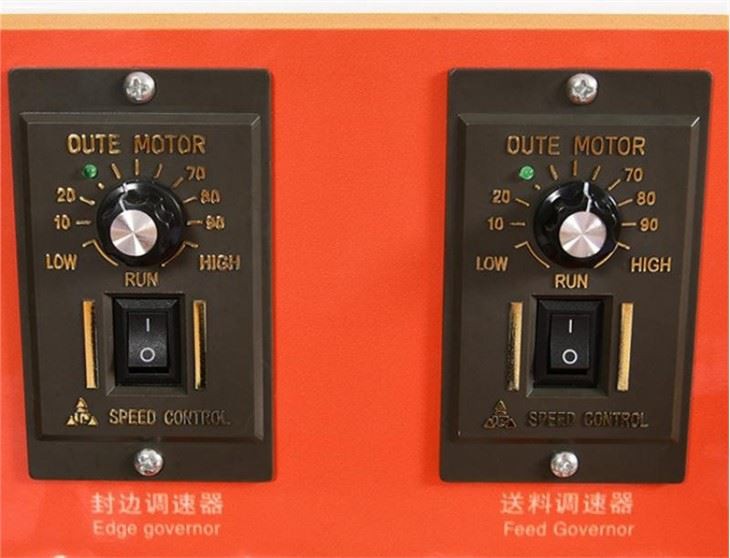

Control panel switch Trimming, polishing, feed have their own switch, this design make operated more safe.
|
|
Four aspects of regular maintenance of edge banding machines 1. First of all, the plot of each position of the body must be maintained. For example, the glue brought out by the board near the glue pot will dry to other parts, which will directly affect its normal operation. 2. In the pre-milled part, the end-to-end part, the trimming and scraping part, there will be a lot of cutting edge banding chips, even if there is a vacuum device, it will not be sucked very cleanly, and the edge banding chips flying everywhere will be Affects various sliding and rolling parts, and also affects trimming. Therefore, the edge banding and crumbs must be cleaned every shift. 3. Inspection of operating parts, regularly check the sound of each operating part, and whether there is abnormal noise and heat in the temperature. 4. Refuel the running parts regularly. |
|

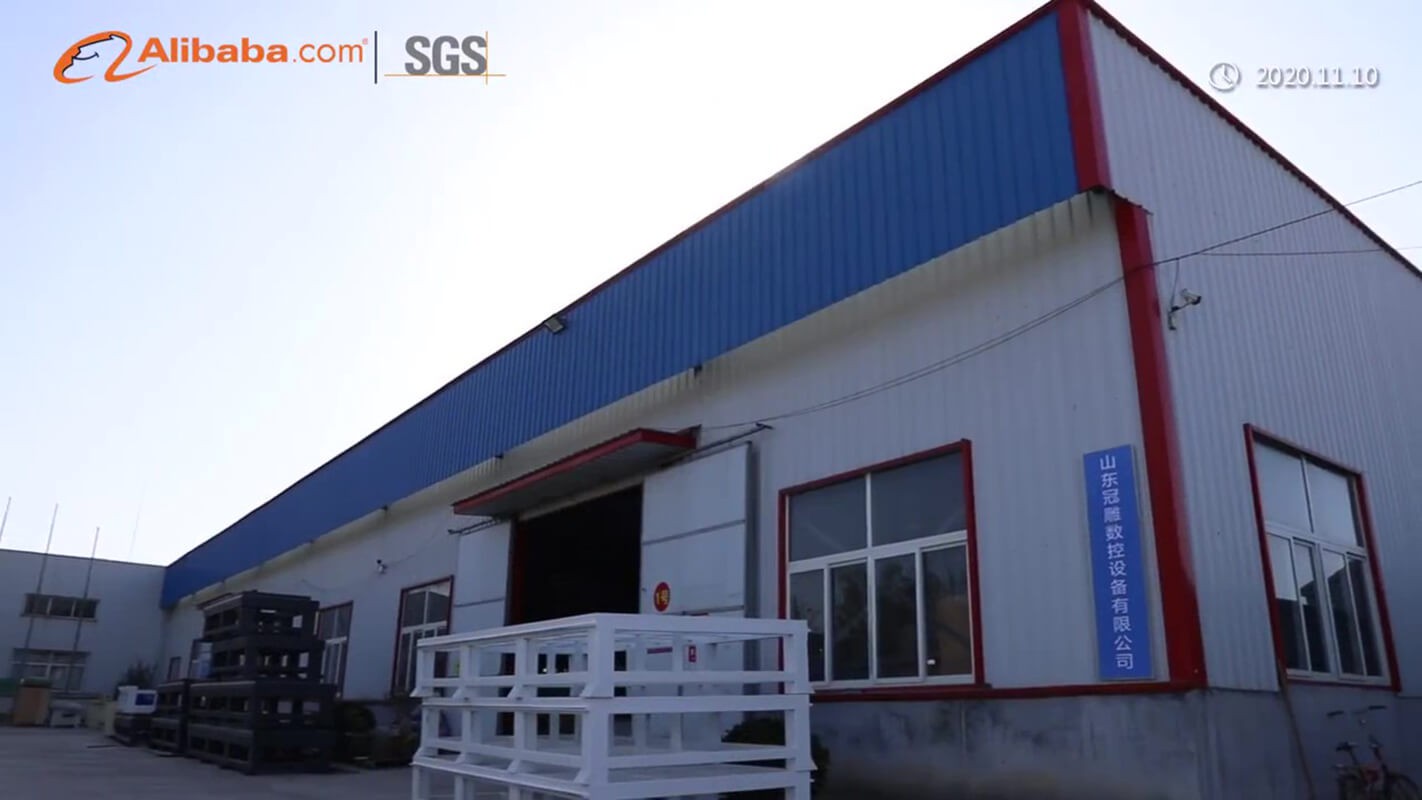

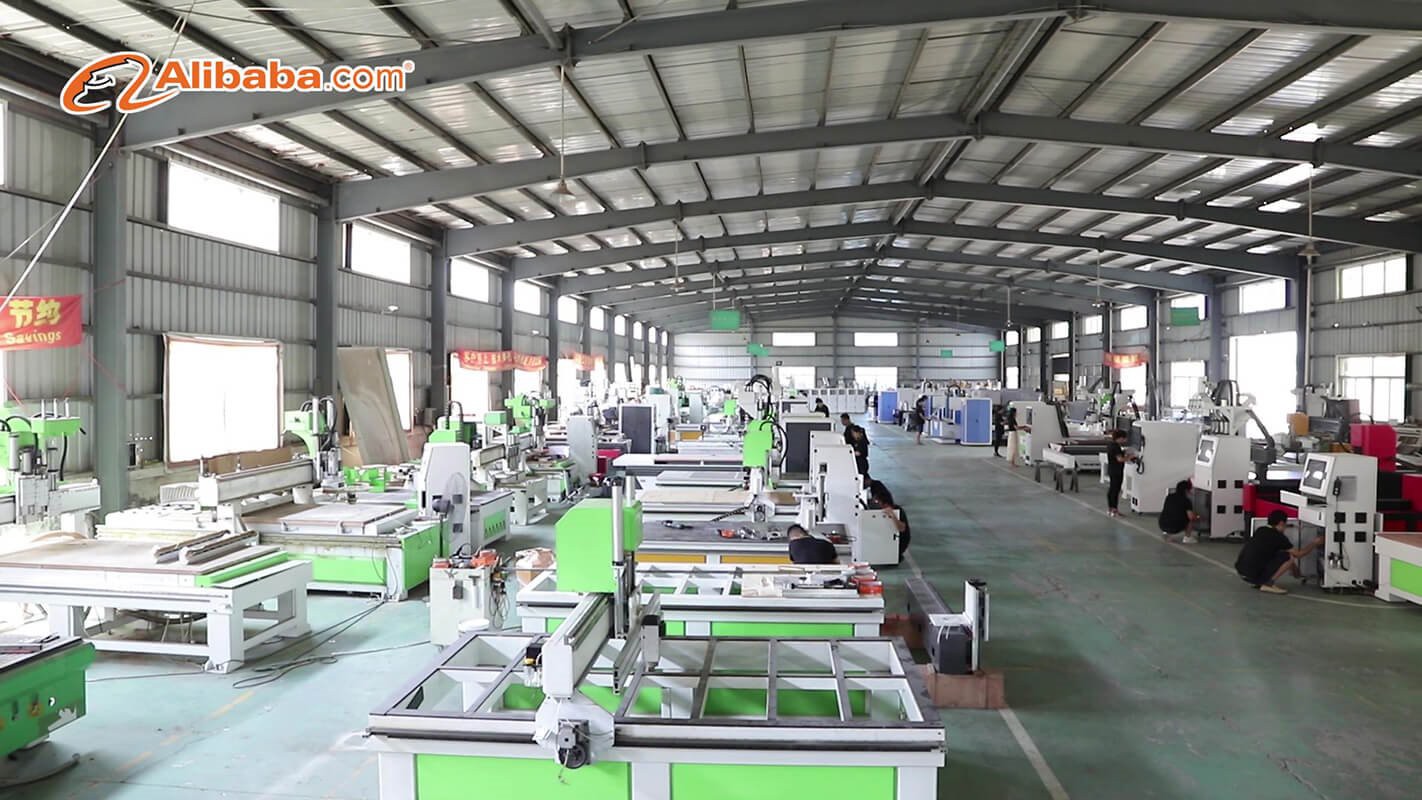

Company Profile
The company's main products are panel furniture CNC cutting machine, woodworking CNC machining center, CNC router, multi-head cylinder CNC engraving machine, foam rubber CNC router, 3D scanner, vacuum lamination machine, vacuum forming machine, laser engraving and cutting machine, etc. Company Culture Business Strategy Technology modernization, market diversification, meticulous production, scientific management Quality Policy Advanced technology, scientific management, honesty and commitment, and in-place service | |
 |  |
