Production Introduction

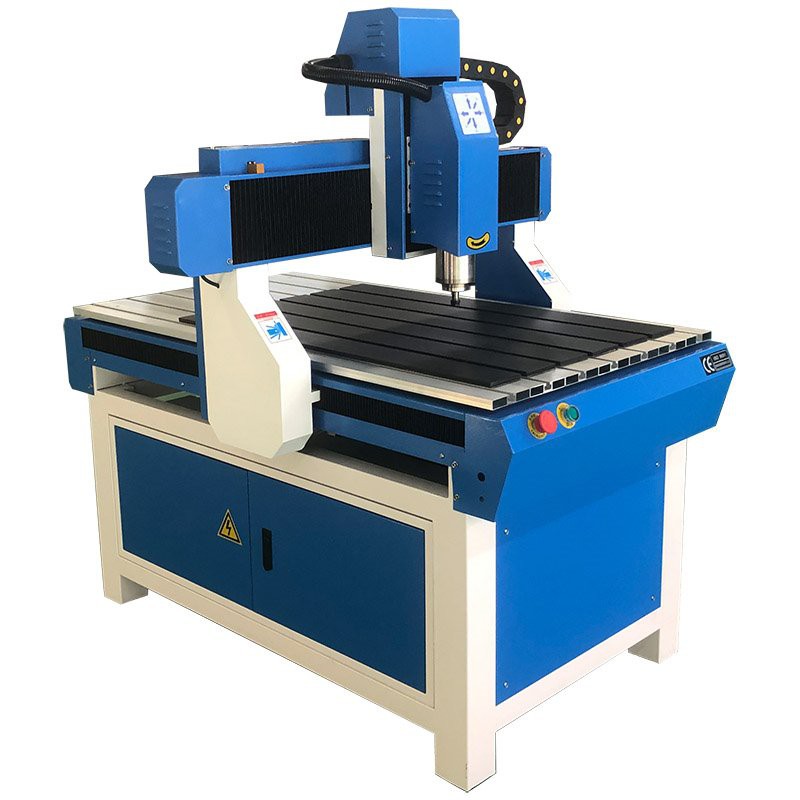

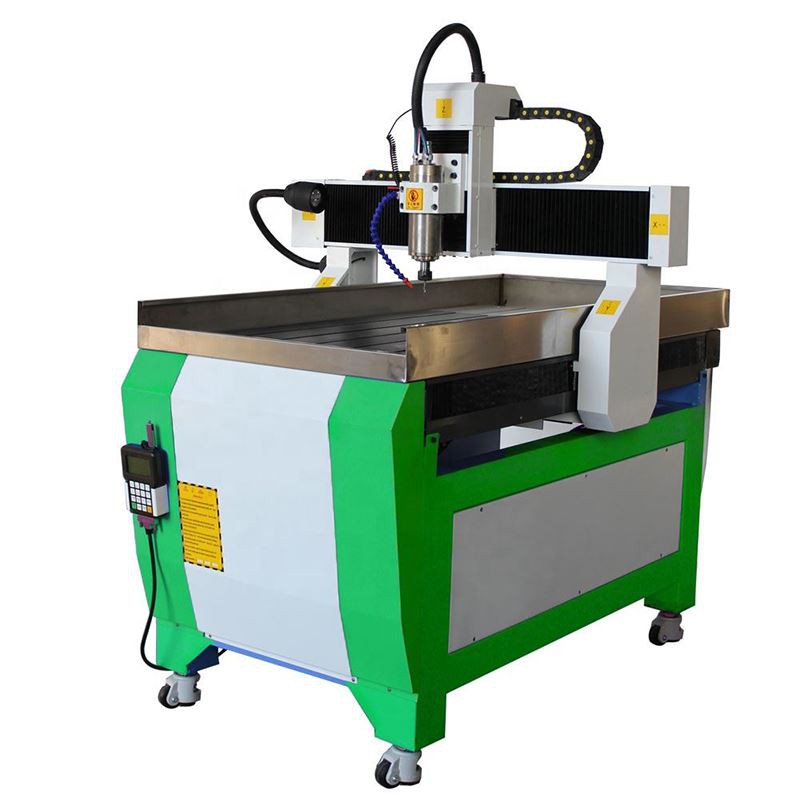

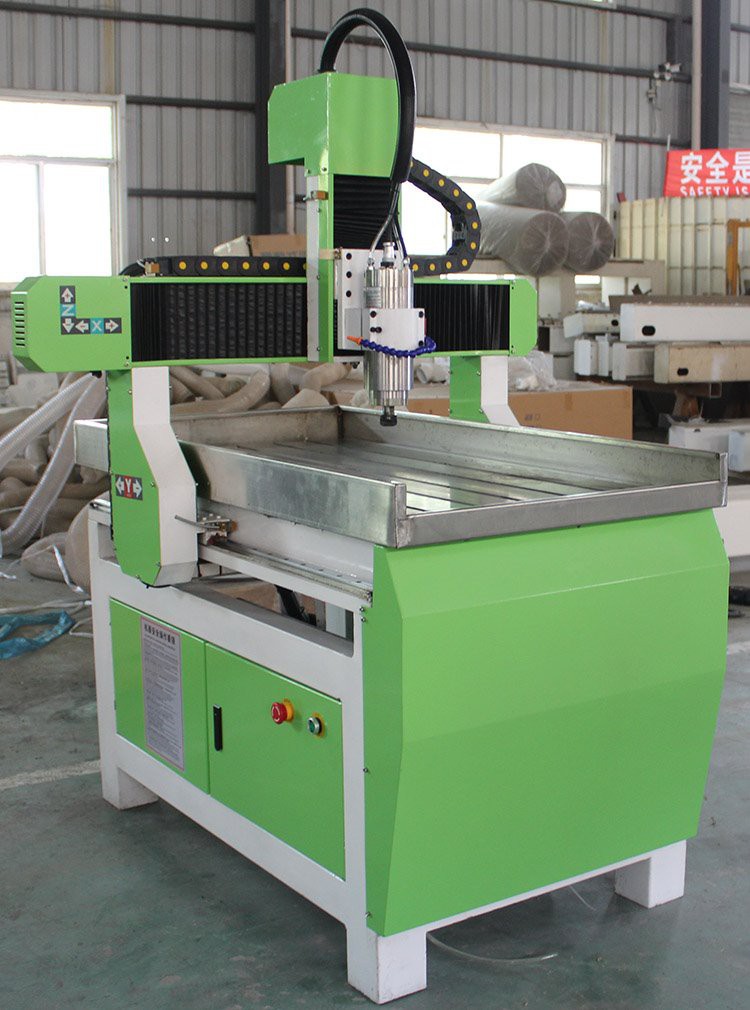

![]() | Main features 1. Desktop Mini Cnc 6090 Router can be used for metal and stone 2. Working area: 600 x 900mm 3. Structure: Thicken heavy duty body, stable working 4. Motor: Servo motor 5. Transmission: X, Y, Z axis ball screw transmission X, Y, Z axis with dustproof 6. With water tank,special for metal stone materials engraving |
Product Specification
Name/Mode | GD-6090 | ![]() |
WorKing size | 600*900mm | |
Feeding height | 150mm, (Customized) | |
Travelling speed | 6000-10000mm/min | |
Tool diameter | ¢3, ¢4, ¢6, ¢8, ¢12.7, etc | |
Transmission mode | Xy precision helical gear transmission, Z imported brand screw drive | |
Software working environment | WindowsXP/7 | |
Spindle power | 1.5KW/2.2KW (Optional) | |
Driver motor | servo motor | |
Working voltage | 220v | |
Engraving command | (G code) (nc), mmg, plt, eng, dxf | |
Spindle rotating speed | 6000-24000rpm/min | |
Control system | DSP | |
Spindle speed | 0-24000rpm |
Product Detail

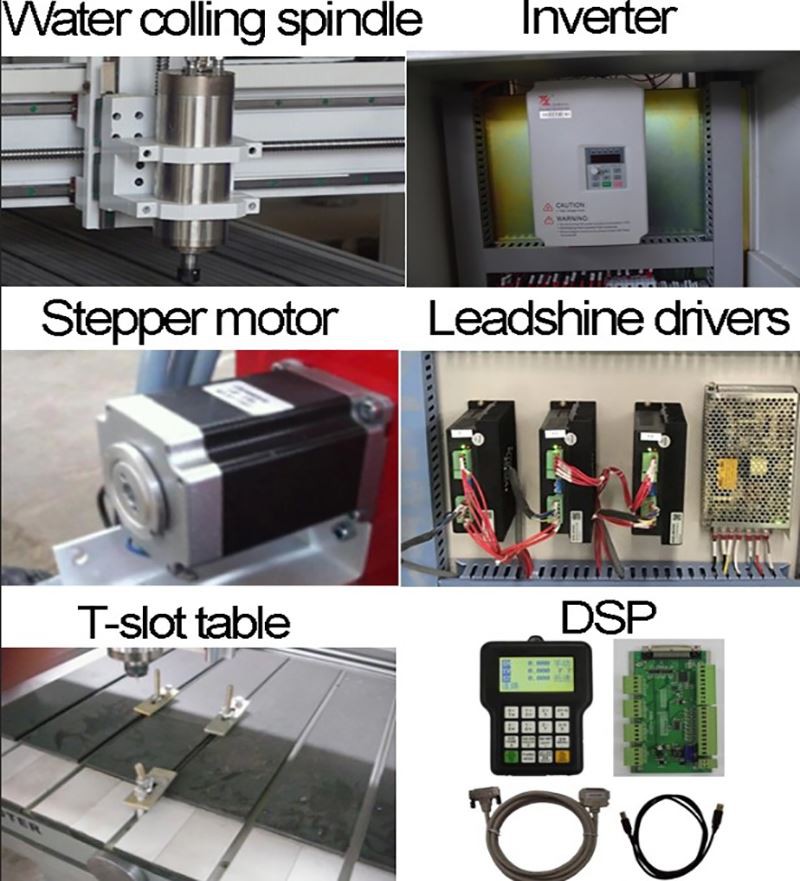

![]() | Features of Jinan supply mini mach3 6040 6090 engraving machine cnc router for wood: * Integral heavy duty frame,more durability. and this is one of the typical features of Advertising CNC Router. * The effective working area can be increased and designed according your requirement. * The machine was designed with water cooling spindle: High precision and less noise. * With Fuling Inverter: More stable Performance and easy to operation. * Taiwan TBI ball screw for Z axis, high precision, smooth transmission. * Lubrication system of all machine, just one press, easy to operation. |
Sample
![]() | Products can be used in panel furniture, advertising, stone, architectural decoration, handicraft mold making, automotive industry packaging, watch accessories, seals and other industries |
Company Description
![]() | Jinan Grandio CNC has16 years of production experience, 11 years of export experience, can provide hands-on technical support, has an independent research and development team, can provide continuous product and software upgrade and update services.Qualified after-sales technical teams in many countries, which can help customers solve after-sales problems locally. |
Hot Tags: cnc 6090 jade engraving machine, China, suppliers, manufacturers, factory, price, wholesale, for sale, Jade Engraving Machine, CNC Jade Carving Machine, 6090 CNC Router
