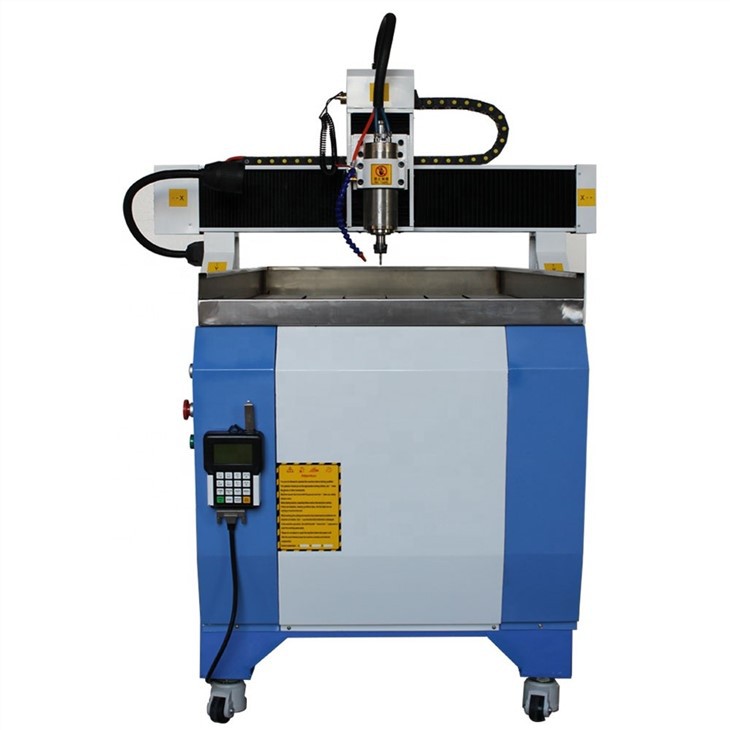

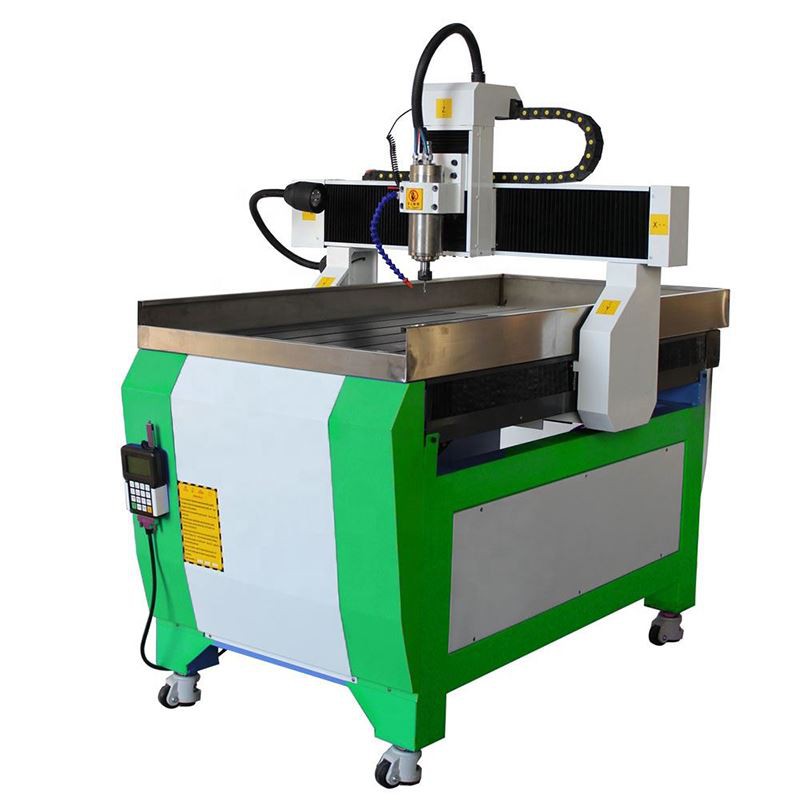

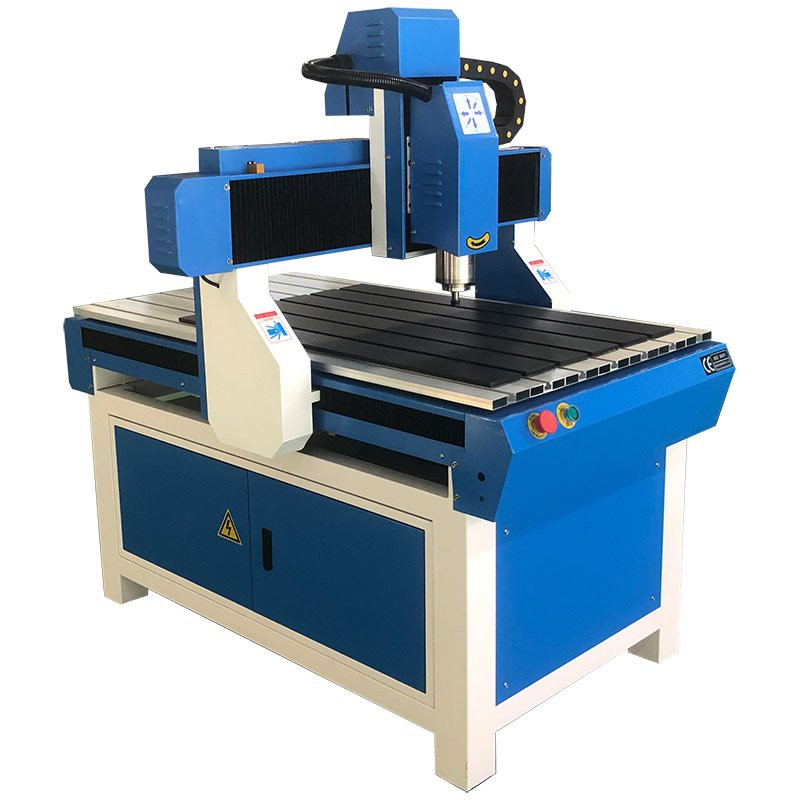

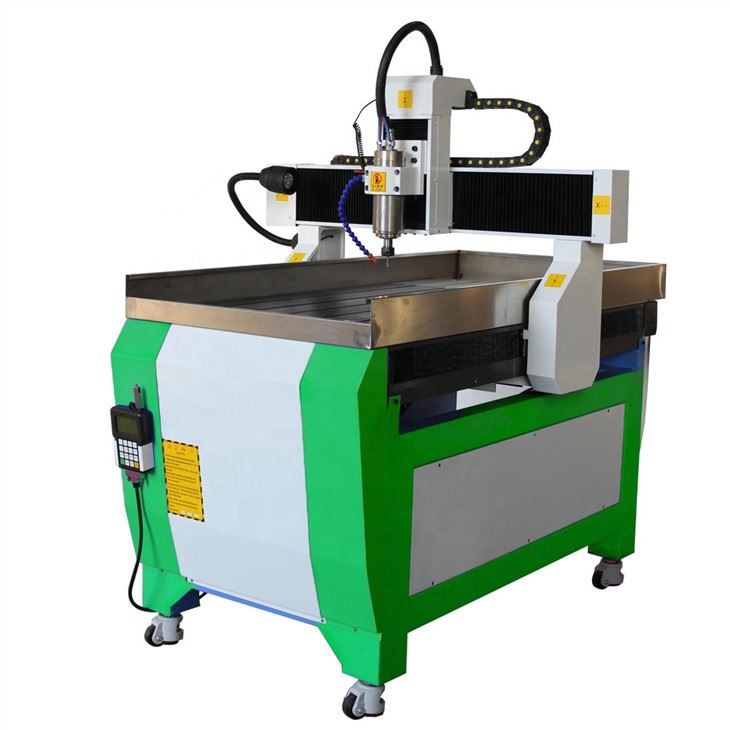

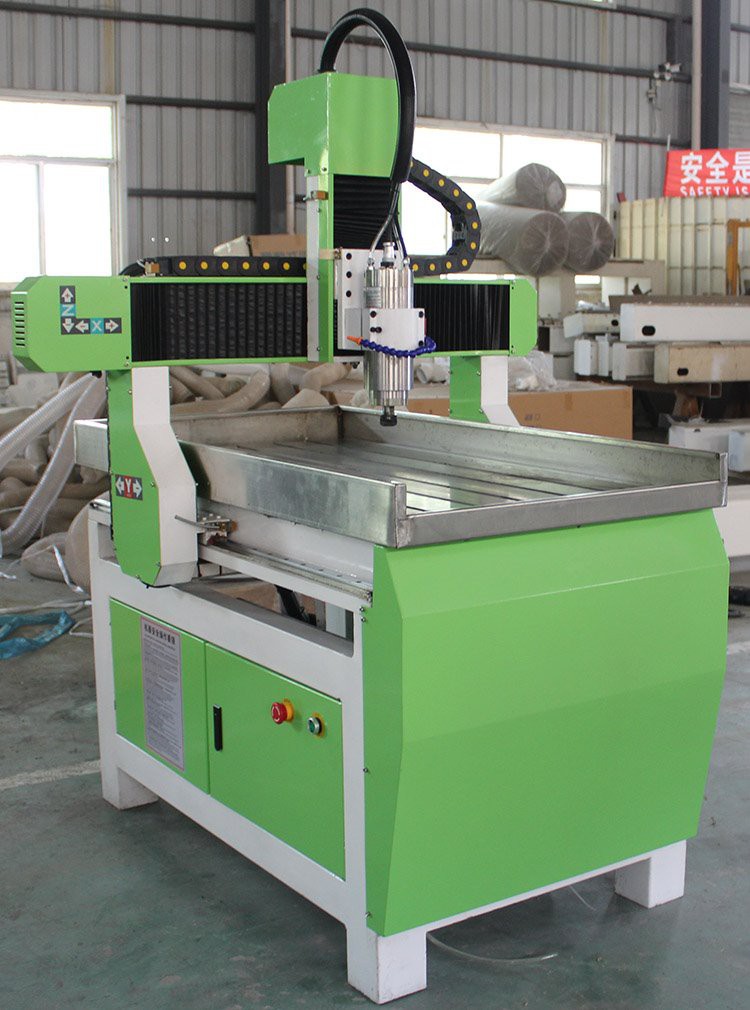

6090 Stone Cutting Machine
We're well-known as one of the leading 6090 stone cutting machine manufacturers in China for over 15 years. We warmly welcome you to wholesale high quality 6090 stone cutting machine at competitive price from our factory. For more information, contact us now.
暂无分享


Product Information


  Production Introduction

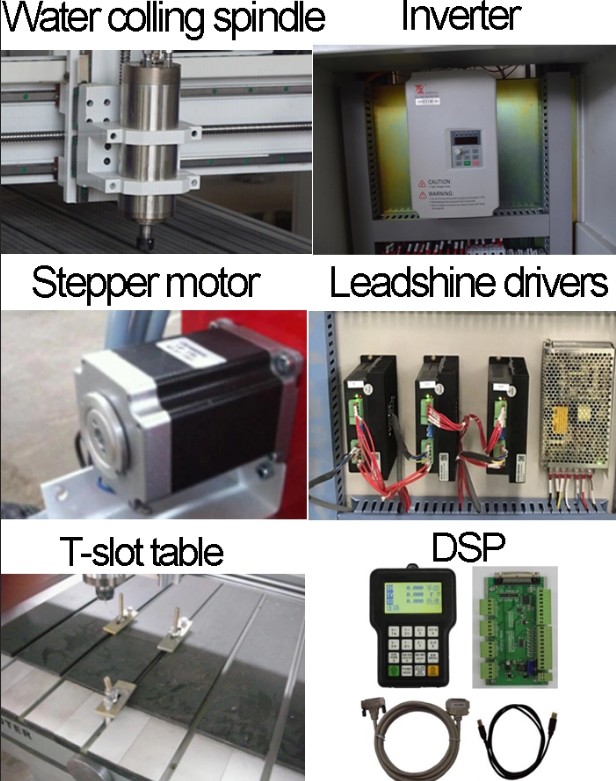

                            ♦ 600x900x120mm working size

                                 ♦ 2.2kw water cooling spindle x 6sets

                          ♦ T-slot aluminum working table

        ♦ HIWIN Linear guide

♦ DSP controller

♦ Stepper motor and drive

♦ Beta interver

♦ Drive System X and Y axis: Rack and Pinion, Z axis: Lead Screw

♦ Automatic Tool Calibration

♦ ArtCam software



Product Specification

4e85c578e1

Name/Mode

GD-6090

WorKing size

600*900mm

Feeding height

150mm, (Customized)

Travelling speed

6000-10000mm/min

Tool diameter

¢3, ¢4, ¢6, ¢8, ¢12.7, etc

Transmission mode

Xy precision helical gear transmission, Z imported brand screw drive

Software working environment

WindowsXP/7

Spindle power

1.5KW/2.2KW (Optional)

Driver motor

servo motor

Working voltage

220v

Engraving command

(G code) (nc), mmg, plt, eng, dxf

Spindle rotating speed

6000-24000rpm/min

Control system

DSP

Spindle speed

0-24000rpm



    Product Detail



Mini 6090 Cnc Router Metal Carving Engraving machine For Wood Aluminum Metal Stainless Steel

What is the Advantage of solid wood carving mini cnc router?


♦ Multi-function cnc router machine with heavy duty welded

structure.

♦ 2.2 kw water cooling spindle with 24000r/min .

♦ Fast speed and high precision.

♦ DSP controller;handle operation ;dustproof design,is very

convenient.

♦ HIWIN linear rail from Taiwan for 3 aixs, more stable, it's

lifetime is 10 times longer than common rail way.

609004 800

6090


  Packing & Shipping

6

The wooden box is sealed and packaged for safe transportation and effectively prevent

bumps.

Because the machinery is relatively heavy, shipping is generally chosen.

Shipping and payment methods can be negotiated with customer service.



PRE-SALE SERVICE


1. Free Sample Machining Service

Send us your designed files, we will arrange free sample machining in our factory and

make video to show you the process and result, or send samples to you to check the

machining quality.

2. Machining Solution Design:

According to customer’s requirements, we can design the unique solution that

supports higher manufacturing efficiency and better machining quality for customer.

3. Custom and OEM Service

The divisions and partnerships of GUANDIAO welcome both custom work and OEM

customers. We have a broad range of capabilities and manufacturing strengths, which

makes it possible for GUANDIAO to customize our existing products for OEM customers.




Hot Tags: 6090 stone cutting machine, China, suppliers, manufacturers, factory, price, wholesale, for sale, Jade Engraving Machine, CNC Jade Carving Machine, 6090 CNC Router
