Production Introduction
|
| Features:1. The bed is made of cast iron, which is firm and not deformed, and the work is more stable 2. High-power spindle, long life, stable operation, good starting performance, large torque, can give full play to the advantages of high-speed machine tool, can ensure long-term large-scale processing, higher efficiency. stability, low noise and long service life; dust and dirt, ensure the normal operation of the machine, and extend the service life of the machine. compatible with a variety of CAD/CAM design software such as Type3/Artcam/ Castmate/Wentai |
| Product Parameters | ||

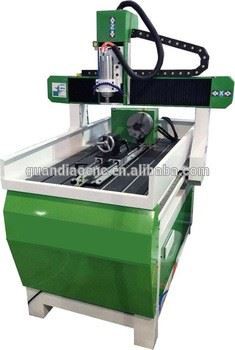

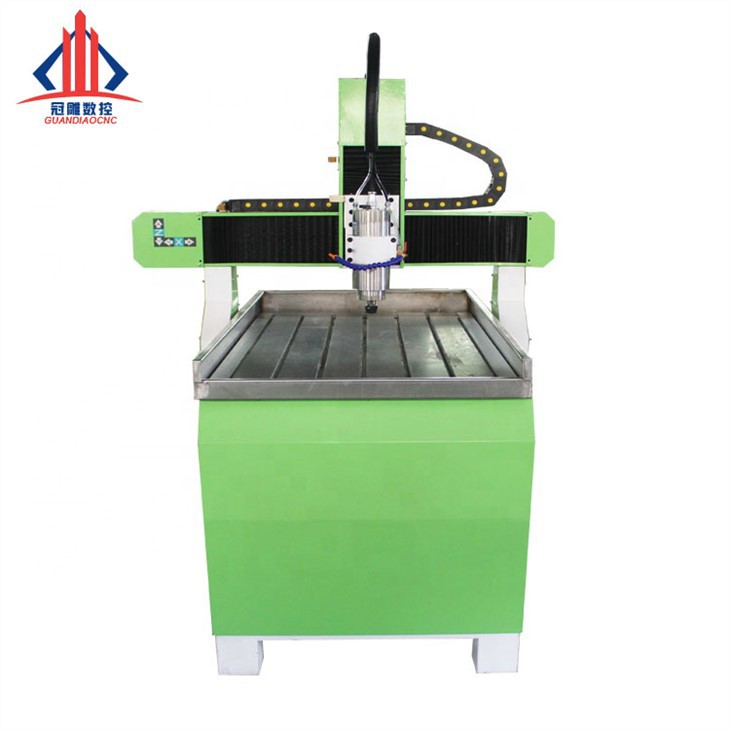

| Mode | GD-6090 |
|
| Working size | 600*900mm | |
| Table Structure | Steel Structure | |
| X Y Structure | Rack and Pinion TAIWAN HIWIN/PMI Square Guide Rails 20/25mm | |
| Z Structure | Germany TBI Ball Screw | |

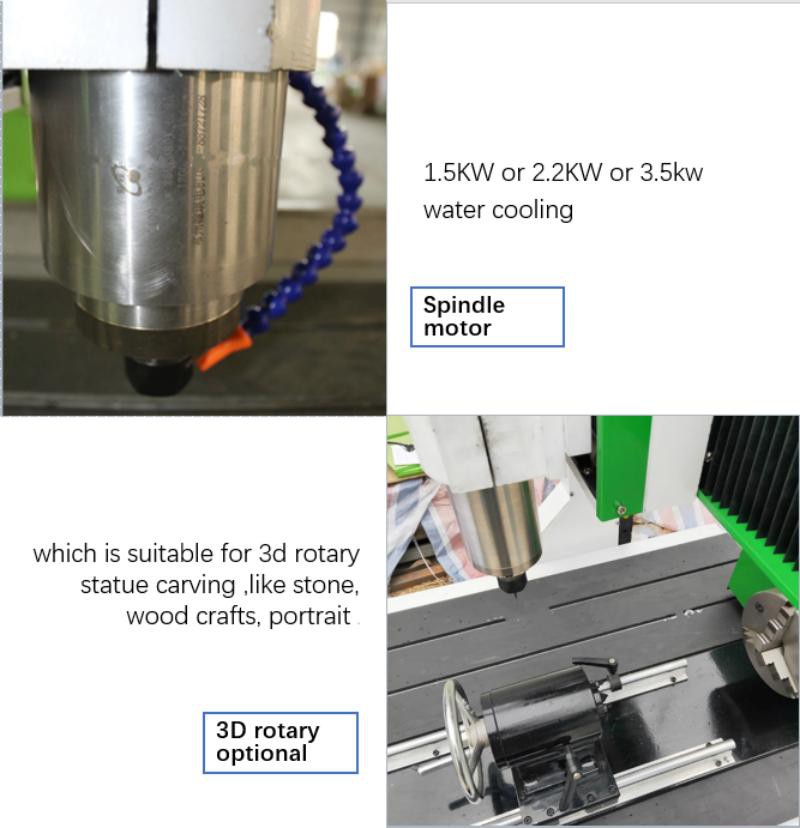

| Spindle | 3.2KW water cooling.24000rpm/min | |
| Driver motor | China Stepper motor and leadshine driver | |
| Inverter | Fuling or Sunfar | |

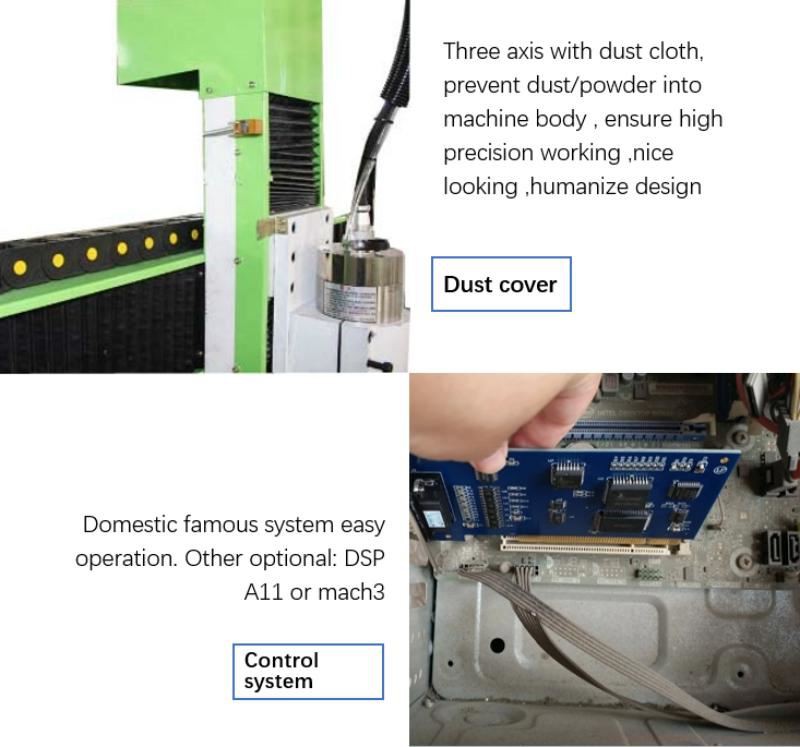

| Control system | Nc studio/DSP | |
| Working Voltage | 380V/3PH/50HZ | |
| Command Code | G code | |
| Software Compatibly | Artcam/Artengraver/Type3/V9/JD paint | |
| Relative Humidity | 30%-75% | |
|
|
Application

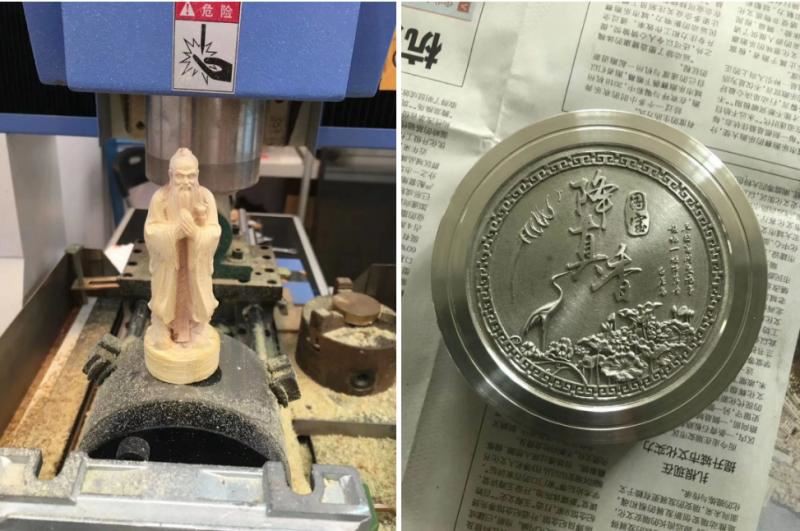

| Suitable for solid wood furniture, stair pillars, Buddha statues, strange stone bases, special-shaped crafts, jade carvings, plastic models and other three-dimensional workpiece carvings; can also be used for deep relief of complex planes; can also process three-dimensional stone workpieces Mechanical function, size, color can be customized according to customer needs. Advantage 1. The bed is welded with thick-walled steel pipes to ensure small deformation of the body, good rigidity and high strength 2. High-precision rack and pinion transmission, high precision, fast speed, and large power. Imported square linear guide, high precision, large load-bearing redundancy, long life 3. 10 breakpoints can be saved, and there is a breakpoint continuous carving function, it is still feasible to work after a power failure, youxiao
|
Company Profile
| Shandong Guandiao CNC Equipment Co., Ltd. is an innovative enterprise engaged in research and development, development, production, sales and good after-sales service. Company Philosophy ▓ Have a complete technical team: clear division of labor to ensure that high-quality products go to the world ▓ Provide customers with the best solutions: product design, installation training, after-sales Serve ▓ Adhering to the continuous innovation and improvement of technology and striding towards the peak of the CNC industry are our unremitting efforts. ▓ At present, the company's products are sold to large, medium and small cities and regions in China. |
FAQ
Q1. How to get the most suitable machine and best price
As we may know, the different power fiber laser cutting machine can cut different thickness material, So you need to tell us what is your materials and max thickness,then we will recommend you with best
suitable machine.
Q2. If we don't know how to use the machine, can you teach us?
Yes, We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online helpsoftware.Or we
can talk by phone, email or skype
Q3.How long is the delivery time?
For standard machines, it would be 30 days; For non-standard machines and customized machines according to client's specific requirements, it would be 40-50 days.
Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. Tea complete machine will be tested to make sure they can work very well before being out of factory.
Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
