Product Induction
Product Specification

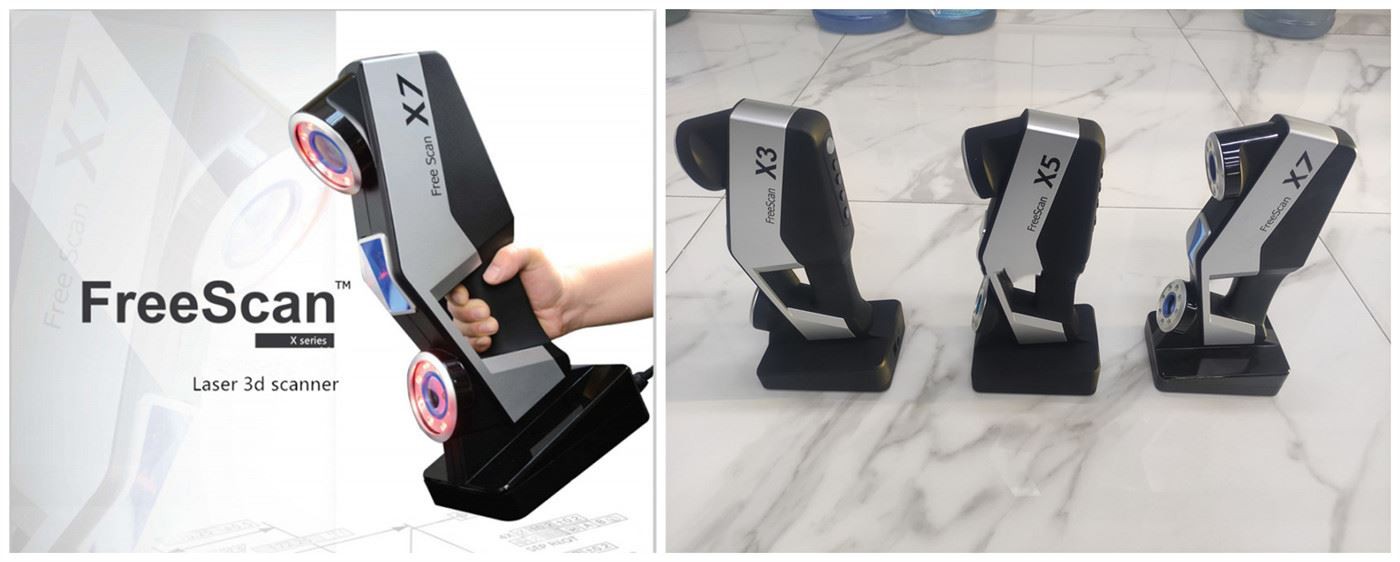

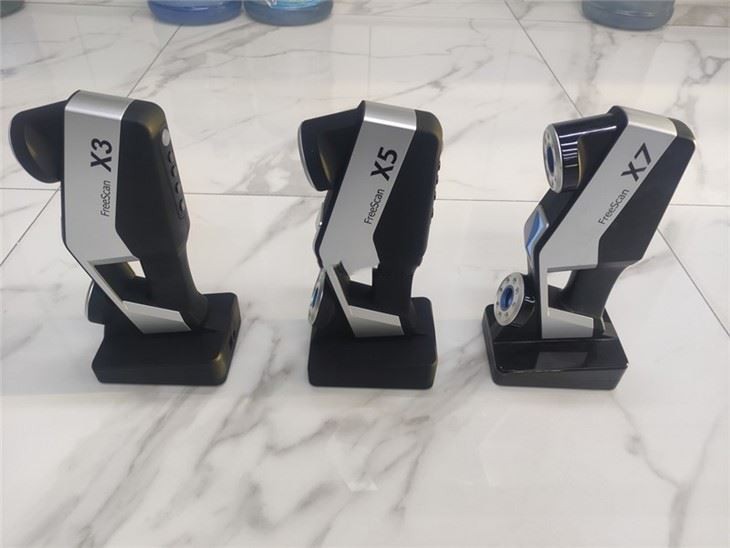

Mode | Freescan X3 | Freescan X5 | Freescan X7 |
Scan rate | 240000 points/s | 350000 points/s | 480000 points/s |
Scanning area | 280*250mm | 300*250mm | 300*275mm |
Light source | Laser cross lines X3+1 class 2 (eye-saft) | Laser cross lines X5+1 class 2 (eye-saft) | Laser cross lines X7+1 class 2 (eye-saft) |
Resolution | 0.10mm | 0.1mm | 0.05mm |
Accuracy | 0.03mm | 0.03mm | 0.03mm |
Volumetric accuracy | 0.02+0.10mm/m | 0.02+0.08mm/m | 0.02+0.06mm/m |
Extended scanning configuration | Digimetric | ||
Volumetric accuracy with Digimetric | 0.020+0.025mm/m | ||
Advantage:

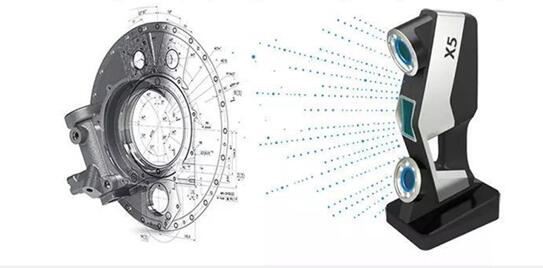

The three-dimensional scanning technology adopted by laser scanning is to project (laser) grating on the surface of the object based on the three-dimensional measurement principle of structural light.
Two cameras are used to shoot the grating images changing along with the object morphology, and the three-dimensional coordinates of the points are calculated to achieve the measurement of the three-dimensional contour of the object surface.

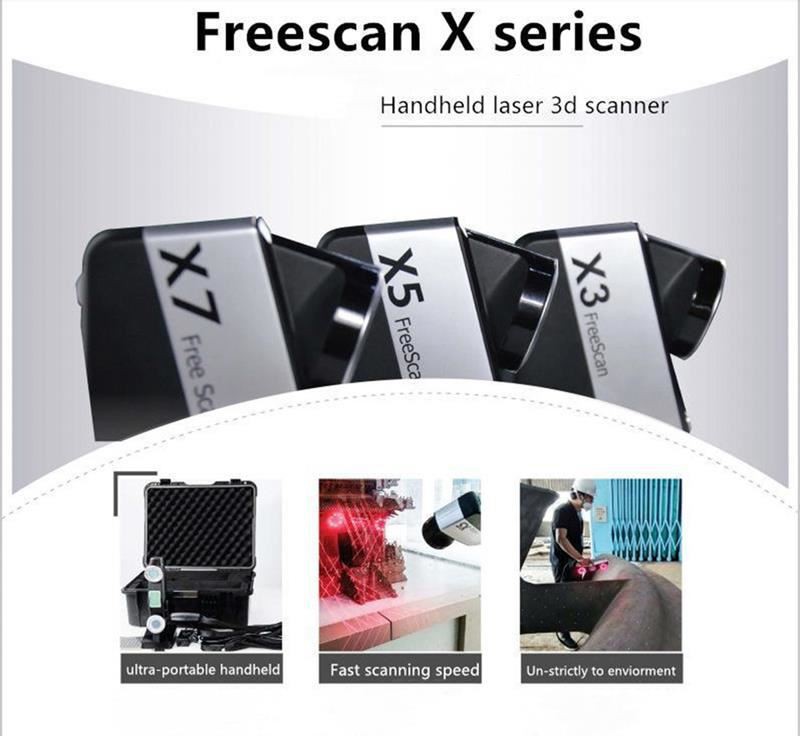

Advantages of laser handheld:
1.Easy to operate and portable
2.The black reflective material can be measured directly without surface treatment
3.Complex anisotropic surface can be measured
4.Can do full size measurement

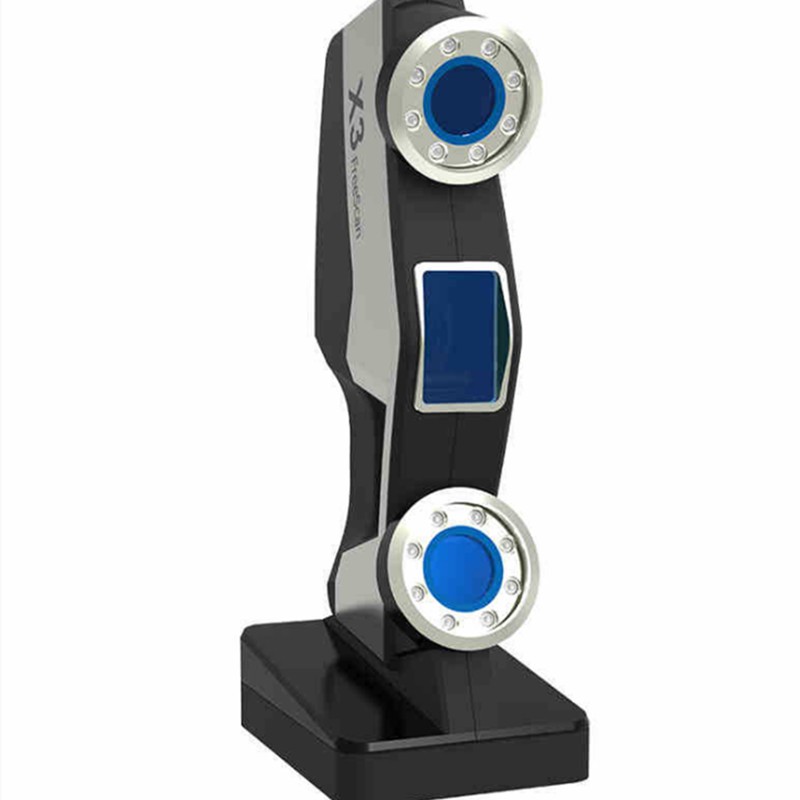

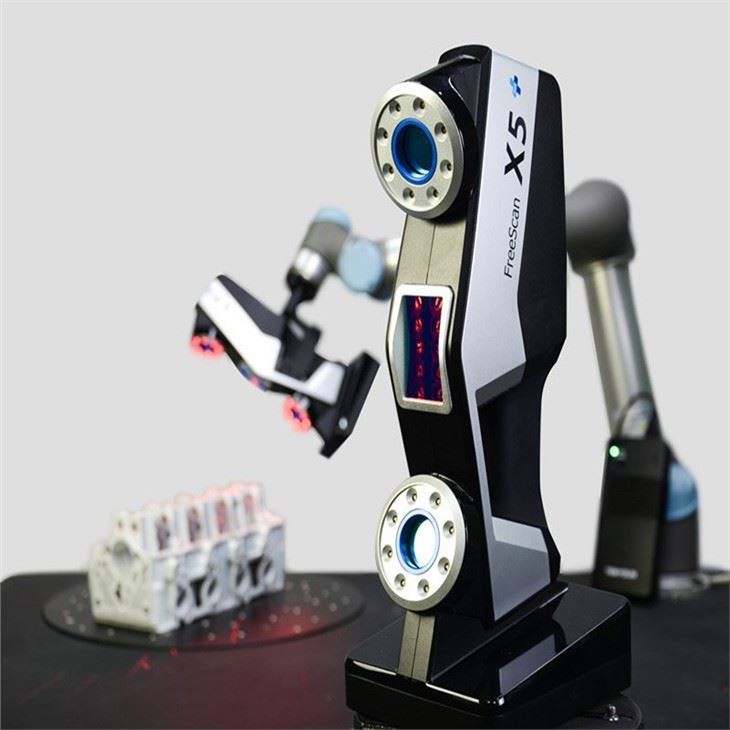

Product Details
| High Accuracy, High Speed Accuracy up to 0.03mm. High speed scanning: 300,000 points/s. |
| Original HOI Scanning Technology The original HOI (hybrid of optics and inertia) scanning technology enables a substantial increase in accuracy and reliability of the point cloud registration, especially for the large workpiece scanning. |

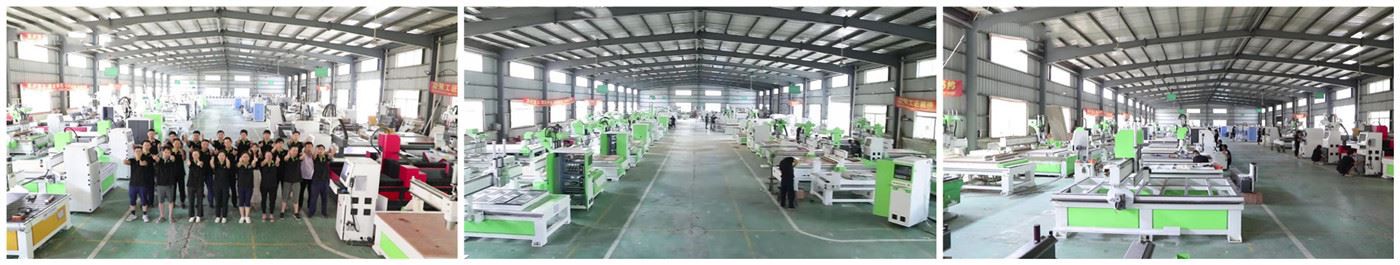

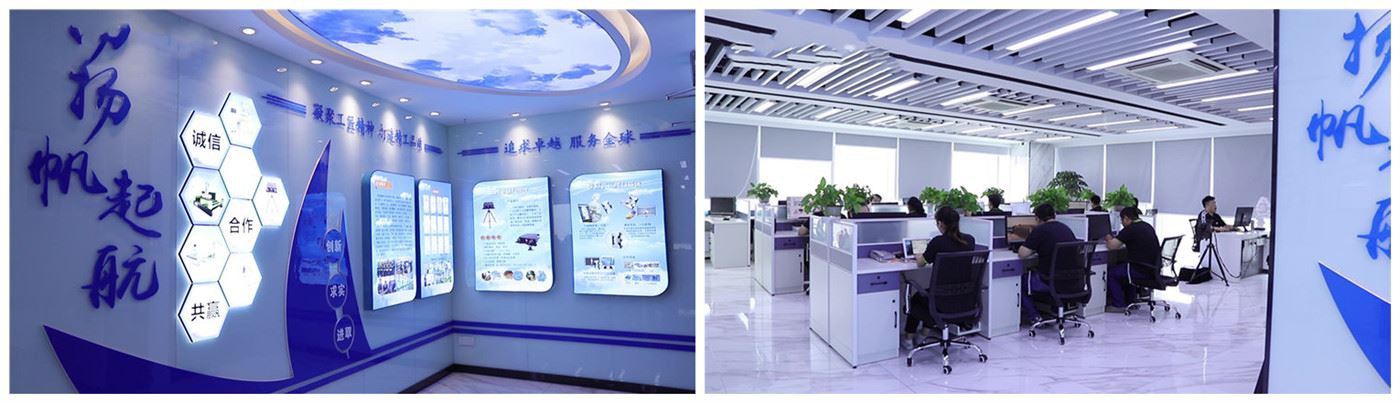

Company Factory Introduction
If you encounter any problems during the test in the future, we guarantee to reply to you within 12 hours and provide a solution within 2 working days. We can provide operation videos and English operation manuals. Buy 5 products at a time. Currently, there are imagers, flash meters, and 3D scanners. You can enjoy the accommodation and meals during our study, all aspects of product training, and measurement solutions.
pre-sale service
Instruct customers to choose the most suitable machine model;
Provide detailed specifications and competitive prices;
Enforcing Contracts
Machine production will be strictly in accordance with contract arrangements;
Machine photos will be sent to you for inspection during the production process;
Update the latest news and prepare for customs clearance after delivery;
After sales service
Respond to customers' technical issues in a timely manner;
New product updates for customer reference.
