SeeTrack Optical Dynamic Tracking Scanning System
The system consists of a tracker, scanner, light pen, controller, measurement software, and detection software, supporting both non-contact scanning and contact measurement methods. It employs a lightweight, stable, and ergonomic design, with all components optimized for comfortable handling while maintaining structural stability.

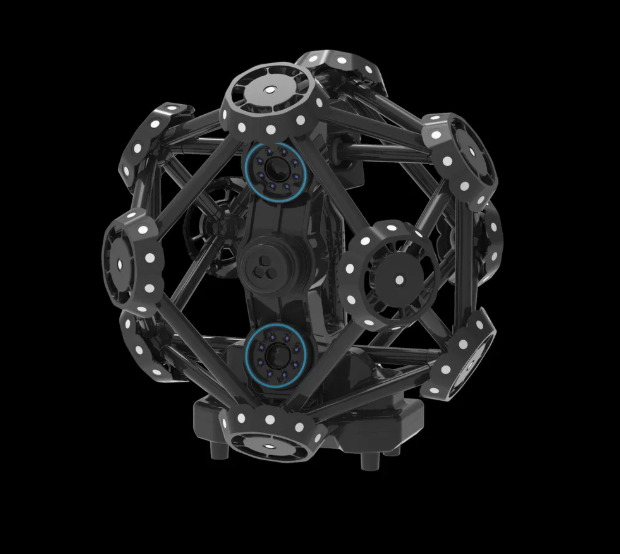

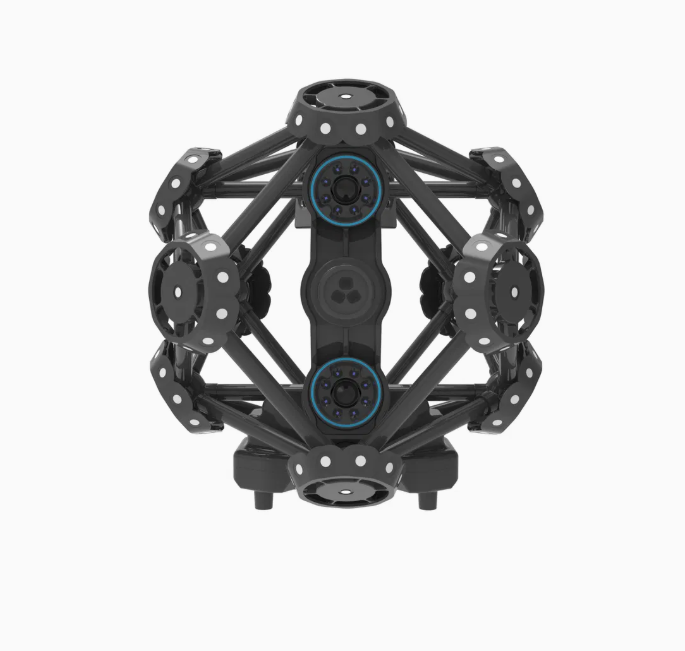

* Scanning area: 300 mm × 240 mm
* Working distance: 200 mm ~ 450 mm
* Scanning rate: Measurement rate: ≥ 1,300,000 measurements/second
* Scanning resolution: 0.05 mm
* Measurement accuracy: 0.03 mm
* Measurement area: (3000 x 2500mm)@3000mm, maximum 4000 x 3000mm
* Working distance: 2m~4m
* Measurement rate: 60fps
* Volumetric accuracy: 0.06mm@9m³, 0.10mm@16m³
* Extended accuracy: 0.04mm +0.02mm/m, with CoordMeasis photogrammetry system
The system supports both wired and wireless connections. All hardware devices can be connected to a computer via a single controller, or the scanner can be disconnected from the controller to switch to wireless connectivity. Both connection modes offer highly stable data transmission capabilities.
The system features flexible scanning and stitching capabilities. It can capture markers invisible to the tracker to create transfer reference points, thus replacing various types of reference adapters.

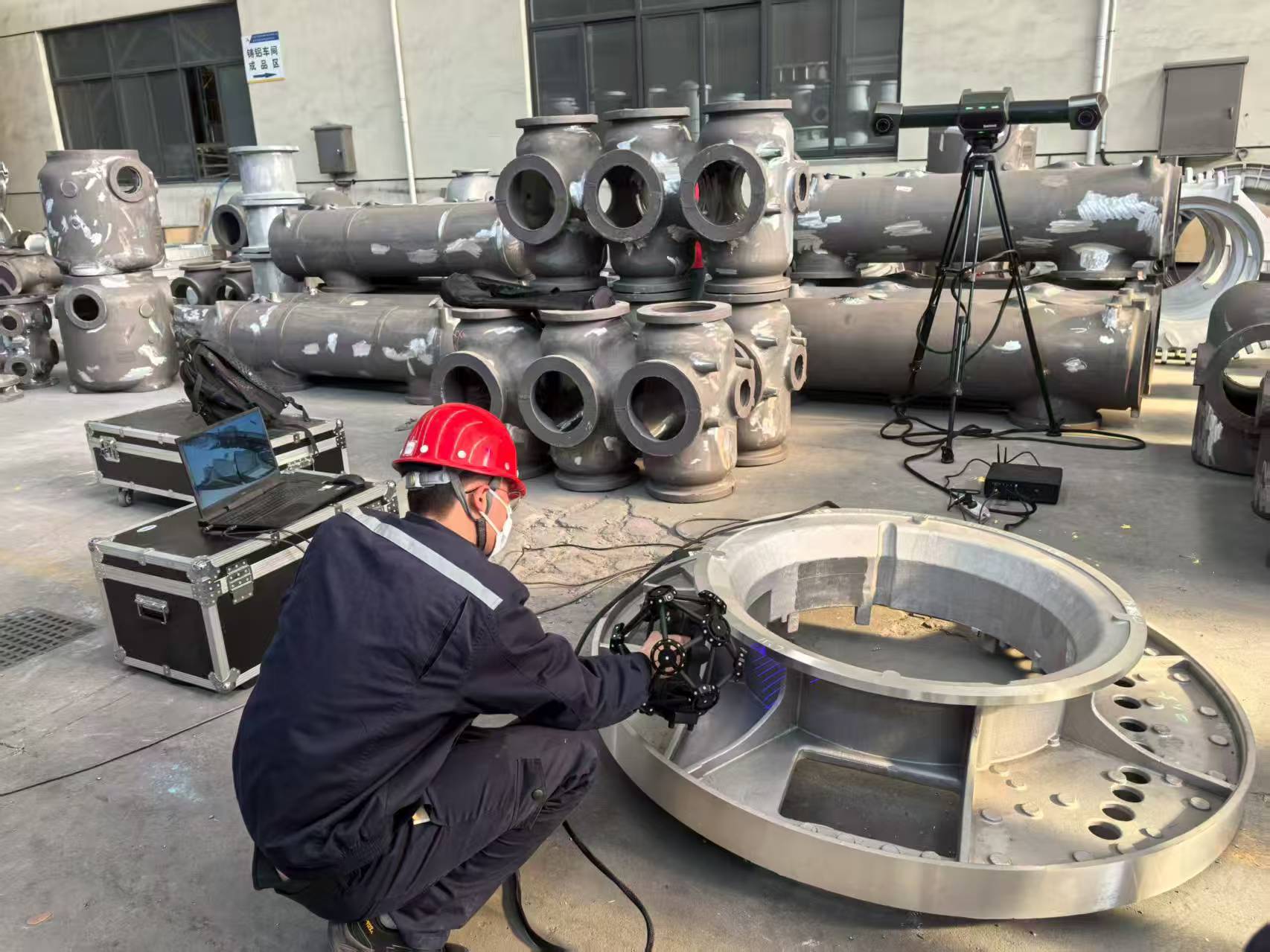

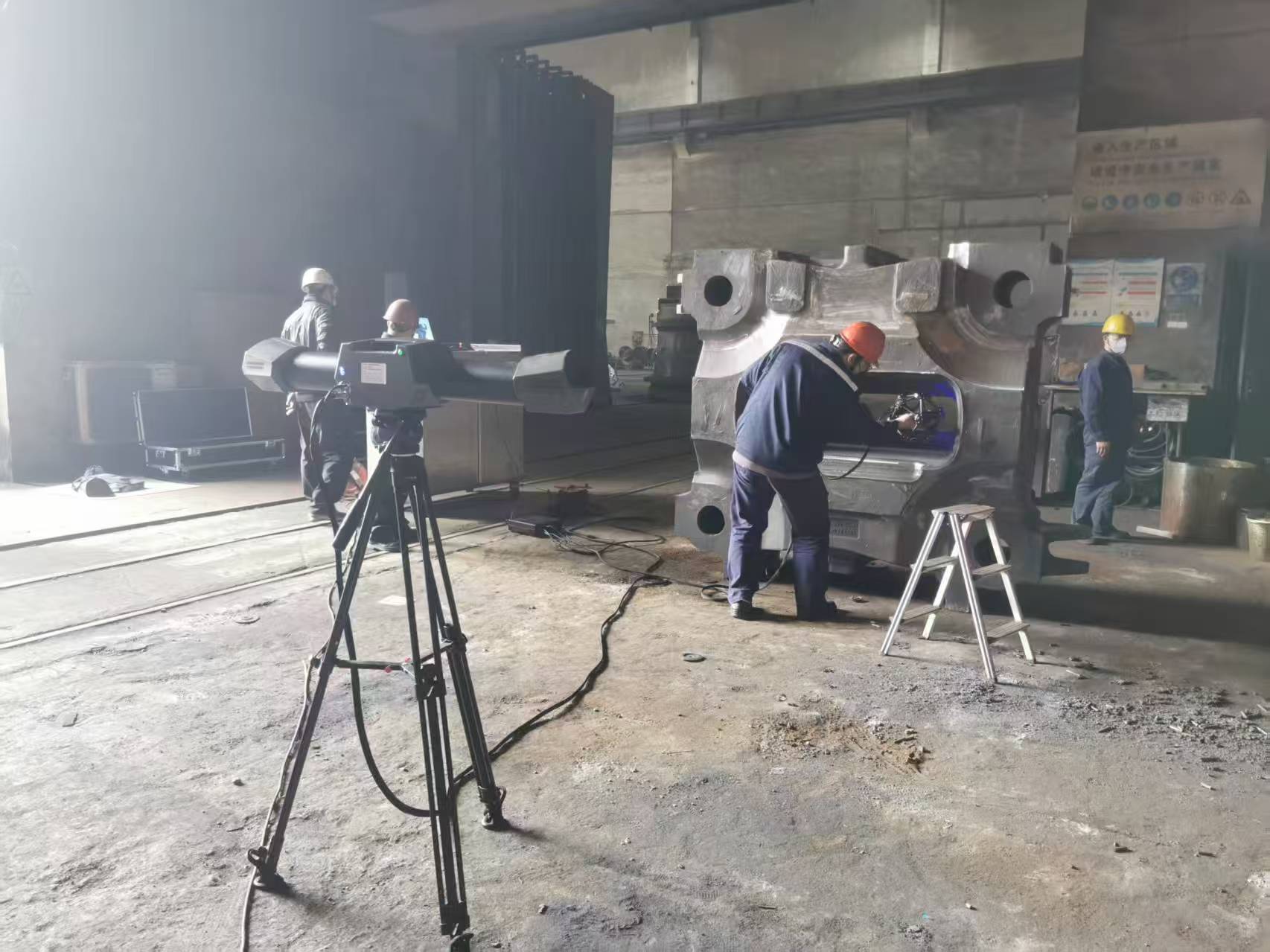

The system allows for seamless switching between tracking scanning and standalone scanning. Tracking scanning can be used for larger workpieces, while standalone scanning can be used for smaller workpieces or in situations unsuitable for tracking scanning.
Applications
This scanner can be used to achieve metrology-level precision inspection, reverse design, additive manufacturing, and other applications in many manufacturing sectors, including the automotive industries, aerospace, rail transportation, heavy industries, mold manufacturing, casting and foundry and medical industries.
