Production Introduction
Engraving machine is a form of computer controlled machining. Similar in operation to drilling and cutting, it is able to create various hole styles and shapes by using a rotating cutting tool to bore into the object.
Suitable for watch and tablet computer shell, electronic cigarette products, wireless headset accessories and other product equipment.

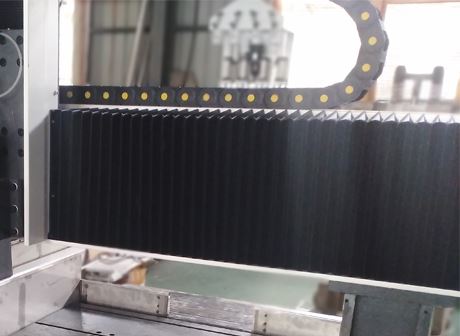

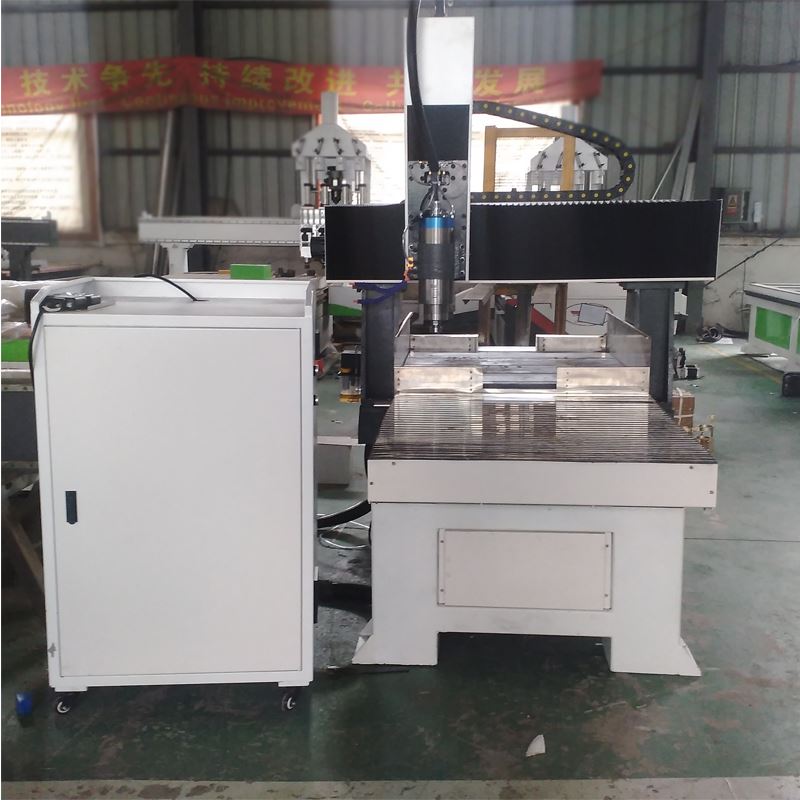

Product details
|
|
|
|
Standard features:

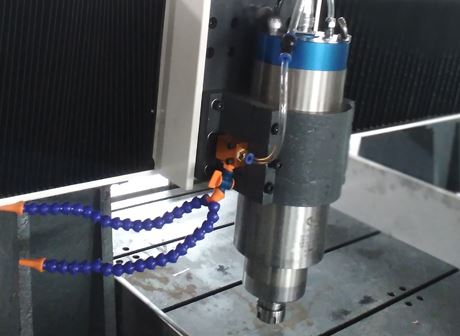

1. Cooling system: Oil circulating oil cooler for spindle, cooling workpieces with water or oil in the tank or saponification
liquid through or spray nozzle

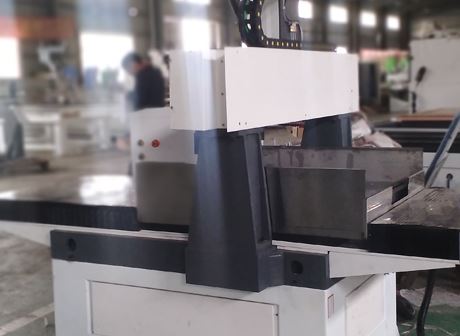

2. Gantry structure: The double column is whole part, greatly increase machine rigidity.
3. Quality assurance: Each device before leaving the factory, we will test the cue with laser interferometer
4. SYNTEC control system: from Taiwan with high performance and competitive price
5. Servo motor and drives: from Japan with high precision and long life
6. HIWIN linear guide: made from Taiwan,used for linear reciprocating stadium
8. Main axle:5.5kw high precision variable frequency main axle turns machining into a kind of artistic model.
Application:
Processing material: Steel, iron, copper, aluminum, glass, wood and other materials
Option parts:
1.The working range can be customized as per your requests;
2.Control system: Weihong(Syntec or FAGOR) or as your request
3.Can be 3 axis and 4 axis or 5 axis universal.
4.Different linear guide, precision ball screw, servo motor, system components as your request
Production Parameters
| Items | Specifications |
| spindle speed | 0-24000rpm |
| Positioning Accuracy (mm) | 0.02mm |
| Working Table Size(mm) | 400*400mm |
| Repeatability (X/Y/Z) (mm) | 0.0125mm |
| Spindle Motor Power(kW) | 1.5kw metal spindle |
| Control System Brand | NC Studio, Mach3, DSP |
| Driver | YAKO SERVO DRIVER |
| Weight (KG) | 800kgs |

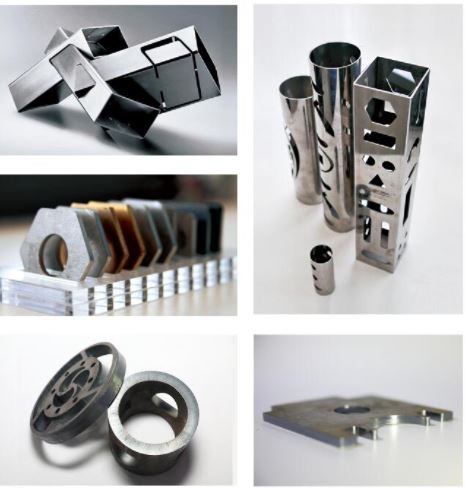

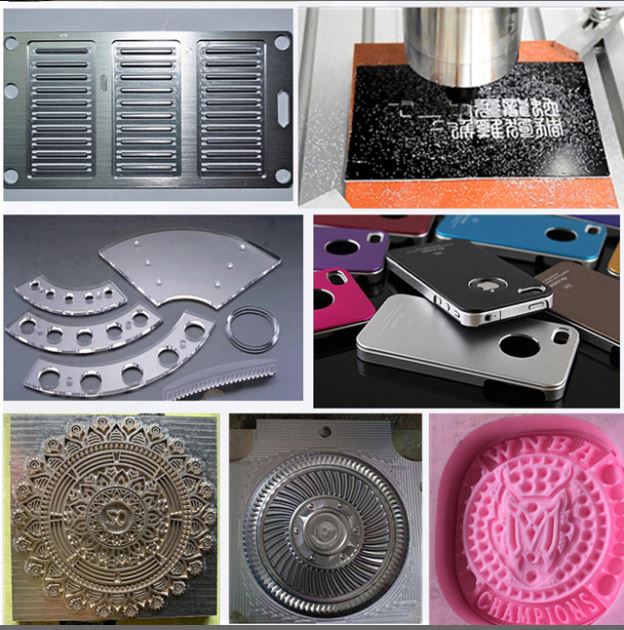

Sample
Package&shipping
Acrylic Engraving Machine wood case package：Export special wooden case, make the machine safer in transportation, do not wear out

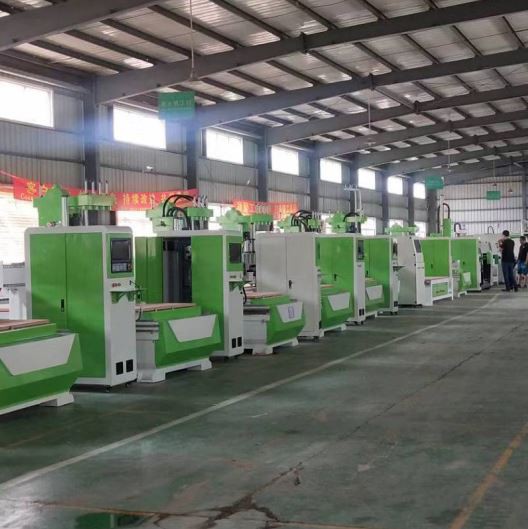

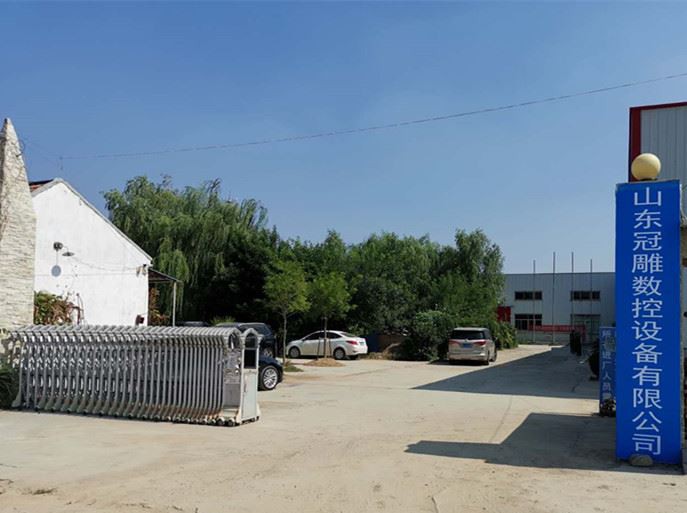

Company
|
|
|
|
After-sales service
1. fiber laser cutting machine 3 years warranty except consumable parts;
2. Plenty of technical support online is available;
3. Quick Back-up Parts Available&Technical Assistance;
4. "Training Video","Instruction Book",and"Operation Manual"will be offered;
