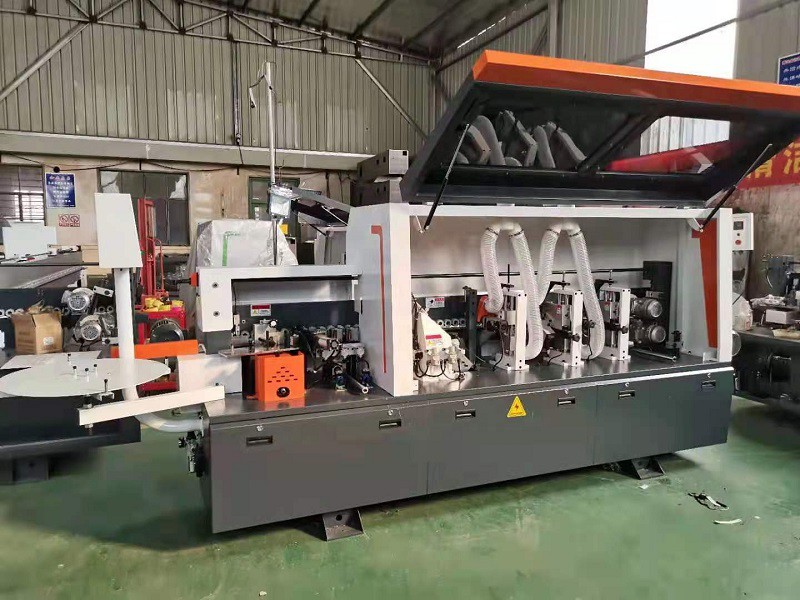

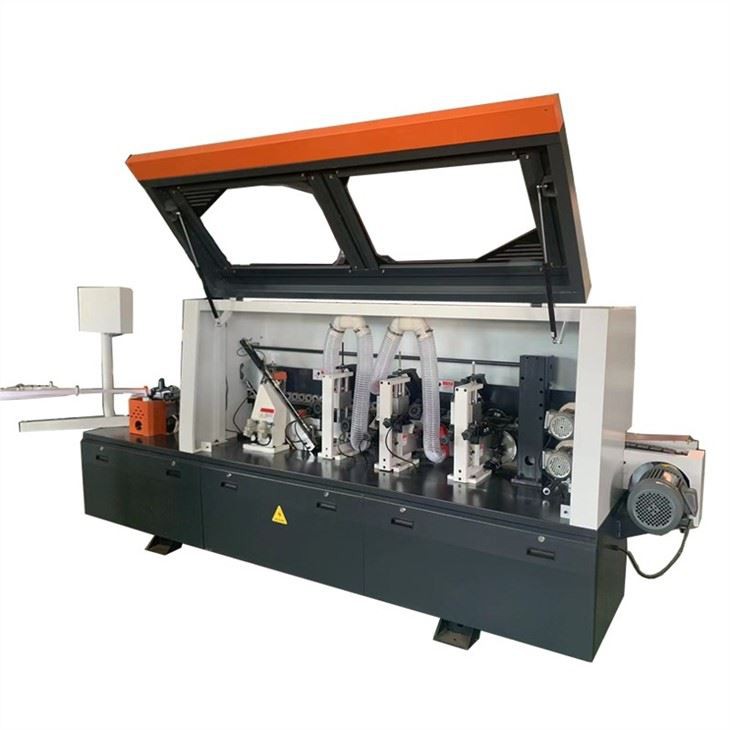

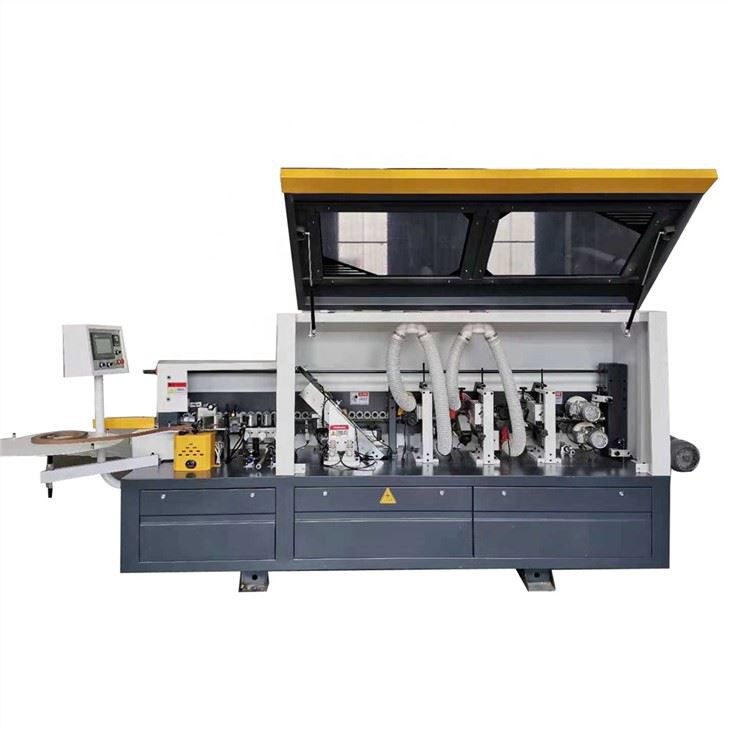

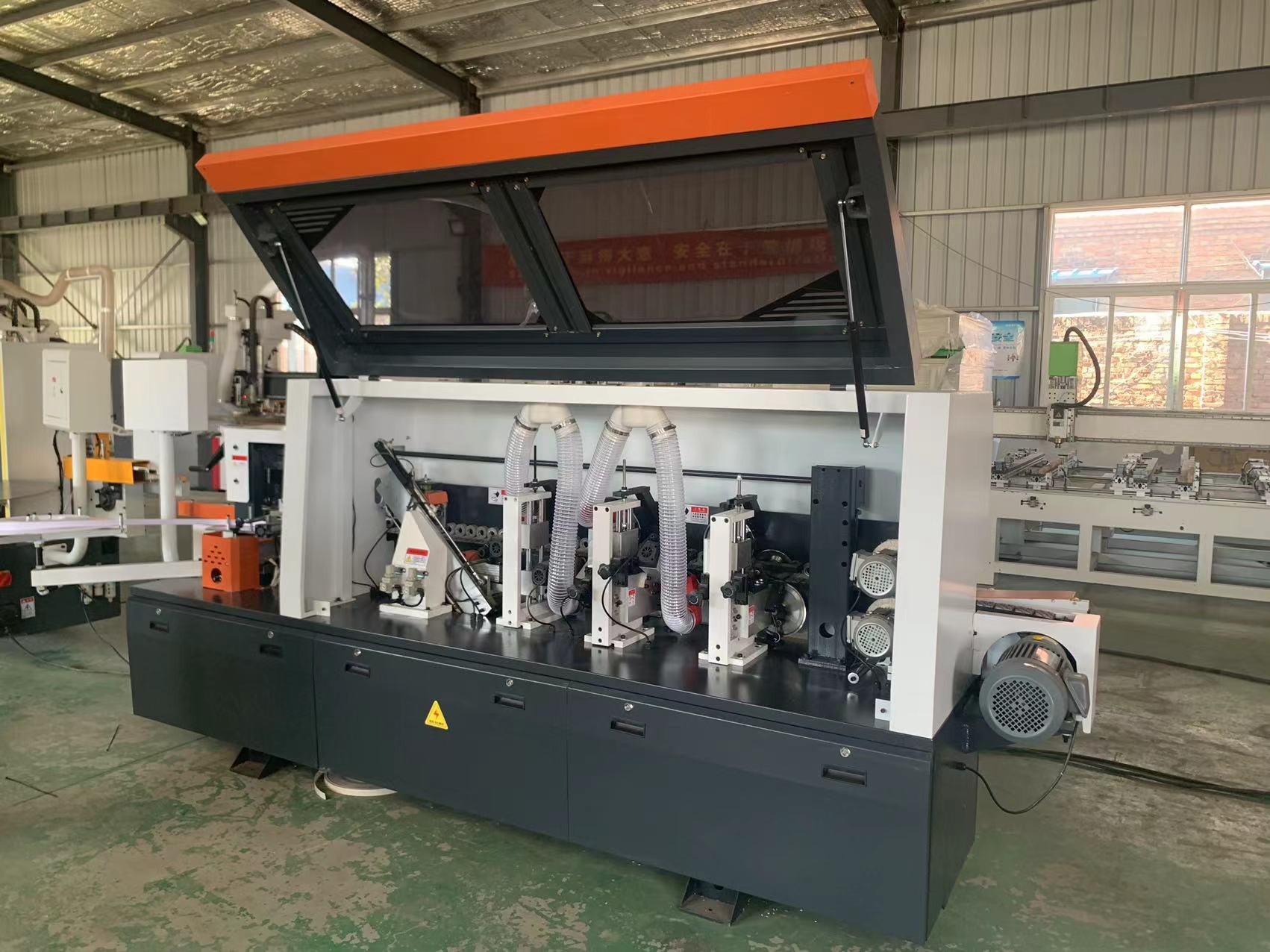

Automatic edge bander machine
Product Description
Machine Features
2.Have good shape,reasonable layout,has sound arrester,dust collector and overload protection
3.The main parts of the machine adopt steel plate by laser cutting,one time welded together,the body is firm and undeformed.
4.Can increase or decrease component structure according to actual demand.
Technical Parameter
|
MODEL
|
MFG-B62
|
MFG-B621
|
MFG-B642
|
MFG-B6421 (HOT SALE)
|
|
6 BASE STAGE
|
GLUING WITH PRESSING, EDGE CUTTING, ROUGH TRIMMING, FINE TRIMMING,SCRAPPING,BUFFING
|
|||
|
PER MILLING
|
NO
|
YES
|
NO
|
YES
|
|
CORNER ROUNDING
|
NO
|
NO
|
YES
|
YES
|
|
TOUCH SCREEN
|
DETAL BRAND
|
DETAL BRAND
|
DETAL BRAND
|
DETAL BRAND
|
|
PLC
|
DETAL BRAND
|
DETAL BRAND
|
DETAL BRAND
|
DETAL BRAND
|
|
PANEL THICKNESS
|
8-60MM
|
8-60MM
|
8-60MM
|
8-60MM
|
|
MIN WORKING WIDTH
|
≥45mm
|
≥45mm
|
≥45mm
|
≥45mm
|
|
MIN WORKING LENGTH
|
≥70mm
|
≥70mm
|
≥70mm
|
≥70mm
|
|
EDGE BANDER THICKNESS
|
0.3-3MM
|
0.3-3MM
|
0.3-3MM
|
0.3-3MM
|
|
VOLTAGE
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
|
WORKING AIR PRESSURE
|
0.6MPA
|
0.6MPA
|
0.6MPA
|
0.6MPA
|
|
MACHINE SIZE
|
3600*900*1600MM
|
4700*900*1600MM
|
5200*900*1600MM
|
6000*900*1600MM
|
|
FEEDER SPEED
|
10-24M/MIN
|
10-24M/MIN
|
10-24M/MIN
|
10-24M/MIN
|
|
TOTAL POWER
|
10.2KW
|
14.2KW
|
13.2KW
|
17.2KW
|
|
WEIGHT
|
1600KG
|
2000KG
|
2000KG
|
2300KG
|
|
MIN EDGE BANDING THICKNESS
|
45MM
|
45MM
|
45MM
|
45MM
|

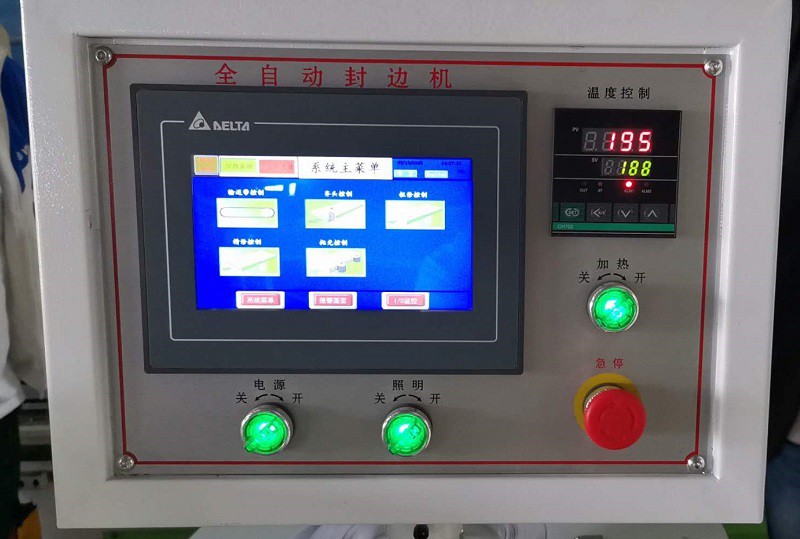

Delta control cabinet

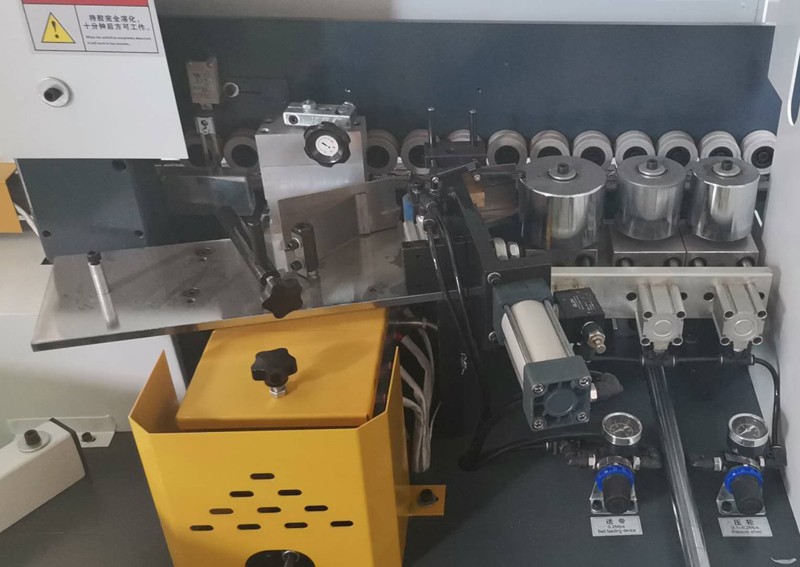

Gluing and pressing

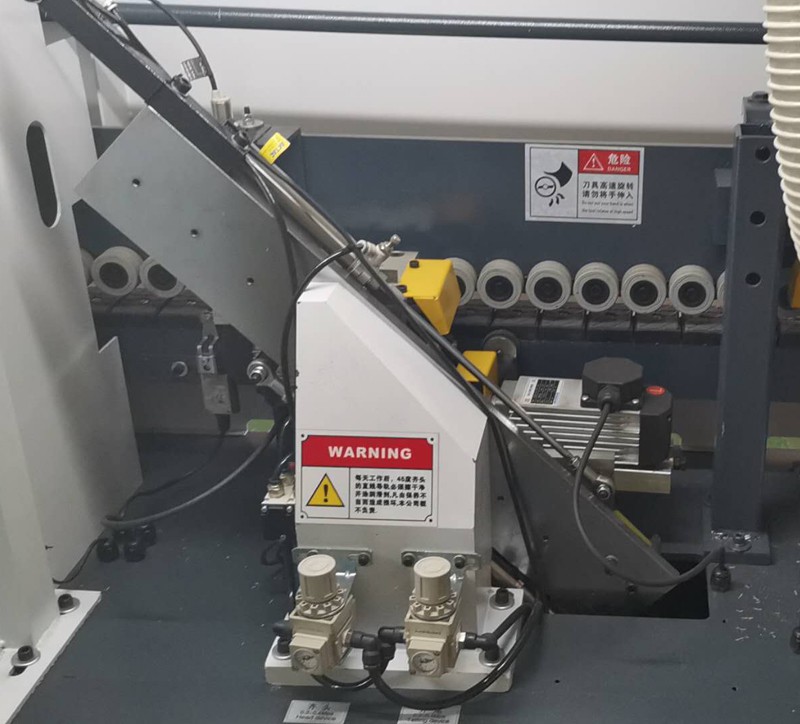

End cutting

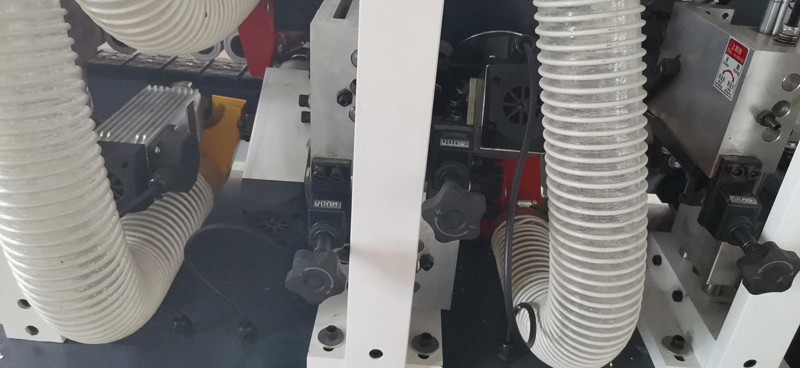

Rough and fine triming

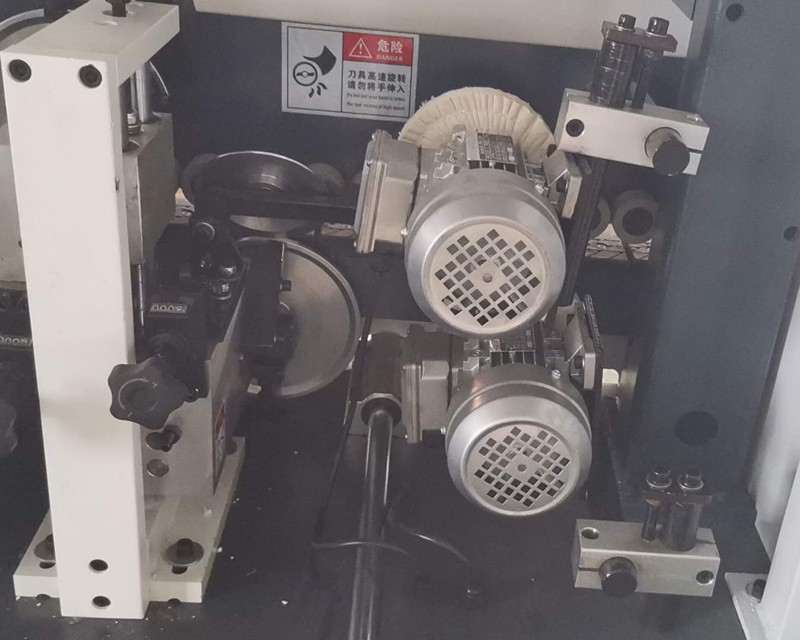

Scraping and Buffing / Polishing
Application

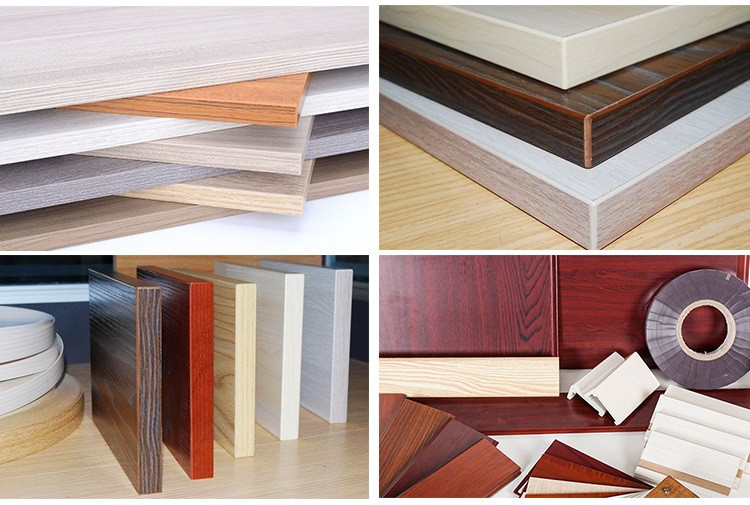

Automatic edge bander machine is used to cover the exposed sides of materials such as plywood, particle board or MDF, giving the appearance of a solid (or more valuable) material. Can also be used instead of features such as face frames or molding.
Packing & Shipping

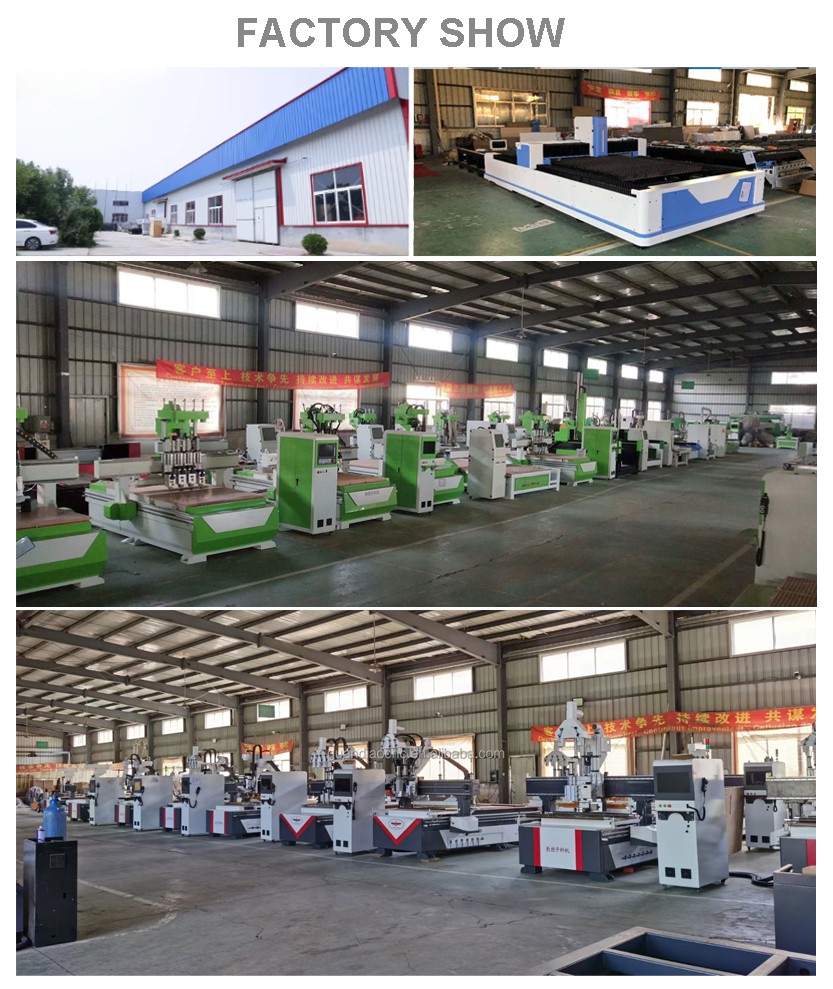

Our Company
