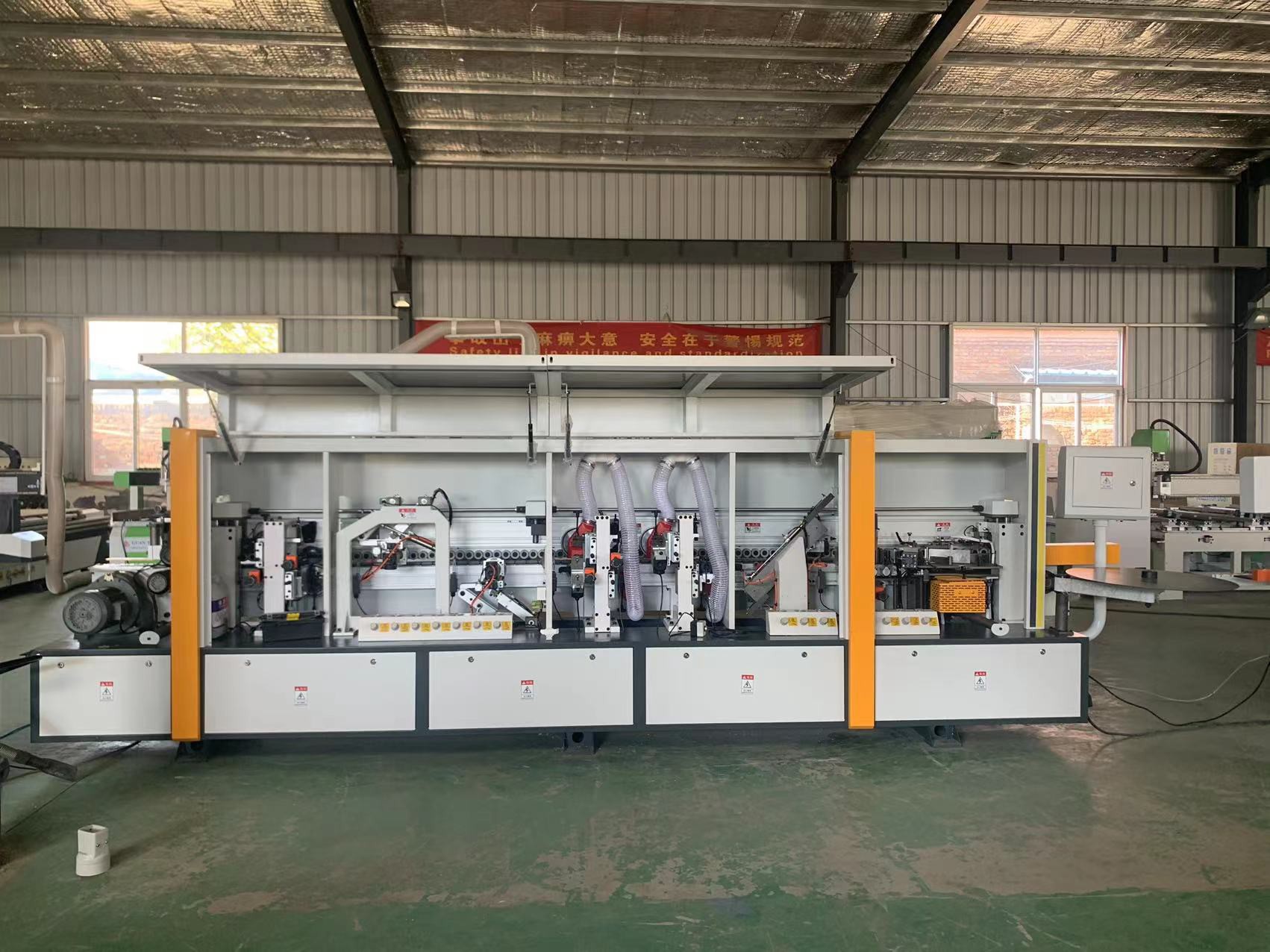

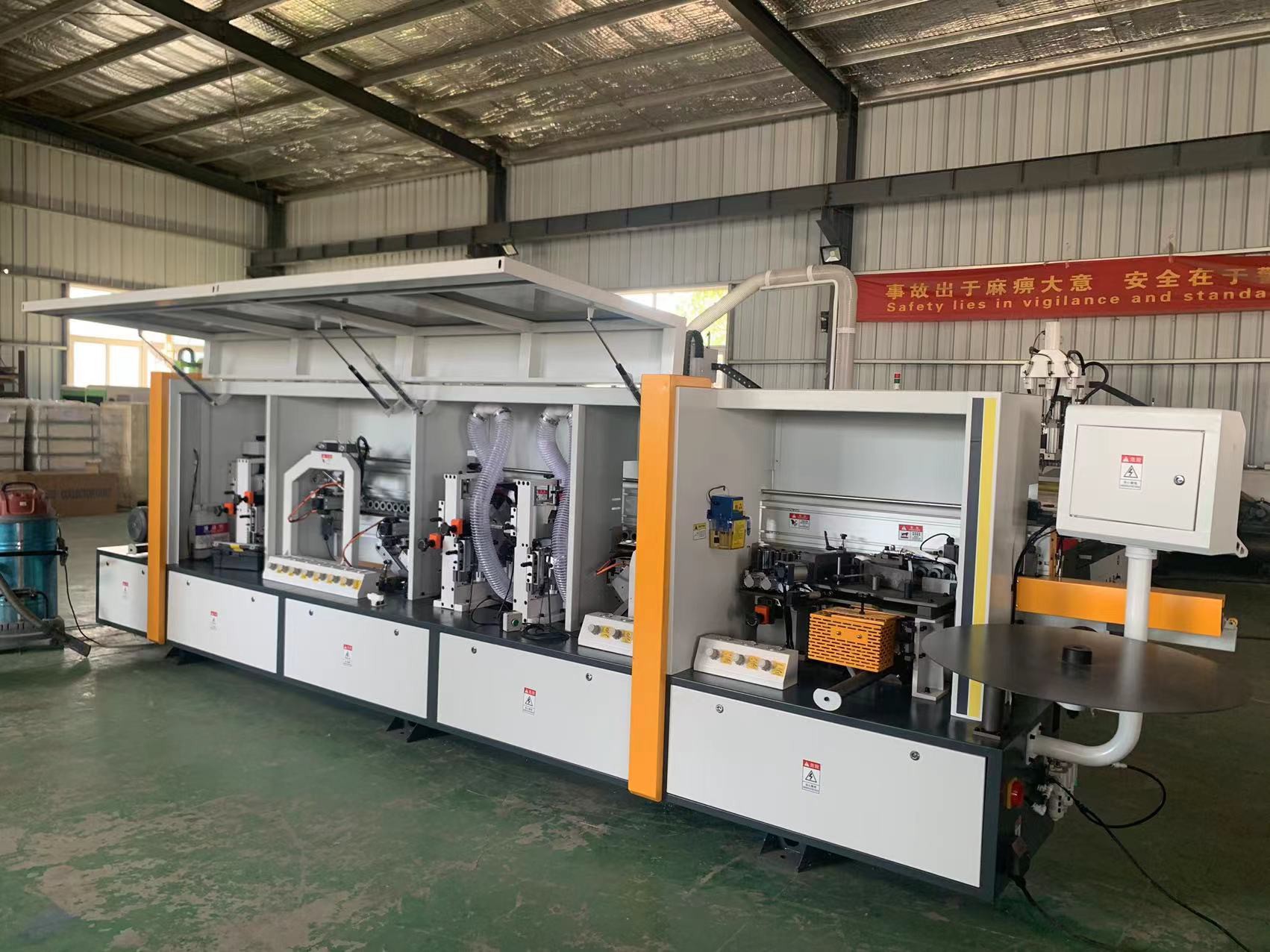

Edge banding machinery
Product Description
Machine Features
The Edge Banding Machinery is suitable for linear edge banding and trimming of medium density fiberboard, blockboard, solid wood board, particle board, polymer door panel, plywood, etc. It can have double-sided glued edge banding, cutting edge banding and bonding , Flush, chamfer, rough, fine Features such as scraping and polishing, the edges are delicate, smooth, feel good, and the sealing line is straight and smooth. The equipment is stable, reliable, durable, and affordable. It is especially suitable for large and medium-sized furniture, cabinets and other panel furniture manufacturers.
Technical Parameter
|
Banding tape thickness |
0.4-3mm |
|
Banding tape width |
12-65mm |
|
Work piece thickness |
10-60mm |
|
Work piece length |
≥100mm |
|
Work piece width |
≥50mm |
|
Heating power |
1.8kw |
|
Feeding motor power |
3.7kw |
|
Pre-milling motor power |
2.2kw*2 |
|
Glue spreading motor power |
0.75kw |
|
End trimming motor power |
0.5kw*2 |
|
Rough trimming motor power |
0.75kw*2 |
|
Fine trimming motor power |
0.75kw*2 |
|
Corner rounding motor power |
0.5kw*2 |
|
Polishing motor power |
0.37kw*2 |
|
Feeding speed |
10-23m/min |
|
Air pressure |
0.8 Mpa |
|
Overall dimension |
6700*850*1520mm |
|
Packing size |
6730*880*1580mm |
|
N.W. |
2800kgs |
|
G.W. |
2950kgs |
Machine Details

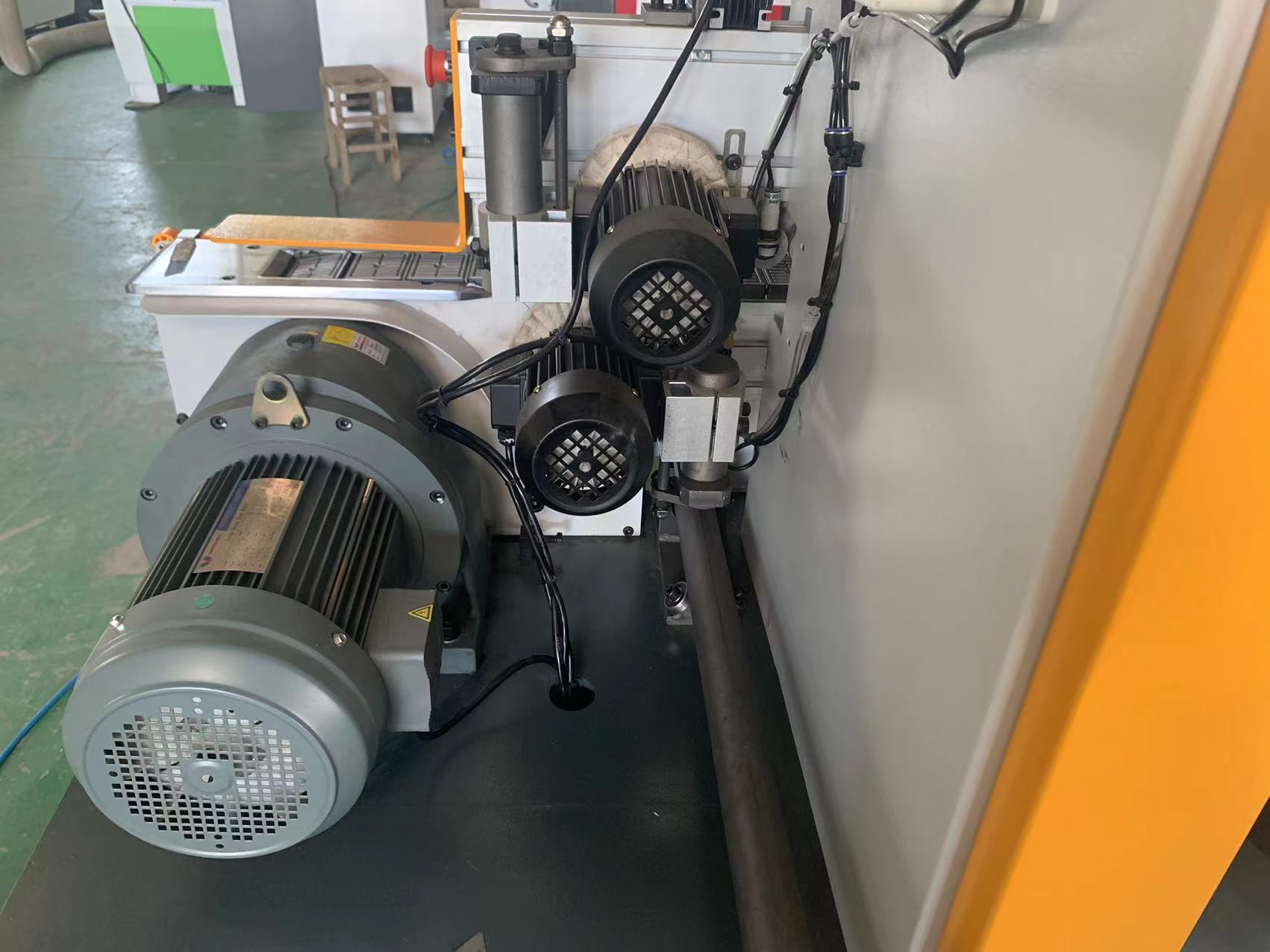

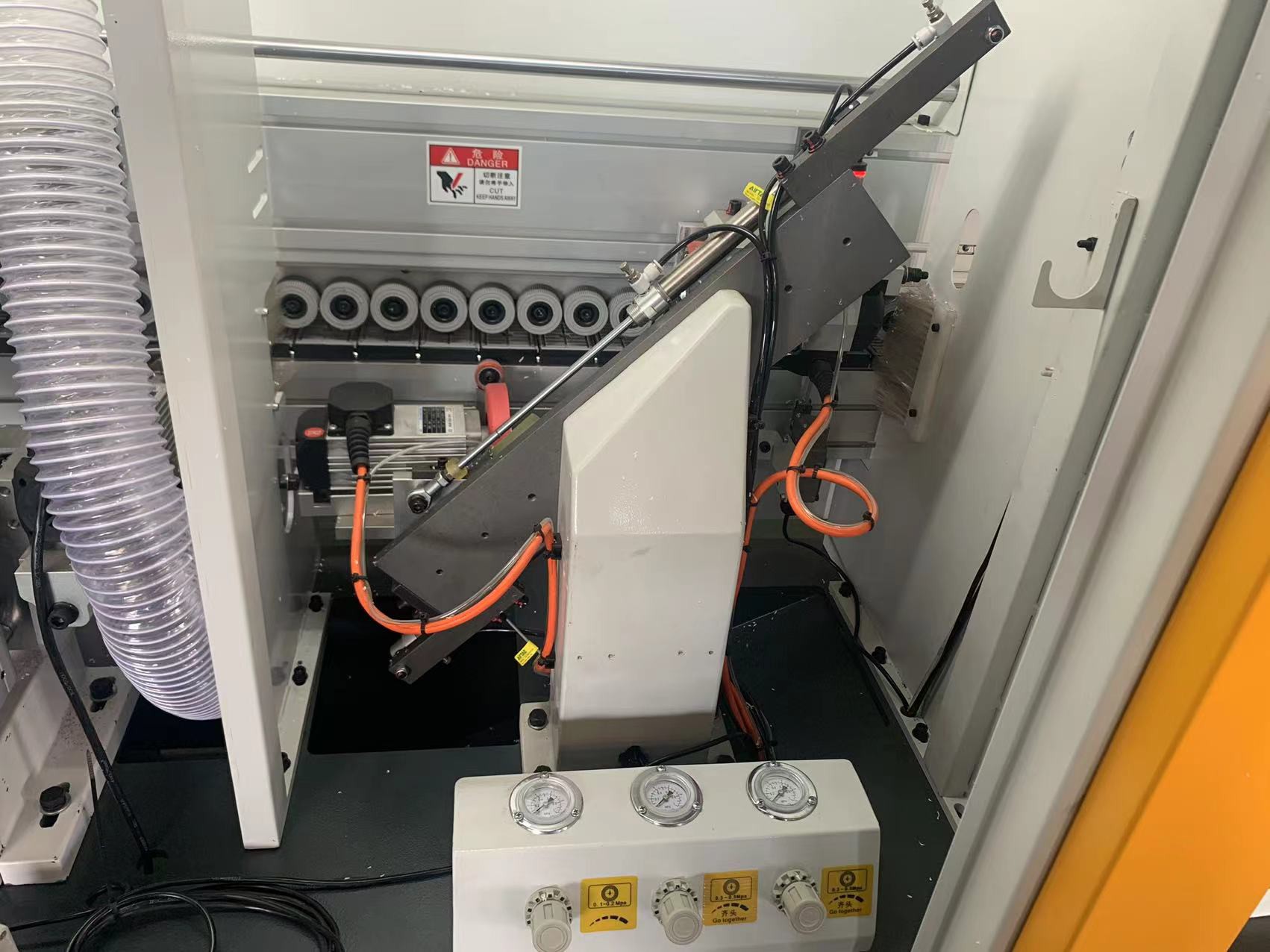

Gluing and pressing End cutting

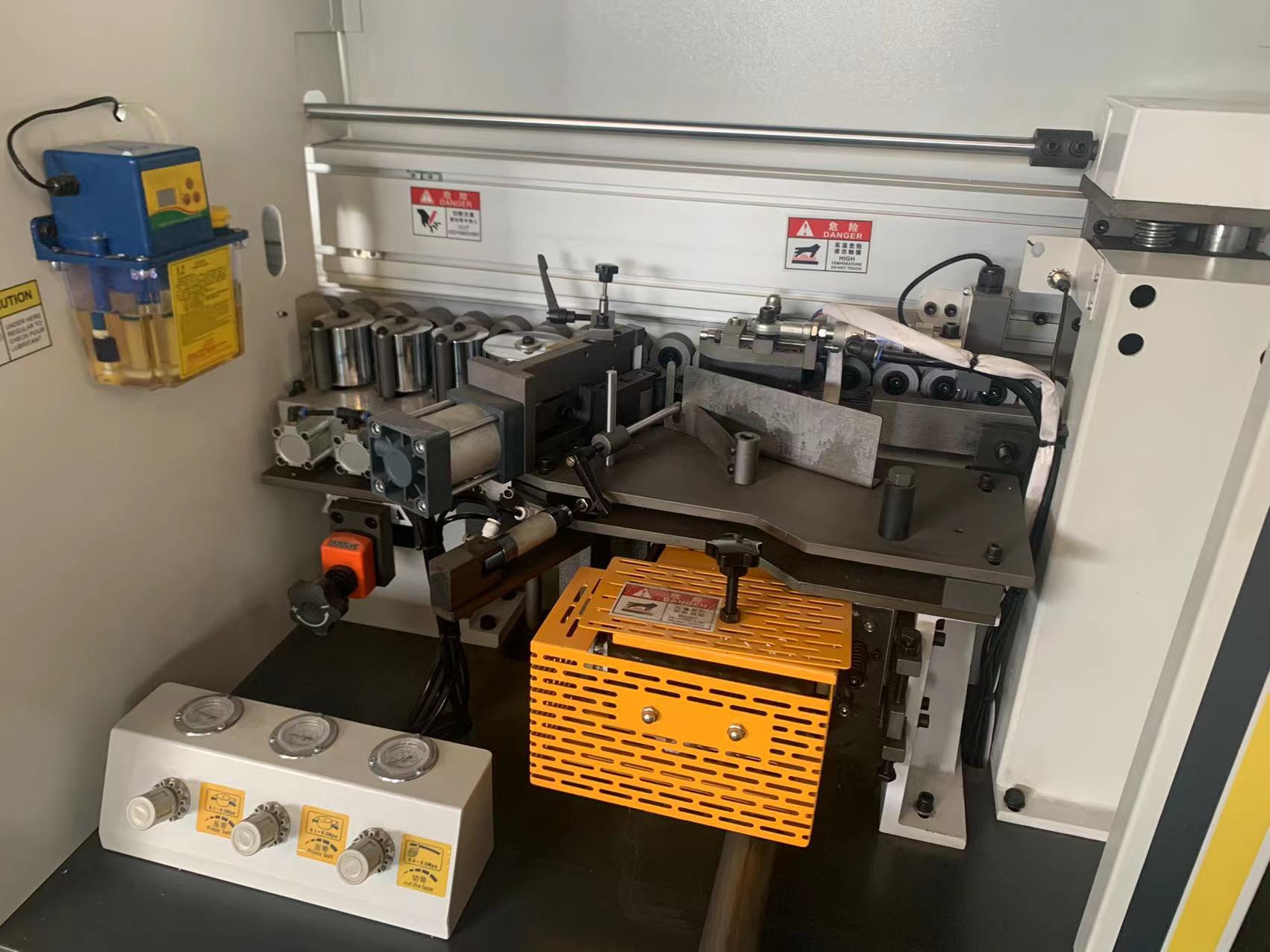

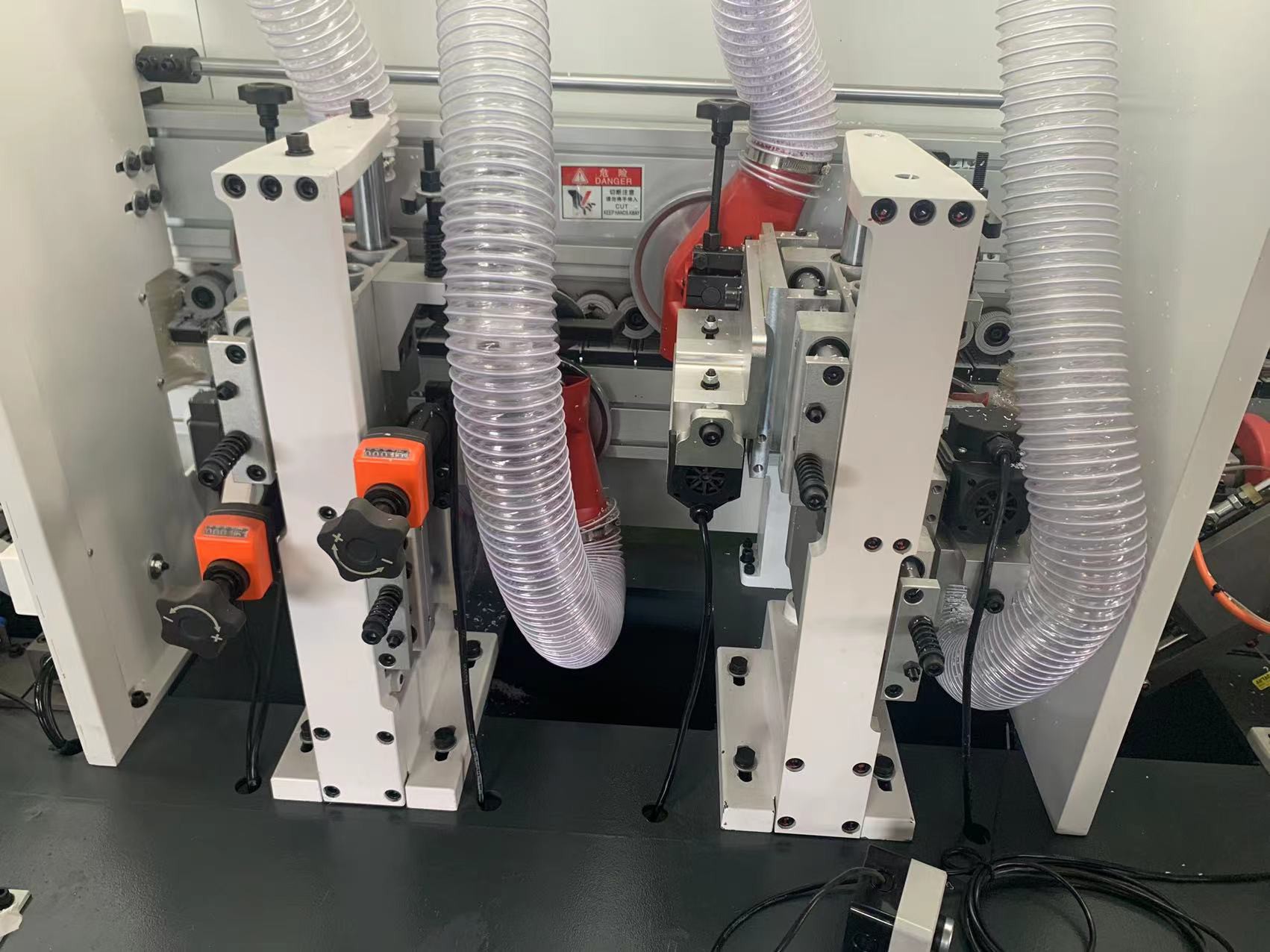

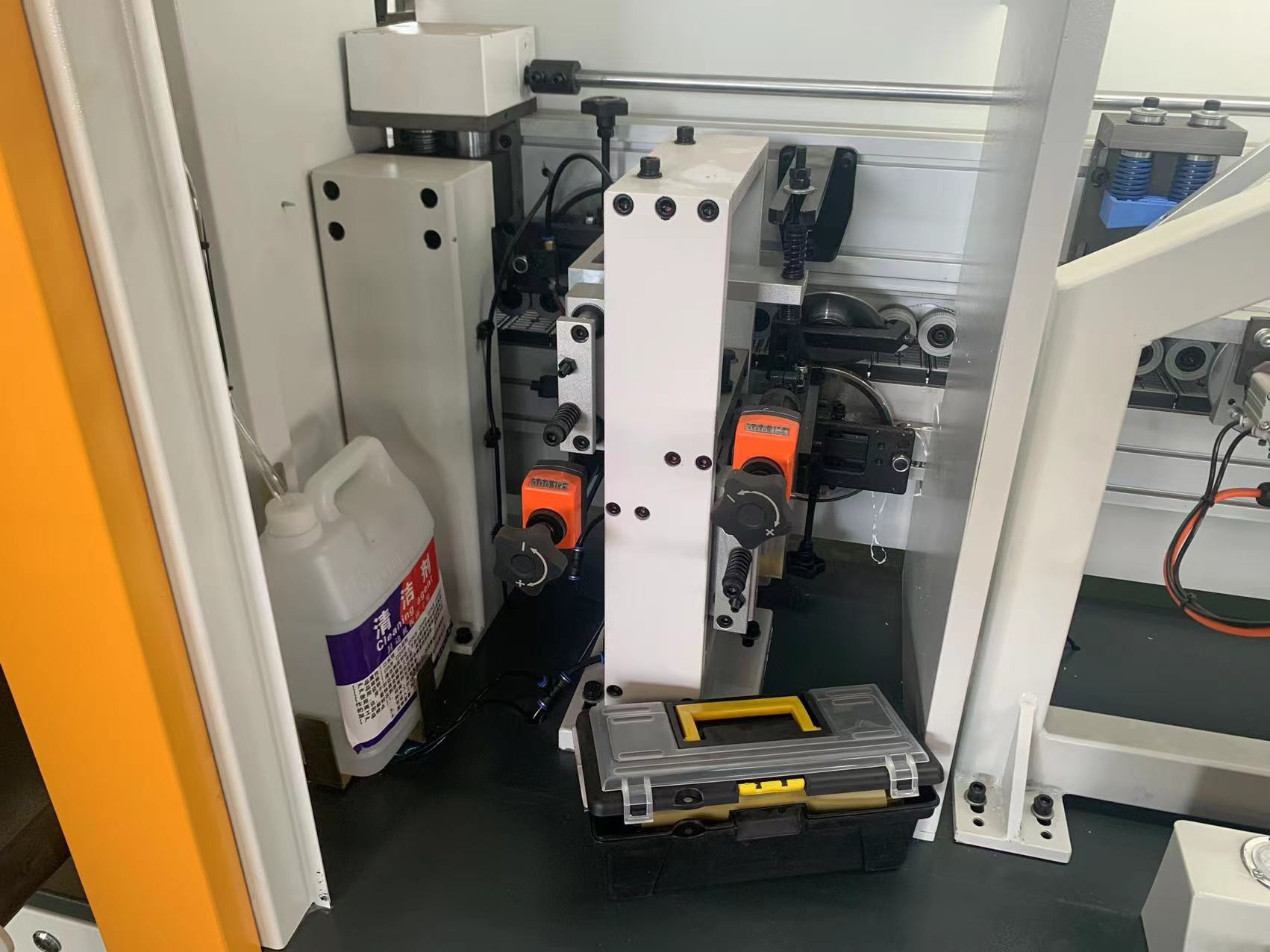

Rough and fine triming Corner triming

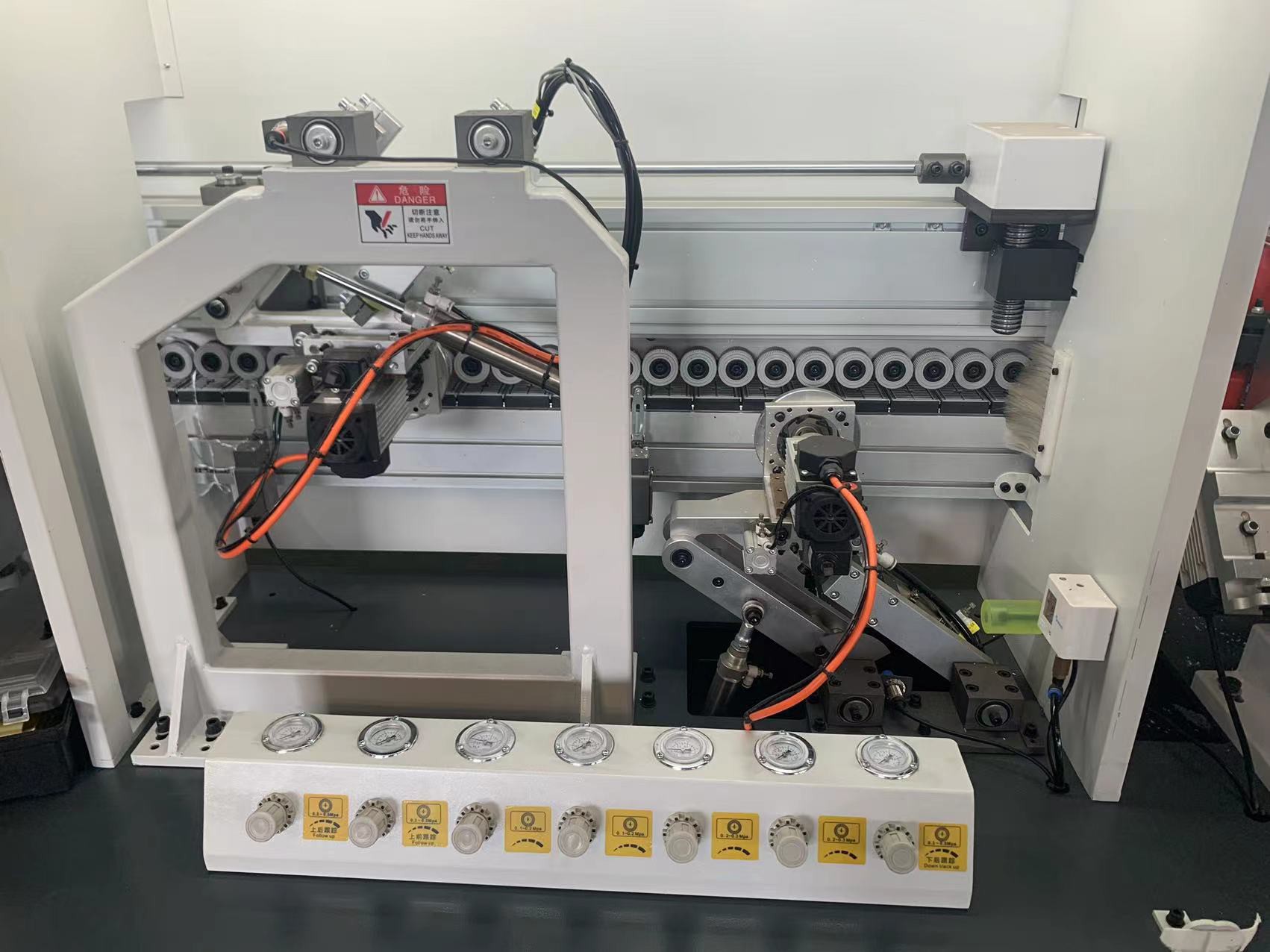

Scraping Buffing / Polishing
Application
Packing & Shipping

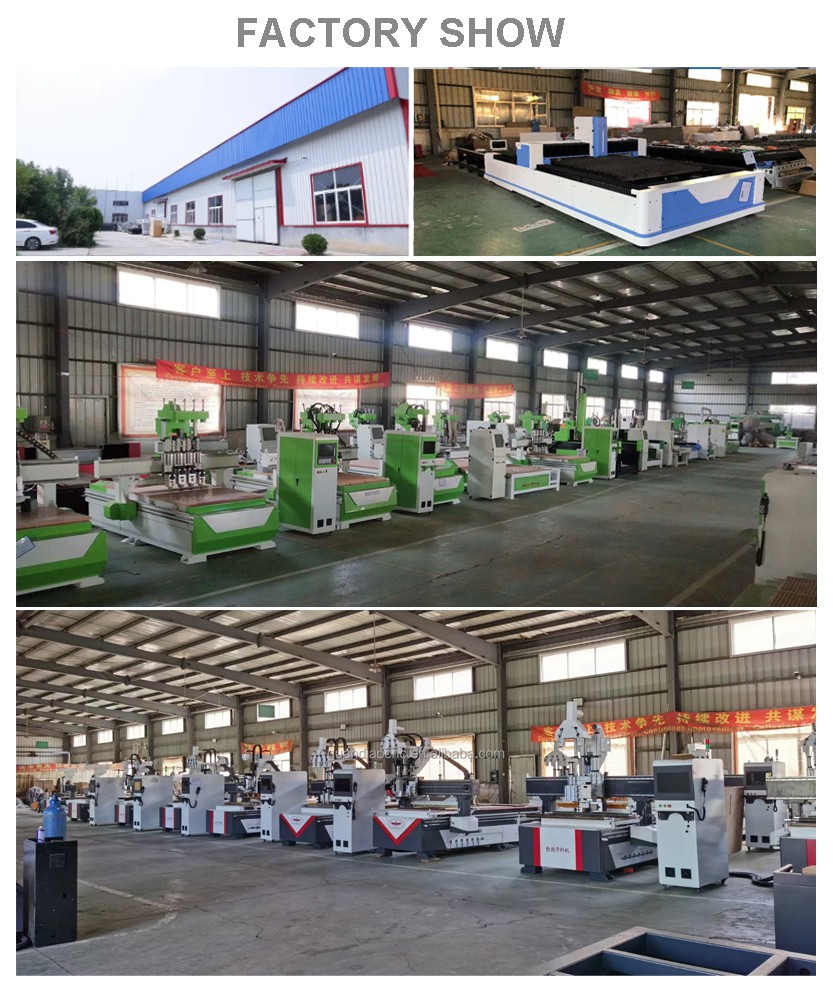

Our Company
Shandong Guandiao CNC Equipment Co.,Ltd is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world. GUANDIAO was established in 2009 with two manufacturing centers in Jinan and Qingdao, covering about 40,000 square meter.
