Product Description
Model | GD-1325A/GD-1325B | |||
XY working area | 1300*2500mm(working area can be customized according to your needs) | |||
Z axis | 200mm-300mm（option） | |||
Max Cutting Speed | 70m/min | |||
Transmission system | XY axis: Germany Herion 1.5MRack and Pinion Z: Germany TBI Ball Screw | |||
Guide rail | Taiwan Hiwin 25mm Linear rail | |||
Working Table | T slot Vacuum table 6 And T clamp combination | |||
Spindle | 9.0kw ATC air cooling spindle | |||
Control system | Taiwan jinke control system | |||
Drive system | Japan YASKAWA servo motor and driver | |||
Air pump | 7.5KW | |||
Dust collector | 4KW,double bags | |||
Inverter | HPMANT 11KW | |||
Spindle Speed | 0-24000rpm/min | |||
Max. Rapid Travel Rate | 45000mm/min | |||
Max. Working Speed | 30000mm/min | |||
Command | G-code | |||

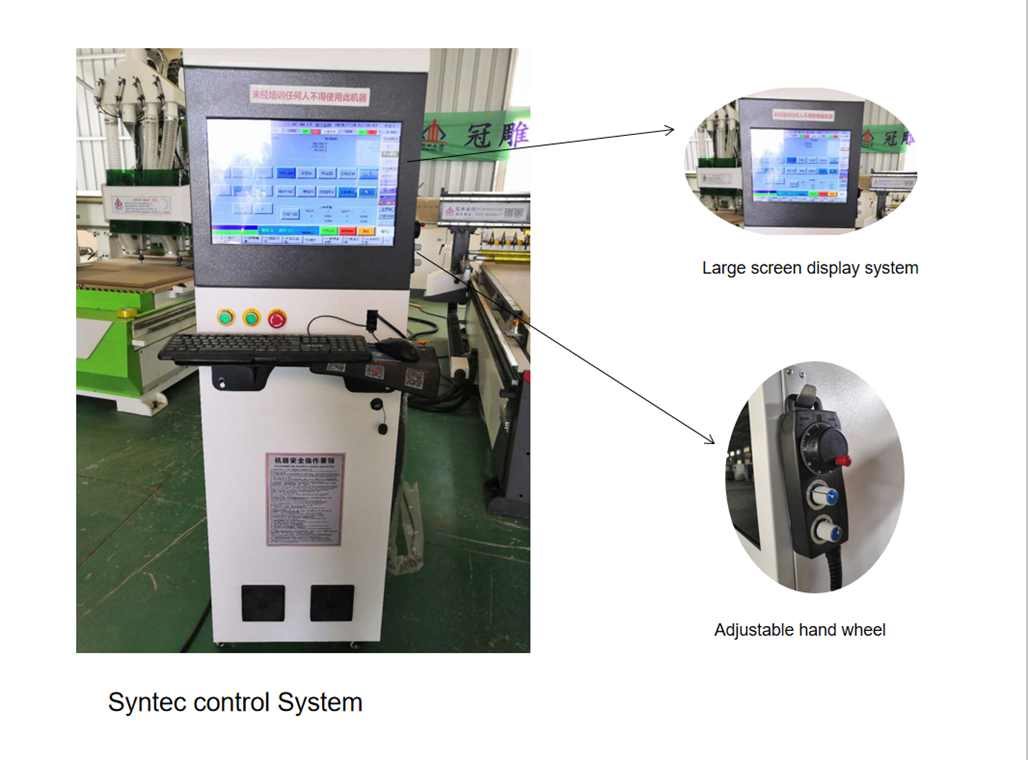

Taiwan Jinke system supports five languages: English, simplified Chinese, traditional Chinese, Vietnamese and Japanese

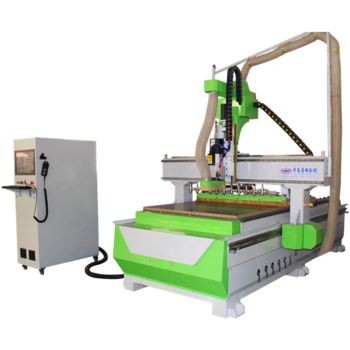

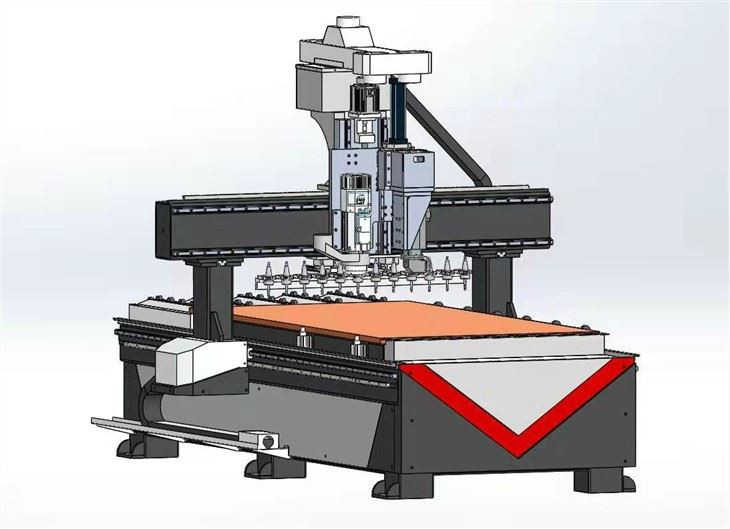

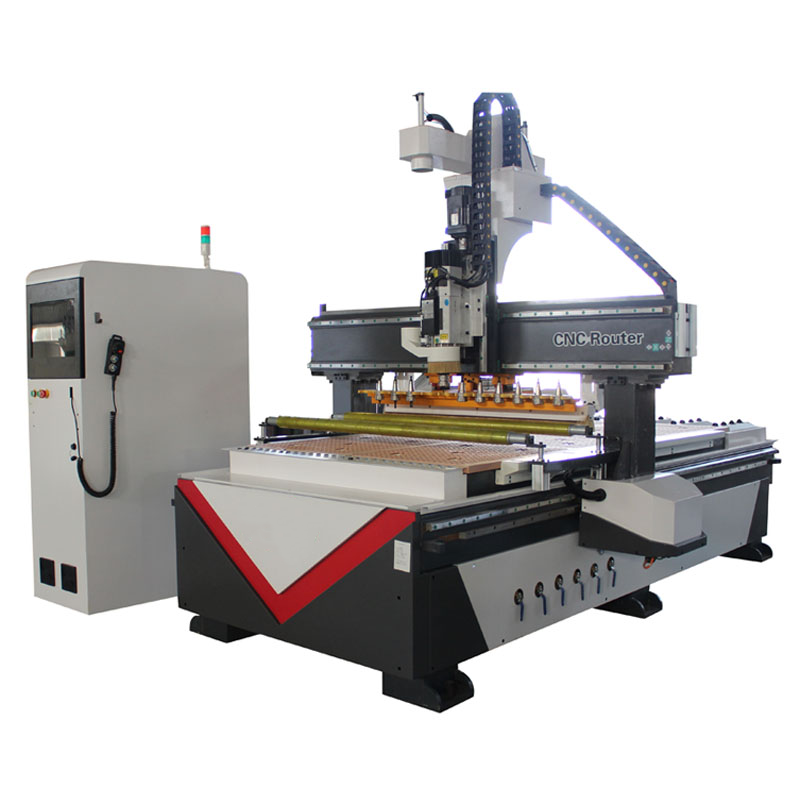

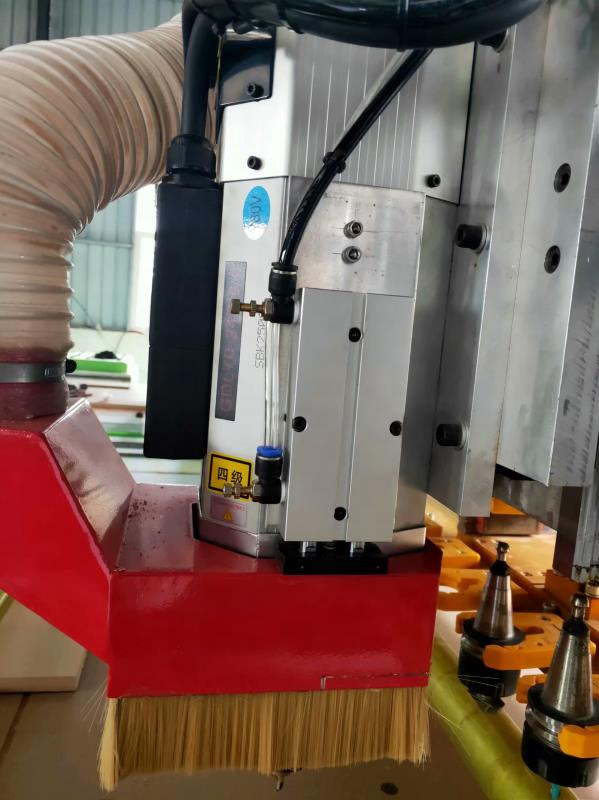

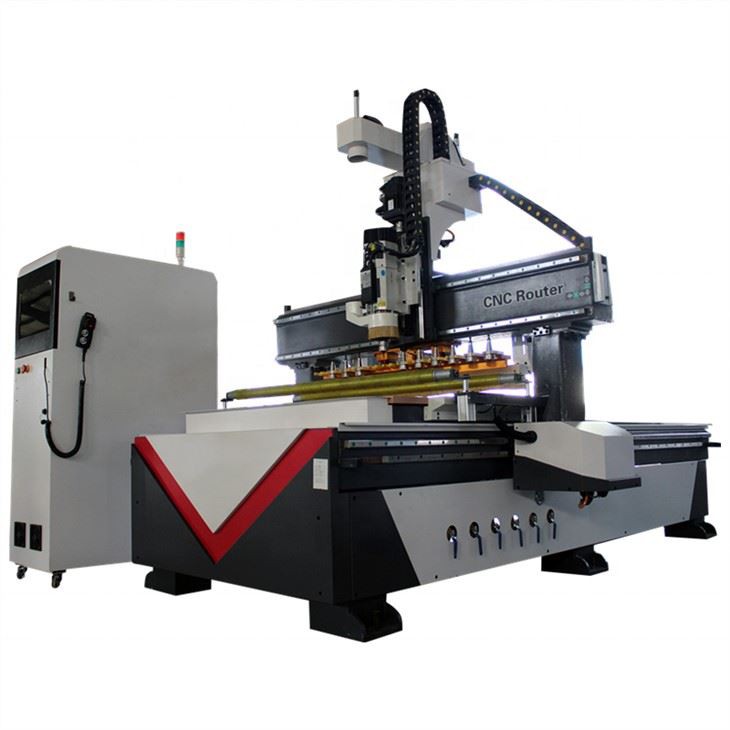

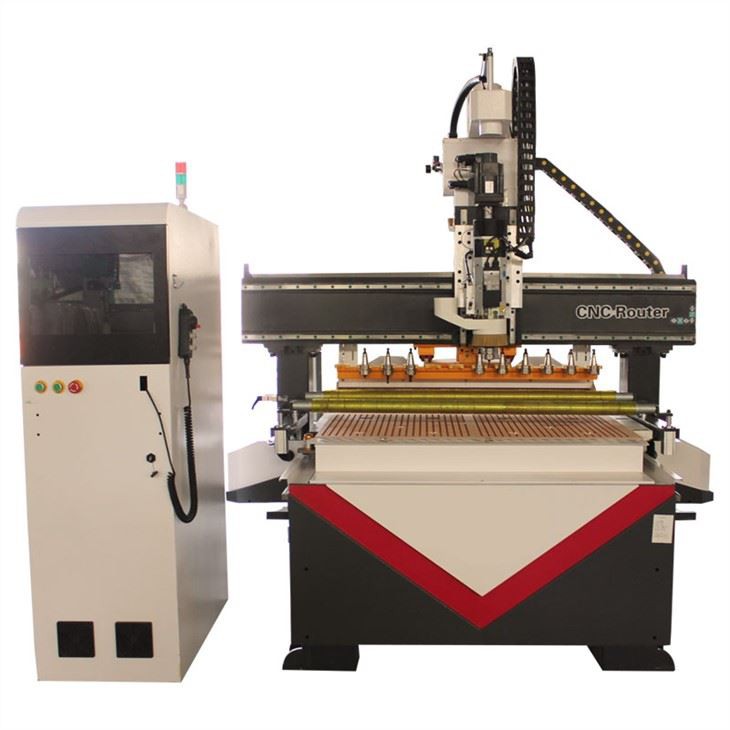

This atc cnc router machine adopt automatic tool changer 9KW HQD spindle makes machine with high precision, long service time and stable movement.

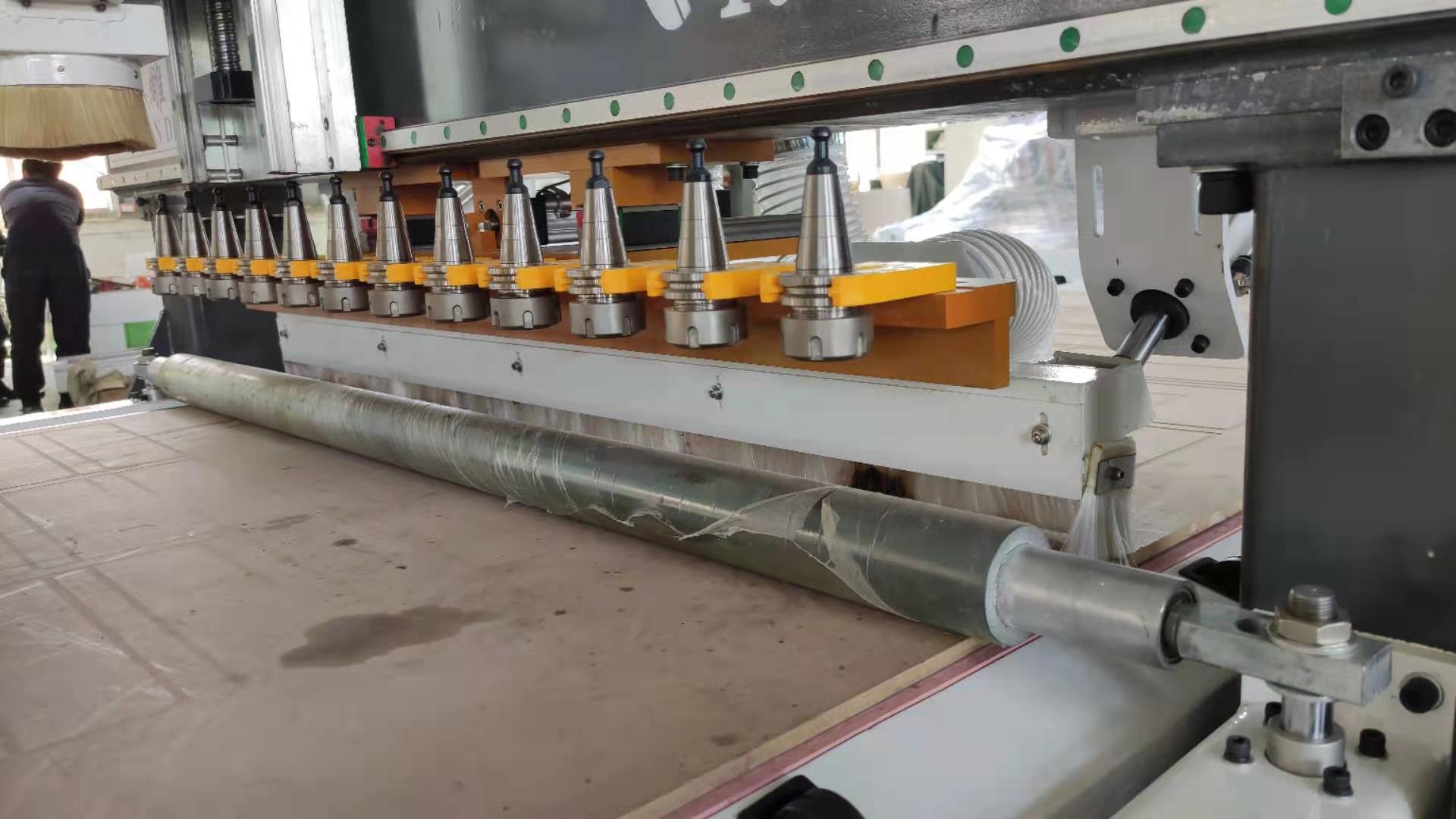

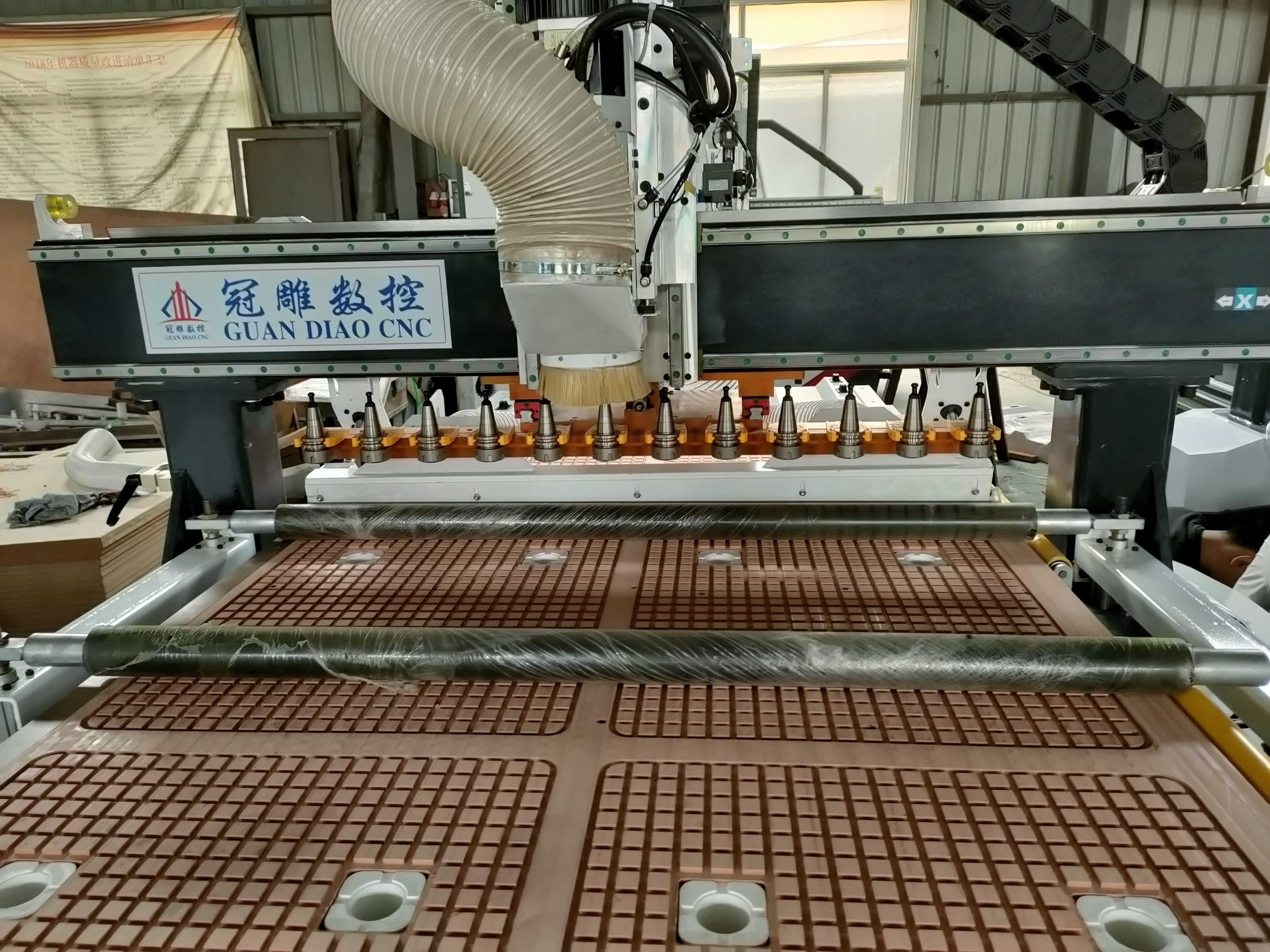

Configured with Linear tool magazine of 10, 12 tools the machine can change tools speedy and freely. Changing tools in 5 seconds.
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
