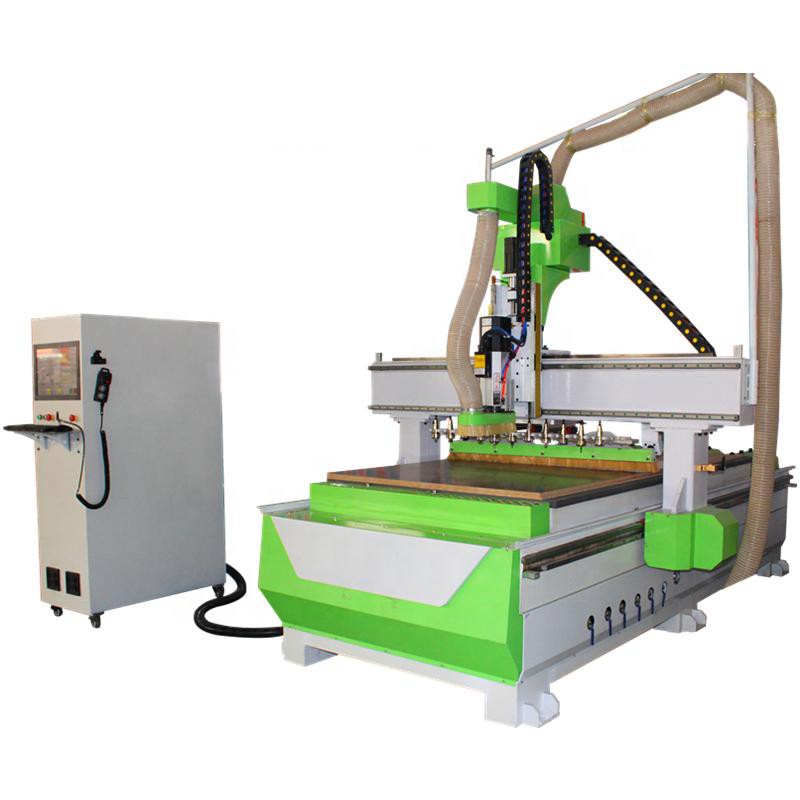

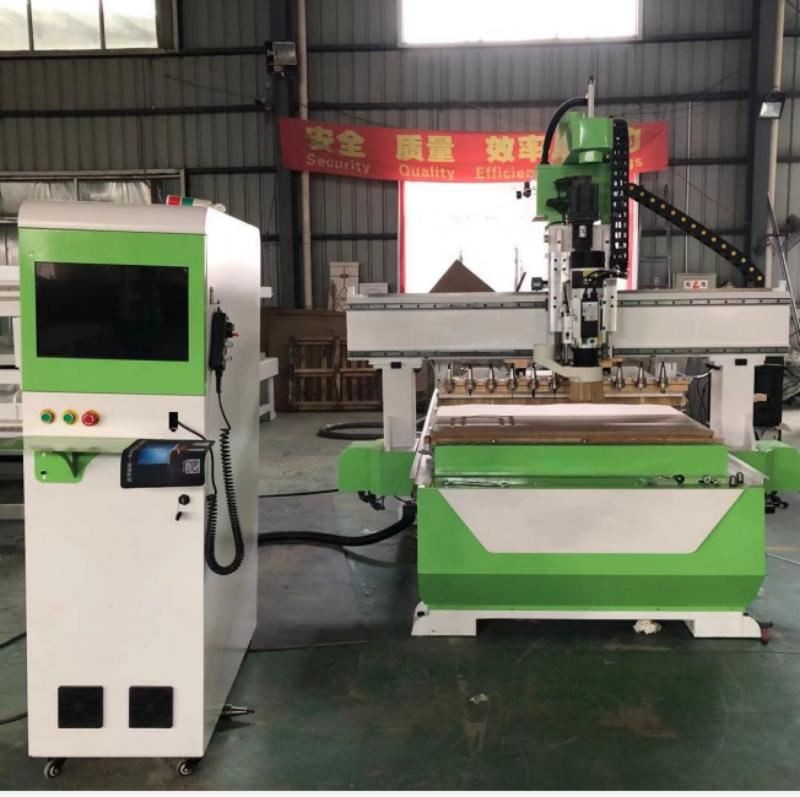

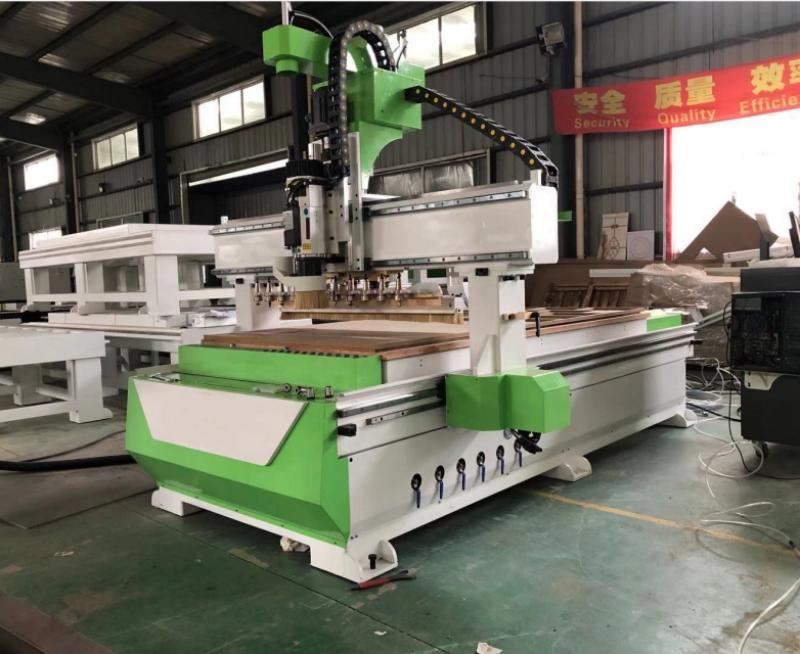

Product Description
Our ATC CNC Router has 10 and 12 tools for your choice, tools can be automatically replaced, the carousel type automatic tool changer is very fast and convenient, instead of manual tool change, saving time and high efficient.
Feature
1.This atc cnc router machine adopt automatic tool changer spindle makes machine with high precision, long service time and stable movement.
2. Configured with Linear tool magazine of 10, 12 tools the machine can change tools speedy and freely. Changing tools in 5 seconds.
3.Vacuum worktable in European standard are used in this atc router table cnc for carpentry, positioning cylinder can be added which make material positoning easily and fast.
4.With high-performance Japan YASKAWA servo motor, the Machine can work in high precision.The servo motor runs smoothly,no vibration phenomenon even in the low speed.And it has a strong ability of overload.
5.Syntec controller—enabling this product to accomplish multi-layer 3D job, cutting, engraving, milling, all at ease.
6. Z axises adopt Taiwan TBI ball screw transmission, X/Y/Z axis adopt Taiwan Hiwin square rail high precision, the structure is more stable.
7. Delta inverter,is one of the best inverter over the world,in addition to the advantage of Fuling inverter, thelife time ofDelta inverter is more longer and it can guarantee higher precision.
Application
Furniture: wooden doors,cabinets,plate,office and wood furniture,tables,chair,doors and windows.
The wood products: voice box,game cabinets,computer tables,sewing Machine table,instruments.
Plate processing: insulation part,plastic chemical components,PBC,inner body of car,bowling tracks,stairs,anti-Bate board,epoxy resin,ABS,PP,PE and other carbon mixed compounds.
Decoration industry: acrylic,PVC,MDF,artificial stone,organic glass,plastic and soft metals such as copper multifunction woodworking machine
Technical Parameters
| Model | GD-1325 |
| XY working area | 1300*2500mm(working area can be customized according to your needs) |
| Z axis | 200mm |
| Transmission system | XY axis: Helical gear rack Z: Taiwan TBI ball screw |
| Guide rail | Taiwan Hiwin/PMI linear square rail |
| Working Table | Vacuum adsorption |
| Repositioning Accuracy | ±0.03mm |
| Max. Rapid Travel Rate | 45000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle | 9.0kw ATC air cooling spindle |
| Control system | Taiwan SYNTEC control system |
| Command | G-code |
| Drive system | Japan YASKAWA servo motor and driver |
| Inverter | Delta |
| Spindle Speed | 0-24000rpm/min |
| Working Voltage | AC380V±10%, 50/60Hz |
| Warranty | One year |
| Payment | 30% T/T in advance, the balance to be paid before shipment |
| Package | Standard export wooden case |

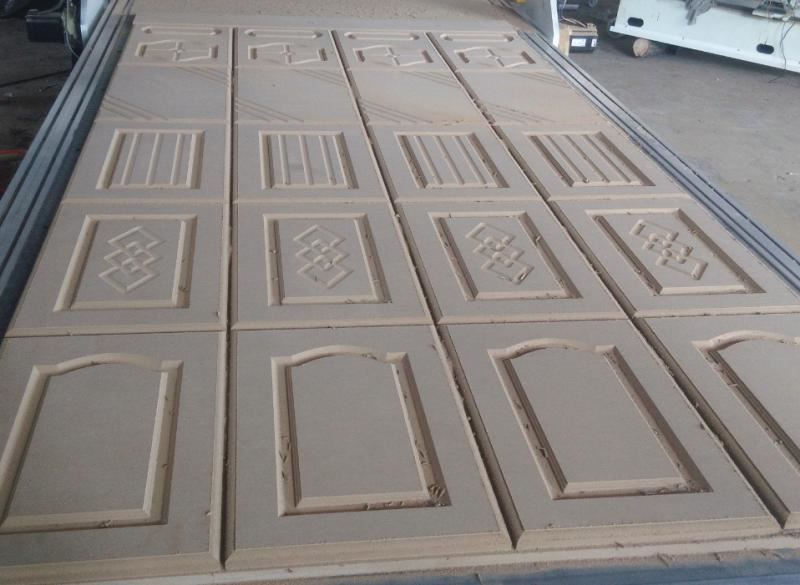

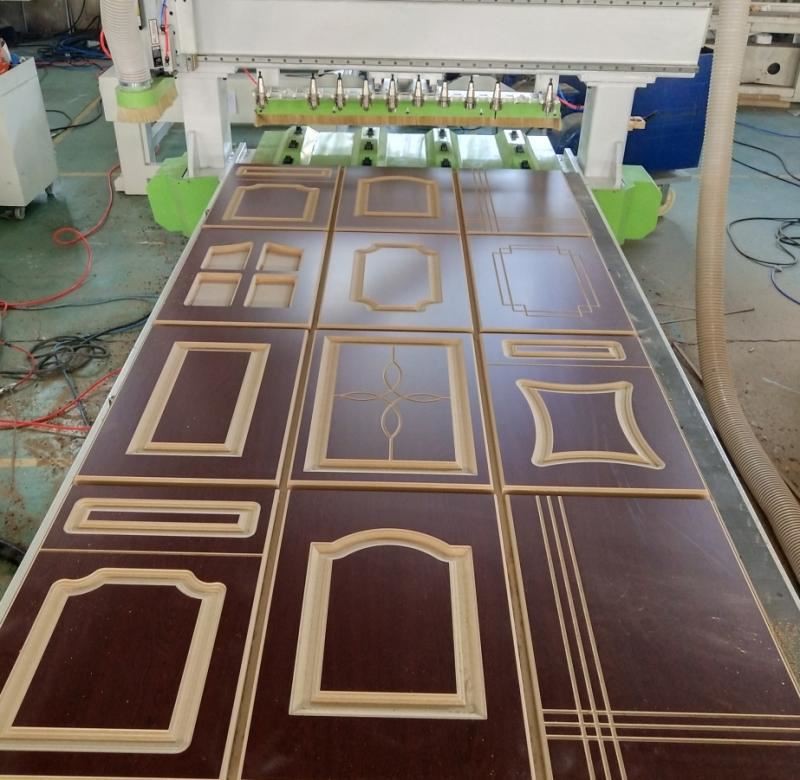

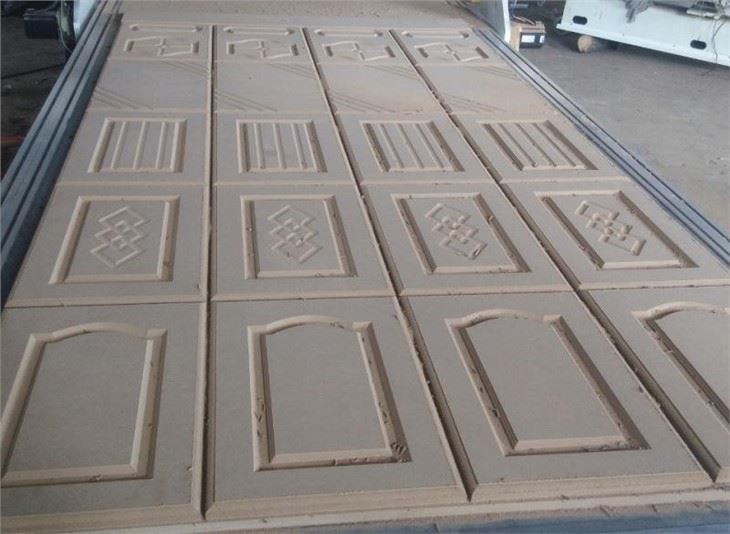

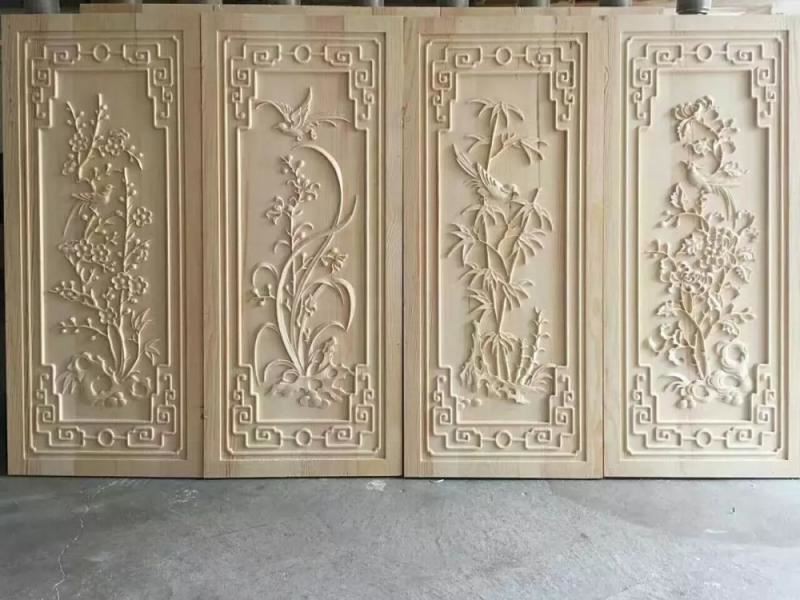

Sample
Our Services
1. Delivery and Lead time
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
Machine will be tidy and clean , with anti rusty oil brushed on mechanical parts to prevent rusty on sea transportation.
A series pictures and videos will provided as machine finished for help customer understand the performance of the machine.
2.Warranty:
Machine warranty is 12 months. Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free. Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided
Technical support by email, whatsapp, wechat,imo and skype available on time.
4. After sale service:
Normally the machine will sent on whole except the machine is over size to load container. so the machine arrange in production immediately after get electricity (air and water some model needed).
The video for operation will provide.
Training at our workshop or on site is available.
