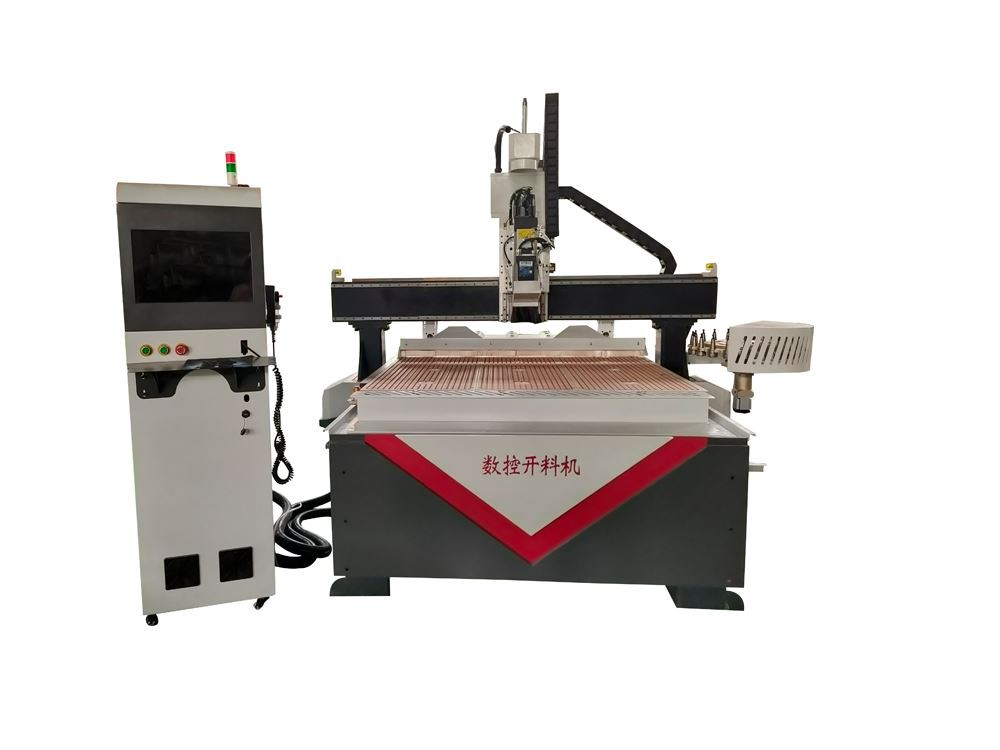

1325 woodworking cutting machine
Applicable
Details

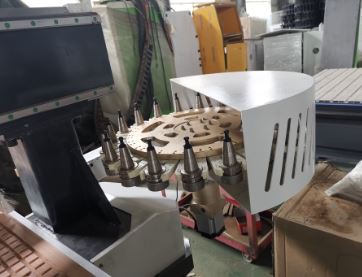

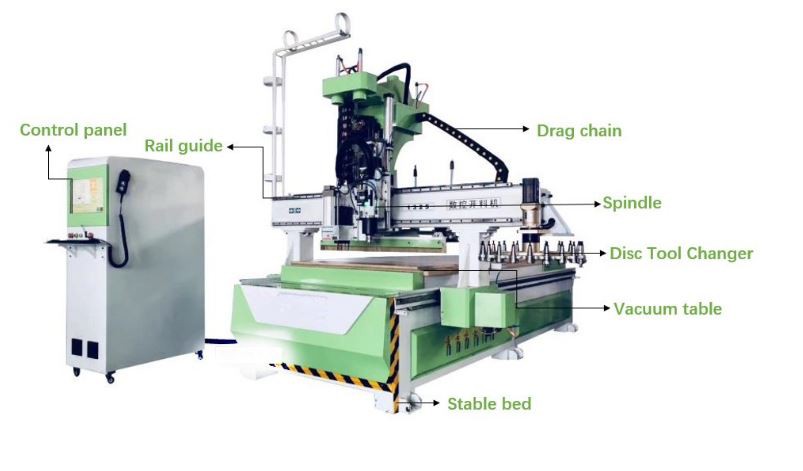

| 12 / 24 disc servo tool changer is faster and more accurate than stepper tool magazine |

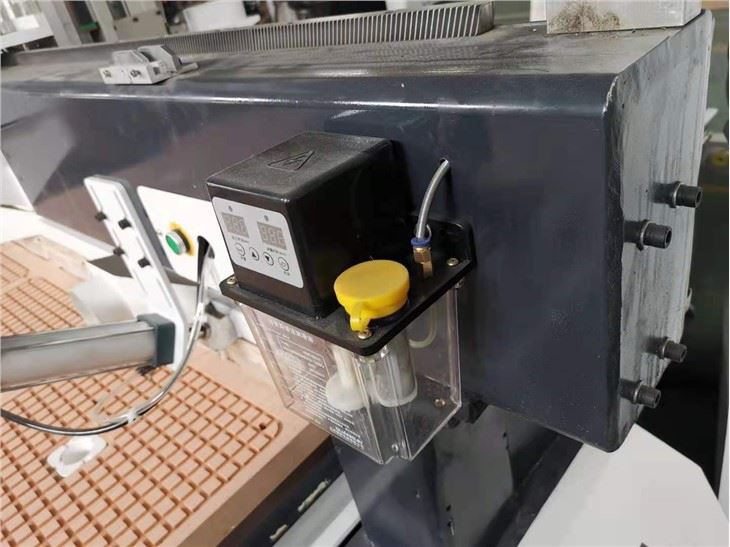

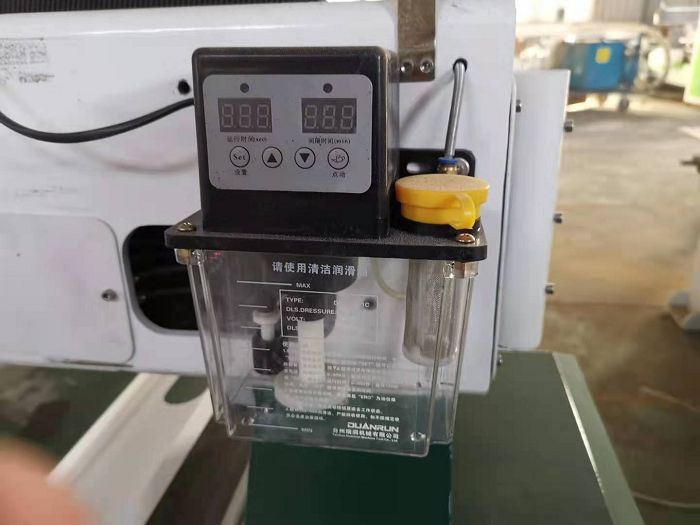

Automatic lubrication device The oiling device of automatic edge sealing machine can prolong the service life of the machine. |
|

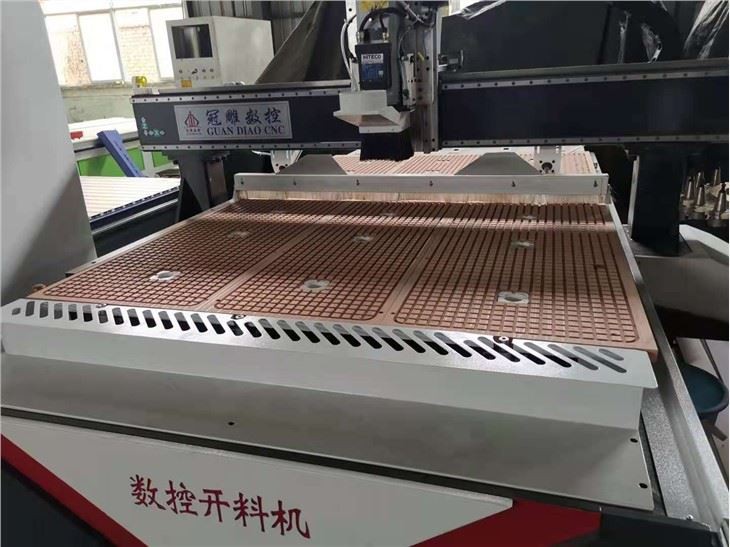

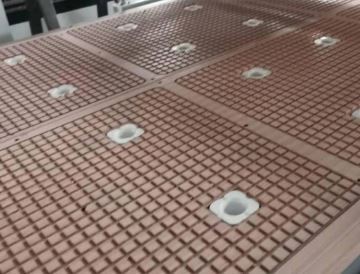

| Vacuum table, 6 separate vacuum adsorption table, high stability. It can absorb different sizes of plates, more flat plates |
Parameters
No. | Description | Parametrs |
1 | X,Y,Z Working Area | 1300x2500x200mm (4.3'x8.2'x0.7') |
2 | Table Size | 1360x2940mm (4.5'x9.6') |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.01 mm |
5 | Table Surface | Vacuum and T-slot combined (option: T-slot table) |
6 | Frame | Steel Tube Welded Structure |
7 | X,Y Structure | Rack and Pinion Drive, Hiwin Rails Linear Bearings |
8 | Z Structure | Hiwin Rails Linear Bearings and Ball Screw |
9 | Max. Power Consumption | 2.0kw (without spindle) |
10 | Max. Rapid Travel Rate | 33,000mm/min |
11 | Max. Working Speed | 25,000mm/min |
12 | Spindle Power | 9KW (others are optional) |
13 | Spindle Speed | 0-24000 RPM |
14 | Drive Motors | Stepper motor (Optional: servomotor) |
15 | Working Voltage | AC380V, 50/60Hz, 3PH (Option: 220V) |
16 | Command Language | G Code |
17 | Operating System | syntec (LNC is optional) |
18 | Computer Interface | USB |
Samples
Our service
1.24 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
7. Our staff can be sent to your company to install or adjust if necessary.
