Product Descrption

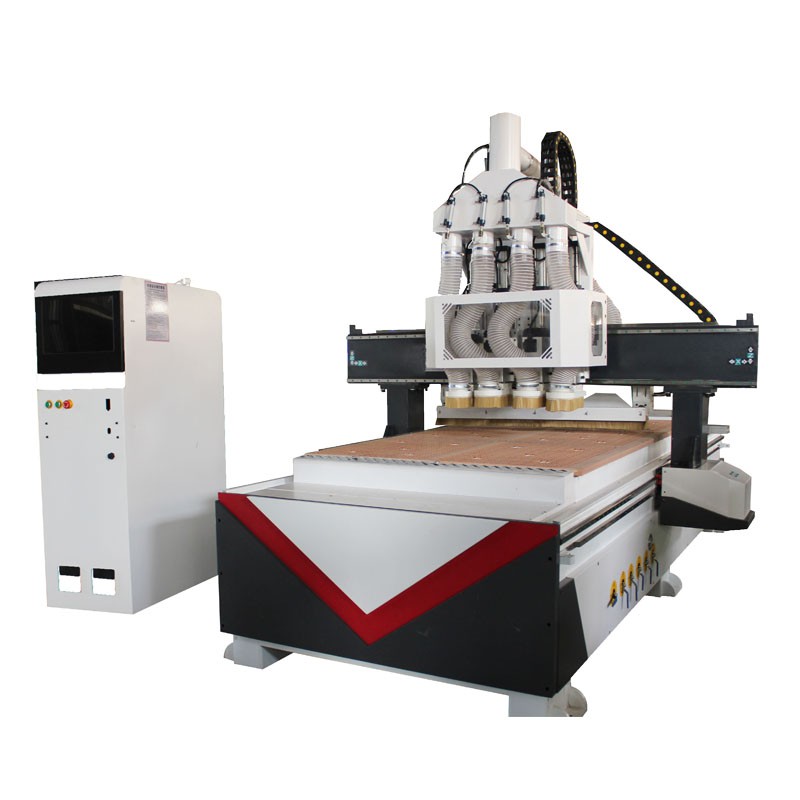

1325 Multi Spindle ATC CNC Router is our multi spindle CNC Router for wood door, panel cabinet and wood furniture making. It can save time for woodworking.
Features
1.Stable Structure: the overall steel structure welded, the vibration (tempering) aging treatment, long-term use of no deformation.
2.Machine adopts Taiwan SYNTEC/Jinke control system,high-performance industrial control system ,which has the excellent and stable quality, good maintenance and can control to process the completion of the multi-level 3D sculpture,with fast and smooth three-dimensional processing, carving and cutting.
3.The linear guide rail adopts Taiwan Hiwin 25mm linear square orbit, double row and four ball slider, loading capacity, smooth running, keeping high accuracy.
4.The machine worktable adopts the international leader vacuum technology, surface density, deformation, high adsorption capacity,which can strongly absorb different materials, convenient maintenance. automatic lubrication, only need to hand gently press can achieve the whole machine maintenance.
5.The software compatibility: compatible type3/castmate/artcam/ Wentai/Mastercame and other design software.
Technical Parameters
| Working size | 1300*2500*200 mm |
| Structure | Steel welding |
| Table surface | Vacuum adsorption with T-slot |
| Spindle | 4.5kw*2 + 6kw*2 Air Cooled |
| Transmission | XY axis: Germany Herion 1.5MRack and Pinion Z: Germany TBI Ball Screw |
| Guide rail | Taiwan HIWIN 25mm square |
| Motor | Leadshine 758s Servo |
| Driver | Leadshine 758s Servo |
| Control system | Taiwan Syntec / Shanlong / Mach 3 |
| Inverter | 11kw Fuling |
| Tool sersor | Yes |
| Oil | Automatic oil lubricating system |
| Software | Artcam / Type 3 / Ucancam |
| Package | Wooden box |
| Machine color | Can be customized |
Machine Details

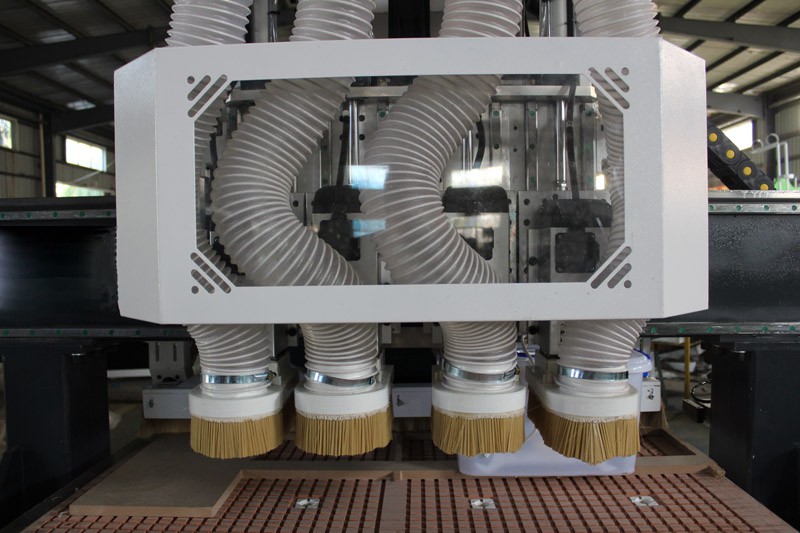

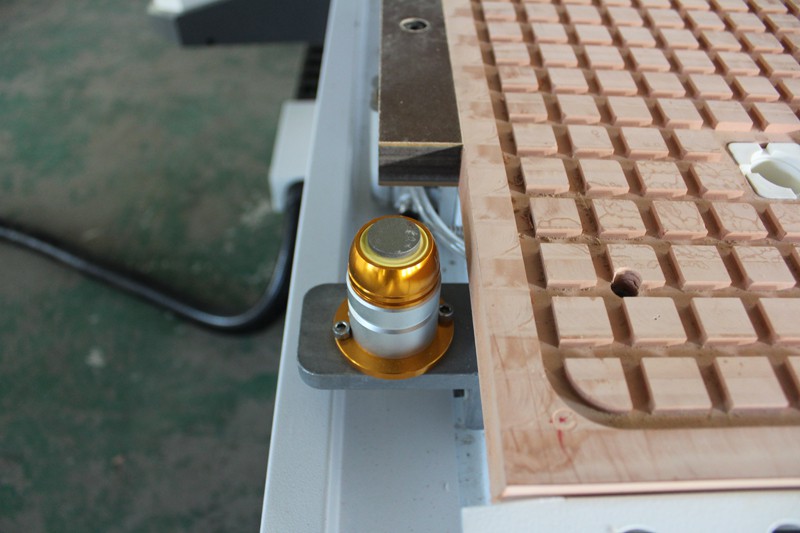

4.5kw*2+6kw*2 air cooled spindle Tool sensor

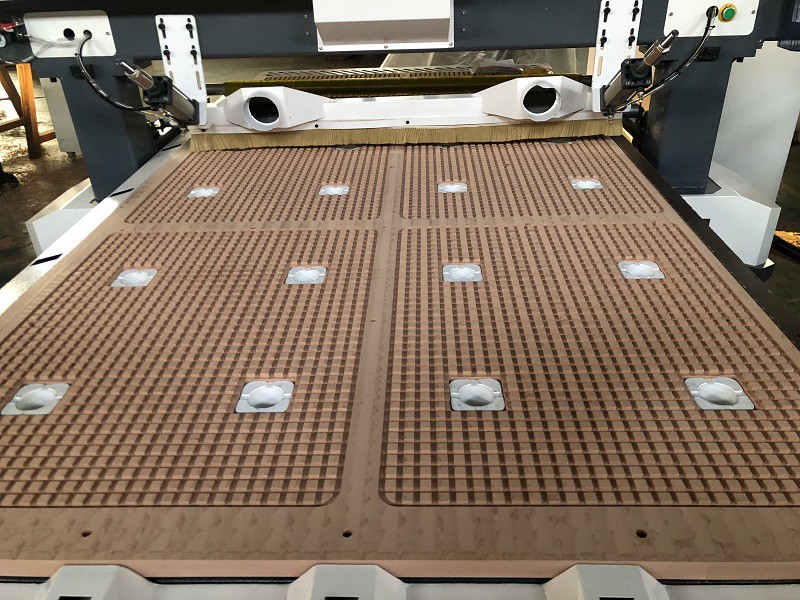

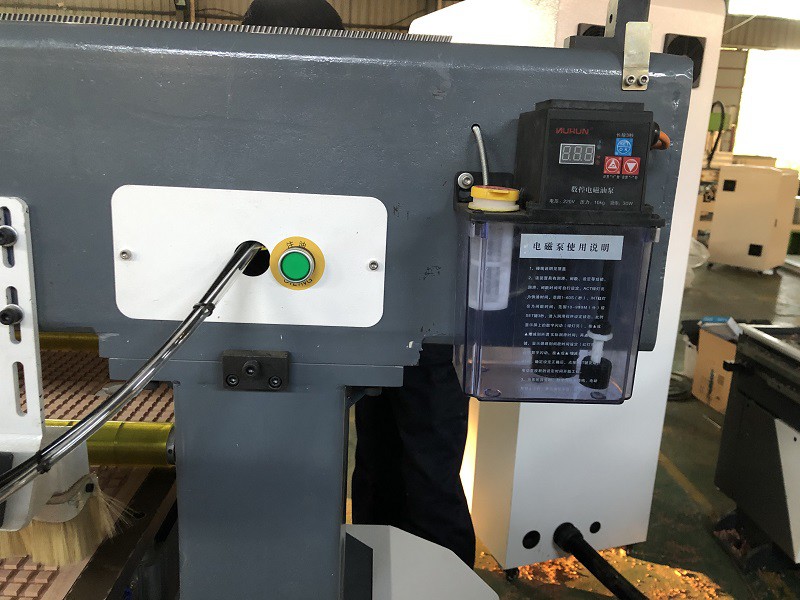

Vacuum adsorption table Auto oil lubricating system

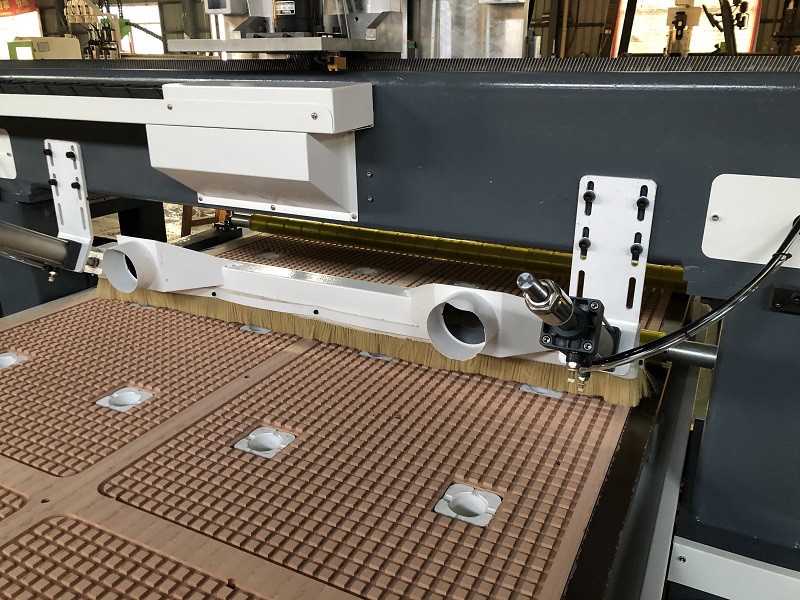

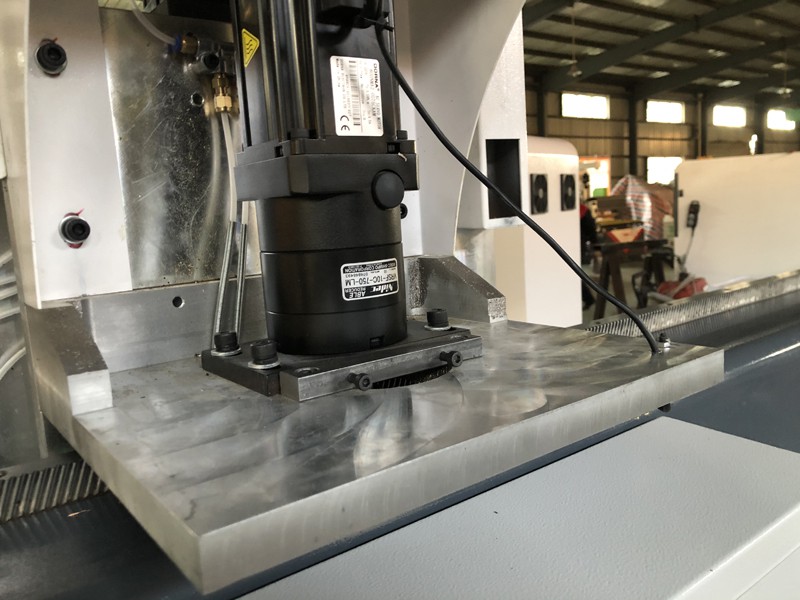

Servo driver with Imported reducer Feeding roller to push material
Application
Wood working: Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door, avoid wind, process of the artistic window,shoes cleaning machine,the cabinet of the playing machine and the board,mahjong table, computer table and the assistant process of the household effect
Advertising: Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
Model industry: It can engrave on the steal materials such as copper, aluminum ,iron etc and non-mental materials such as man-made marble, sand, plastic board PVC materials, wood board etc.
Other field: It can engrave many image, engrossment,It is widely used in artistic industry.
Packing & Shipping
Packing: Strong wooden package
Shipping: 20-30 working days after get deposit
