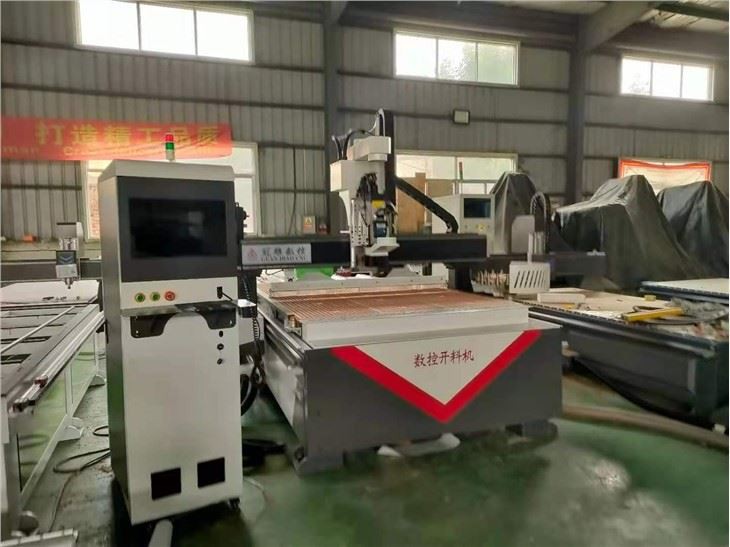

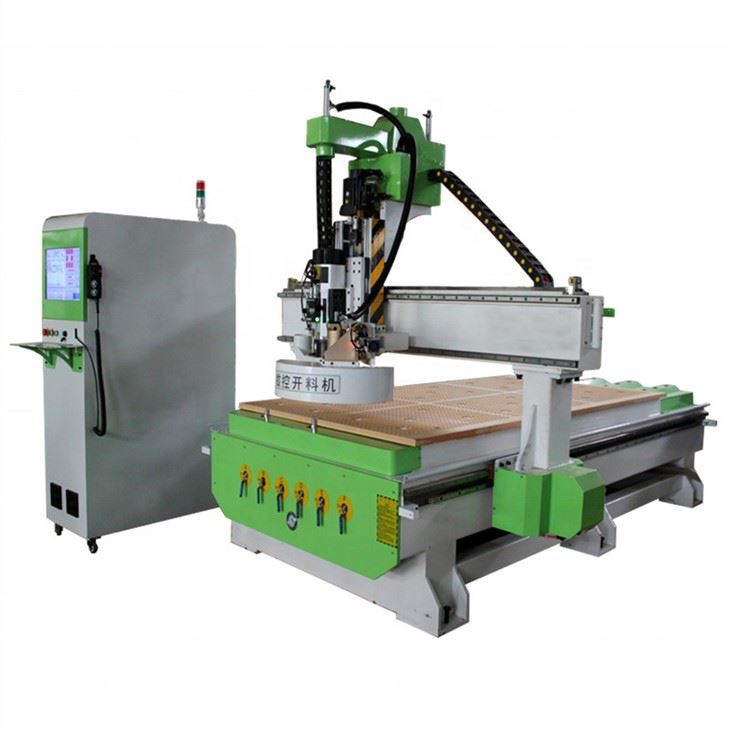

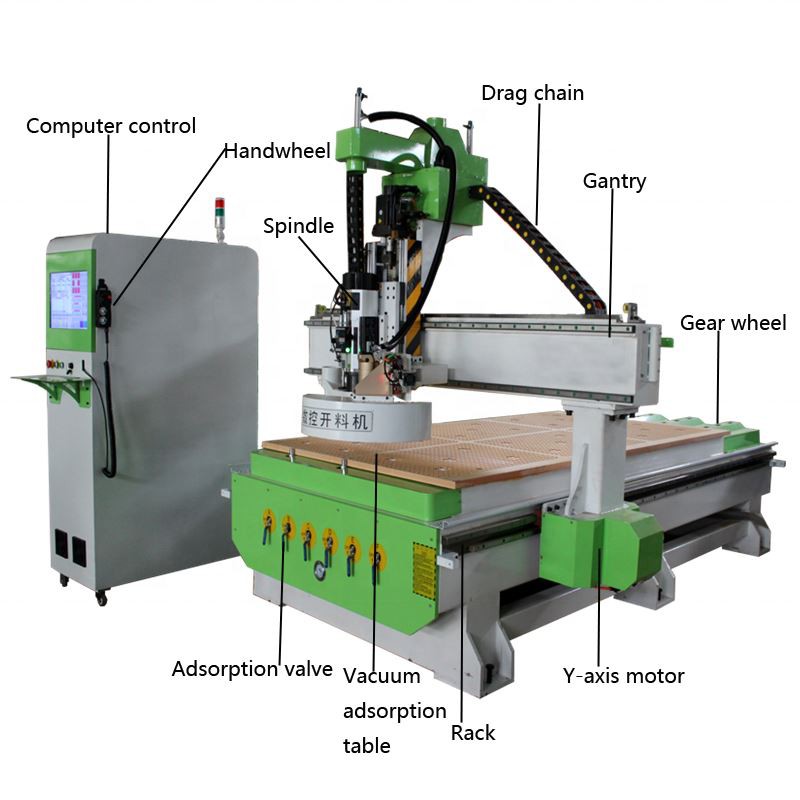

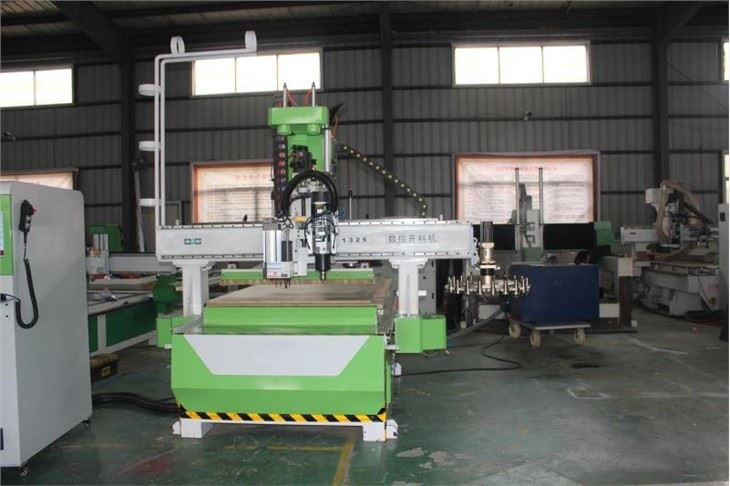

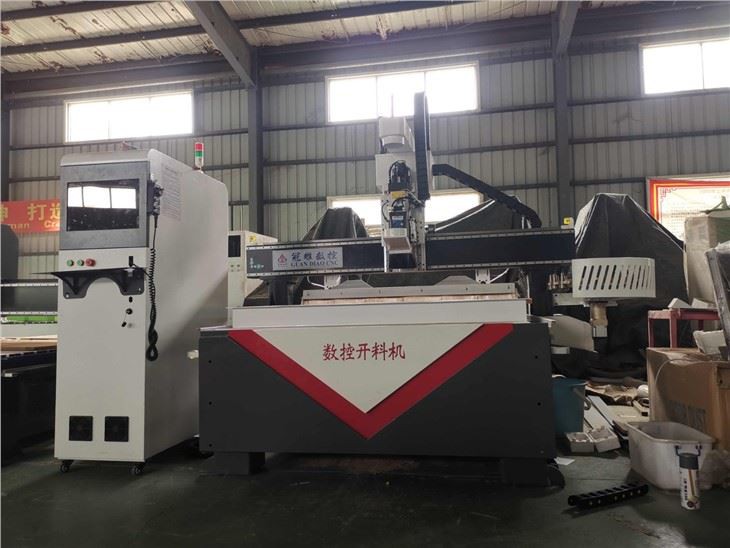

1325 ATC CNC machine with boring head
Advantages:
*Disc automatic tool changing engraving machine adopts integral steel structure welding and tempering treatment, so it will never deform. This engraving machine adopts Taiwan's new generation high-performance industrial control system, so it has good quality and convenient maintenance. Multi level 3D processing can be completed with high work efficiency, which can realize processing, engraving, cutting and other processes.
*The spindle motor of disc automatic tool changing engraving machine adopts imported spindle, with high precision, high speed, low noise and long service life. In the process of operation, the advantages of the engraving machine can be brought into full play.
*The disc automatic tool changing engraving machine can complete multiple processes at one time, such as drilling, cutting, engraving, keyhole and so on. Because the imported square linear guide rail is adopted, the precision is very accurate and the operation is very stable.
Parameter Description
No. | Description | Parametrs |
1 | X,Y,Z Working Area | 1300x2500x200mm (4.3'x8.2'x0.7') |
2 | Table Size | 1360x2940mm (4.5'x9.6') |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.01 mm |
5 | Table Surface | Vacuum and T-slot combined (option: T-slot table) |
6 | Frame | Steel Tube Welded Structure |
7 | X,Y Structure | Rack and Pinion Drive, Hiwin Rails Linear Bearings |
8 | Z Structure | Hiwin Rails Linear Bearings and Ball Screw |
9 | Max. Power Consumption | 2.0kw (without spindle) |
10 | Max. Rapid Travel Rate | 33,000mm/min |
11 | Max. Working Speed | 25,000mm/min |
12 | Spindle Power | 9KW (others are optional) |
13 | Spindle Speed | 0-24000 RPM |
14 | Drive Motors | Stepper motor (Optional: servomotor) |
15 | Working Voltage | AC380V, 50/60Hz, 3PH (Option: 220V) |
16 | Command Language | G Code |
17 | Operating System | syntec (LNC is optional) |
18 | Computer Interface | USB |
19 | Flash Memory | 128M (Flashdrive) |
20 | Collet | ER32 |
21 | X,Y Resolution | < 0.01mm |
22 | Software Compatibility | Type3/ Ucancame V9 software (Option: Artcam Software) |
Detailed Images

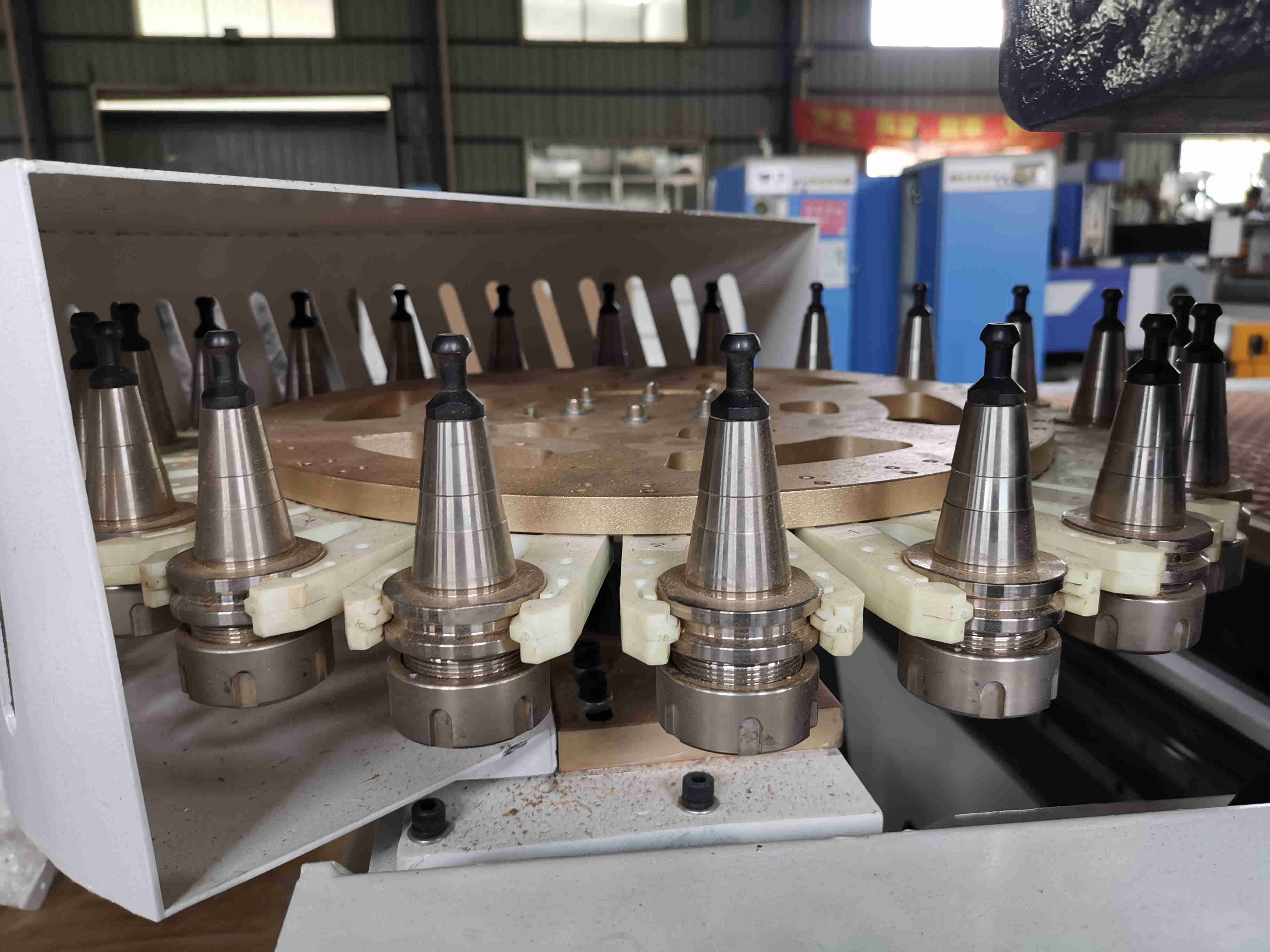

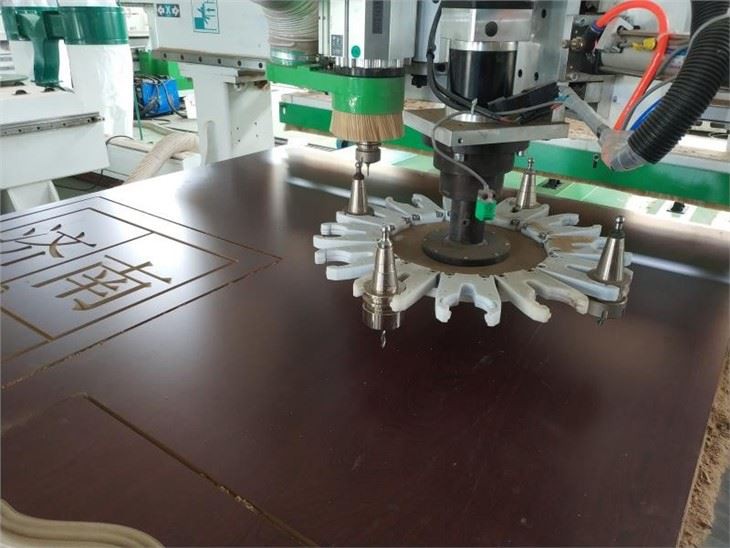

| High quality disc tool magazine The high-quality disk knife library is equipped with imported servo motor, which can be equipped with 16-20 storage positions to meet the needs of multi process workers. |
| High quality bed The bed is welded with thickened square tube, which is firm and durable. High temperature tempering treatment ensures the stability of the bed for a long time. Five axis machining center ensures the high precision of the machine. |

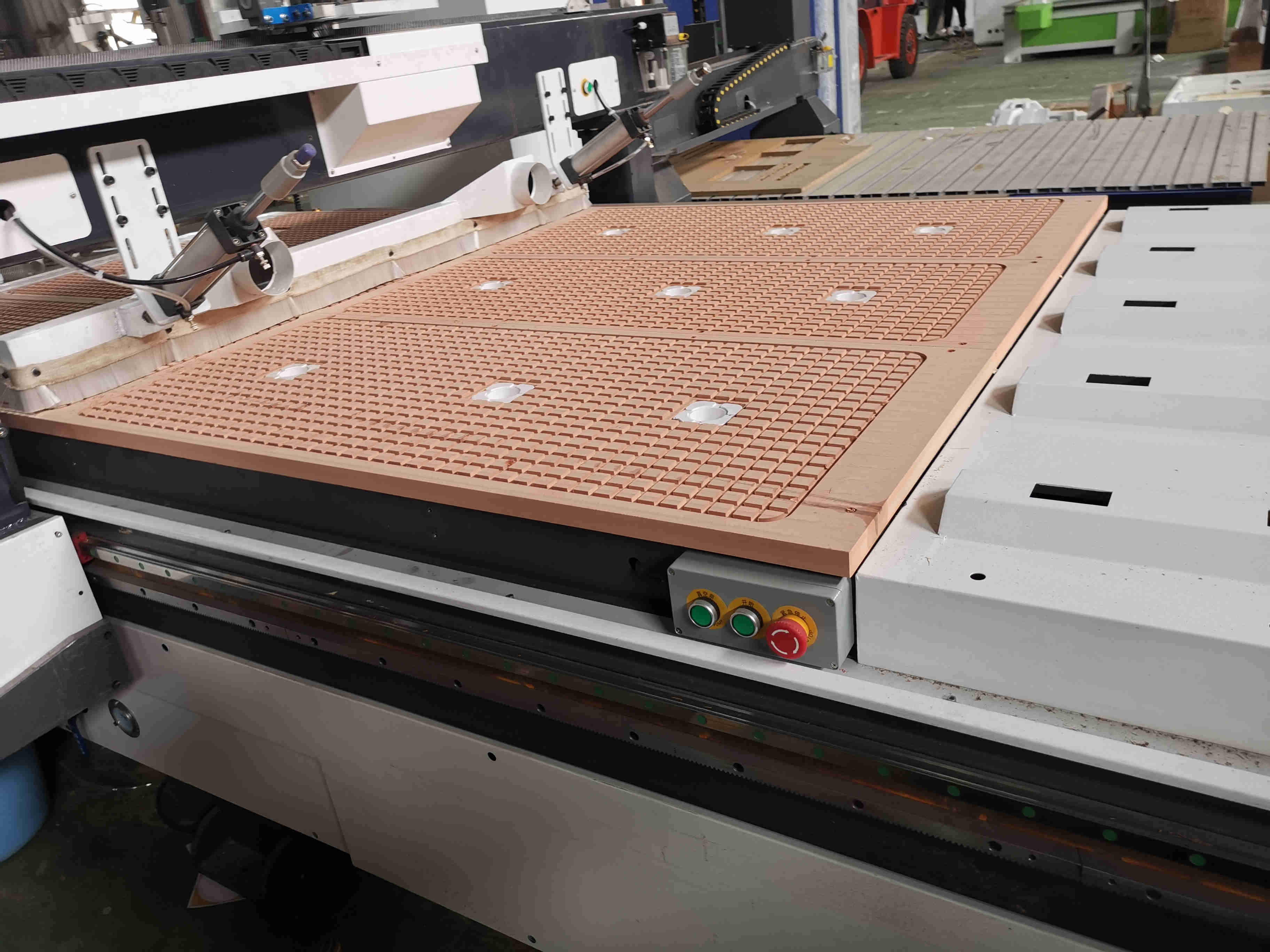

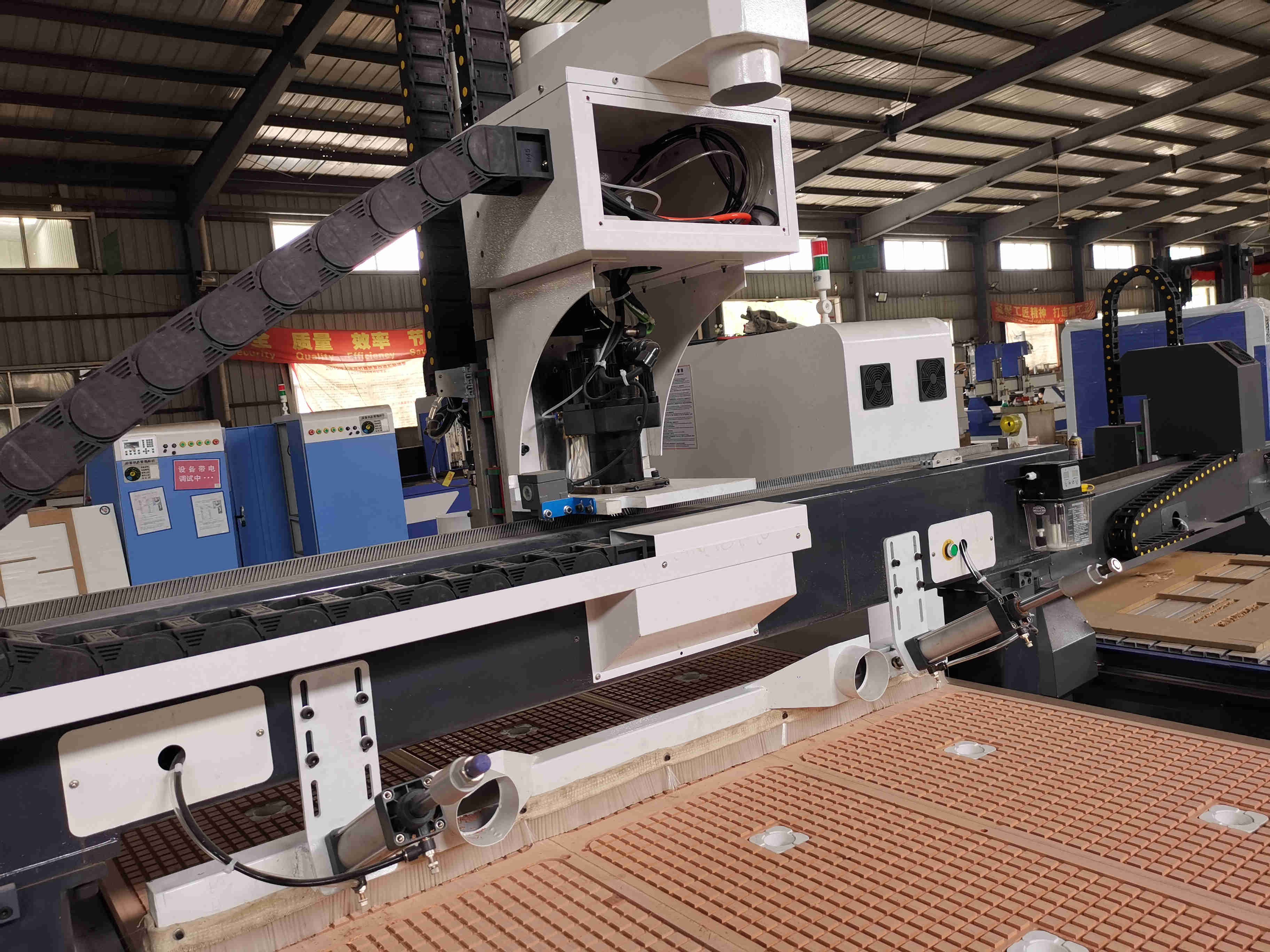

| Vacuum adsorption table The vacuum adsorption table has strong adsorption capacity and is made of high strength plate with excellent wear resistance. |

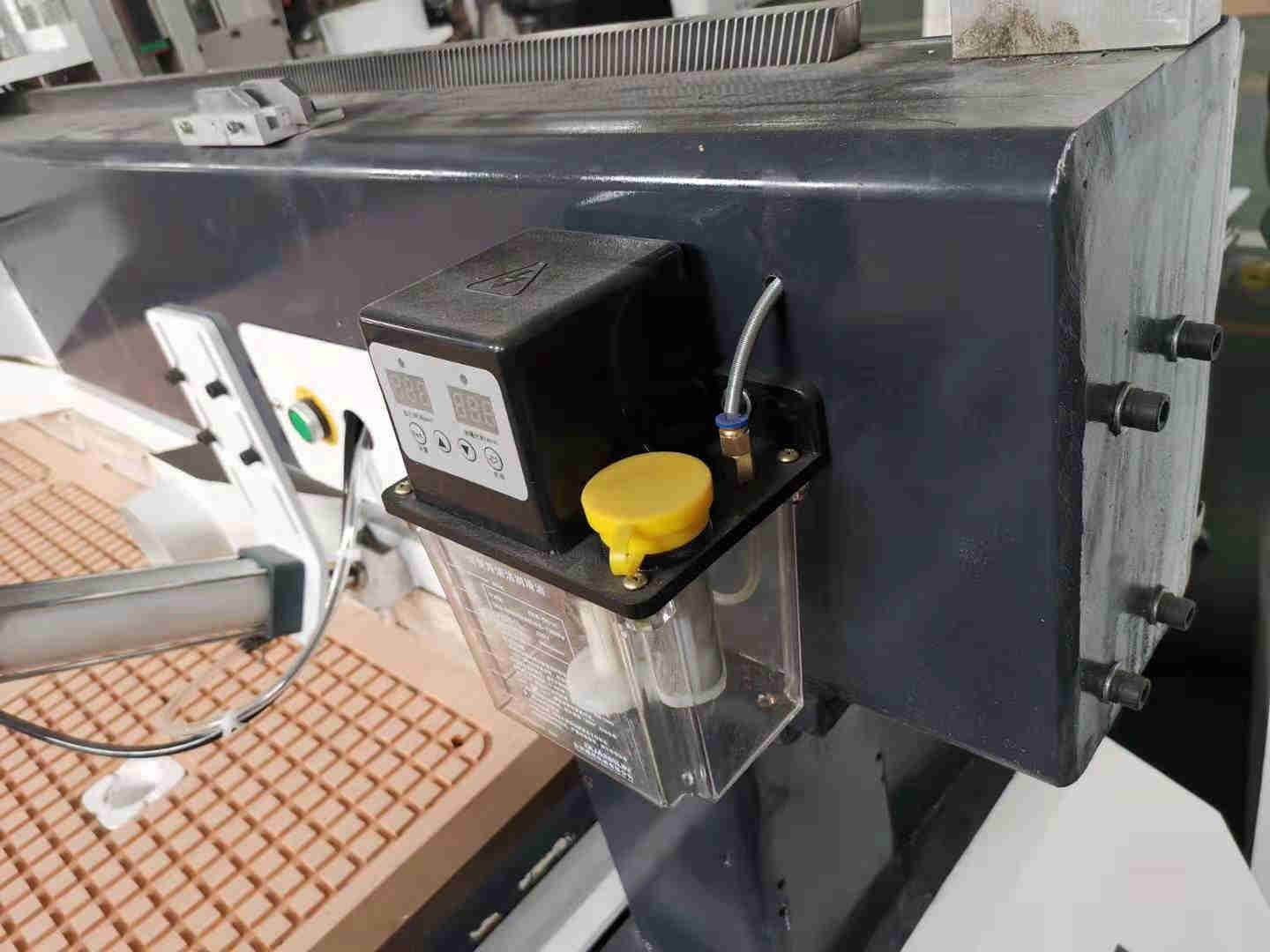

| Automatic oil injection The machine can be automatically filled with oil when it is working,which prolongs the service life ofthe machine. |
Application

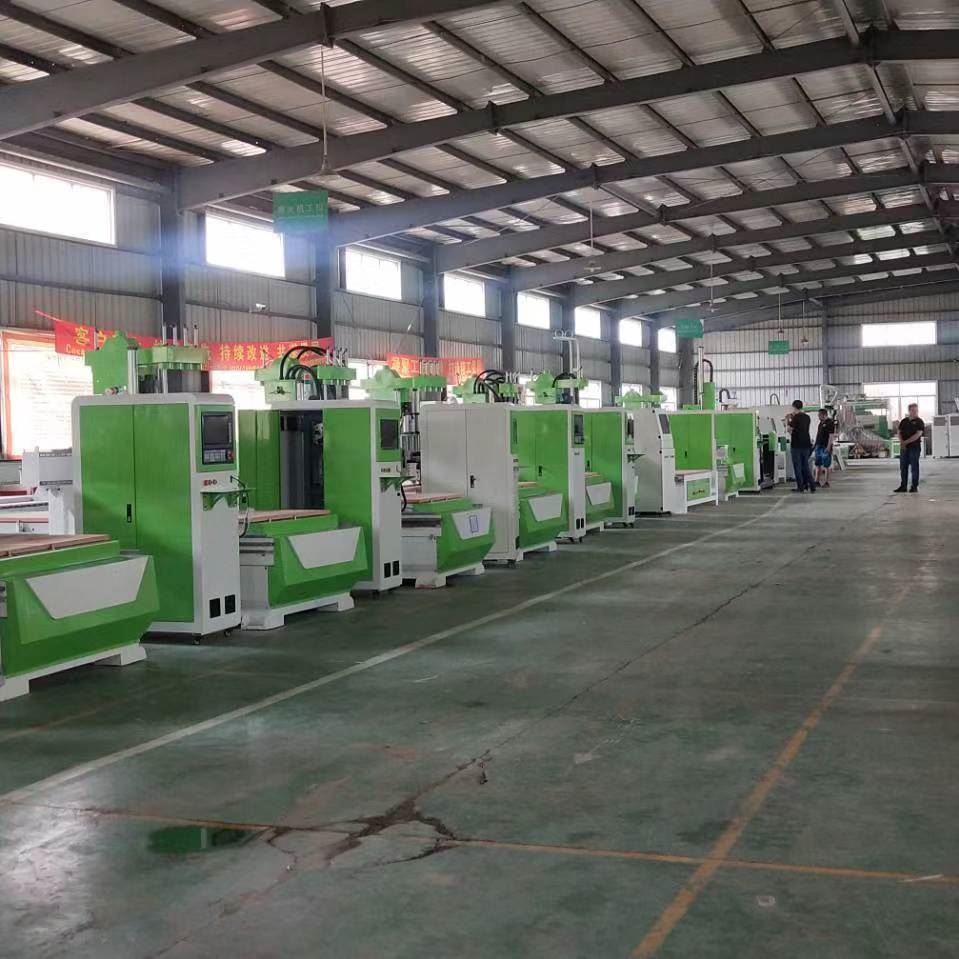

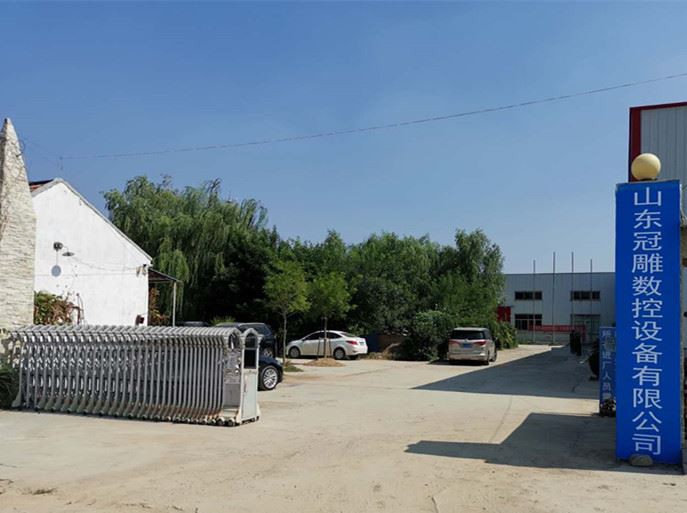

Company Information
|
|
Our Services
1) Warranty ”Quality Make Brand, Honesty Win Market” is our culture!!
All life-time technical support; 24 months for whole machine; wholfe life time free service.
2) Service
Welcome to come to our factory for inspection at any time.
Whole visual machine production process
Professional multilingual sales team
Free Training Team at factory,to ensure that every customer operates the machine skillfully
Professional engineer after-sales team
